Showing 737–752 of 1357 results
-
REQUEST A QUOTE
- Power Supply: 100–240V AC operating voltage (50/60 Hz).
- Total I/O: 16 built-in I/O points (9 digital inputs and 7 relay outputs).
- Analog Capabilities: Includes 1 embedded analog input (0–10V DC).
- Memory Capacity: 384KB of program capacity with an integrated SD memory card port for data logging and web server capabilities.
- System Expansion: Expandable up to a maximum of 404 digital I/O points or 101 analog I/O points using up to 12 expansion modules.
- Communication Ports: Built-in Ethernet (Modbus TCP), mini-B USB port, and one RS-232C/RS-485 selectable serial port.
- Environment Rating: IP20 rated, operating temperatures from -25°C to 65°C, and certified for Class I Div 2 hazardous environments.

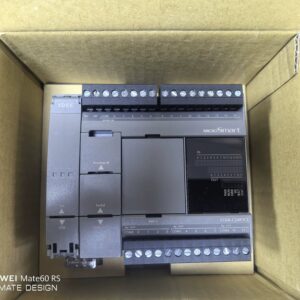

Brand New IDEC FC6A-C16R1AE PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: 24V DC
- Total Embedded I/O: 24 (14 Inputs / 10 Outputs)
- Output Type: Transistor Sink (Solid-state)
- Program Capacity: 384 KB
- Expansion Capability: Up to 504 Digital I/O / 124 Analog I/O
- Operating Temperature: -25°C to 65°C (Note: Some listings state -10°C to 55°C)
- IP Rating & Safety: IP20; Class I Division 2 (Hazardous Locations)
- Embedded Networking: Includes 1 RJ45 Ethernet port supporting Modbus TCP.
- Serial Port: 1 user-selectable RS232C/RS485 port supporting Modbus RTU.
- Web Server Functions: Built-in web server capability allowing for remote system monitoring.

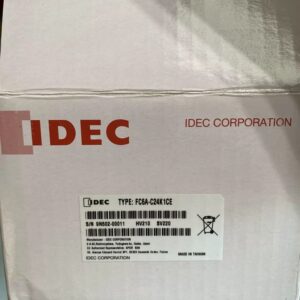

Brand New IDEC FC6A-C24K1CE PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Temperature: Built for extreme settings with a wide tolerance ranging from -25°C to 65°C.
- Safety Certifications: Features an IP20 rating and carries cULus, CE, and TUV certifications. It is safety-rated for hazardous locations under Class I Div 2.

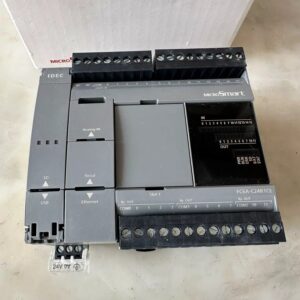

Brand New IDEC FC6A-C24P1CE PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: 24V DC
- Program Capacity: 384 KB (supports Ladder logic and scripting)
- Memory Features: 56,000 Data registers, 12,400 Internal relays, and 1,024 Timers
- Backup Battery: BR-2032 coin cell
- Embedded Digital I/O: 24 Points total
- Inputs: 14 Digital inputs
- Outputs: 10 Relay outputs
- Embedded Analog I/O: 1 channel (0–10 V DC input type)
- High-Speed Processing: 100 kHz High-speed counter
- Terminal Type: Built-in screw terminals
Brand New IDEC FC6A-C24R1CE PLC Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- I/O Configuration: 40 embedded I/O points consisting of 24 digital inputs (sink/source) and 16 digital outputs. It also includes 1 embedded analog input (0-10V DC).
- Output Type: Transistor source (0.5A per point at 24V DC).
- Power Supply: 24V DC operating voltage.
- Memory & Performance: 384 KB program capacity, 1,024 timers, and 56,000 data registers. It supports high-speed counters up to 100kHz.
- Expandability: Supports up to 15 expansion modules on the right side, allowing the system to scale up to 520 digital I/O or 126 analog I/O. It also accommodates a cartridge slot for additional analog or serial ports.
- Environment: Rated for harsh environments with an operating temperature of -25°C to 65°C and certified for Class I Div 2 hazardous locations.
- Embedded Ports: Includes 1 RJ45 Ethernet port, 1 USB Mini-B port for programming, and 1 user-selectable RS232C/RS485 serial port. It also has an embedded SD memory slot for data logging and program transfers.
- Protocols: Supports Modbus TCP and RTU natively. As an All-in-One CPU, it features built-in SAE J1939 protocol capabilities, making it ideal for diesel engines, mobile power generators, and vehicular tracking systems.
- Web Server & Software: Offers an integrated web server function for custom HTML monitoring. It is configured using IDEC's WindLDR Software.

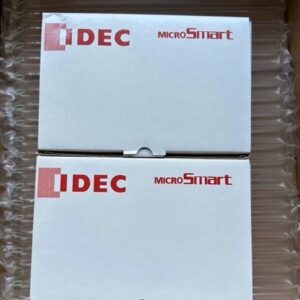

Brand New IDEC FC6A-C40P1CE PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- I/O Capacity: 40 built-in I/O points split into 24 digital inputs and 16 transistor source outputs. It is expandable up to 520 digital I/O and 126 analog I/O via up to 15 expansion modules.
- Connectivity: 1 embedded RJ45 Ethernet port, 1 mini-B USB port, 1 user-selectable RS232C/RS485 serial port, and an embedded SD memory port.
- Protocols: Features specialized SAE J1939 protocol alongside Modbus TCP, Modbus RTU, and integrated web server and data logging functionalities.
- Environment & Standards: Rated for temperatures from -25°C to 65°C and carries Class I Division 2 hazardous location certifications.
Brand New IDEC FC6A-C40P1CEJ PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: IDEC Corporation
- Model Number: FC6A-C40R1AE
- Total Built-in I/O: 40 Points (24 inputs / 16 outputs)
- Input Ratings: Digital: 24V DC Sink/Source; Analog: 1 built-in (0 to 10V DC)
- Output Type: Relay outputs
- Supply Voltage: 100 to 240V AC (50/60 Hz)
- Operating Temperature: -25°C to 65°C
- IP Rating: IP20
- Certifications: cULus, CE Marking, TUV, Class I Division 2 Hazardous Locations
- Ports: Includes 1 RJ45 Ethernet port, 1 Mini-B USB programming port, and an embedded SD memory card slot for data logging.
Brand New IDEC FC6A-C40R1AE PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Module Type: Specialty Expansion Interface Module
- Current Rating: 0.02A (requires a 24V DC power source)
- Operating Temperature: Extremely robust, rated for -25°C to 65°C
- Terminal Type: Screw terminals for secure wiring
- Unlocking Method: Manual actuator lock release
- Certifications: CE marked, UL listed, TUV certified, and rated for Class I Division 2 hazardous locations
Brand New IDEC FC6A-EXM2 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Channels: 2 analog inputs
- Signal Resolution: 16-bit high-resolution conversions
- Voltage: 0–10V DC, -10V to +10V DC
- Current: 0–20 mA, 4–20 mA
- Operating Voltage: 24V DC
- Terminal Style: Pluggable screw terminals
- Environmental & Safety: IP20 rating, Class I Division 2 hazardous location certified, and an extended operating temperature range of -25°C to 65°C.
Brand New IDEC FC6A-J2C1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Channels: 4 analog inputs
- Resolution: 12-bit
- Supported Signal Types: Covers standard current and voltage loops including 0-10V DC, -10 to +10V DC, 0-20 mA, and 4-20 mA.
- Connection Type: Screw terminals
- Operating Temperature: Wide industrial range from -25°C to 65°C.
- Certifications: IP20 rated, UL certified, CE marked, and approved for Class I Division 2 hazardous locations.
Brand New IDEC FC6A-J4A1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Module Type: Analog Input Expansion Module
- Channel Density: 8 Channels (Inputs)
- Input Signal Types: Voltage & Current
- Resolution: 12-bit
- Power Supply: 24V DC
- Enclosure Rating: IP20
- Mechanical Integrity: Engineered with a compact form-factor capable of standard DIN-rail mounting and rated for up to 100 insertion/removal cycles.
- Hazardous Environments: Explicitly certified under Class I Division 2 for zones where flammable gases, vapors, or liquids may temporarily exist.
- Safety Approvals: CE Marked, cULus Listed, and TUV Certified.
- Environmental Regs: Fully RoHS compliant and ABS Type Approved (for maritime deployments).
Brand New IDEC FC6A-J8A1 I/O Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Channels: 8-point analog input
- Sensor Compatibility: Supports Thermocouples (Types K, J, R, S, B, E, T, N, C) and Thermistors (NTC/PTC)
- Resolution: Up to 15-bit high-resolution input
- Power Supply: 24V DC
- Connection Type: Pluggable screw terminals
- Environmental Protections: IP20 rated enclosure, operating temperature range of -25°C to 65°C
- Certifications: CE marked, cULus listed, TUV certified, and approved for Class I Division 2 hazardous locations
Brand New IDEC FC6A-J8CU1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Module Type: Analog Output Module (Expansion)
- Number of Channels: 2 points
- Resolution: 12-bit
- Voltage: 0 to 10V DC, -10 to +10V DC
- Current: 0 to 20 mA, 4 to 20 mA
- Power Consumption: 0.27 W
- Wiring Terminal: Screw terminals
- Isolation: No isolation
- Operating Temperature: -25°C to 65°C (-13°F to 149°F)
- IP Rating: IP20 (finger-safe protection)
Brand New IDEC FC6A-K2A1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Outputs: 4 channels (Analog)
- Signal Resolution: 12-bit
- Voltage: 0–10V DC, -10 to +10V DC
- Current: 0–20 mA, 4–20 mA
- Supply Voltage: 24V DC
- Power Consumption: 0.34 W
- Termination Style: Pluggable screw terminal
- Mounting Type: 35mm DIN Rail
- Operating Temperature: -25°C to 65°C (-13°F to 149°F)
- IP Rating: IP20 (finger-safe protection)
Brand New IDEC FC6A-K4A1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- I/O Configuration: Features 3 total channels arranged as 2 analog inputs and 1 analog output.
- Input Signal Types: Supports Voltage (0-10 VDC, -10 to 10 VDC), Current (0-20 mA, 4-20 mA), Thermocouple (Types K, J, R, S, B, E, T, N, C), and RTD (Pt100/1000, Ni100/1000) temperature signals.
- Output Signal Types: Outputs standard industrial signals including 0-10V DC, -10 to +10V DC, 0-20 mA, and 4-20 mA.
- Resolution: Provides precise analog processing up to 16-bit resolution.
- Physical Connections: Outfitted with a secure screw terminal block for reliable field wiring.
- Industrial Durability: Operates under severe temperature fluctuations ranging from -25°C to 65°C (-13°F to 149°F).
- Safety & Hazard Approvals: Holds a strict Class I Division 2 rating for hazardous environments. It is fully certified by cULus, CE, and TUV standards and carries an IP20 protection rating.
Brand New IDEC FC6A-L03CN1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Channels: 4 analog inputs and 2 analog outputs (combination module).
- Signal Formats: Supports 0–10 VDC, ±10 VDC, 0–20 mA, and 4–20 mA voltage and current ranges.
- Resolution: 12-bit resolution ensuring dependable processing accuracy.
- Physical & Industrial Specs: Includes screw terminal connections, an IP20-rated enclosure, and Class I Division 2 certification for hazardous areas.
- Temperature Range: Operates reliably between -25°C and 65°C.
Brand New IDEC FC6A-L06A1 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
