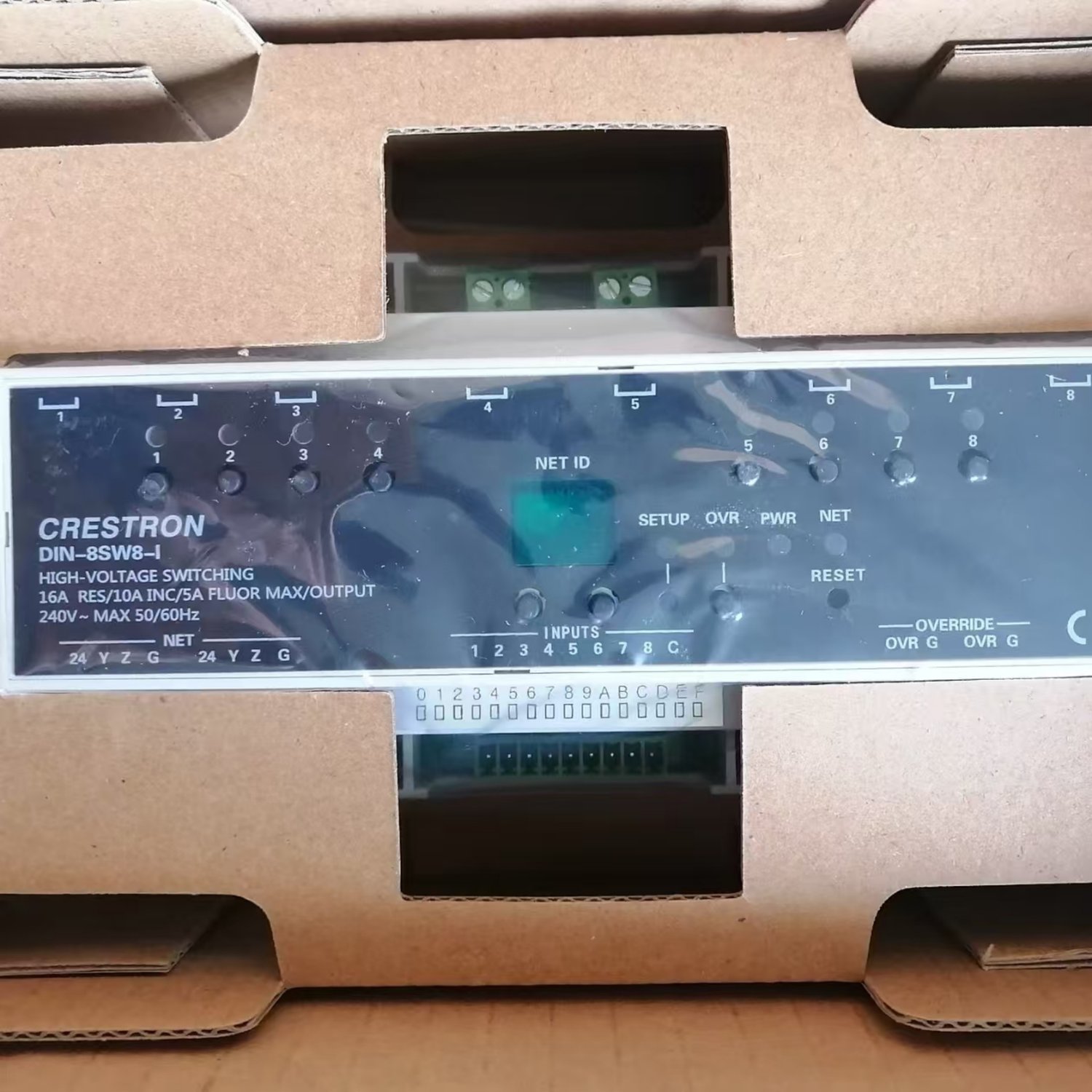

CRESTRON DIN-8SW8-I Lighting Load Control Module (DIN Series)

• Switch Channels: 8 independent power switching channels
• Supported Voltages: Line-voltage auto-sensing: 120 V and 220–240 V AC, 50/60 Hz
• Channel Load Ratings: • Incandescent / Resistive: 10 A max per channel
• Digital Inputs: 8 voltage-driven, isolated digital local inputs (3.5 mm detachable terminal blocks)
• Communication Protocol: Cresnet® (features dual ports for seamless daisy-chaining)
• Cresnet Power Usage: 6 Watts (250 mA @ 24 Volts DC)
• Enclosure / Form Factor: Light gray polycarbonate housing; occupies 9 DIN module spaces (162 mm / 6.38 in)
• Mounting: 35 mm DIN EN 60715 rail mount
• Integrated Digital Inputs (-I Variant): Unlike standard switching modules, the "-I" model includes 8 isolated local inputs. By default, a momentary voltage applied to an input toggles its corresponding relay on or off. This allows standard, local wall switches or occupancy sensors to bypass the main processor entirely if needed, creating a fallback mechanism if the central automation system goes offline.
• Hardware Override Input: Includes a dedicated master override input. A single external contact closure can instantly trigger all 8 channels to adjust to a preconfigured emergency or maintenance level, adjustable directly from the unit's front face or via software.

Brand New CRESTRON DIN-8SW8-I Switch. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
