SMAT-8M-U-E-0.3-M8D 553744 Sensor For FESTO

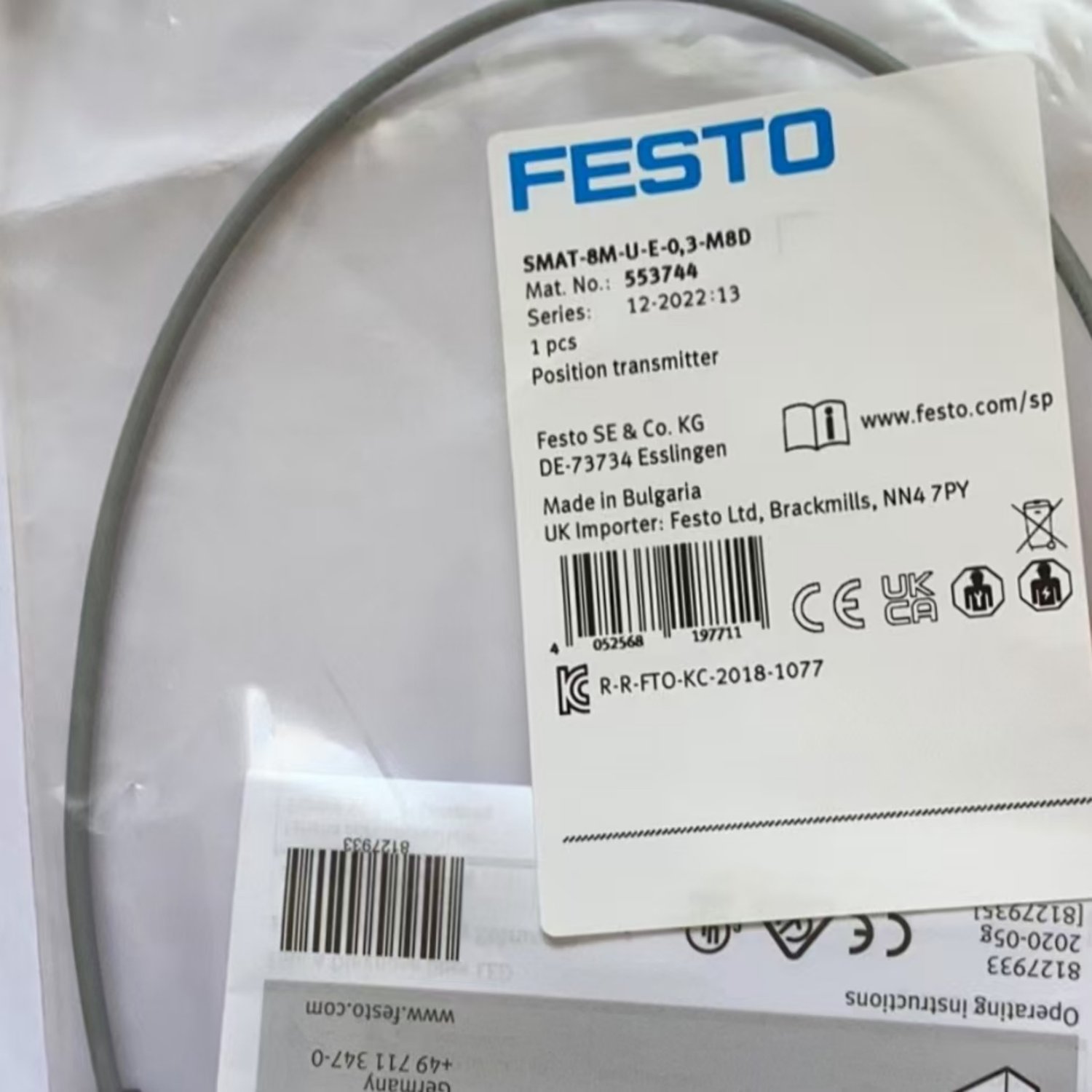

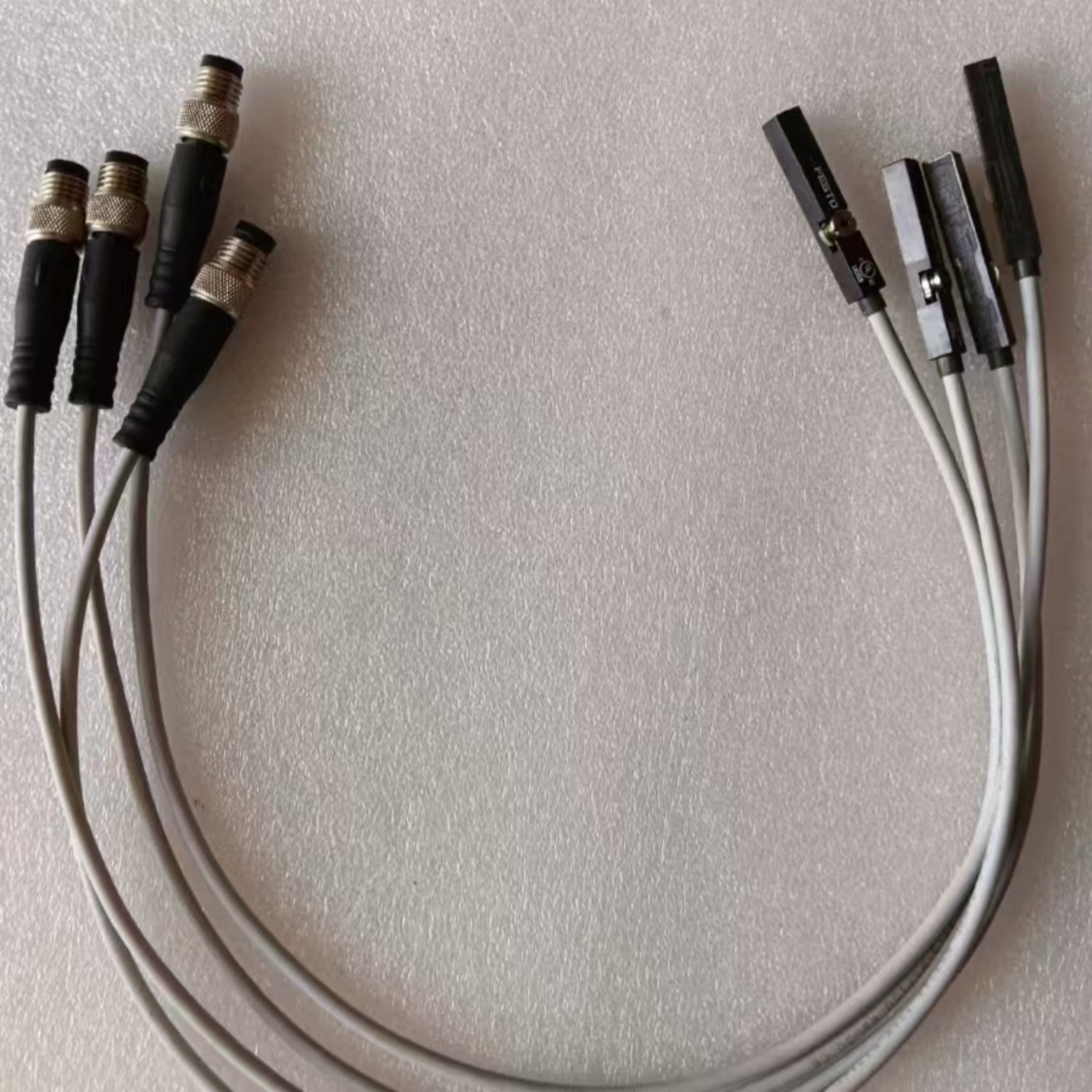

FESTO SMAT-8M-U-E-0.3-M8D 553744 Magnetic Position Transmitter (SMAT Series) - Image 2

FESTO SMAT-8M-U-E-0.3-M8D 553744 Magnetic Position Transmitter (SMAT Series)

REQUEST A QUOTE

Manufacturer / Part Number: Festo / 553744
Design / Slot Type: T-slot (inserted into the slot from above)
Sensing / Measuring Range: Up to ≤ 40 mm
Analog Output Signal: 0 – 10 V DC
Displacement Resolution: 0.02 mm
Accuracy: ± 0.1 mm on Cylinders / ± 0.025 mm on Grippers
DC Operating Voltage Range: 15 V – 30 V DC (24 V DC nominal)
Electrical Connection: 0.3 m pigtail cable with an M8x1 A-coded 4-pin male connector
Housing Material: Polyamide 6 (PA6) reinforced
Protection Class: IP65 / IP68

Brand New FESTO SMAT-8M-U-E-0.3-M8D 553744 Sensor. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
