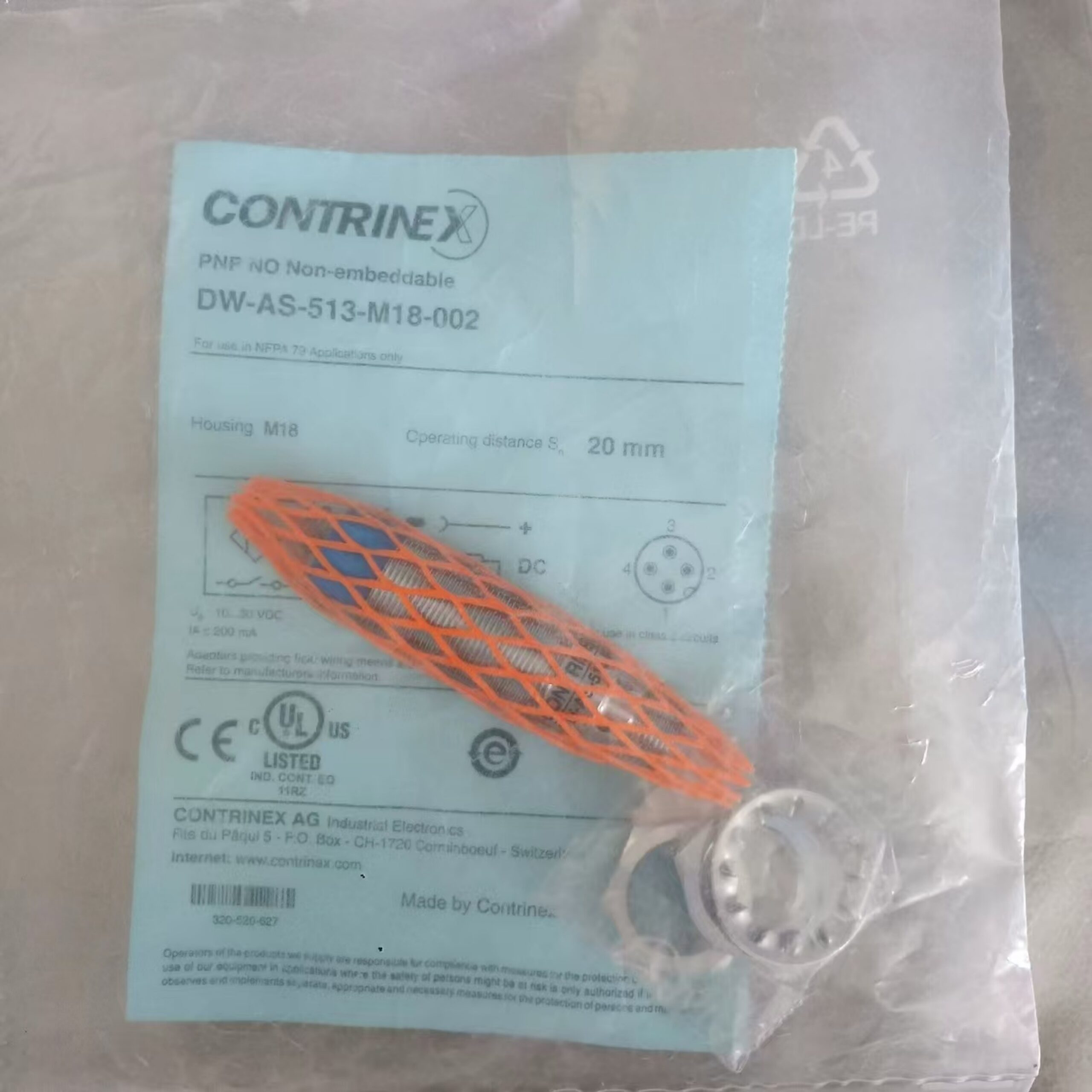

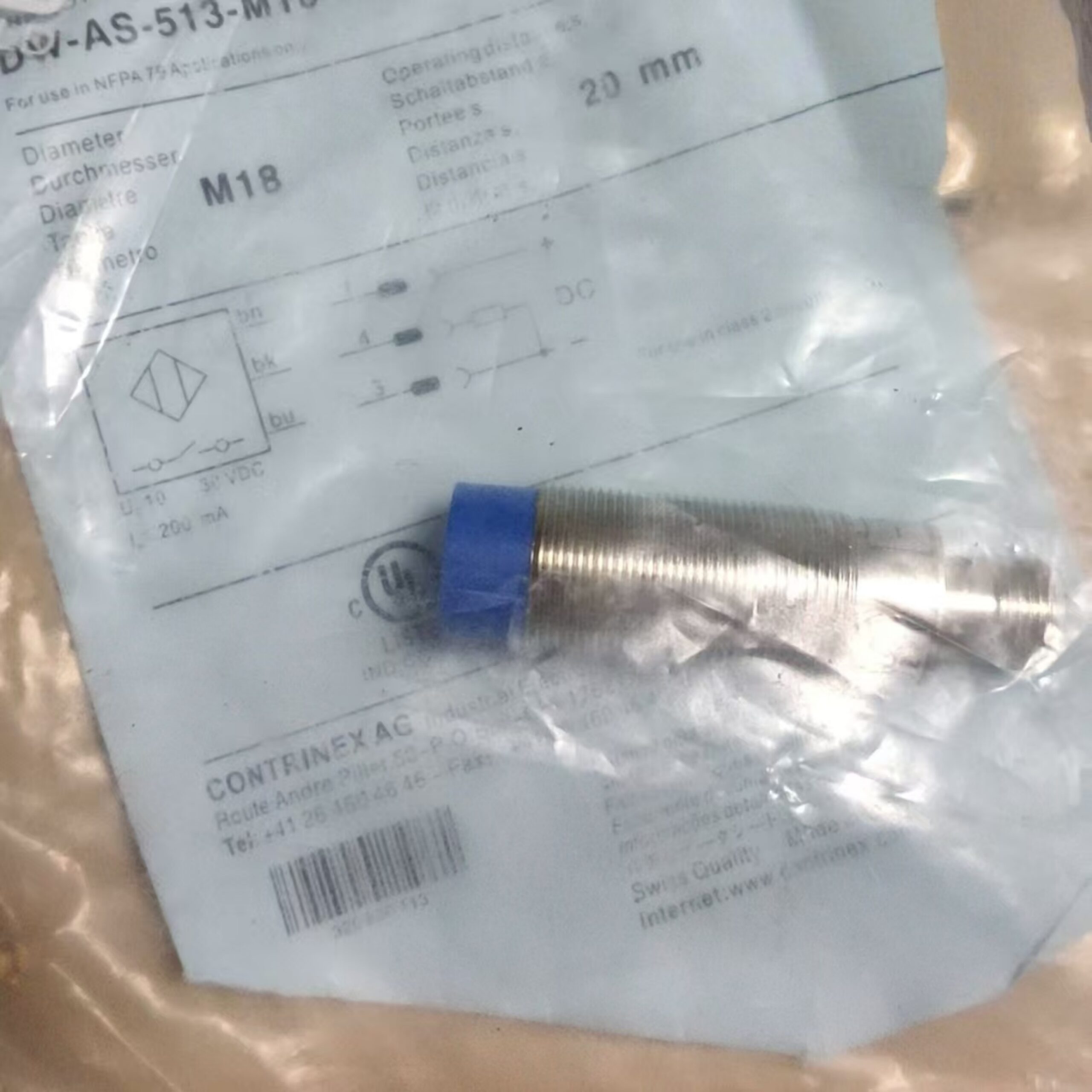

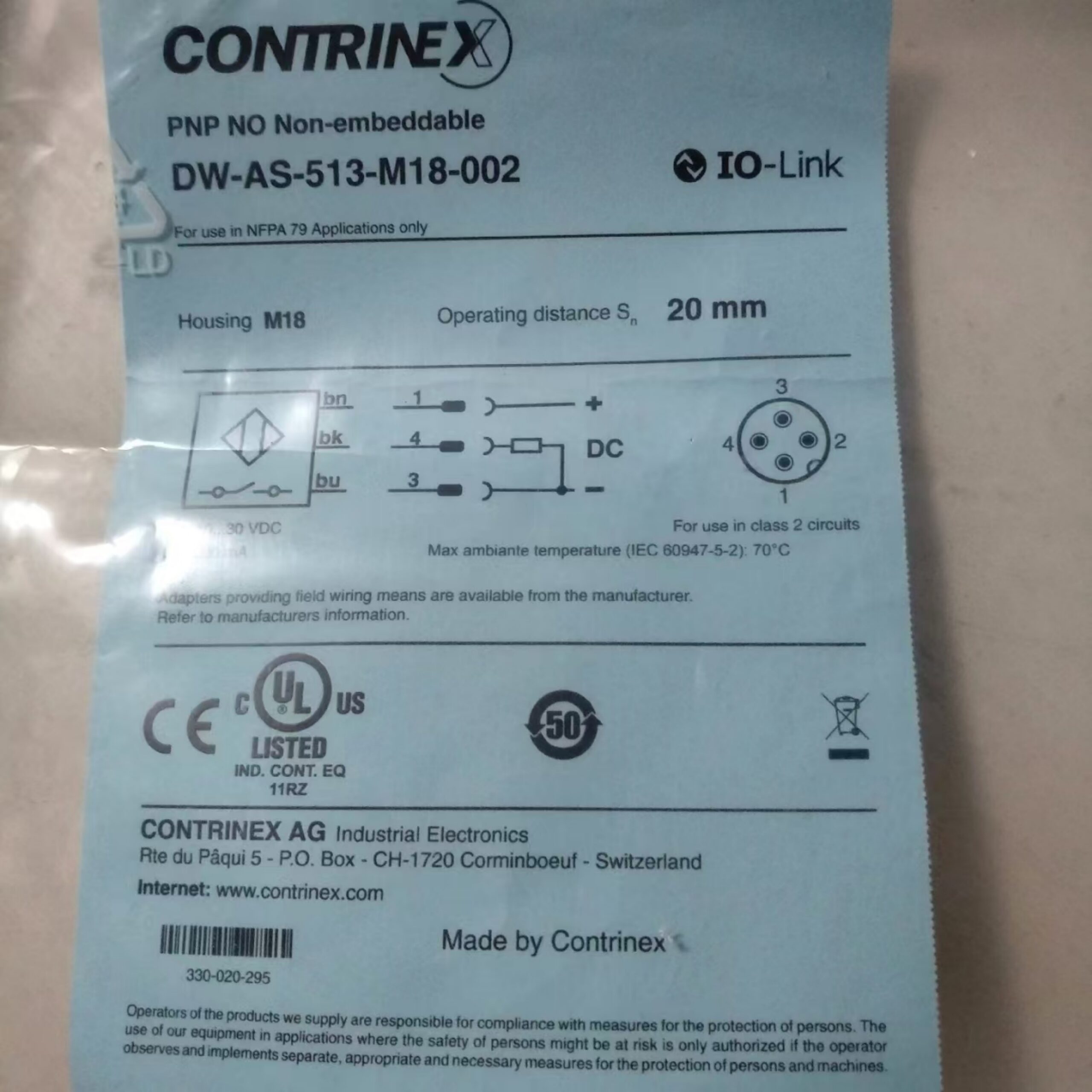

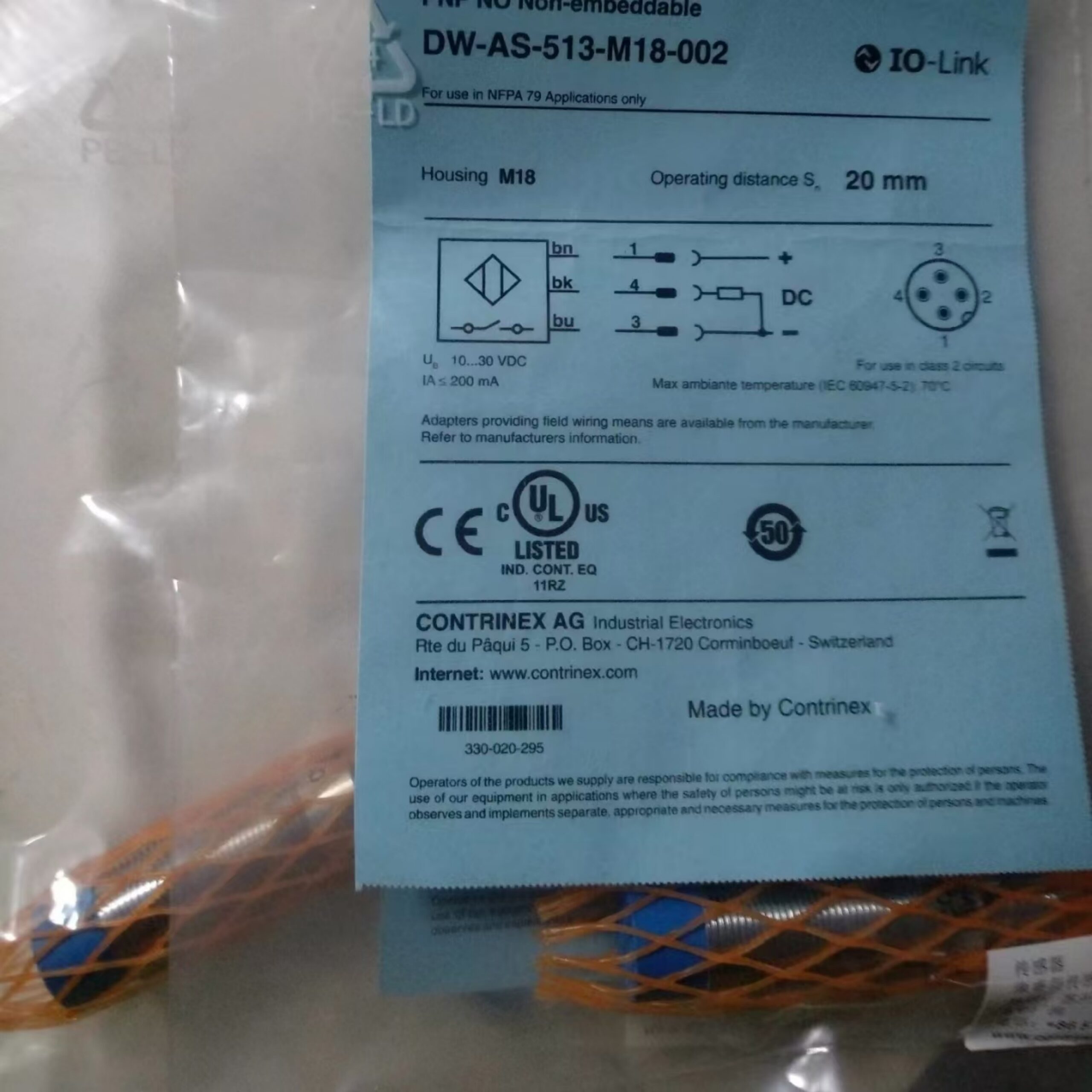

CONTRINEX DW-AS-513-M18-002 Inductive Proximity Sensor
- Manufacturer: CONTRINEX
- Model / Part Number: DW-AS-513-M18-002
- Size: It has an 18mm diameter and a 63.5mm long body.
- Sensing Distance: It can sense metal objects up to 20mm away. This is considered a long "triple range" for an 18mm sensor.
- Mounting: It is non-flush, which means the tip of the sensor sticks out of the surrounding metal frame to look for objects sideways as well as forward.
- Electrical Output: It uses a PNP, Normally Open (N.O.) setup. This means it stays "off" until it detects metal, then it completes the circuit and sends a positive electrical signal to the machine.
- Connection: It plugs in using a standard 4-pin M12 quick-disconnect plug.
- Toughness: It is rated IP67, which means it is totally protected against dust and can handle being splashed or briefly submerged in water.
- Voltage: It runs on 10 to 30 Volts DC power.
- SKU: DW-AS-513-M18-002
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
