Showing 689–704 of 2131 results
-
REQUEST A QUOTE
- Power Output: 60W
- Voltage: 220V – 240V AC
- Frequency: 50 Hz
- Poles / Speed: 6-Pole (6P)
- Wiring: 3-Wire configuration
- Motor Diameter: 122 mm
- Insulation Class: Class B
- Max Ambient Temp: 70°C
- Shaft Length Variants: Manufacturer records from SmartClima note that this specific model number is produced with two distinct shaft lengths: 8.9 cm and 11 cm. You must measure your broken motor's shaft before ordering to ensure the fan blade fits perfectly.
- Cross-Compatibility: This 60W unit can often directly replace alternate part numbers such as the YDK-60-6G and YDK55-6C.
CHIGO YDK-60A-6F AC Fan Motor (YDK Series).
-
REQUEST A QUOTE
- Screen Size: 7.0 inches (Diagonal)
- Resolution: 800 × 480 pixels (WVGA) with a 16:9 aspect ratio
- Pixel Density: 134 PPI
- Interface Type: Parallel 8-bit RGB via a 50-pin FPC (Flexible Printed Circuit) connection
- Display Mode: TN, Normally White, Transmissive
- Surface Treatment: Anti-Glare (Fog)
- Refresh Rate: 60 Hz
- Panel Power Consumption: 0.226W (Typical)
- Outline Size: 162.53 mm (W) × 96.62 mm (H)
- Active Area: 154.08 mm (W) × 85.92 mm (H)
CHIMEI AT070TN90 a-Si TFT-LCD Display Panel (AT070TN Series).
-
- Manufacturer: CHIMEI
- Model / Part Number: AT070TN94
- Display & Resolution: 7.0-inch diagonal screen with a 16:9 widescreen aspect ratio.
- Brightness & Contrast: Delivers a typical brightness of 400 cd/m² and a typical contrast ratio of 500:1, maximizing indoor and outdoor field visibility.
- Color Capability: Supports up to 262K colors (6-bit) with an optimal viewing angle fixed at the 6 o'clock direction.
- Operating Temperature: Extreme wide industrial range certified for -30°C to +85°C (both operating and storage conditions).
- Physical Dimensions: Outer outline dimensions measure 164.9 mm (H) x 100.0 mm (V) with a slim profile thickness of 5.7 mm.
- Signal Interface: Utilizes a standard 50-pin TTL / Parallel RGB digital interface.
- VCC / VDD: 3.3V (Typical)
- AVDD (Analog Power): 10.4V (Typical)
- VGH (Gate High Voltage): 16.0V (Typical)
- VGL (Gate Low Voltage): -7.0V (Typical)
- Backlight Subsystem: Integrated White LED (WLED) system structured in a 3S9P arrangement.
-
REQUEST A QUOTE
- Panel Brand / Manufacturer: CHIMEI INNOLUX (Chimei / Innolux Corporation)
- Model Number: AT090TN10
- Screen Diagonal Size: 9.0 inch (22.86 cm)
- Panel Type: a-Si TFT-LCD, LCM Module
- Native Resolution: 800 × 480 pixels (WVGA aspect ratio 16:9)
- Pixel Density: 104 PPI (Pixels Per Inch)
- Pixel Configuration: RGB Vertical Stripe
- Interface Type: 50 Pins Parallel TTL
- Display Mode: TN, Normally White, Transmissive
- Surface Treatment: Antiglare (Matte finish)
CHIMEI AT090TN10 TFT-LCD Module (AT090TN Series).
-
REQUEST A QUOTE
- Manufacturer: Chimei Innolux (Innolux)
- Panel Size: 8.0 inches diagonal
- Resolution: 800 × 600 (SVGA)
- Technology: a-Si TFT-LCD CELL
- Display Mode: TN, Normally White, Transmissive
- Contrast Ratio: 500:1 (Typical)
- Color Depth: 16.7M colors (8-bit)
- Signal Interface: Parallel RGB (1-channel, 8-bit) / TTL
- Surface Treatment: Antiglare
- Refresh Rate: 60 Hz
CHIMEI EE080NA-06A TFT-LCD Cell (EE080NA Series).
-
- Manufacturer: CHIMEI
- Model / Part Number: EJ080NA-05A
- Screen Size: 8.0 inches (Diagonal)
- Resolution: 800 × 3(RGB) × 600 [SVGA] @ 125 PPI
- Aspect Ratio: 4:3
- Active Area: 162.0(W) × 121.5(H) mm
- Module Dimensions: 183.0(W) × 141.0(H) × 5.6(D) mm
- Display Mode: TN, Normally White, Transmissive
-
- Manufacturer: CHIMEI
- Model / Part Number: EJ080NA-05B
- Screen Size: 8.0 inches diagonally
- Resolution: 800 (RGB) × 600 pixels (SVGA) with a 4:3 aspect ratio
- Display Technology: TN, Normally White, Transmissive
- Active Area: 162.0 mm × 121.5 mm (H × V)
- Outline Dimensions: 183.0 mm × 141.0 mm × 5.9 mm (H × V × D)
- Brightness: 250 cd/m² (Typical)
- Contrast Ratio: 500:1 (Typical)
- Viewing Angles: 70° left, 70° right, 50° up, 70° down (Typical, at CR ≥ 10)
- Display Colors: 262K (6-bit) or 16.7M (6-bit + Dithering)
- Surface Treatment: Matte, Anti-Glare
- Touch Panel: None (ships without integrated touch, but external modules can be retrofitted)
- Signal Interface: Parallel RGB / TTL (1 channel, 6/8-bit), connected via a 50-pin FPC connector
- Input Voltages: Typical ratings are VCC = 3.3V, AVDD = 10.4V, VGH = 16.0V, VGL = -7.0V
- Backlight System: White LED (WLED) array arranged in a 3s9p configuration.
- Power Consumption: Panel consumes roughly 0.356W, while the backlight uses 1.782W.
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
-
REQUEST A QUOTE
- Manufacturer: CHIMEI
- Model / Part Number: G104V1-T03
- Screen Size: 10.4 inches (4:3 aspect ratio)
- Resolution: 640 x 480 pixels (VGA)
- Display Technology: Super MVA (Normally Black, Transmissive)
- Brightness: 500 cd/m² (nits)
- Contrast Ratio: 1500:1
- Viewing Angles: 88° / 88° / 88° / 88° (Up/Down/Left/Right)
- Display Colors: 262K (6-bit color depth)
- Response Time: 13 ms
- Signal Interface Type: CMOS / TTL (1 channel, 6-bit)
- Pin Count: 31 pins
- Interface Connector Model: HRS DF9C-31P-1V
- Refresh Rate: 60 Hz
- Logic Power Consumption: 1.617 W (Typical)
- Backlight Type: WLED (White LED), Edge light type (Top side)
- LED Driver: Integrated / Built-in
- Backlight Life Time: 50,000 hours (Minimum)
-
REQUEST A QUOTE
- Manufacturer: CHIMEI
- Model / Part Number: G104X1-L03
- Display Size: 10.4 inches (diagonal)
- Resolution: 1024 × 768 pixels (XGA format)
- Aspect Ratio: 4:3
- Active Area: 210.4 x 157.8 mm
- Bezel Area: 215.4 x 161.8 mm
- Interface Type: 30-pin, 1-channel LVDS (supports 6-bit or 8-bit color with FRC, displaying up to 16.2M colors)
- Brightness: 350 nits (typical)
- Contrast Ratio: 1200:1 (typical)
- Viewing Angles: Ultra-wide 176° horizontal / 176° vertical (via Super MVA)
- Backlight: Built-in WLED system with an integrated LED backlight converter/driver module
- Response Time: 25 ms average (Ton + Toff)
- Color Saturation: 57% NTSC
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -20°C to 80°C
- Input Voltage: 3.3V
- Special Functions: Supports 180-degree rotation display options natively.
-
REQUEST A QUOTE
- Manufacturer: CHIMEI
- Model / Part Number: G104X1-L04
- Display Resolution: 1024 x 768 pixels (XGA format)
- Aspect Ratio: 4:3 traditional industrial ratio
- Luminance/Brightness: 500 nits (typical sunlight-readable profile)
- Contrast Ratio: 1200:1 (ultra-high clarity for industrial screens)
- Interface Type: LVDS (1 channel, 6/8-bit), 30 pins connector
- Display Colors: True 16.2 million colors (6-bit + FRC)
- Viewing Angles: 88° left / 88° right / 88° up / 88° down (Super MVA Technology)
- Operating Temperature: Extreme range from -30°C up to 80°C
- Input Voltage: 3.3V nominal logic power supply
- Backlight System: WLED with built-in converter module/driver
- Active Screen Area: 210.432 mm (Horizontal) x 157.824 mm (Vertical)
- Outline Dimension: 225.5 mm (Width) x 176.3 mm (Height) x 9.2 mm (Depth)
- Mounting Bolt Holes: 100 mm x 101.8 mm layout pattern
-
REQUEST A QUOTE
- Manufacturer: CHIMEI
- Model / Part Number: G121AGE-L03
- Screen Size: 12.1 inches diagonally
- Native Resolution: 800 × 600 pixels (SVGA aspect ratio)
- Display Technology: a-Si TFT-LCD with MVA mode
- Signal Interface: 20-pin, 1-channel LVDS
- Color Depth: Supports 262K or 16.2M colors
- Backlight System: White LED (WLED) backlight unit with integrated driver
- Operating Voltage: 3.3V nominal input
- Luminance: Standard brightness is typically around 450 to 500 nits
- Applications: Primarily found in indoor and outdoor control terminals, medical monitoring devices, public advertising displays, and marine or aviation instrumentation.
- Drop-in Replacements: It shares cross-compatibility or structural similarities with other 12.1-inch panels such as the G121S1-L01 and G121S1-L02.
- Modifications: Because it is popular in legacy systems, aftermarket upgrade kits exist to boost its backlight brightness from 500 nits to over 1300 nits for outdoor readability.
-
REQUEST A QUOTE
- Screen Size: 12.1 inches diagonal
- Native Resolution: 1024 × 768 pixels (XGA aspect ratio)
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Color Support: 262,144 colors (6-bit)
- Signal Interface: 20-pin, 1-channel LVDS
- Luminance (Brightness): 450 cd/m² (Typical)
- Contrast Ratio: 700:1 (Typical)
- Viewing Angle (L/R/U/D): 80° / 80° / 80° / 80° (Typical)
- Response Time: 13 ms rise / 12 ms fall (Total 25 ms)
- Backlight Type: 2-CCFL (Cold Cathode Fluorescent Lamp)
CHIMEI G121X1-L01 Industrial TFT-LCD Display Panel (G121X1 Series).
-
- Manufacturer: CHIMEI
- Model / Part Number: G121X1-L03
- Screen Size: 12.1 inches (measured diagonally).
- Native Resolution: 1024 × 768 pixels (XGA format) with a 4:3 traditional aspect ratio.
- Display Technology: a-Si TFT-LCD (Active Matrix).
- Backlight Type: White LED (WLED) with a built-in backlight converter.
- Signal Interface: 20-pin, 1-channel LVDS connection.
- Screen Brightness: 600 cd/m² (nits), making it highly visible and sunlight-readable.
-

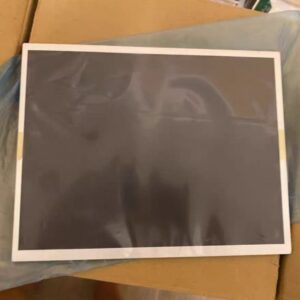

- Manufacturer: CHIMEI
- Model / Part Number: G121X1-L04
- Display Size: 12.1 inches diagonally.
- Resolution: XGA (1024 x 768 pixels).
- Interface Type: 20-pin, 1-channel LVDS (Low Voltage Differential Signaling).
- Color Depth: Supports 262k (6-bit) or 16.2M/16.7M (8-bit) colors.
- Brightness: 500 nits (cd/m²) typical luminance.
- Contrast Ratio: 700:1 typical.
-

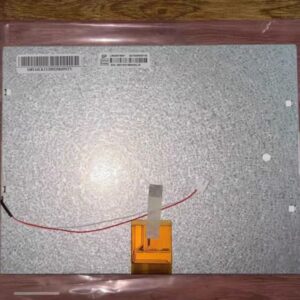

- Manufacturer: Chimei
- Model / Part Number: LSA40AT9001
- Screen Size: 10.4 inches (diagonal)
- Resolution: 800 (RGB) × 600 pixels (SVGA)
- Pixel Configuration: RGB vertical stripe
- Display Mode: TN, Normally White, Transmissive
- Brightness: 250 cd/m² (Typical)
- Contrast Ratio: 500:1 (Typical)
-

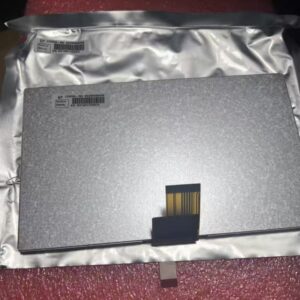

- Manufacturer: CHIMEI
- Model / Part Number: ZJ080NA-08A
- Screen Size: 8.0 inches diagonally.
- Resolution: 1024 × 600 pixels (WSVGA format).
- Panel Type: a-Si TFT-LCD (thin-film transistor liquid crystal display).
- Interface Type: 40-pin FPC (Flexible Printed Circuit) connector using an LVDS signal.
- Brightness: 500 cd/m² (Typical), making it quite bright and readable.
- Contrast Ratio: 700:1 (Typical).
