Showing 2097–2112 of 2131 results
-
REQUEST A QUOTE
- Module Type: Analog Output Module
- IP Rating: IP20
- Connection Type: PUSH IN
- Wire Connections: 2-wire, 3-wire, or 4-wire technology per plug-in connector
- Galvanic Isolation: 500 V DC between the current paths
- Interface: u-remote system bus (Max transmission speed: 48 MBit/s)
- Supply Voltage: 24 V DC
- Number of Channels: 4 analog outputs
- Resolution: 16-bit
- Accuracy: ±0.05% FSR (Full Scale Range End Value)
WEIDMULLER 1315680000 Analog Output Module (u-remote).
-
REQUEST A QUOTE
- Model/Type: PRO ECO 72W 24V 3A
- Output Power: 72 W
- Rated Output Voltage: 24 VDC (Adjustable from 22 V to 28 V)
- Nominal Output Current: 3 A @ 55 °C
- Efficiency: 87%
- Mounting Type: DIN Rail (TS 35)
- Protection Features: Short-circuit proof, overload protection, overheating protection, reverse/inverse voltage protection
- Status Indicators: Tri-colored LED (Green, Yellow, Red)
- Dimensions: 125 mm Height × 34 mm Width × 100 mm Depth
- Lifecycle Note: Official manufacturer data indicates this specific part number is scheduled for phase-out/end of life, with the recommended drop-in replacement being the Weidmüller 3025560000 (PROeco II Series).
WEIDMULLER 1469470000 Power Supply (PRO ECO).
-
REQUEST A QUOTE
- Series & Model: Klippon® A Series, A2T 2.5 Weidmüller E-Shop
- Connection Type: PUSH IN (Spring connection) Weidmüller E-Shop
- Rated Voltage: 800 V (AC/DC) Gabby Electric
- Rated Current: 24 A (IEC) iAutomation
- Clamping Wire Range: 0.14 mm² to 2.5 mm² (up to 4 mm² solid core) Gabby Electric
- Wire Gauge Compatibility: #28 AWG to #12 AWG iAutomation
- Number of Levels / Clamps: 2 Decks / 4 Clamping points (2 per level) Gabby Electric
- Mounting Type: Snap-on TS 35 DIN Rail (5.1 mm block width) iAutomation
- Color: Dark Beige Gabby Electric
- End Plate Required: The open side of the final terminal block unit must be safely closed using a compatible end cover plate.
- Potentials: The top and bottom levels are not cross-connected internally, meaning they maintain two independent electrical paths.
- Factory Lead-Time: 8 Weeks.
Weidmuller 1547610000 A2T 2.5 Feed-Through Terminal Block (A2T Series).
-
REQUEST A QUOTE
- Input Type: PT100 / Ni100 (2-, 3-, or 4-wire configuration), resistors, and potentiometers
- Output Signal: Analogue DC signals of 0(4) to 20 mA or 0 to 10 V
- Configuration: Configured manually via onboard DIP switches
- Physical Housing: 17.5 mm width add-on housing designed for TS35 DIN rail mounting
- Connection Type: MNT Screw connection with a nominal cross-section of 2.5 mm²
- Protection Rating: IP20
- Official Alternative: Weidmüller recommends part number 1176030000 as the direct modern replacement.
WEIDMULLER 8560700000 RTD Isolating Transformer (WAS5).
-
REQUEST A QUOTE
- Manufacturer: Weidmüller
- Model / Part Number: WAS4 PRO FREQ
- Order number: 8581180000
- Input: Frequency
- Output: Current or voltage
- Supply: 24 V DC ±25%
- Galvanic isolation: 3-way
- Nominal consumption: 0.5 VA
- Maximum consumption: 1.6 W at 20 mA output
- Protection: IP20
- Rail: TS35
- Connection: Screw
- Conductor range: 0.5–2.5 mm²
- Terminal torque: 0.4–0.5 Nm
- Dimensions: 12.5 × 92.4 × 112.4 mm
- Net weight: 118.7 g
- Operating temperature: 0 to +55 °C
- Storage temperature: −20 to +85 °C
-
REQUEST A QUOTE
- Manufacturer: Weidmüller
- Model / Part Number: ZDU 2.5
- Order number: 1608510000
- Connection: Tension clamp
- Rated cross-section: 2.5 mm²
- Rated voltage: 800 V
- Rated current: 24 A
- Colour: Dark beige
- Width: 5.1 mm
- Height: 59.3 mm
- Depth: 38.5 mm
- Depth including DIN rail: 39.5 mm
- Net weight: 6.925 g
-
REQUEST A QUOTE
- Fan Diameter: 300 mm
- Voltage / Frequency: 220V–230V AC, 50Hz (Single Phase)
- Power Input / Output: Rated specs list an input power between 75W to 85W (often noted under 50W output depending on load conditions)
- Rotational Speed: ~1,380 RPM
- Air Flow Capacity: Up to 1,740 – 1,850 m³/h
- Noise Level: Low operation volume at approximately 60 dBA
- Capacitor: Requires a 3µF capacitor (typically included)
- Protection Rating: IP54 moisture and dust certification
WEIGUANG YWF4E-300S 220V 50W External Rotor Axial Fan Motor (YWF4E Series).
-
- Manufacturer: Weintek
- Model / Part Number: CMT-FHDX-920
- Display Output: Full HD 1080p (Up to 1920 x 1080) via HDMI. It supports both 16:9 widescreen and 4:3 traditional monitor layouts.
- Processor: Quad-core Cortex-A17 RISC processor with a dedicated, high-performance 3D graphics engine.
- Memory: 4 GB Flash storage and 1 GB RAM.
- Video Decoding: Supports smooth playback of high-resolution 1080p H.264 industrial video clips.
- Cooling: Completely fan-less design using a rear aluminum sheet heat sink to reject heat quietly and reliably.
- USB: 1 x USB 2.0 Host port for external mice, keyboards, or storage drives.
- Audio: Embedded digital audio output via the HDMI line.
- Mounting: Designed for standard 35mm DIN-rail installation.
- Input Power: 24V DC (±20% tolerance range) with built-in power isolation.
- Operating Temperature: Safe operation between 0°C and 50°C.
-
- Manufacturer: WEINTEK
- Model / Part Number: MT506MV
- Display: A 5.6-inch color display with 320×234 pixel resolution.
- Processor and Memory: It runs on a 32-bit RISC processor (200MHz) and has 2 megabytes of flash memory to hold your machine's custom screens and buttons.
- Communication Ports: It has two serial communication ports.
- Supply Voltage: Runs on standard industrial 24V DC power.
- Front Protection: The front panel is IP65 rated.
- Dimensions and Panel Cutout: The physical box is 204 x 150 mm, but the hole you need to cut out in your panel is 192 x 138 mm.
-
REQUEST A QUOTE
- Display: 7" TFT LCD screen with an 800 x 480 resolution and LED backlight.
- Processor & Memory: Dual-Core RISC ARM CPU with 128 MB RAM and 256 MB onboard flash memory.
- Power Supply: Wide input voltage range of 10.5 to 28 VDC with built-in power isolation.
- Software: Configured using the free EasyBuilder Pro programming software.
Weintek MT8072iP HMI Touch Panel (iP Series).
-
REQUEST A QUOTE
- Display Size: 7 inches
- COM1: RS-232, 4-wire
- COM2: RS-485, 2-wire / 4-wire
- USB Interface: USB Client
WEINVIEW TK6072IP is a 7-inch touchscreen HMI with RS-232, RS-485 and USB Client interfaces.
-
REQUEST A QUOTE
- Power Consumption: 80 Watts
- Voltage Input: 24 V
- Temperature Range: 150°F to 850°F (50°C to 450°C)
- Heating Element: Silver Spool / Silver-Line Technology
- Safety Rating: ESD Safe (prevents electrostatic damage to delicate components)
- Standard Tip Included: LTB Chisel Tip (2.4mm x 0.79mm)
- Cord Length: 4 feet
- Station Series: Compatible Power Unit Models
- WT Series & WR Rework: WT1, WT1H, WR3M, WR2
- WD Series: WD1, WD1M, WD2, WD2M
WELLER WSP80 Soldering Pencil (WSP Series).
-
REQUEST A QUOTE
- Manufacturer: Wenglor
- Model / Part Number: OY1P303P0102
- Measurement principle: Laser time of flight
- Working range: 50–3050 mm
- Maximum switching frequency: 250 Hz
- Linearity: 7 mm
- Maximum reproducibility: 1 mm
- Analog output options: 0–10 V or 4–20 mA
- Communication: IO-Link
- Laser class: 1
- User interface: Graphical display
-
REQUEST A QUOTE

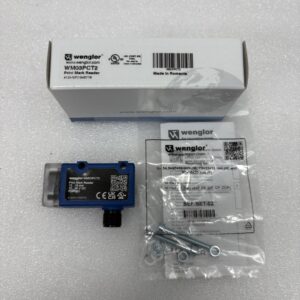

- Manufacturer: Wenglor
- Model / Part Number: WM03PCT2
- Working distance: 12–18 mm, nominal 15 mm
- Light spot: 1.5 × 2.5 mm
- Supply: 10–30 V DC
- Output: PNP, selectable NO/NC
- Maximum output current: 200 mA
- Switching frequency: 5 kHz
- Response time: 100 microseconds
- Connection: M12 × 1, 4-pin
- Protection: IP67
- Operating temperature: −25 to +60 °C
-
REQUEST A QUOTE
- Working Range: 0.1 to 10.1 meters
- Measuring Range: 10 meters
- Resolution: 1 to 12 mm
- Linearity: 0.05% (from 0.1 to 5 m) | 0.2% (from 5 to 10.1 m)
- Supply Voltage: 18 to 30 V DC
- Current Consumption: < 100 mA (at 24V Ub)
- Switching Frequency: 50 Hz
- Measuring Rate: 1 to 100 measurements per second
- Analog Output: 0…10 V and 4…20 mA (adjustable)
- Switching Output: PNP NO, Push-pull, NPN
- Interface: RS-232 serial communication
- Housing Material: Plastic (ABS / PC) with PMMA optic cover
- Degree of Protection: IP68 waterproof rating
- OLED Graphical Display: Features an integrated screen and menu buttons for straightforward calibration and configuration directly on the sensor.
- Disengageable Transmitted Light: The laser beam can be deactivated or activated through the menu interface, or via a hardware signal on Pin 5 by bridging it to 24 V.
- Eliminable Temperature Drift: Built-in compensation algorithms safeguard against measurement variation caused by shifting environment temperatures.
- Reliable Detection: Dark, matte, or uneven surfaces can be accurately identified due to the Time-of-Flight technology.
Wenglor Y1TA100MHT88 Laser Distance Sensor (Y1TA Series).
-
- Brand: Xinje
- Model: OP320-A-S
- Series: OP320
- Display: 3.7-inch STN LCD
- Resolution: 192 × 64 pixels
- Keys: 20 physical keys
- Power supply: 24 V DC; 20–28 V DC operating range
- Power consumption: Less than 4 W; 2 W typical
- Communication: RS-232 and RS-485
- Flash memory: 64 KB
- SRAM: 1 KB
- Overall dimensions: 172 × 94 × 30 mm
- Operating temperature: 0 to +50 °C
- Front protection: IP65
