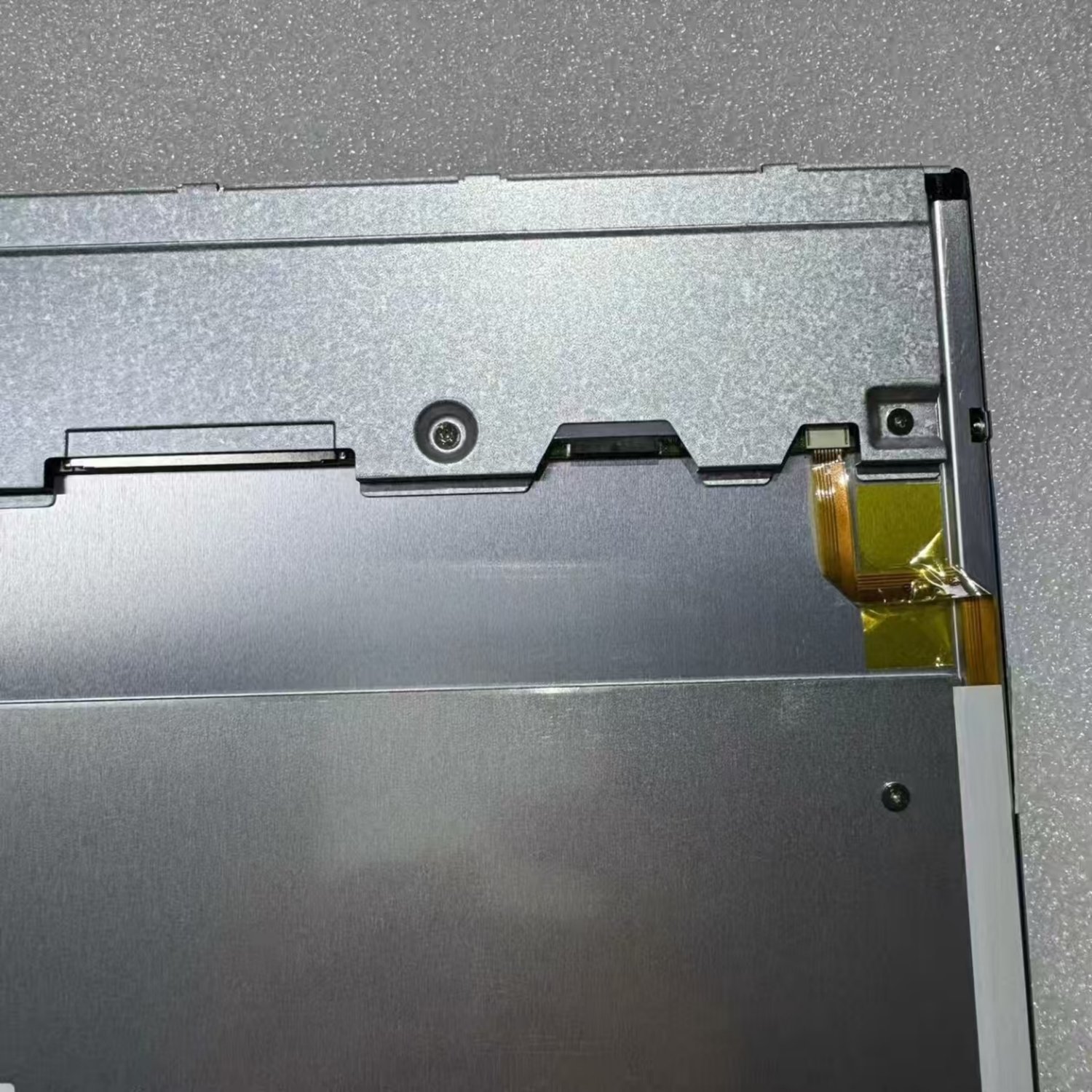

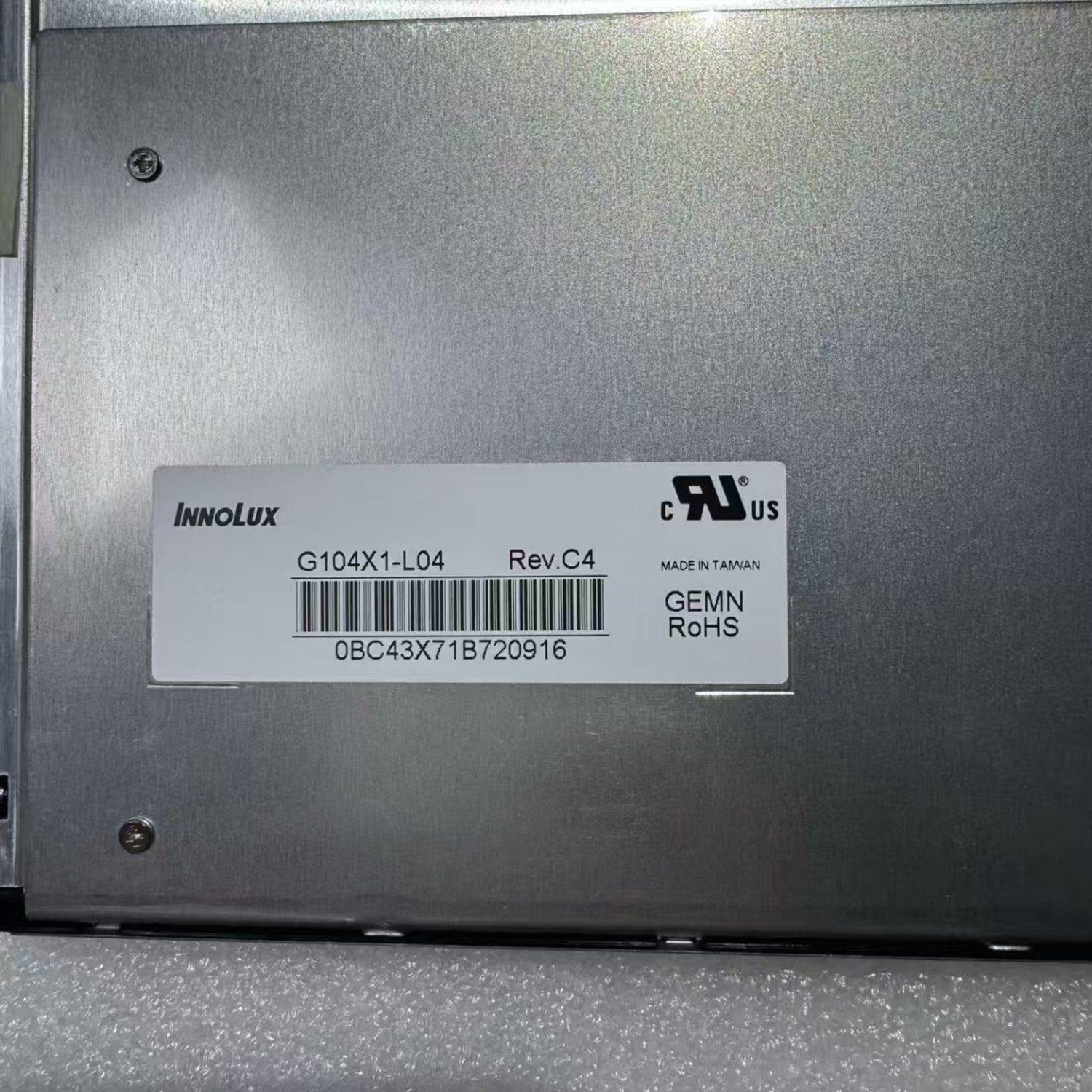

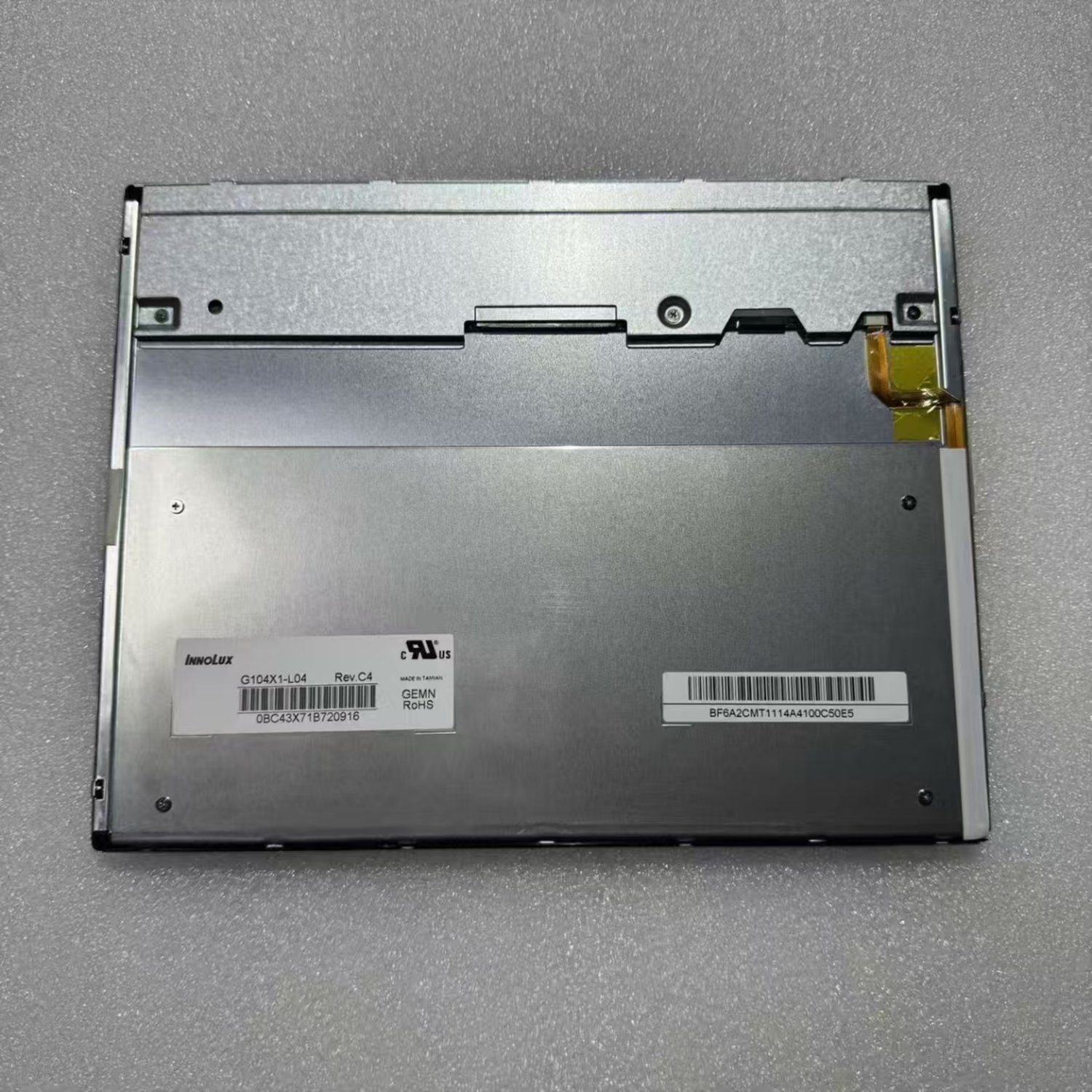

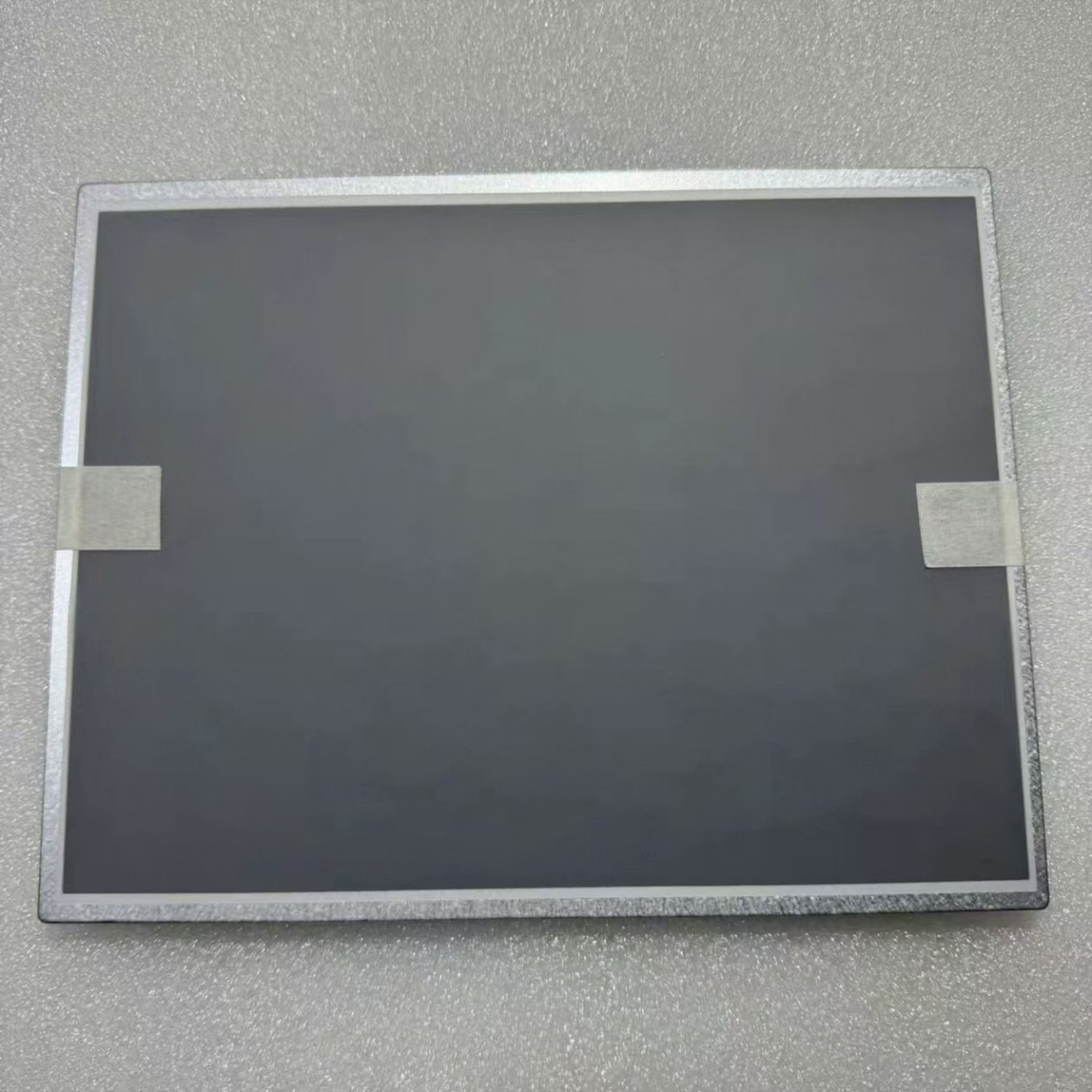

CHIMEI G104X1-L04 TFT-LCD Display Module
- Manufacturer: CHIMEI
- Model / Part Number: G104X1-L04
- Display Resolution: 1024 x 768 pixels (XGA format)
- Aspect Ratio: 4:3 traditional industrial ratio
- Luminance/Brightness: 500 nits (typical sunlight-readable profile)
- Contrast Ratio: 1200:1 (ultra-high clarity for industrial screens)
- Interface Type: LVDS (1 channel, 6/8-bit), 30 pins connector
- Display Colors: True 16.2 million colors (6-bit + FRC)
- Viewing Angles: 88° left / 88° right / 88° up / 88° down (Super MVA Technology)
- Operating Temperature: Extreme range from -30°C up to 80°C
- Input Voltage: 3.3V nominal logic power supply
- Backlight System: WLED with built-in converter module/driver
- Active Screen Area: 210.432 mm (Horizontal) x 157.824 mm (Vertical)
- Outline Dimension: 225.5 mm (Width) x 176.3 mm (Height) x 9.2 mm (Depth)
- Mounting Bolt Holes: 100 mm x 101.8 mm layout pattern
- SKU: G104X1-L04
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
