Showing 785–800 of 1357 results
-
REQUEST A QUOTE
Technical Specifications
- Specification Attribute: Details & Metrics
- Manufacturer: Suzhou Inovance (Guangdong, China)
- Controller Platform: AM400 Series Motion Controller / PLC
- Power Supply Requirements: 24V DC
- Built-in Digital Inputs: 16 High-Speed Inputs (Sink/NPN type, up to 202 kHz)
- Built-in Digital Outputs: 8 High-Speed Transistor Outputs (Drain/NPN type, up to 202 kHz)
- Motion Axis Capacity: Supports up to 8 Axes via bus synchronization
- Net Weight: ≈ 0.27 kg to 0.48 kg (standalone); 0.85 kg (packaged assembly)
- Factory-New Units: Brand new, retail-boxed items are available internationally with expedited global carrier options via Alibaba Global Logistics or factory surplus components on inRobots Platform.
Brand New INOVANCE AM402-CPU1608TN PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Specification Attribute: Details & Capabilities
- Manufacturer: Inovance Technology
- Core Controller Platform: Codesys (IEC 61131-3 standard programming)
- Motion Axis Support: 8 Axes controlled via EtherCAT master
- Digital Inputs (DI): 16 High-Speed Inputs
- Digital Outputs (DO): 8 High-Speed Outputs
- Output Transistor Type: Source (PNP) type
- Physical Weight: 0.27 kg (approx. 0.6 lbs)
Brand New INOVANCE AM402-CPU1608TP PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Inovance Technology
- Model Number: AM403-CPU1608TN
- Device Type: PLC Main CPU / Motion Controller Module
- Input Channels: 16 digital input points
- Output Channels: 8 digital output points
- Output Type: NPN transistor
- Operating Voltage: 24 VDC
- Current Rating: 1.0 A
- Safety & Installation: Vital structural safety precautions, terminal layout diagrams, and wiring safeguards tailored for the NPN transistor output architecture.
- Interfaces & Connectivity: Complete mapping of the external communication interfaces and step-by-step procedures for establishing programming tool connections.
Brand New INOVANCE AM403-CPU1608TN PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: Inovance AM400 Motion Controller
- Model: AM403-CPU1608TP
- Motion Axis Support: Up to 16 physical axes via EtherCAT / pulse
- High-Speed Digital Inputs: 16 channels (Optimized for encoders, high-speed registration)
- High-Speed Digital Outputs: 8 channels
- Output Transistor Type: Source (PNP) type (Note: The "TN" variant signifies NPN Sink)
- Communication Protocols: EtherCAT, CANopen, Modbus TCP, Modbus RTU, Ethernet
- Physical Weight: ~0.27 kg
- Advanced Motion Control: Seamlessly coordinates multi-axis movement using a dedicated EtherCAT master port, allowing for synchronous control of servo drives, electronic cams, and complex interpolation.
- Rich Connectivity: The built-in Ethernet interface allows integration into factory local area networks for SCADA/HMI interaction via Modbus TCP.
Brand New INOVANCE AM403-CPU1608TP PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Processor Architecture: Built on a multi-core CPU architecture designed to process motion control calculations and PLC logic simultaneously.
- Digital Inputs: 8 digital inputs supporting high-speed configurations (up to 200 kHz) for reading encoder and pulse feedback.
- Digital Outputs: 8 transistor outputs (Transistor NPN type denoted by "TN").
- Motion Axes Control: Supports up to 8 synchronized EtherCAT axes for complex path movements like linear and circular interpolation or electronic CAM profiles.
- Network Capacities: Features a real-time EtherCAT master port capable of controlling up to 127 network slaves.
- Ethernet Communication: Dual integrated Ethernet ports supporting standard industrial protocols and programming interfaces.
- Local I/O Expansion: Compatible with up to 16 GL20 local expansion modules directly attached to the controller rack.
- Remote I/O Expansion: I/O can be expanded further across decentralized setups using the EtherCAT bus coupler GL20-RTU-ECT.
- Alternative Axis Options: Offers up to 4 pulse axes and supports an optional card configuration for up to 30 CANopen axes doing point-to-point (PTP) movements.
Brand New INOVANCE AM521-0808TN PLC Motion Controller (AM500 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Output: 3.0 kW (3000 Watts)
- Input Rating: 3-Phase, 380V to 440V AC (50/60Hz), 8.0A
- Output Rating: 3-Phase, 0V to 380V AC (0Hz to 400Hz), 11.9A
- Control Interfaces: Pulse/Direction, Analog Input, and 23-bit Absolute Encoder support
- I/O Capacity: 16 Digital Inputs / 16 Digital Outputs
- Communication Protocols: Modbus, Profibus, Ethernet/IP, OPC UA
- Physical Housing: IP20 Protection Rating; weight approximately 2.05 kg (4.52 lbs)
- High Bandwidth & Tuning: Features a high-speed loop bandwidth of up to 1.2 kHz. It supports online/offline inertia auto-tuning, automatic gain adjustment, and adaptive notch filters to suppress mechanical resonance.
- Integrated Safety & Protection: Equipped with built-in hardware protection including Emergency Stop (E-Stop) and Overload Protection. It complies with international safety standards like IEC 61508 and ISO 13849.
- Software Configuration: Fine-tuning and system diagnostic monitoring are handled externally via the proprietary InoServoShop PC software toolkit.
Brand New INOVANCE IS620PT012I-C Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Power Output: 1.5 kW
- Input Voltage Range: 3-phase, 400 V AC to 480 V AC
- Integrated Communication: PROFINET network interface for real-time fieldbus operations.
- Safety Integration: Built-in STO (Safe Torque Off) complying with SIL3 standards to safely cut motor power without disabling the drive.
- Enclosure Rating: IP20 (intended for installation inside a clean, protective electrical control cabinet).
- Advanced Dynamic Tuning: Features built-in algorithms for stiffness level settings, inertia autotuning, and active vibration suppression to handle fluctuating mechanical loads seamlessly.
- High-Speed Control Loops: Features a rapid 4.5 kHz current loop response and up to 3 kHz speed loop bandwidth for highly responsive dynamics.
- Encoder Compatibility: Seamlessly integrates with MS1-series high-response servo motors configured with a high-resolution 23-bit multi-turn absolute encoder, ensuring exact positioning even after machine power cycles.
Brand New INOVANCE SV660FT5R4I Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Specification Attribute: Rated Value / Detail
- Power Output: 1.5 kW (Kilowatts)
- Input Voltage Rating: 3-Phase 400V to 480V AC (Typical for industrial grids)
- Network Interface / Protocol: EtherCAT (Real-time industrial Ethernet)
- Safety Certification: STO (Safe Torque Off) integrated
- Ingress Protection Rating: IP20 (Standard electrical cabinet mounting)
- Tuning-Free Operation: Features advanced underlying control algorithms that eliminate the need for lengthy manual PID tuning or complex servo adaptation upon installation.
- EtherCAT Communication: Built-in real-time Ethernet interfaces allow seamless multi-axis synchronization with high-speed host controllers or PLCs.
- Multi-Encoder Support: Capable of interfacing with various motor feedback systems, including linear motors and high-resolution absolute encoders.
- Global Compliance Standards: The hardware conforms to highly rigorous global marks including CE, UL, TUV, UKCA, KC, EAC, and SEMI F47 voltage sag immunity protocols.
Brand New INOVANCE SV680NT5R4I Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series / Size: BFK458, Size 08
- Design Type: E Version (features an adjustable braking torque sleeve)
- Operating Voltage: 205 VDC
- Rated Torque: 10 Nm (Note: Size 08 carries a baseline rating of 8 Nm, but the adjustable E variant can be scaled up to 10 Nm)
- Power Consumption: 25 W
- Insulation Class: Thermal class F (up to 155°C)
- Maximum Rotation Speed: 5,000 RPM
Brand New Intorq BFK458-08E 205VDC 10NM 25W Electromagnetic Brake (BFK458 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Modes: Sensorless Vector Control (SVC), V/F Control, and Torque Control
- Input Phase & Voltage: 3-Phase, 380V to 415V AC (50/60 Hz)
- Compatible Motor Power: 4.0 kW (5 HP) for heavy-duty / 5.5 kW (7.5 HP) for light-duty
- Output Current: 9 Amps (General) / 13 Amps (Pump)
- Braking Unit: Built-in internal dynamic braking unit (for direct resistor connection)
- Enclosure Rating: IP20 Protection
- Advanced Control Engine: Utilizes a high-speed DSP control system to deliver precise open-loop vector motor control.
- Starting Torque: Delivers an impressive 150% torque at 0.5Hz under sensorless vector control.
- Built-in PLC & PID: Features a 16-step simple macro PLC setup, multi-speed controls, and a built-in PID loop controller for process automation.
- Flexible Programming: Fully programmable digital and analog input/output terminals.
- System Protection: Outfitted with specialized mechanical anti-resonance jump frequencies, instantaneous power failure ride-through, and sleep-wake delay modes.
- Manuals & Wiring: A comprehensive 156-page wiring and parameter overview is hosted on the ManualsLib INVT CHF100A-004G/5R5P-4 Hub.
Brand New Invt CHF100A-004G/5R5P-4 Variable Frequency Drive (CHF100A Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Device Type: IO-Link I/O Hub (Class A or Class B port compatible expansion module).
- Channel Capacity: Maximum of 16 configurable channels for digital input or output.
- Signal Type: PNP switching logic with single-wire digital I/O configuration.
- Connector Type: M12 industrial standard circular connectors for signal and network connection.
- Housing/Enclosure: Rugged IP67-rated engineering plastic housing designed for direct machine mounting without a control cabinet.
- PROFINET: IOL7-PN01B-8A (8-port Class A)
- EtherNet/IP: IOL7-EI01B-8A (8-port Class A)
- EtherCAT: IOL7-EC01B-8A (8-port Class A)
Brand New sDot IOL7-16CB-M12 IO-Link I/O Hub (IOL7 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Outputs: 4 Solid State Relays (SSR)
- Inputs: 2 Universal Analog Inputs (supports NTC, NTC-HT, PTC, PT100, PT1000, Thermocouple J/K, Voltage, and Current) + 2 Digital Inputs (DI)
- Power Supply: 115 to 230 Vac operational voltage
- Form Factor: Panel mount measuring 76.2 mm x 34.2 mm with a panel depth of 94 mm
- Protection Rating: IP65 front panel protection
- Connectivity: Features integrated RS485 digital communications for remote monitoring and telemaintenance systems
- Key Functions: PID control with autotuning and two independent control loops

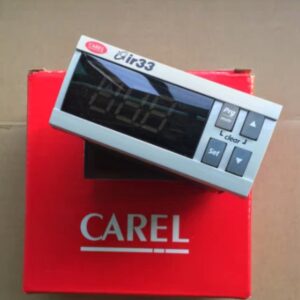

Brand New CAREL IR33A9HR20 Digital Electronic Controller (IR33 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Outputs: 1 configurable relay + 1 analog output (0 to 10 V)
- Power Supply: 115 to 230 VAC, single-phase, 50 Hz
- Mounting: Panel mounting (enclosure style)
- Ingress Protection: IP65 front panel
- Inputs: Temperature sensor inputs
- Application: HVAC/R and industrial temperature regulation
Brand New CAREL IR33B7HR20 Digital Electronic Controller (IR33 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Insert Size: 16 (16 mm / 0.63" length)
- Threading Position: ER (External Right-Hand)
- Chipbreaker: M (M-Class Profile)
- Thread Profile Type: AG60 (60° Partial Profile)
- Inscribed Circle (IC): 3/8" (9.53 mm)
- Insert Thickness: 0.143" (3.63 mm) [0.1430 Decimal Inch]
- Corner Radius (RE): 0.08 mm (0.0031")
- Substrate Material: Hard, submicron fine-grain carbide compound yielding high plastic deformation resistance and superb cutting edge toughness.
- Coating Finish: TiAlN (Titanium Aluminum Nitride).
- Thermal Performance: Excellent heat-resistance that protects the cutting edge from breaking down at rapid surface speeds.
Brand New ISCAR 16ERM AG60 IC908 CNC Insert. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Switch Type: Single-Pole, Double-Throw (SPDT)
- Connection Size: 1" MNPT (Male National Pipe Thread)
- Paddle Size: 6-inch segment paddle (interchangeable or trimmable for 1" to 6" pipe variations)
- Enclosure Rating: NEMA 1 (general purpose indoor enclosure)
- Maximum Fluid Pressure: 150 psig (1,034 kPa)
- Fluid Temperature Range: 32°F to 250°F (0°C to 121°C)
- Electrical Ratings: 120-277 VAC; 16A FLA at 120V / 8.8A FLA at 240V
Brand New JOHNSON CONTROLS F61KB-11C Liquid Flow Switch (F61 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model: SF120E
- Applicable Motor Power: 120W
- Power Supply Voltage: Single-Phase 220V AC (Voltage Code "E")
- Power Frequency: 50 / 60 Hz
- Control Technology: MCU Digital Control
- Mounting Configuration: Panel Mount (Built-in running capacitor)
- Certification: CE Certified
- Smart Speed Matching: The integrated panel knob automatically matches and sets the maximum speed parameters, preventing over-speed hazardous conditions.
- Dual Mode Control: Supports physical panel-button operation as well as remote/external terminal switch control configurations.
- Soft Start/Stop: Built-in programmable capabilities for smooth, slow acceleration and deceleration profiles alongside rapid-stopping functions.
Brand New JSCC SF120E Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
