- Model / Series: LCP 31
- Danfoss Ordering Code: 132B0200
- Connection Type: 8-Pole Connection
- Enclosure Rating: IP00 / IP20
- Primary Compatibility: VLT® HVAC Basic Drive FC 101
- Approximate Weight: 2.00 lbs (0.91 kg)
- Fast Commissioning: The structured, user-friendly menu system allows technicians to quickly navigate through the quick-menu parameters for fast setup.
- Local Control Interface: Features dedicated buttons for localized hand/off/auto operations, starting/stopping the drive, resetting faults, and manual speed control overrides.
- Real-Time Diagnostics: The built-in LCD screen delivers crisp parameter visibility to monitor real-time system status, frequency output, electrical currents, and multi-line fault code readouts.
- Energy Optimization: Facilitates rapid tuning of energy-saving algorithms embedded within the HVAC drive hardware.
DANFOSS 132B0200 VLT Digital Control Panel (LCP 31 Series).
-
REQUEST A QUOTE
- Model Code: FC-051PK75T4E20H3XXCXXXSXXX
- Power Rating: 0.75 kW / 1.0 HP
- Input / Mains Voltage: 380 – 480 VAC (3-Phase)
- Output Current: 2.1 A (Continuous) / 2.2 A (Rated)
- Frame Size: M1
- Enclosure Rating: IP20 / Chassis
- Control Method: Open Loop Vector / Sensorless Vector
- Communication: RS485 via Modbus RTU
- Integrated RFI Filter: Features a built-in Class A1/B (C1) RFI reduction filter to minimize electromagnetic interference across localized electronics.
- Conformal Coating: Standard coated PCBs protect sensitive electronics against moisture, dust, and corrosive industrial debris.
DANFOSS 132F0018 Micro Variable Frequency Drive (FC-51 Series).
-
REQUEST A QUOTE
- Model Code: FC-051P2K2T4E20H3BXCXXXSXXX
- Power Output: 2.2 kW / 3.0 HP
- Input / Output Voltage: 380–480 V AC (Three-Phase)
- Amperage Output: 4.8 A (Constant) / 5.6 A (Max)
- Control Principle: Open Loop Vector / V/Hz
- Braking Features: Built-in Brake Chopper
- RFI Filter: Class A1/B (C1)
- Enclosure Rating: IP20 / Chassis
- Frame Size: M2
- PCB Protection: Conformal Coated
DANFOSS 132F0022 VLT Micro Drive (FC-51 Series).
-
REQUEST A QUOTE
- Brand/Series: Eaton Bussmann 170M Series
- Current Rating: 16 A
- Voltage Rating: 690 Vac (IEC) / 700 Vac (UL)
- Fuse Class: gR (Ultra-rapid semiconductor protection)
- Body Size / Design: DIN 000 square body with type 80 visual top indicator
- Interrupting Rating: 200 kAIC
- Mounting Style: Stud / Bolt-down (DIN 43 653 / DIN 43 620 blades)
- Width: 100 mm (approx. 3.94 in)
- Height: 40 mm (approx. 1.57 in)
- Length/Depth: 21 mm (approx. 0.83 in)
DANFOSS 170M1359 High-Speed Semiconductor Fuse for Drives (170M Series).
-
- Manufacturer: DANFOSS
- Model / Part Number: 170M1362
- Product Type: High-speed square body fuse
- Current Rating: 32 Amps
- Voltage Rating: 690 Vac (IEC) / 700 Vdc (UL)
- Interrupt / Breaking Capacity: 200 kA AC
- Operating Class: gR (general purpose semiconductor protection)
- Body Size / Construction: DIN 000
- Mounting Style: Square body with slotted, offset bolted tags (80mm center-to-center distance)
- Status Indicator: Top visual single indicator
- Power Loss: 10 Watts
- Body Width: 21 mm
- Body Height: 40 mm
- Total Length: 100 mm
-
REQUEST A QUOTE
- Manufacturer / Brand: Eaton Bussmann (Often distributed as a Danfoss spare part)
- Part Number: 170M1364
- Amperage Rating: 50 A
- Voltage Rating: 690 VAC (IEC) / 700 VAC (UL)
- Interrupting Rating (AIC): 200 kA at 690 V
- Operating Class: aR / gR (Ultra-rapid semiconductor protection)
- Physical Size: Size 000 / Size 0 (Slotted offset bolted tags / European blade style)
- Visual Indicator: Top fuse status indicator (Visual trip window)
- Weight: 133.2 g / 4.7 oz
- Compliances: CE Marked, RoHS Compliant, UL Recognized, IEC Rated
DANFOSS 170M1364 Semiconductor Protection Fuse (170M Series).
-
REQUEST A QUOTE
- Manufacturer: Eaton Bussmann Series
- Current Rating: 315 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupt Rating: 200 kAIC at 690V
- Fuse Size: 000
- Utilization Category: aR (Partial-range semiconductor protection)
- Mounting / Terminal: DIN 43653 Stud Mount / Blade End
- Status Indication: Top fuse status indicator (/80 visual indicator)
- Dimensions: 100 mm L x 21 mm W x 40 mm H
- Ultra-Fast Arcing Response: Engineered with low arc voltage and minimal energy let-through (I²t) to protect fragile silicon-controlled rectifiers (SCRs), diodes, and IGBTs.
DANFOSS 170M1372 Square Body Semiconductor Fuse (170M Series).
-
REQUEST A QUOTE

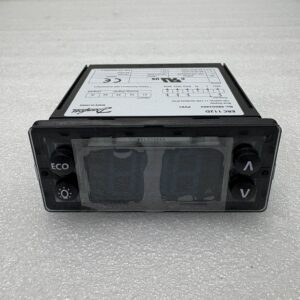

- Manufacturer: Danfoss
- Model / Part Number: ERC 112D 080G3492
- Order code: 080G3492
- Supply: 100–240 V AC
- Display: Blue LED
- Buzzer: Without buzzer
- Controller family: ERC 112D
- Application: Refrigeration control
-
REQUEST A QUOTE
- Manufacturer: Danfoss
- Model / Part Number: KPS45 060-312166
- Code number: 060-312166
- Regulation range: 4–40 bar
- Differential: 2.2–11 bar
- Reset: Automatic
- Pressure connection: G1/4 female, ISO 228-1
- Sensing element: Diaphragm
- Maximum working pressure: 120 bar
- Maximum test pressure: 180 bar
- Burst pressure: 240 bar
- Contact function: Gold SPDT
- AC-15 rating: 4 A at 440 V AC
- AC-1 rating: 10 A at 440 V AC
- Cable entry: Pg 13.5, metal cable gland
- Protection: IP67
- Ambient temperature: −25 to +70 °C
- Net weight: 1.092 kg
-
REQUEST A QUOTE
- Manufacturer: Danfoss Drives
- Model Name: VLT® Control Panel LCP 102
- Part Number (Code): 130B1107
- Display Type: Graphical LCD
- Enclosure Rating: IP66 / Type 3R / Type 4X
- Language Support: Global Multi-Language
- Net Weight: ~1.5 kg to 2.0 kg
- Country of Origin: Denmark
- Quick Commissioning Menus: Integrates a factory-programmed "Quick Menu" shortcut pathway enabling technicians to quickly perform basic motor adaptations, ramp times, and voltage/frequency matching parameters without scrolling through full parameter indexes.
- Parameter Cloning (Save/Copy): Contains onboard EEPROM storage capable of copying full parameter sets from a programmed drive and downloading (cloning) them into another identical drive model, minimizing commissioning setup downtime across multi-drive configurations.
DANFOSS LCP102 130B1107 Graphical Local Control Panel (LCP 102 Series).
-
REQUEST A QUOTE
- Sensing Range: 6 mm to 22 mm (8 mm nominal lens focal spot)
- Spot Orientation: Vertical orientation
- Light Emission: RGB LED (Red, Green, Blue) with automatic selection
- Switching Frequency: 15 kHz
- Response Time: ~33 µs (Microseconds)
- Output Type: NPN / PNP push-pull configurable
- Operating Voltage: 10 V to 30 V DC
- Connection Type: Standard M12 connector, 4-pole
- Housing Material & Rating: ABS Plastic housing; IP67 ingress protection
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
DATALOGIC TL50-W-815 Contrast Photoelectric Sensor (TL50 Series).
-
REQUEST A QUOTE
Technical Specifications
- Brand/Manufacturer: Delixi
- Model Series: DZ47LE-125
- Poles Configuration: 4P (4 Poles, suitable for three-phase systems with a neutral line)
- Maximum Current Rating: 100 Amps
- Breaking Capacity: 10 kA
- Typical Leakage Sensitivity: 30 mA (standard for personnel safety and shock protection)
- Rated Voltage: Up to 400V AC (50Hz)
- Overload & Short Circuit Protection: Safeguards electrical wiring and connected machinery from drawing too much current or suffering from violent short-circuit damage.
- Residual Current (Leakage) Protection: Instantly trips the circuit if current leaks out of the system (such as into the ground or through an individual experiencing an electric shock).
- Application Environments: Highly utilized in industrial, commercial, and larger residential main distribution panels where high power capacity is required.
Delixi DZ47LE-125 4P 100A Residual Current Circuit Breaker (DZ47LE Series).
-
- Manufacturer: Delta
- Model / Part Number: ASD-A2-1543-M
- Series: ASDA-A2 Series
- Rated Output Power: 1.5 kW (1500 W)
- Input Voltage / Phase: 3-Phase 380V to 480VAC (± 10%), 50/60Hz
- Continuous Output Current: 5.02 Arms
- Instantaneous Max Current: 10.04 Arms
- Control Configurations: Features built-in electronic cam (E-CAM) functionalities and Full-Closed Loop control capabilities to compensate for mechanical backlash.
-
REQUEST A QUOTE
- Series: ASDA-A2 Series (High-performance, closed-loop)
- Model Code: ASD-A2-3023-L
- Rated Output Power: 3.0 kW (3000 Watts)
- Input Voltage / Phase: 3-phase (supports 1-phase operation with derating) 200V ~ 230VAC, -15% to +10%
- Continuous Output Current: 19.4 Arms
- Encoder Resolution Support: 20-bit Incremental encoder / 17-bit Absolute encoder
- Control Modes: Position Control (Pulse + Direction), Speed Control, and Torque Control (via ±10 VDC voltage range)
- Communication Interface: 1x RS-232, 1x RS-485, and 1x USB built-in communication ports
- Enclosure Rating: IP20
- ASD: AC Servo Drive
DELTA ASD-A2-3023-L AC Servo Drive (ASDA-A2).
-
REQUEST A QUOTE
- Series: ASDA-B3 High Performance Platform
- Rated Output Power: 1.0 kW (1000 Watts)
- Input Power Phase / Voltage: 1-Phase / 3-Phase, 220 VAC
- Continuous Output Current: 7.3 Arms
- Instantaneous Max Current: 21.21 Arms
- Encoder Resolution Support: 24-bit (16,777,216 pulses/rev)
- Response Bandwidth: 3.1 kHz
- ASD: AC Servo Drive
- Advanced Suppression Tuning: Integrates robust auto-tuning algorithms alongside automated notch filters for mechanical vibration suppression, eliminating system resonance during sharp acceleration transitions.
- High Motor Speed Support: Fully compatible with high-speed servo motors reaching operational profiles up to 6,000 r/min.
DELTA ASD-B3-1021-L AC Servo Drive (ASDA-B3).
-
REQUEST A QUOTE
- Manufacturer: Delta Electronics / Industrial Automation
- Model Number: ASD-BM-50A
- Component Type: CN1 I/O Signal Breakout Board / Terminal Board with Cable
- Interface Connector: 50-Pin CN1 Connector (SCSI-style high-density plug)
- Terminal Type: Standard Screw Terminal Block
- Environmental Status: RoHS3 Compliant, REACH Unaffected
- Export Classifications: ECCN: EAR99 | HTSUS: 8536.90.4000
- Part Number Aliases: 2039-ASD-BM-50A, ASD-BM-50A-ND
- Compatible Servo Drive Series: Delta ASDA-A, ASDA-A+, ASDA-AB, ASDA-B, and ASDA-A2 Series.
- Associated Drive Example: Commonly paired with drives such as the ASD-A2-0221-M (Servo AC 220VAC Supply modules).
DELTA ASD-BM-50A Breakout Terminal Block (ASDA).
