Showing 833–848 of 1357 results
-
REQUEST A QUOTE
- Display Size & Type: 7” (16:9 Aspect Ratio) TFT LCD
- Resolution: 800 × 480 Pixels
- Color Depth: 65,536 Colors (16-bit)
- Touch Panel: 4-Wire Precision Resistive Network
- Processor: 32-bit RISC CPU @ 800 MHz
- Memory: 128 MB Flash + 64 MB DDR2
- Expandable Memory: 1x USB Host, 1x SD Card slot
- Recipe Memory & RTC: 512 KB + Built-in Real-Time Clock (RTC)
- Input Power: 24 VDC
- Programming Software: Kinco DTools / Kinco HMIware
Brand New KINCO MT4424TE Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Signal Options: 0…20 mA, 4…20 mA, or 0…10 V DC (selectable via external DIP switches).
- Output Signals: 2x individual 0/4…20 mA analog outputs.
- Isolation Type: 4-Port Isolation (input, both outputs, and power supply are completely decoupled from each other).
- Power Supply: 24 V DC (±10%) with support for a 24V DC DIN rail bus connection system.
- Output Load: 2x 500 ohms (can drive up to 1000 ohms total load if outputs are combined).
- Response Time: < 1 ms for precise, high-speed signal tracking.
- Protective Separation: Conforms to EN 61140 to protect personnel and control equipment against high voltages.
- Space Saving: Replaces two standard isolator modules with a single ultra-slim 6 mm housing, dramatically cutting down DIN rail footprint.
- Easy Calibration: Supports calibrated range selection via DIP switches, eliminating the need for complicated manual trimming.
- Bus Connection: The P0 version utilizes an optimized DIN rail bus power option, reducing wiring labor and complexity across multi-unit setups.
Brand New Knick A 20300 P0 Signal Doubler Isolator (VariTrans Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Koganei Corporation (Japan), often co-branded or distributed historically by Humphrey.
- Primary Function: Parallel type pneumatic gripper (air hand).
- Actuation: Double-acting (uses compressed air to both open and close the gripper fingers).
- Bore Size: 16 mm.
- Design Purpose: Modular robotic arm configuration and parts handling.
Brand New KOGANEI NHBDP-16 Cylinder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Insert Series / Type: MGMN (Double-sided, flat top with a specialized chip breaker). Part of Korloy's MGT (Multi-Functional Grooving Technology) platform.
- Cutting Width: 5.0 mm (0.197"). This extra-wide profile provides exceptional lateral stability when executing deep plunges or parting large-diameter solid bars.
- Chip Breaker Geometry: -M (Medium). Optimized for medium-feed rates, ensuring stable cutting forces and excellent chip curling/control away from the workpiece groove.
- Insert Edge Finish: Features a wiper function on its flat cutting edge to maximize surface finish smoothness even at higher feed rates.
- Grade & Coating Properties: NC3030
- Coating Type: CVD (Chemical Vapor Deposition) multi-layer coating consisting of TiC + TiCN + Al₂O₃ + TiN.
- Key Strengths: It functions as a thermal and shock-absorbing shield. It is heavily favored for tough, interrupted cuts, roughing operations, and machining large forged parts or workpieces with highly uneven, unmachined skins.
- Recommended Cutting Speed: 250 to 650 SFM (Surface Feet per Minute).
- Logistics Note: Typically sold in packs of 10 with direct-to-shop shipping options.
- Rigidity is Key: Because of the wide 5mm blade footprint, ensure your toolholder is securely clamped and your CNC lathe has sufficient spindle torque to prevent stalling or chattering during wide plunges.
Brand New KORLOY MGMN500-M NC3030 CNC Insert. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensor Type: Capacitive Proximity
- Sensing Distance: 5.00 mm
- Mounting Style: Non-Flush Mount
- Operating Voltage: 10–30 VDC
- Output Configuration: 3-wire, NPN Normally Open (NO)
- Current Consumption: 20 mA or less (N-type)
- Standard Target Object: Grounded iron block (50 × 50 × 1mm)
Brand New KOYO CS-16-5N Capacitive Proximity Sensor (CS Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Type: 4-Digit LED Display
- Output Type: Relay Output
- Supply Voltage: 100–240 VAC (or 110V/220V configuration)
- Sensor Power Supply: DC 24V (15 mA)
- Input Signals: Contact or electronic solid-state input
- Operating Temperature: –10 °C to +55 °C
- Mounting Style: Panel Mount
- Batch & Quantity Counting: Tracking individual pieces on a conveyor line via proximity sensors or photoelectric eyes.
- Length Measurement: Working in tandem with rotary encoders to measure material output (e.g., textiles, paper, or metal sheets) before triggering a cut-off relay.
- Automation Automation Panels: Acting as a localized processing node to send relay triggers back to a master PLC (Programmable Logic Controller) system.
Brand New KOYO KCN-4SR-C Counter/Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Encoder Type: Incremental Rotary Encoder
- Resolution: 1000 Pulses Per Revolution (PPR)
- Input Voltage: 12–24 VDC
- Output Form: Push-Pull (Totem Pole)
- Signal Format: Quadrature (2-Phase Output) + Home Position (Index Pulse)
- Origin Logic: Negative Logic (Active Low)
- Shaft Style: 6 mm Solid Shaft (15 mm total shaft length)
- Body Dimensions: 38 mm Diameter × 30 mm Depth
- Mounting Pitch: 30 mm
- Connection Type: 1.00-meter side cable with tinned wire ends
Brand New KOYO TRD-2T1000BF Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: JTEKT / Koyo Seiko
- Encoder Type: Incremental
- Resolution: 100 PPR (Pulses Per Revolution)
- Supply Voltage: 5 to 30 VDC
- Output Type: Push-Pull / Totem Pole
- Shaft Design: 8mm Solid Shaft
- Body Diameter: 50mm Outer Diameter
- Ingress Protection: IP50
- Connection: Built-in Cable
- Origin Direct Action: The "RZ" configuration provides an origin (Z-phase) pulse line. This acts as a reference point, allowing systems to establish a strict homing position or zero-point calibration once per complete rotation.
Brand New KOYO TRD-J100-RZ Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 360 PPR (Pulses Per Revolution).
- Supply Voltage: 4.75V to 30V DC (supports a broad 5–30V DC operational range).
- Output Form / Signal Format: 2-phase output + home position (TTL Quadrature, Push-Pull / Totem Pole).
- Body Diameter: 50 mm.
- Shaft Dimensions: 8 mm solid shaft.
- Ingress Protection: IP50 (dust-proof rating).
- Signal Width at Home Position: 50% to 150%.
- Weight: ~0.22 kg (0.49 lbs) unit weight.
Brand New KOYO TRD-J360-RZ Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 256 Pulses Per Revolution (PPR) / 8-bit absolute encoding.
- Output Signal Format: NPN Open Collector (indicated by the "NW" suffix).
- Supply Voltage: 10 to 26 VDC.
- Outer Body Diameter: 50 mm
- Profile Depth: 35 mm (Ultra-compact form factor)
- Actuator Type: 8 mm solid shaft.
- Sensing Technology: Optical electromechanical tracking.
- Environmental Protection: IP65 rating (Dust and jet-water resistant with a robust aluminum die-cast cover).
- TRD: Rotary Encoder series designation.
- NA: Medium-duty Absolute type.
Brand New KOYO TRD-NA256NW Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Kromschröder (Honeywell)
- Part Number / Code: 84447350 (also referenced as KS84447350)
- Adjusting Range: 2.5 to 50 mbar (approx. 1 to 20" WC)
- Maximum Pressure: 600 mbar
- Media Type: Gas and Air
- Electrical Interface: Screw terminals with an M16 cable gland
- Switching Function: Automatic reset (switches with rising/falling pressure)
- Enclosure Rating: IP 54
- Temperature Range: -4°F to 176°F (-20°C to 80°C)
- Safety Certifications: Certified for systems up to SIL 3 and PL e
- DG: Gas pressure switch

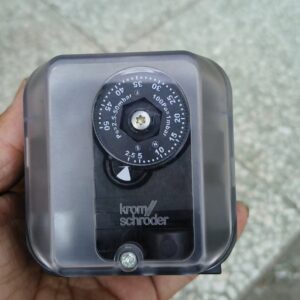

Brand New KROM SCHRODER DG50U-3 Gas Air Pressure Switch (DG Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage Options: 110/120 V AC (+10/-15%, 50/60 Hz) or 220/240 V AC (Model 84359020)
- Power Consumption: 12 VA
- Flame Control Method: Ionization sensor (flame rod) or UV control (sensor current > 1 μA DC)
- Output Signal: Potential-free contacts (1 × NC, 1 × NO); Max 2 A contact rating
- Output Voltage (Sensor): 220 V AC
- Indicator: Integrated flame signal lamp visible on the device enclosure
- Enclosure Rating: IP40 Protection class
- Ambient Temperature: -4 °F to 140 °F (-20 °C to +60 °C)
- Cable Gland: Five baseline openings for external wire configuration
- Physical Profile: 9.4 × 7.2 × 8.2 cm (L × W × H); Weight: 0.37 kg (0.8 lbs)
Brand New KROM SCHRODER IFW15-T Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Bihl+Wiedemann
- MFR Part Number: BWU1703
- Krones Part Number: 0-900-85-353-7 (0900853537)
- Device Type: AS-i 3.0 to PROFIBUS Gateway
- Number of AS-i Masters: 2 Masters (Supports up to 2 distinct AS-i networks)
- Housing Material: Stainless Steel
- Protection Rating: IP20 (Protected against solid bodies >12.5mm, no water protection)
- Operating Voltage: 30V DC (via AS-i) / Compatible up to standard 110V–240V supply architectures
- On the AS-i Side: The unit functions as a master controller for two separate AS-i networks. It continuously polls and collects digital/analog input signals from connected field components like proximity switches, photoeyes, and valve positioners.
- Duplicate Address Recognition: Automatically detects if two slave devices on the same AS-i loop have accidentally been assigned the same node address, preventing erratic signal behavior.
Brand New KRONES BWU1703 Gateway. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Function: Connects the KCP2 teach pendant to the KRC2 controller.
- Length: 10 meters (approx. 32.8 feet).
- Connectors: Features a 19-pin circular male connector on the controller end and interfaces with a 26-pin female layout / wire leads on the pendant end.
- Application: Typically routed via the X19 junction on KRC2 control cabinets.
Brand New KUKA 00-132-345 Teach Pendant Communication Cable (KRC2 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Compatibility: All KUKA KRC4 Controllers
- Display Type: 8.4-inch capacitive touch screen with high luminosity
- Interface Elements: Touch keypad, physical jog keys, and an ergonomic 6D mouse
- Electrical Rating: 24 VDC @ 1 Amp
- Cable Length: 10 meters (approx. 33 feet) tethered cable
- Data Transmission: 2 USB ports for direct loading/saving of application programs
- Physical Safety: Integrated drop-protectors & physical Emergency Stop (E-Stop) button
- Weight: 2.5 kg (approx. 5.5 lbs) shipping/device weight
- Maintenance-Friendly: The hardware features a rear service flap designed for straightforward cable replacement, reducing downtime if the 10m tether gets damaged.
- Multi-Robot Support: It is used across various small-to-large payload KUKA families running KRC4, including popular compact arms like the KR6 (R700, R900) and KR10 (R900, R1100) series.
Brand New KUKA 00-168-334 Teach Pendant. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: KUKA Robotics
- Part Number (MPN): 00-174-774 (also written as 00174774)
- Length: 7 meters (~23 feet)
- Interface Connections: X21 to X32 / X31
- Controller Compatibility: KUKA KRC4
- Primary Function: Motor Encoder / Resolver Feedback Data
- Motor Feedback Loop: Safely pipes diagnostic, positioning, and rotation speed data from the robot arm encoders back into the controller to maintain absolute positioning.
- Maintenance & Emergency Downtime Repairs: Serves as a standard, direct-swap drop-in replacement cable to resolve common communication faults, signal corruption, or physical cable wear on active lines.
- System Upgrades & Reconfigurations: Used when redeploying robot arms within cell distances requiring up to a 7-meter radius from the cabinet enclosure.
- Handling time: Within 1-2 business days when funds received. Payment Paypal Bank Wire Transfer Credit Card Shop Pay Gpay Apply Pay…
Brand New KUKA 00-174-774 Robot Cable. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
