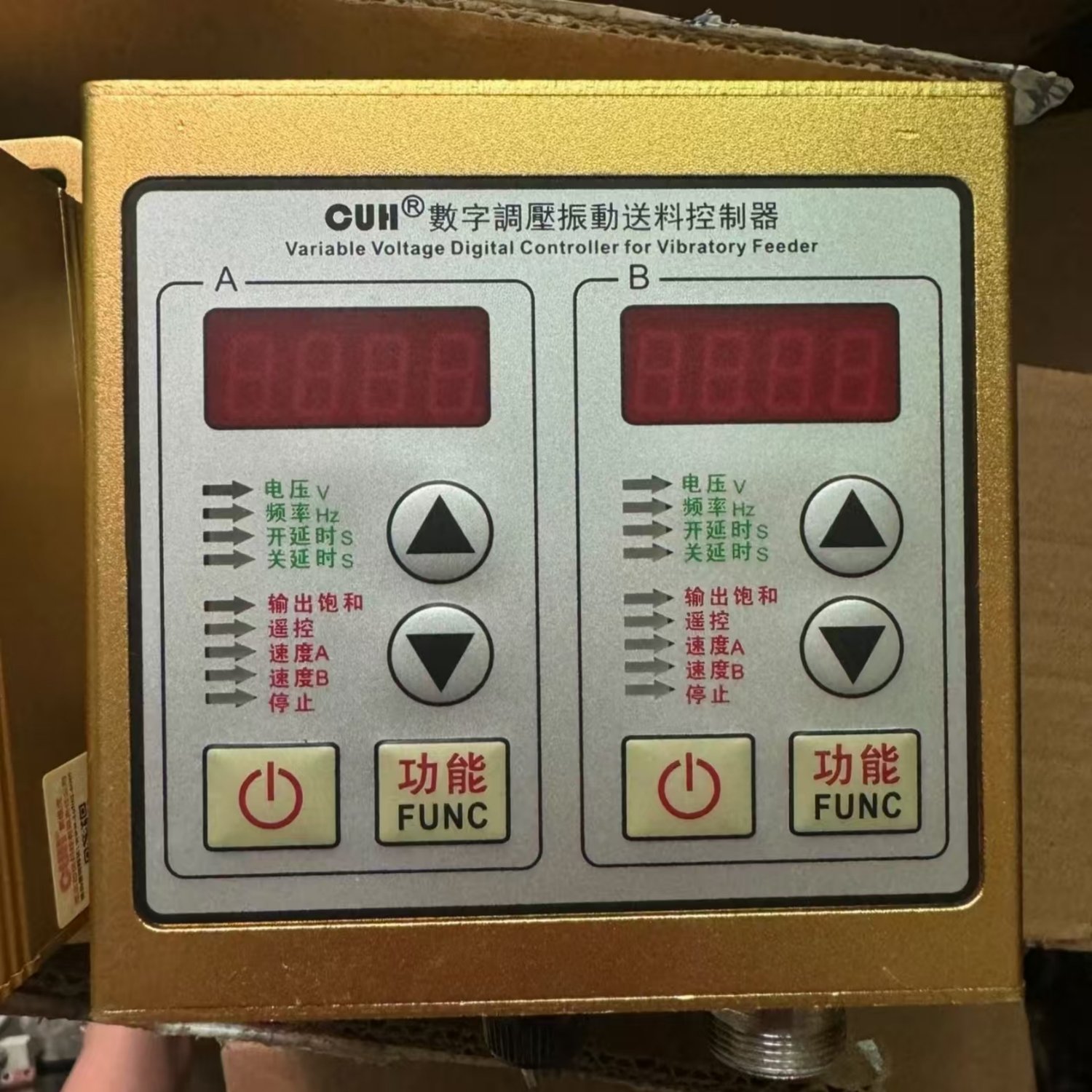

CUH SDVC22-S Variable Voltage Vibratory Feeder Controller (SDVC Series)

• Input Voltage: 85V to 260V AC
• Output Voltage: 0V to 260V AC (adjustable)
• Maximum Current: 5A
• Output Power capacity: 0 to 1100VA
• Automatic Voltage Regulation (AVR): Prevents feeding speed changes by neutralizing fluctuations from the main power grid.
• Soft Startup: Protects materials and the mechanism from sudden jarring motions by gently ramping up output voltage from 0 to the target value.
• Preset Speeds: Stores up to four distinct feed speeds that can be activated instantly using external short-circuit signal triggers.
• Sensor Integration: Supports dual NPN switch sensors, PLC logic control, or CUH Intelligent Photoelectric Sensors to automatically turn feeding on or off based on material level requirements.
• Remote Management: Allows external speed modulation through a standard potentiometer, PLC, or a 1–5V DC analog control signal.
• Built-in System Protection: Equipped with comprehensive safety mechanisms including overheat, overcurrent, overvoltage, and fuse short-circuit protection.

Brand New CUH SDVC22-S Variable Voltage Vibratory Feeder Controller (SDVC Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
