- Manufacturer: FATEK
- Model / Part Number: FBS-24YT
- AI Mode Conversation: FATEK FBS-24YT
- Output Points: 24 digital outputs.
- Output Type: Transistor SINK (NPN type).
- Current Capacity: Maximum 0.1A per output channel.
- Connection Interface: Uses a high-density 30-pin header connector with a latch system rather than traditional screw terminals to maintain a compact footprint.
FATEK FBS-24YT: AI Mode Conversation FATEK FBS-24YT; Output Points 24 digital outputs.; Output Type Transistor SINK (NPN type).; Current Capacity Maximum 0.1A per output channel..
-
- Manufacturer: Fatek
- Model / Part Number: FBs-2DA
- Output Channels: 2 separate channels.
- Signal Types: It can output Voltage (-10V to +10V or 0V to 10V) or Current (-20mA to +20mA or 0mA to 20mA).
- Resolution: 14-bit, which gives you very precise steps.
- Signal Precision: It moves in tiny steps of 0.3mV for voltage and 0.61µA for current.
- Power Requirement: Requires an external 24V DC power supply.
-
REQUEST A QUOTE
- MA: Economy/Basic main unit type.
- AC: Powered by standard alternating current.
- Feature / Attribute: Specification Details
- Total I/O Points: 60 Points
- Digital Inputs: 36 points 24VDC (up to 10KHz high-speed input across 4 points)
- Digital Outputs: 24 points Relay
- Power Supply: 100~240VAC, 50/60Hz
- Power Consumption: 36W (Max Current: 400mA)
- Communication: 1 built-in RS-232 port (expandable up to 3 ports via expansion boards)
- Memory Capacity: 20K words program space, 20K words data space
FATEK FBS-60MAR2-AC PLC Main Unit (FBs Series).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric (Made in Japan / China variants)
- Product Series: MICREX-SX SPH Series
- Total Slots: 8 Slots total
- Processor Bus Slots: 3 Slots allocated for processor buses
- Power Input: DC 24V, 50mA
- Mounting Type: Panel surface mount or DIN rail via fitting metal
- Physical Weight: ~1.26 lbs (~570 grams) / Bare board approx. 230g
- Module Compatibility: SPH series modules (e.g., NP1PS-74R, NP1AX, NP1L)
FUJI NP1BS-08 PLC Base Board (MICREX-SX SPH).
-
REQUEST A QUOTE
- Channels: 8 single-ended, grouped together.
- Resolution: 13-bit voltage.
- Output Voltage Ranges: Either unipolar (0 to +10.24 VDC) or bipolar (-10.24 to +10.24 VDC).
- External Power: Requires an external power supply to drive the output loops.
- Diagnostics: Built-in LED indicators including OK (indicates backplane power is recognized) and FLD PWR (indicates field-side power is present).
- Fail-Safe Operation: Supports a jumper configuration that forces the module to hold its last state or reset to a default value if communication with the CPU is lost.
GE FANUC IC200ALG325 8-Channel Analog Output Module (VersaMax Series).
-

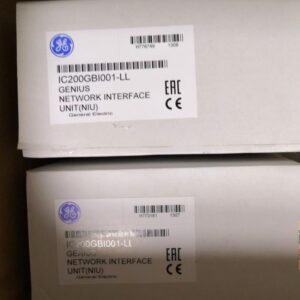

- Manufacturer: GE FANUC
- Model / Part Number: IC200GBI001-LL
- Series: VersaMax
- I/O Capacity: It supports up to 8 I/O modules per rack, and a total system configuration of up to 8 racks (totaling 64 modules).
- Memory Limits: Manages 1,024 points of discrete input and output memory, as well as 128 bytes of analog memory.
- Network Speed: Operates at varying transmission rates, including standard speeds (38.4, 76.8, or 153.6 Kbaud) and an extended 153.6 Kbaud setting.
- Power Requirements: Draws 250 mA at 5 VDC and 10 mA at 3.3 VDC.
- Bus Address Range: 0 to 31.
- Redundancy: Built with support for both media (cable) and hardware redundancy to keep industrial systems running even if a wire breaks.
-

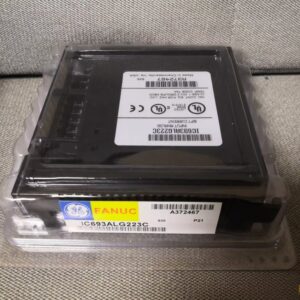

- Manufacturer: GE FANUC
- Model / Part Number: IC693ALG223
- Number of Channels: 16 single-ended
- Supported Ranges: 4 to 20 mA, 0 to 20 mA, and 4 to 20 mA Enhanced
- Resolution: 12-bit (corresponds to 4 µA or 5 µA per step)
- Accuracy: ±0.25% at room temperature (25°C)
- Input Impedance: 250 Ohms
- Isolation: 1,500V electrical isolation between field side and PLC logic
- Update Rate: 6 milliseconds across active channels
- High-Density Inputs: Packing 16 channels into a single slot saves physical space in your PLC rack.
- Electrical Protection: The 1500V isolation prevents electrical noise and dangerous "ground loops" from damaging the main PLC processor.
- Internal Power: Consumes 120 mA from the PLC backplane's 5V DC bus.
- External Power: Requires 65 mA from a user-supplied +24V DC external power supply to power the current loops.
-

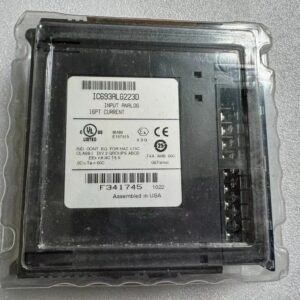

- Manufacturer: GE FANUC
- Model / Part Number: IC693ALG223D
- Number of Channels: 16 single-ended channels.
- Resolution: 12-bit.
- Accuracy: ±0.25% at 25°C (77°F); ±0.5% over the full temperature range.
- Update Rate: 13 milliseconds for all 16 channels to refresh.
- Input Impedance: 250 Ohms.
- Electrical Isolation: 250 VAC continuous optical isolation (or 1500 VAC for up to one minute) between the field device side and the PLC logic side.
- From PLC Backplane: 120 mA from the 5 VDC bus.
- External Power Supply: Needs a 24 VDC external user supply, consuming 65 mA plus the loop currents.
- Diagnostics: Configurable high and low alarms per channel. The "Enhanced" mode triggers a low alarm if a wire breaks (open-wire detection).
- LED Status Lights: Features front-panel LED indicators to quickly communicate if the module is running okay, failed, or has power.
- Rax Compatibility: Can fit into any standard I/O slot supporting serial connectors. Note that while the module works in both systems, firmware updates are only supported when it is plugged into an RX3i rack, not older Series 90-30 racks.
-
REQUEST A QUOTE
Technical Specifications
- Module Type: Discrete Digital Input Module
- Number of Points: 32 (Divided into 4 isolated groups of 8 channels)
- Rated Input Voltage: 24 VDC (Accepts range of 0 to 30 VDC)
- Logic Configuration: Positive/Negative (Sink or Source wiring options)
- Input Current: 7.0 mA per point typical at rated voltage
- Backplane Current Draw: 300 mA @ 5 VDC (With all inputs active)
- Optical Isolation: 250 VAC continuous / 1500 VAC for 1 minute (Field to Backplane & Group to Group)
- Configurable Filter Time: 0.5 ms to 100 ms per channel
- Flexible Logic Support: Because it handles both positive and negative logic, the module accommodates sourcing devices (where current flows from the device to the input) or sinking devices (where current flows from the input to the device).
- High-Density Footprint: Packing 32 channels into a single RX3i slot conserves critical backplane space, reducing the physical size of the automation enclosure.
- Industrial Isolation: Built-in optical isolation safeguards delicate internal backplane circuitry from high-voltage spikes or electrical noise generated in the field.
GE FANUC IC694MDL660-CC Discrete Input Module (PACSystems RX3i).
-
REQUEST A QUOTE
- Module Type: Universal Base Power Supply
- Platform Compatibility: PACSystems RX3i
- Backplane Support: RX3i Universal Backplane only (IC695 catalog numbers)
- Slots Occupied: 2 backplane slots
- Nominal Input Voltage: 120/240 VAC or 125 VDC
- Input Voltage Range: 85 to 264 VAC or 100 to 300 VDC
- Input Power: 70 W max with VDC
- Total Load Capacity: 40 Watts
- Expansion Limits: Up to 4 multi-purpose power supplies (IC695PSA140 and/or DC-equivalent IC695PSD140) can sit on a single RX3i Universal Backplane.
- Increased Capacity Mode: Multiple units seamlessly load-share when the overall system current envelope exceeds what a single module can output.
GE FANUC IC695PSA140 Power Supply Module (PACSystems RX3i).
-
REQUEST A QUOTE
- Output Channels: 16 digital points.
- Output Type: Transistor type (typically utilized for high-speed, high-frequency switching tasks where relays would wear out).
- Connection Interface: Terminal/Connector type layout.
- Power Supply Capacity: 50mA from the main controller's DC 5V internal bus.
- I/O Points Occupied: 16 points.
HCFA HCA8C-16EYT Digital Output Expansion Module (HC-A8C Series).
-
REQUEST A QUOTE
- Operating Voltage: 115 / 230 VAC (±10%), dual voltage selection
- Frequency: 50 / 60 Hz
- Temperature Rating: -40°F to +175°F (-40°C to +79°C)
- Enclosure Rating: NEMA 4 / IP66 (Dust and moisture resistant)
- Wiring Interface: Terminal block / Screw terminals
- Self-Check Mechanism: Oscillating shutter; cycles 12 times per minute
- Pressure Rating: Viewing window rated up to 20 psi (138 kPa)
- Dynamic Self-Checking: Features an internal, oscillating shutter mechanism that mechanically interrupts the path of UV radiation 12 times every minute. This constant cycling allows the flame safeguard system to verify that the UV sensor tube is functioning properly and hasn't failed in a dangerous "always-on" state.
- Flexible Positioning: Supports mounting horizontally, vertically, or at any intermediate angle. Note that faceplate alignment with integral locating reference points is mandatory to guarantee correct mechanical shutter movement.
- Dual Detector Parallel Wiring: In demanding or irregular flame-sighting conditions, two C7061A scanners can be wired completely in parallel to a single terminal. This significantly mitigates nuisance system shutdowns.
HONEYWELL C7061A1020 Flame Detector (C7061).
-
REQUEST A QUOTE
- Power Supply: 100–240 V AC (50/60 Hz, 36VA)
- Total I/O Count: 10 I/O points
- Inputs: 6 digital inputs (24V DC)
- Outputs: 4 relay outputs (240V AC / 30V DC, 2A)
- Communication: Built-in RS232C port
- Certifications: UL, c-UL, CE, and Class 1 Division 2 for hazardous locations
IDEC FC4A-C10R2 PLC CPU Module (MicroSmart FC4A).
-
REQUEST A QUOTE
- I/O Configuration: 16 total I/O points, split into 9 inputs and 7 relay outputs.
- Power Supply: 100–240 V AC, 50/60 Hz (31 VA consumption).
- Output Rating: 2 A, 24 V DC.
- High-Speed Capabilities: Features 4 built-in high-speed inputs capable of up to 20 kHz handling.
- Networking: Supports a built-in standard RS232C port with datalink capabilities for up to 32 PLCs.
- Certifications: UL, cULus, Class 1 Division 2 (hazardous locations), CE, and ABS Type Approved.
- AFI Systems: Provides independent repair options and certified operational replacements.
- Features: ○Max. 264 I/O○Datalink Up to 32 PLCs○Easy Programming○20 kHz High Speed I/O○Standard RS232C Port, Optional RS485/RS232 Po…
IDEC FC4A-C16R2 PLC CPU Module (MicroSmart FC4A).
-
REQUEST A QUOTE
- Power Supply: 100–240V AC, 50/60 Hz (40VA power consumption)
- I/O Configuration: 24 total built-in I/O points (expandable up to a maximum of 88 I/Os)
- Inputs: 24V DC discrete inputs (includes 4 built-in high-speed counters capable of 20 kHz handling)
- Outputs: 2A Relay outputs rated for 240V AC / 30V DC
- Auxiliary Output: Provides a 24V DC, 250mA auxiliary power source
- Communication: Integrated standard RS232C port (expandable with optional modules)
- Certifications: Class I Division 2 (Groups A, B, C, D) for hazardous locations; CE; cULus; ABS Type Approved
IDEC FC4A-C24R2 PLC CPU Module (MicroSmart FC4A).
-
REQUEST A QUOTE
- Power Supply: 24V DC operating power (often paired with a 230V AC mains transformer or power supply).
- Total I/O Count: 24 built-in I/Os (14 inputs and 10 outputs), expandable up to a maximum of 88 I/Os using expansion modules.
- Inputs: 24V DC inputs, featuring 4 built-in high-speed inputs (up to 20 kHz).
- Outputs: 10 Relay outputs rated at 240V AC / 30V DC, 2A.
- Communication: Built-in standard RS232C port; supports DataLink networking for up to 32 PLCs.
- Certifications: Class I Division 2 (Groups A, B, C, D) for hazardous locations, CE, and cULus.
- Features: ○Max. 264 I/O○Datalink Up to 32 PLCs○Easy Programming○20 kHz High Speed I/O○Standard RS232C Port, Optional RS485/RS232 Po…
IDEC FC4A-C24R2C PLC CPU Module (MicroSmart FC4A).
