- Input Interface: USB V1.1 (Type B female connector)
- Output Interfaces: 1 x RS-232/422/485 (DB9 female and 10-pin screw terminal)
- Isolation Voltage: 3,000 VDC (Protects the host PC from power surges)
- Baud Rate Speed: 300 bps to 115.2 Kbps
- Power Source: Fully bus-powered via USB (No external power supply required)
- Power Consumption: 1.5 W @ 5 VDC
- Operating Temp: -10°C to 70°C (14°F to 158°F)
- Mounting Options: DIN-rail, panel, wall, or piggyback stack mounting
- No IRQ Conflicts: Because it interfaces through USB, the module does not consume any additional hardware IRQs or traditional system I/O memory addresses.
ADVANTECH ADAM-4561 USB-to-Serial Converter (ADAM).
-
REQUEST A QUOTE
- Digital Inputs: 12 Channels
- Digital Outputs: 6 Channels
- Operating Power: 10 to 30 VDC
- Isolation Voltage: 2,000 VDC
- Operating Temp: -40°C to 70°C (-40°F to 158°F)
- Physical Interface: 1x RJ45 Ethernet
- Multi-Protocol Support: Communicates seamlessly via standard automation and modern IoT profiles, including Modbus TCP, MQTT (with TLS safety), SNMP, RESTful APIs, and ASCII commands.
- Graphic Condition Logic (GCL): Built-in algorithmic engine allowing users to program simple local control rules directly inside the module, creating standalone automated behaviors.
- Cloud Connectivity: Direct telemetry streams to cloud ecosystems such as Microsoft Azure.
- Reliability Systems: Integrated hardware and communication watchdog timers automatically reboot or safe-state the network stack in the event of an edge system crash.
ADVANTECH ADAM-6050 Ethernet Remote I/O Module (ADAM-6000).
-
REQUEST A QUOTE
Technical Specifications
- Interface: 10/100 Base-T Ethernet (RJ45 connector)
- Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT (TLS), SNMP, RESTful API, and ASCII commands
- Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
- Power Input: Unregulated 10 ~ 30 VDC
- Power Consumption: 3 W (max) @ 24 VDC
- Isolation Protection: 2,000 VDC
- Watchdog Timer: Built-in system (network and programmable)
- Channels: 6 channels
- Counter/Encoder Input: Supports max input frequency of 3 kHz
- Channels: 6 channels (Form A – Normally Open)
- AC: 0.5 A @ 120 VAC
- DC: 1 A @ 30 VDC
- Breakdown Voltage: 500 VAC (50/60 Hz)
- Relay On: 7 ms
- Relay Off: 3 ms
- Pulse Output: Supports pulse output up to 3 Hz
- Operating Temperature: -40 ~ 70 °C (-40 ~ 158 °F)
- Storage Temperature: -30 ~ 80 ° C
- Operating Humidity: 20 ~ 95% RH (non-condensing)
- Graphic Condition Logic (GCL): Enables users to define basic logic rules (such as IF/THEN conditions) directly onboard the firmware.
- Cloud Connectivity: Native capabilities to stream sensor data securely directly to platforms like Microsoft Azure.
ADVANTECH ADAM-6060 Ethernet Remote I/O Module (ADAM-6000).
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1734-OE2V
- Product type: POINT I/O 2-channel analog output module (voltage)
- Output channels: 2 single-ended non-isolated voltage outputs
- Resolution: 14 bit (13 + sign), 1.28 mV/count
- Output range: 0…10 V (+10 V configurable)
- Load current: 3 mA per output
- Module power: POINTBus 75 mA at 5 V DC; external 24 V DC (10…28.8 V) 35 mA, 1.0 W
- Isolation: 50 V continuous, 2200 V DC for 60 s
- Dimensions: 56.6 x 12.1 x 77.5 mm, approx. 36 g
- Keyswitch position: 4
-
REQUEST A QUOTE
Technical Specifications
- Module Type: Analog Voltage Output Module (POINT I/O)
- Number of Outputs: 2 Single-ended, Non-isolated Channels
- Output Voltage Range: 0 to 10V or ±10V (configurable)
- Resolution: 14 bits
- Absolute Accuracy: 0.1% Full Scale @ 25°C (77°F)
- External Field Power: 24V DC nominal
- Mounting Format: DIN-rail mounted, open-style
- Key Features: On-board scaling, selectable input filters, hot-swappable (RIUP)
ALLEN-BRADLEY 1734-OE2V SER.C Analog Output Module (POINT I/O).
-

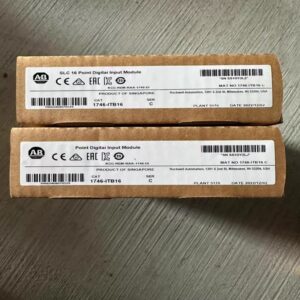

- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-ITB16
- Product type: SLC 500 16-channel fast-response DC sinking input module
- Input channels: 16
- Input voltage: 24 V DC (10…30 V DC range)
- Input type: DC sinking
- Isolation: 500 V DC communication isolation
- Power dissipation: 0.2 W per point, 3.6 W total (per 1746-IN027)
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NIO4I
- Product type: SLC 500 combination analog I/O module (2 inputs + 2 current outputs), single-slot
- Input channels: 2 differential inputs, voltage or current selectable per channel, not individually isolated
- Current input range: -20 to +20 mA (normal); absolute maximum -30 to +30 mA
- Voltage input range: -10 to +10 V dc – 1 LSB
- Input converter: 16-bit; current resolution 1.22070 uA/LSB (250 ohm input impedance); voltage resolution 305.176 uV/LSB (1M ohm)
- Output channels: 2 analog current outputs, not individually isolated
- Current output range: 0 to +20 mA normal (0 to +21 mA – 1 LSB with 5% overrange)
- Output converter: 14-bit, R-2R ladder; resolution 2.56348 uA/LSB; load range 0 to 500 ohm
- Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc
- Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
- Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
- Lifecycle status: Discontinued (2021-04-29); repair options available; engineering replacement category
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NO4V
- Product type: SLC 500 analog output module, 4 voltage outputs (single-slot)
- Output channels: 4 analog voltage outputs, not individually isolated
- Voltage output range: -10 to +10 V dc – 1 LSB (single range and scale)
- Output converter: 14-bit, R-2R ladder; resolution 1.22070 mV/LSB; full scale 10 V dc
- Load range: 1K ohm to infinity; maximum load current 10 mA; max load reactance 1 uF
- Accuracy: +-0.208% of full scale at 25 C; +-0.384% over 0 to +60 C
- Step response: 2.5 ms (at 95%)
- Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc; external 24 V dc +-10% (21.6-26.4 V) for some applications
- Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
- Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
- Lifecycle status: End of Life 2015-12-30; replacement option 1746-NO8V
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NR8
- Product type: SLC 500 8-point resistance (RTD) input module
- Input channels: 8
- A/D conversion: Sigma-Delta
- Backplane load: 100 mA at 5 V dc + 55 mA at 24 V dc; 1.82 W max
- Isolation: 500 V ac 1 min (channels to backplane); 5 V dc channel-to-channel
- RTD types: Platinum, nickel, nickel-iron, copper; Pt385 range -200 to +850 C
- Excitation: 0.25 / 1.0 mA
- Operating temperature: 0 to 60 C
- Lifecycle: Discontinued (2024-09-30), engineering replacement
-
REQUEST A QUOTE
- Platform Compatibility: Allen-Bradley SLC 500 (Fits into any standard SLC 1746 I/O chassis slot).
- Input Channels: 4 backplane-isolated channels.
- Supported Thermocouple Types: J, K, T, E, R, S, B, and N.
- Millivolt Range Options: ±50 mV or ±100 mV.
- Signal Accuracy: Utilizes two Cold-Junction Compensation (CJC) sensors built into the terminal block to maintain thermocouple signal tracking accuracy across temperature fluctuations.
- Backplane Power Consumption: Draws power directly from the chassis backplane:
- Resolution: 16-bit input conversion (0.01°C resolution).

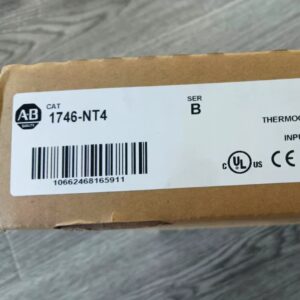

ALLEN-BRADLEY 1746-NT4 SER.B Thermocouple Input Module (SLC 500).
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NT4
- Product type: SLC 500 4-channel thermocouple/mV input module (Series B)
- Input channels: 4 (backplane isolated)
- Input types: Thermocouple or DC millivolt per channel, with cold junction compensation
- A/D conversion: Sigma-Delta modulation
- Input filtering: Programmable low-pass digital filter (10/50/60/250 Hz notch)
- Normal mode rejection: >100 dB at 50/60 Hz
- Common mode rejection: >150 dB at 50/60 Hz
- Isolation: 500 V dc continuous (inputs to chassis and backplane)
- Backplane load: 60 mA at 5 V dc + 40 mA at 24 V dc; 0.8 W max
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-OW16
- Module type: Relay contact output module, 16 channels, AC/DC voltage category; 8 points per common
- Output signal (load voltage): 5 to 125 V DC or 5 to 265 V AC digital contact output
- Relay contact ratings: Make/break 15 A / 1.5 A at 120 V AC; 7.5 A / 0.75 A at 240 V AC; DC limited to 28 VA, max 2 A below 14 V; min load current 10 mA at 5 V DC; 0 mA off-state leakage
- Continuous current: 8.0 A per common; module limited to 16.0 A AC and 1440 VA total
- Backplane current consumption: 0.170 A at 5 V DC; 0.180 A at 24 V DC
- Signal delay, max resistive load: On = 10.0 ms; Off = 10.0 ms
-
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 1762-IQ16
- Controller Family: MicroLogix 1200
- Input Channels: 16 digital inputs
- Nominal Input Voltage: 24 VDC
- Mounting: DIN rail
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1764-24AWA
- Product type: MicroLogix 1500 programmable controller, 24-point fixed I/O base unit with processor and integrated power supply
- Input points: 12 discrete inputs, 120 V AC
- Output points: 12 relay outputs, including 2 individually isolated relays
- Supply voltage: 120/240 V AC
- Communication: Built-in RS-232C communication port
- Lifecycle status: Discontinued by Rockwell Automation; lifecycle cutoff 2017-06-30
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1766-L32BXBA
- Series: MicroLogix 1400
- Input Power Voltage: 24V DC
- Memory Capacity: 20 KB user memory
- Mounting Options: DIN Rail or Panel Mount
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Weight: 2.31 lbs (1.05 kg)
-
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 1769-IF8
- Number of Inputs: 8 differential or single-ended analog channels
- Input Ranges (Voltage): ±10V DC, 0–10V DC, 1–5V DC, 0–5V DC
- Input Ranges (Current): 4–20 mA, 0–20 mA
- Resolution: 16 bits (unipolar); 15 bits plus sign (bipolar)
- Backplane Current Draw: 120 mA @ 5V DC, 70 mA @ 24V DC
- Input Impedance: Voltage terminal: 220 kΩ
