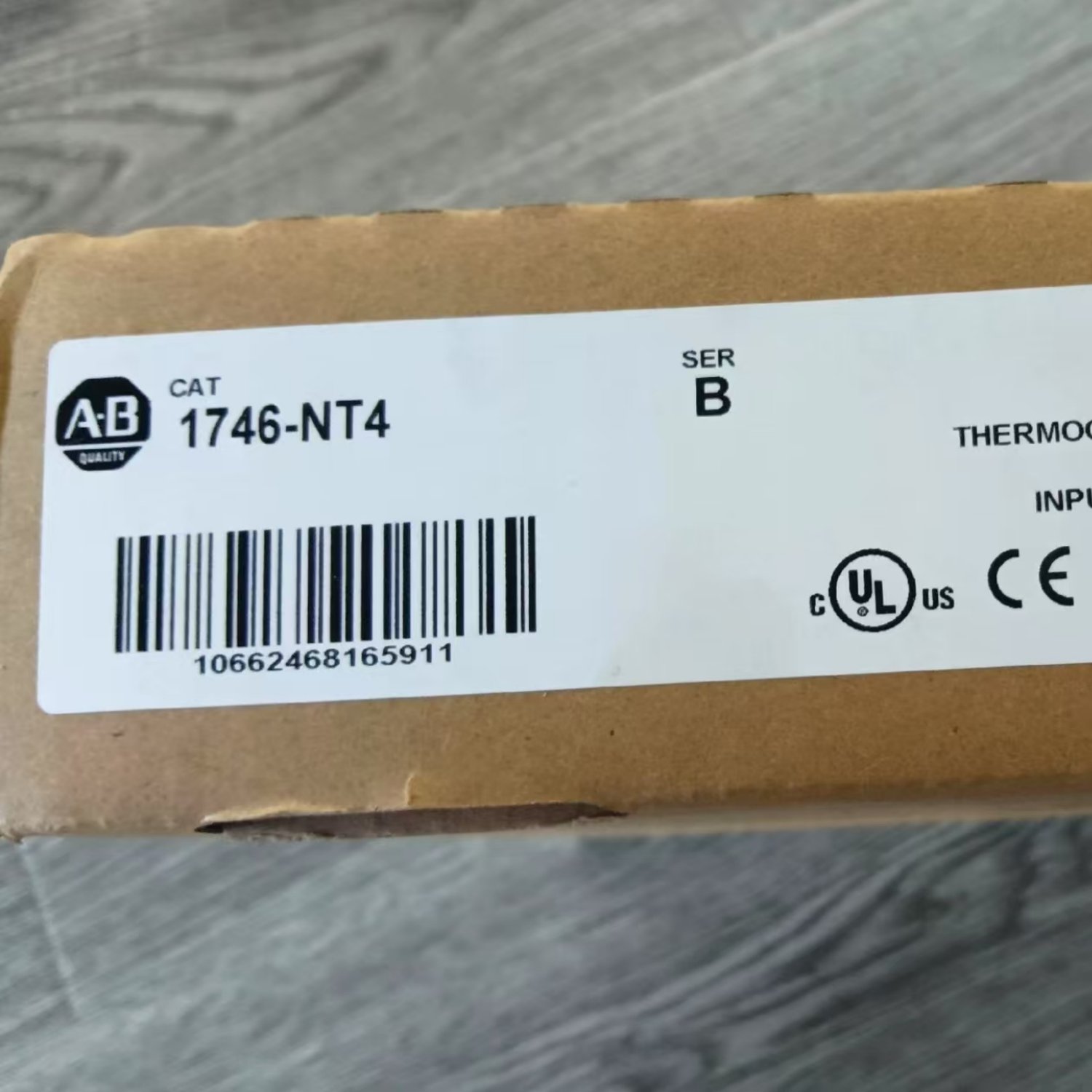

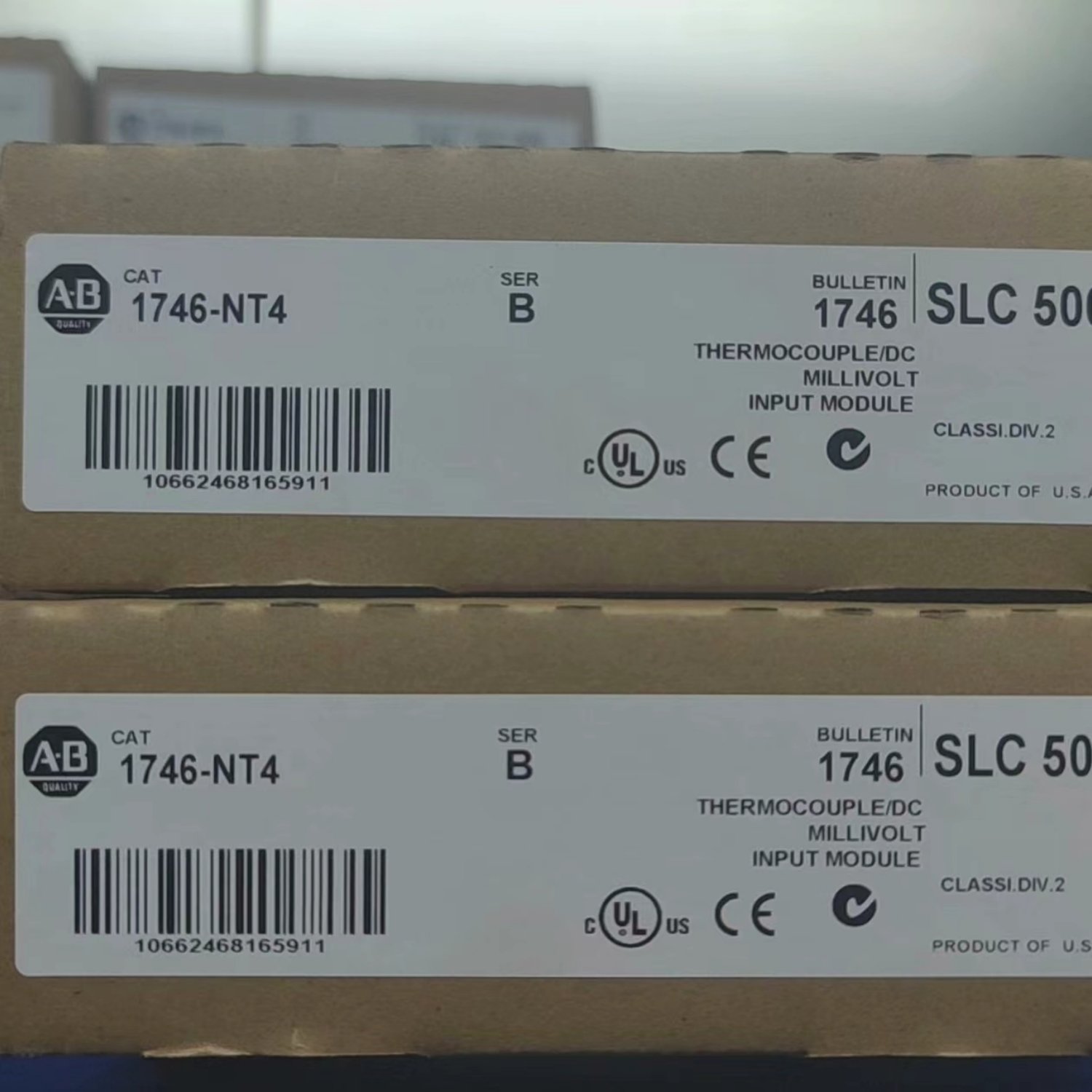

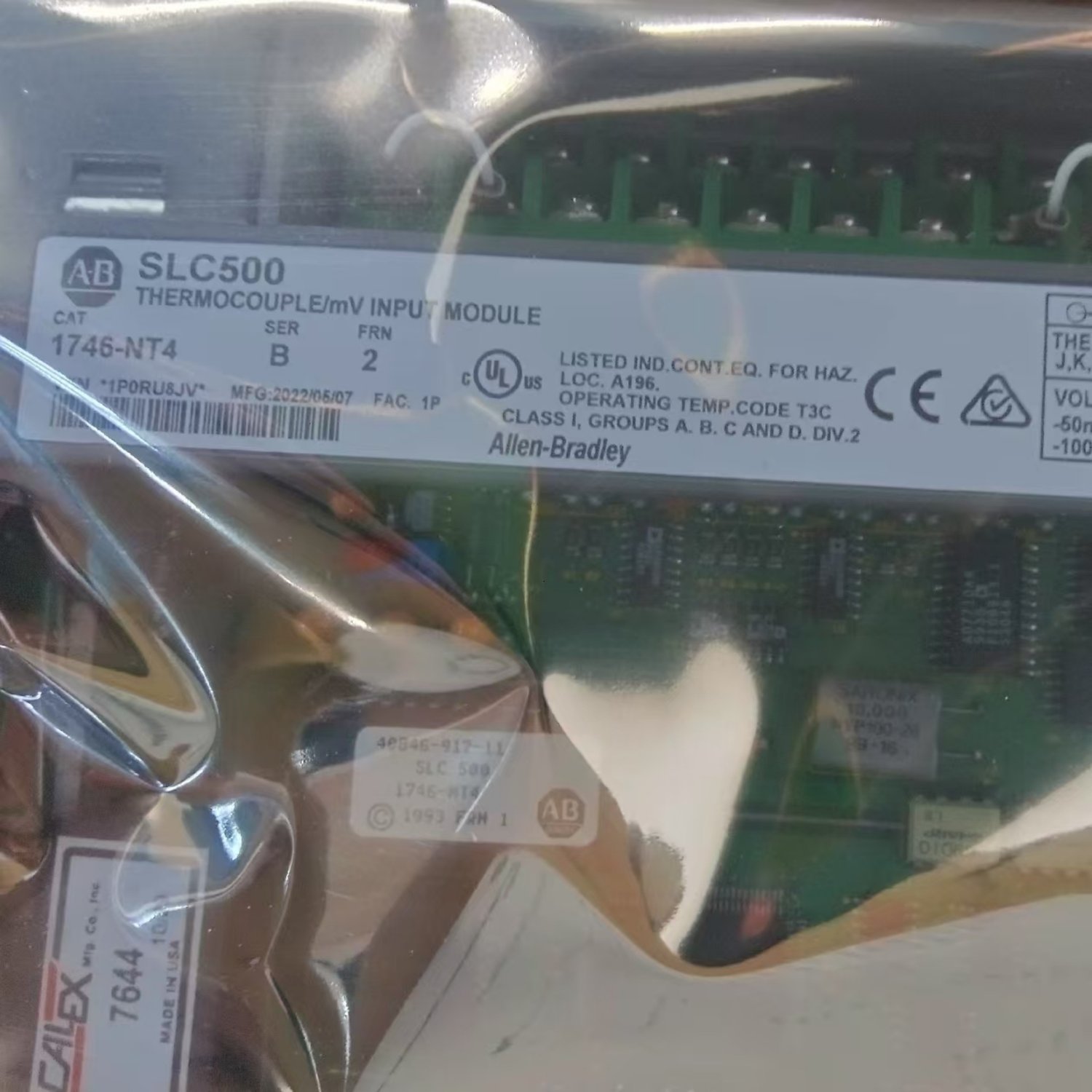

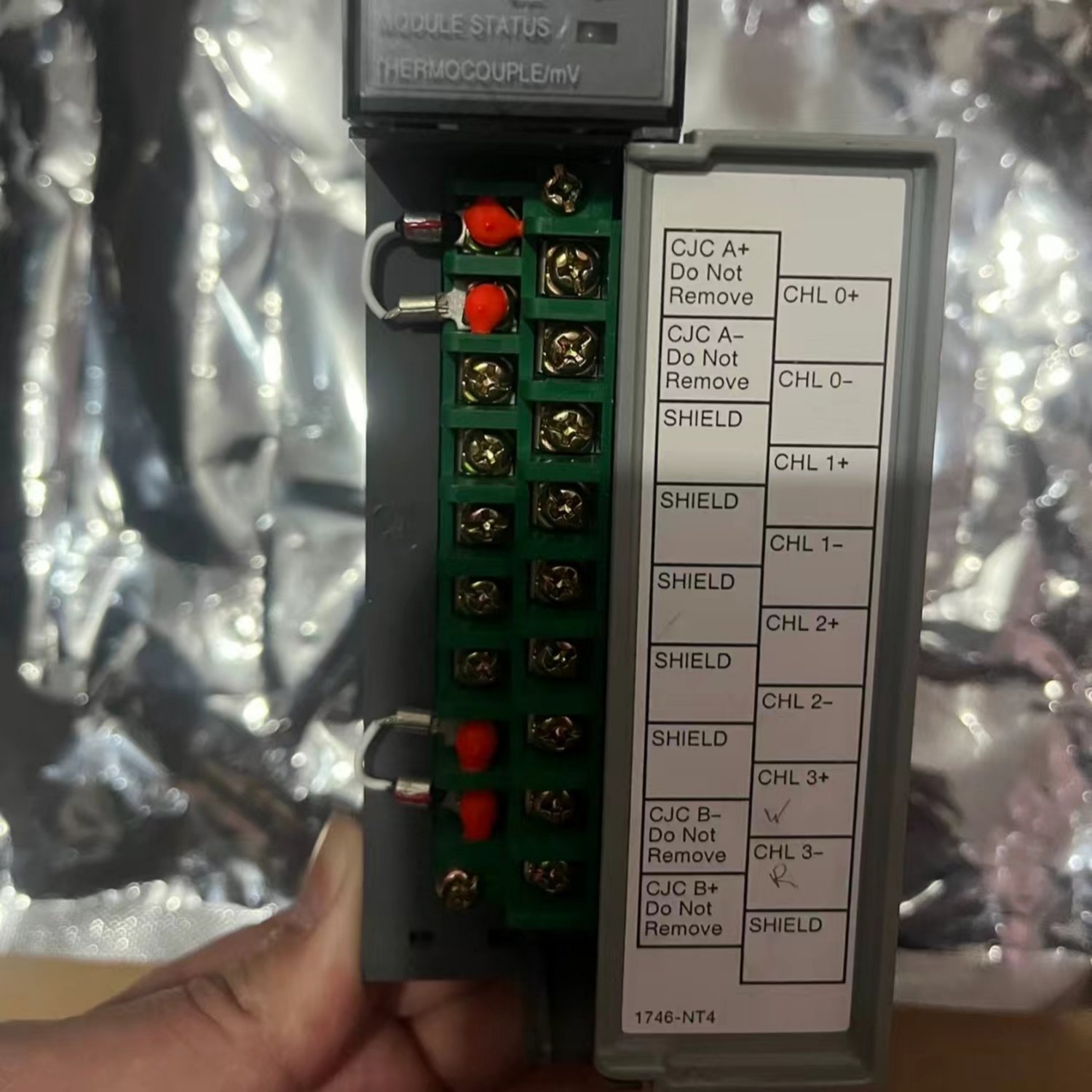

Allen-Bradley 1746-NT4 Thermocouple/mV Input Module
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NT4
- Product type: SLC 500 4-channel thermocouple/mV input module (Series B)
- Input channels: 4 (backplane isolated)
- Input types: Thermocouple or DC millivolt per channel, with cold junction compensation
- A/D conversion: Sigma-Delta modulation
- Input filtering: Programmable low-pass digital filter (10/50/60/250 Hz notch)
- Normal mode rejection: >100 dB at 50/60 Hz
- Common mode rejection: >150 dB at 50/60 Hz
- Isolation: 500 V dc continuous (inputs to chassis and backplane)
- Backplane load: 60 mA at 5 V dc + 40 mA at 24 V dc; 0.8 W max
- SKU: 1746-NT4
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
