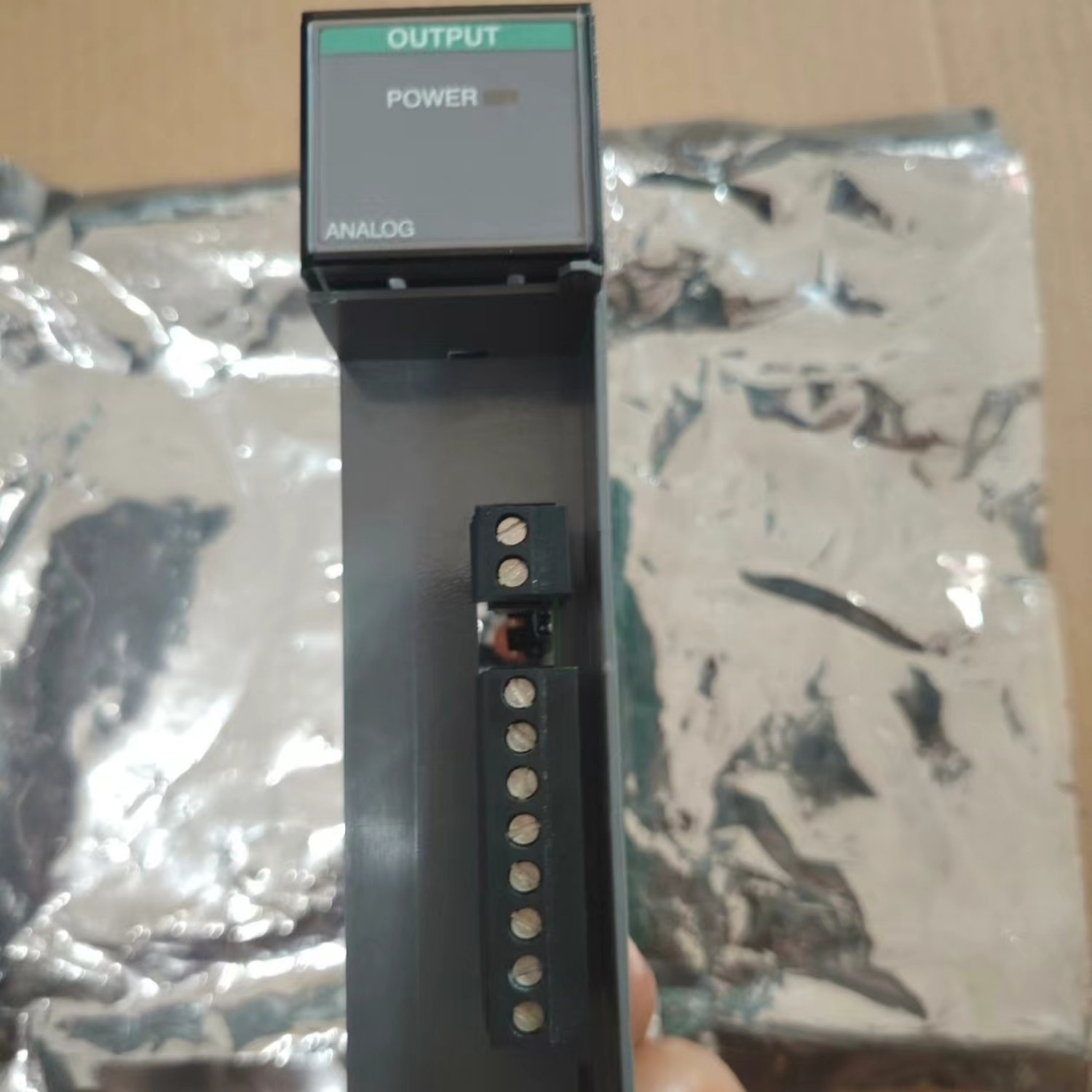

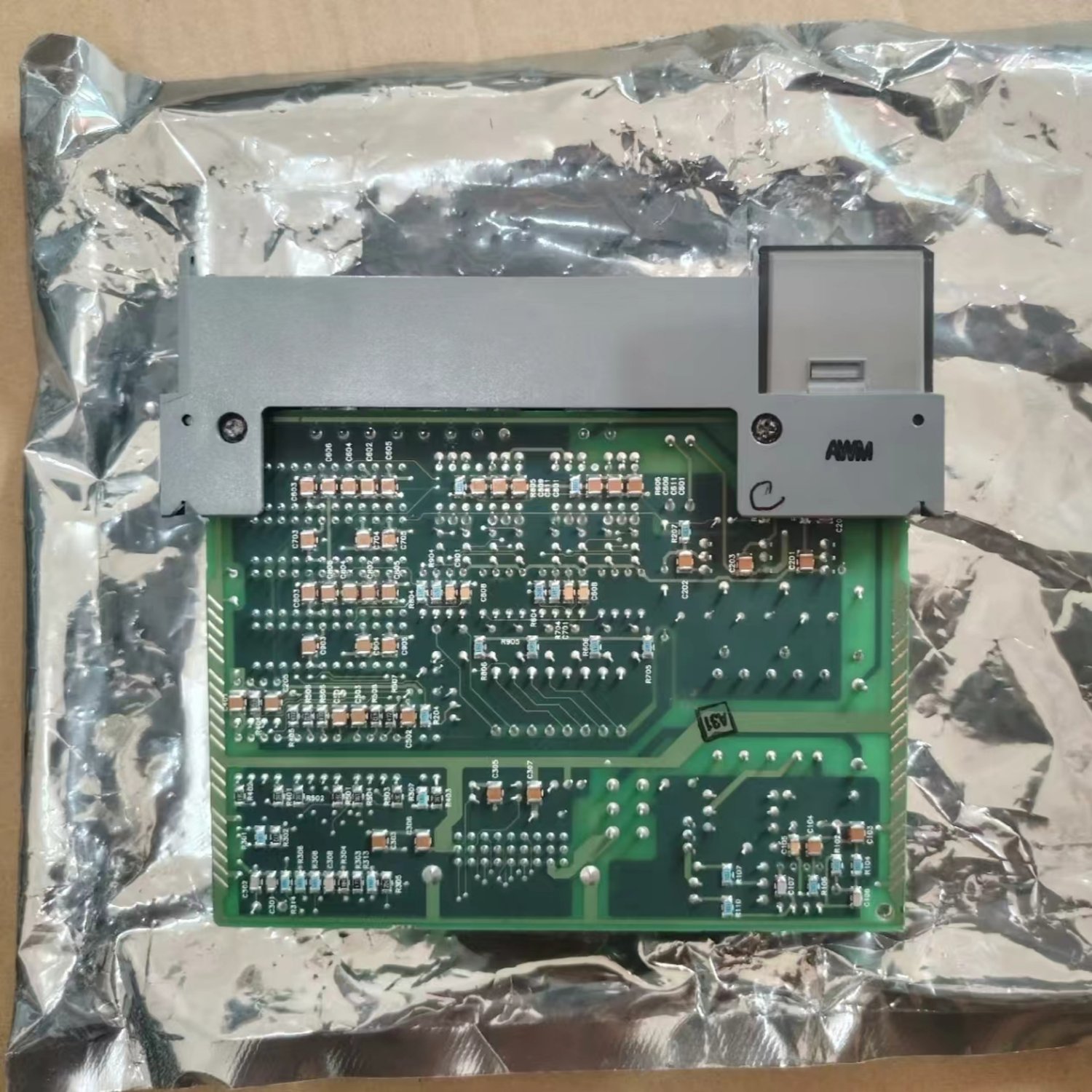

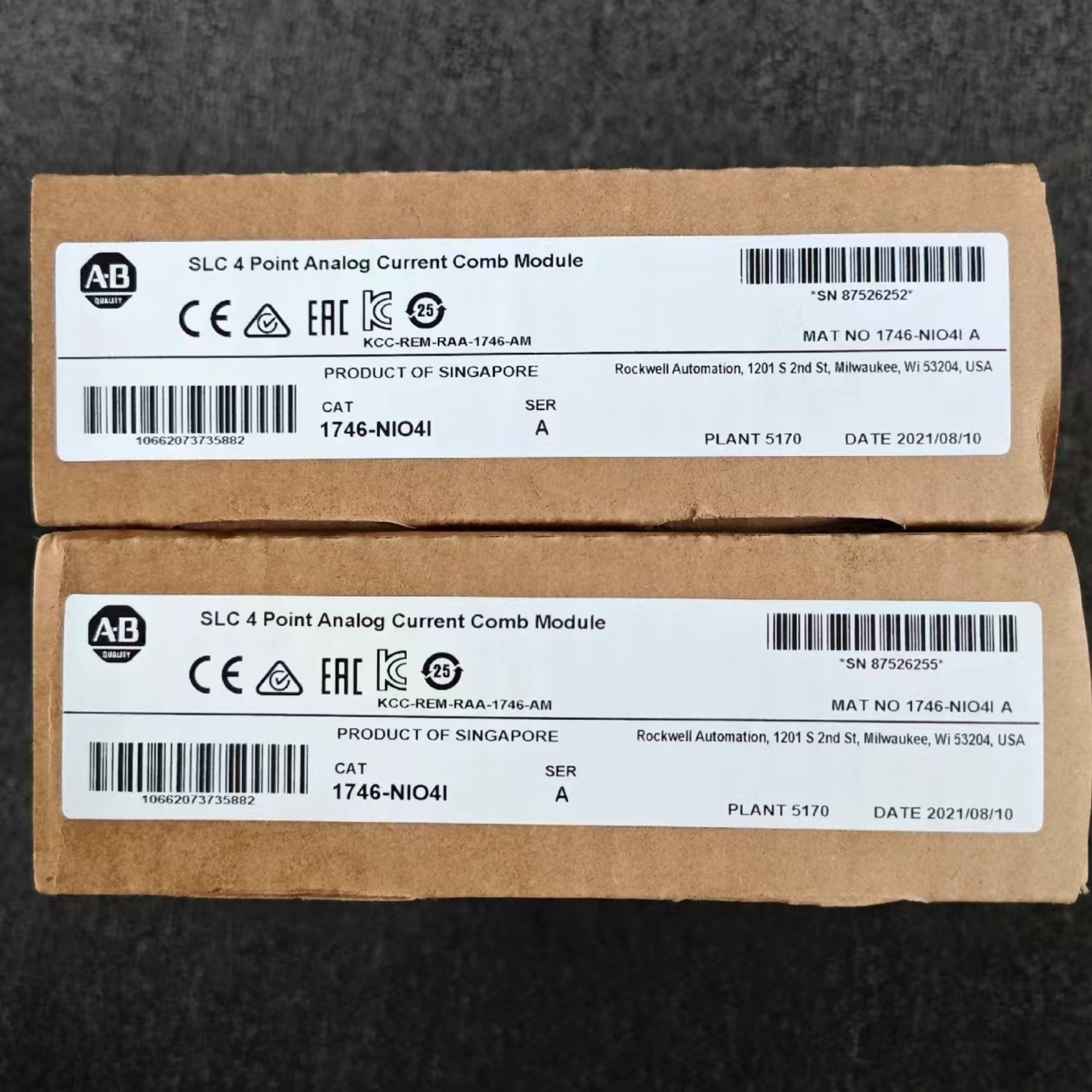

Allen-Bradley 1746-NIO4I Combination Analog I/O Module

Manufacturer: Allen-Bradley
Model / Part Number: 1746-NIO4I
Product type: SLC 500 combination analog I/O module (2 inputs + 2 current outputs), single-slot
Input channels: 2 differential inputs, voltage or current selectable per channel, not individually isolated
Current input range: -20 to +20 mA (normal); absolute maximum -30 to +30 mA
Voltage input range: -10 to +10 V dc – 1 LSB
Input converter: 16-bit; current resolution 1.22070 uA/LSB (250 ohm input impedance); voltage resolution 305.176 uV/LSB (1M ohm)
Output channels: 2 analog current outputs, not individually isolated
Current output range: 0 to +20 mA normal (0 to +21 mA – 1 LSB with 5% overrange)
Output converter: 14-bit, R-2R ladder; resolution 2.56348 uA/LSB; load range 0 to 500 ohm
Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc
Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
Lifecycle status: Discontinued (2021-04-29); repair options available; engineering replacement category
