Showing 49–64 of 226 results
-
- Manufacturer: B&R
- Model / Part Number: X20AI4622
- Inputs: 4 analog inputs
- Input signals: ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
- Input type: Differential input
- Conversion time: 400 µs for all inputs
- Conversion procedure: SAR (successive approximation)
- Input filter: Third-order low-pass filter, cutoff frequency 1 kHz
-
The B&R X20BC1083 is an expandable bus controller for the B&R X20 System that connects X2X Link I/O nodes to a POWERLINK (V1/V2) network as a controlled node. It integrates a two-port shielded RJ45 hub interface based on 100BASE-TX Fast Ethernet with a transfer rate of 100 Mbit/s and a maximum segment length of 100 m b
-
- Manufacturer: B&R
- Model / Part Number: X20BM31
- Function: X20 bus module for double-width X20 modules, 24 VDC keyed, internal I/O power supply connected through
- Nominal I/O supply voltage: 24 VDC
- Permissible contact load: 10 A
- Power consumption: 0.13 W (bus)
- Certifications: CE, UKCA, ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), cULus, HazLoc Class I Div 2, DNV, CCS, LR, KR, ABS, BV, KC
- Operating temperature: -25 to +60 C (horizontal), -25 to +50 C (vertical)
-
REQUEST A QUOTE
- Ambient Temperature: Integrated internal sensor to measure module and surrounding panel temperature.
- Relative Humidity: Onboard moisture sensor for environmental evaluation inside the enclosure.
- Inertial Features: Built-in accelerometer to detect vibration, mechanical shock, and mounting position.
- Temperature Inputs: 2 channels configured for external PT1000 temperature sensors.
- Digital Inputs: 2 channels, 24 VDC.
- Digital Output: 1 channel, 24 VDC, rated at 0.5 A.
- User Storage: 512 kB flash memory designated for storing persistent user data directly on the module.
- Data Recording: Tracks total operating hours and cumulative power-on cycles.
- Technology Guarding: Functions as a physical dongle platform directly on the module to handle software license validation.
- Blackout Mode: Supported feature allowing operation during brief system power drops.
Brand New B&R X20CMR111 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Channels: 10 digital inputs configured for space-saving 1-wire connections.
- Circuit Type: Sink (NPN) connection profile.
- Voltage Range: Rated for flexible application across 5 to 48 VDC nominal voltage.
- Input Filters: Built-in hardware filtering combined with a software-configurable filter (adjustable from 0 to 25 ms) across the whole module to mitigate signal bounce.
- Power Requirements: Low power footprint totaling 1.84 W combined consumption.
- Diagnostics: Integrated LED status indicators for immediate visual diagnostic and troubleshooting metrics per input.
- Mounting: Supports standard DIN rail infrastructure. Safe horizontal mounting range spans -25 to 60°C, while vertical setups support -25 to 50°C.
- Protection Rating: Rated at IP20 protection with permissible operational altitudes extending up to 2000 meters.
Brand New B&R X20DI0471 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-

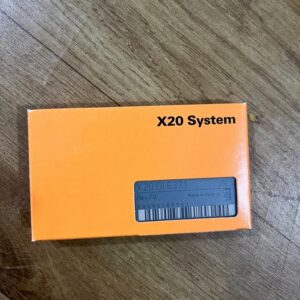

- Manufacturer: B&R
- Model / Part Number: X20DI6371
- Number of inputs: 6 digital inputs, 24 VDC, for 1- or 2-wire connections
- Input characteristics: IEC 61131-2 Type 1, sink input circuit
- Input voltage range: 24 VDC -15% / +20% (nominal 24 VDC)
- Switching thresholds: Low <5 VDC, High >15 VDC
- Input current / resistance: Typ. 3.75 mA at 24 VDC; typ. 6.4 kohm
- Input filter: Hardware <=100 us; software default 1 ms, configurable 0 to 25 ms
-
REQUEST A QUOTE
- Nominal Voltage: 24 VDC (Typical range: 18–30 VDC)
- Max Continuous Current: 0.5 A per channel
- Wiring Architecture: 1-wire connection interface
- B&R ID Code: 0xC0EA (Decimal: 49386)
- Protection Mechanics: Integrated overload & short-circuit protection
- Bus Power Draw: 0.28 W
- Internal I/O Power Draw: 0.95 W (+0.56 W max actuator power dissipation)
Brand New B&R X20DOF322 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Safety Certification: PL e (Category 4) / SIL 3
- Logic Capacity: 256 function blocks + 5120 Bytes maker memory
- Safety Manager Capacity: Coordinates up to 10 SafeNODEs (some configurations allow up to 11)
- Rated Supply Voltage: 24 VDC
- Operating Temperature: 0°C to +60°C (Cabinet I/O, plug-in mounting)
- Compliance & Ratings: ATEX compliant, CE, RoHS compliant
- Input Type: Safe digital Type A inputs.
- Circuit Configuration: Sink circuit, 24 VDC.
- Features: Software input filters are individually configurable for each channel.
- Output Type: Safe digital Type B / B2 outputs.
Brand New B&R X20SLX806 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Feedback Inputs: Features 2 independent input channels that support both incremental and SSI (Synchronous Serial Interface) encoders.
- High-Speed Counter: Equipped with a full 32-bit counter for high-resolution positioning tracking.
- Hardware Triggers: Allows for near-instantaneous position measurement and latching/storage initiated directly via hardware triggers.
- Diagnostics: Built-in monitoring safeguards, including encoder supply voltage monitoring and cable break detection to prevent runaway conditions if a feedback line is damaged.
- Wind Energy: Controlling blade pitch and yaw alignment systems.
- Marine Automation: Monitoring rudder feedback and winch operations.
- Industrial Machinery: High-accuracy CNC, packaging, or material handling axis control.
Brand New BACHMANN ISI202 Encoder Resolver Interface Module (MX200 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Range: 25 mm to 300 mm (0.98" to 11.81")
- Light Source: Visible Red Class 1 Laser (655 nm)
- Sensing Mode: Proximity / Diffuse with Background & Foreground Suppression
- Input Voltage: 12 V DC to 30 V DC
- Output Type: Analog: 0 to 10 V
- Connection Type: 5-Pin Euro-style M12 Integral Quick Disconnect (QD)
- Housing Material: Heavy-duty Stainless Steel
- Ingress Protection: IP67, IP68, and IP69K (Washdown rated)
- Operating Temp: -10°C to +50°C (14°F to 122°F)
- Response Time: 0.5 ms minimum response time
Brand New BANNER Q4XTULAF300-Q8 I/O Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2622
- Output channels: 2 relay outputs, make contacts
- Nominal voltage: 230 VAC / 30 VDC
- Switching current: 5 A per channel, ohmic load
- Inductive load: 2 A per channel
- Electrical isolation: 500 V
- E-bus current consumption: Typically 170 mA
- Dimensions: 12 x 100 x 68 mm
- Operating temperature: -25 to 55 °C
- Protection rating: IP20
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2889
- Output channels: 16 digital outputs, ground switching
- Nominal voltage: 24 VDC (-15% / +20%)
- Rated output current: 0.5 A per channel
- Connection technology: 1-wire
- Switch-on time: Typically 50 µs
- Switch-off time: Typically 200 µs
- Electrical isolation: 500 V
- E-bus current consumption: Typically 140 mA
- Operating temperature: -25 to 60 °C
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3048
- Number of inputs: 8 (single-ended), 0-20 mA current
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: typ. 85 ohm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 1.25 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 32 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3064
- Number of inputs: 4 (single-ended), 0-10 V signal voltage, 2-wire connection with common internal ground
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: > 130 kOhm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 0.625 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 16 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff
- Model / Part Number: BK3120
- Product type: PROFIBUS Economy plus Bus Coupler (BK3120)
- Number of Bus Terminals: 64 (255 with K-bus extension)
- Max. number of bytes fieldbus: 128 byte input and 128 byte output
- Transmission rate: Automatic detection up to 12 Mbaud
- Bus interface: 1 x D-sub 9-pin socket with shielding
- Transmission medium: Shielded copper cable, 2 x 0.25 mm²
-
REQUEST A QUOTE
- Processor: Intel Atom Z530 running at 1.6 GHz with single-core hyperthreading technology.
- Memory & Storage: Equipped with 512 MB DDR2 RAM (expandable) and an exchangeable 128 MB Compact Flash card slot for OS and application storage.
- System Connectivity: Automatically recognizes and supports E-bus (EtherCAT) or K-bus (Standard Bus Terminals) for direct local I/O connection.
- Interfaces: Onboard connectivity features 2 x RJ45 Gigabit Ethernet ports, 1 x DVI-D/I port, 4 x USB 2.0 ports, and 1 x slot for an optional communication interface (e.g., Profibus, CANopen).
- Software Support: Configured for TwinCAT 2 runtime (PLC and NC PTP) or TwinCAT 3 (Platform Level 40 – Performance) execution environment.
- Power Supply: Standard 24 V DC with an integrated 1-second hardware UPS to save persistent memory data during sudden power failures.
Brand New BECKHOFF CX5020-0112 Embedded PC Controller (CX5000 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
