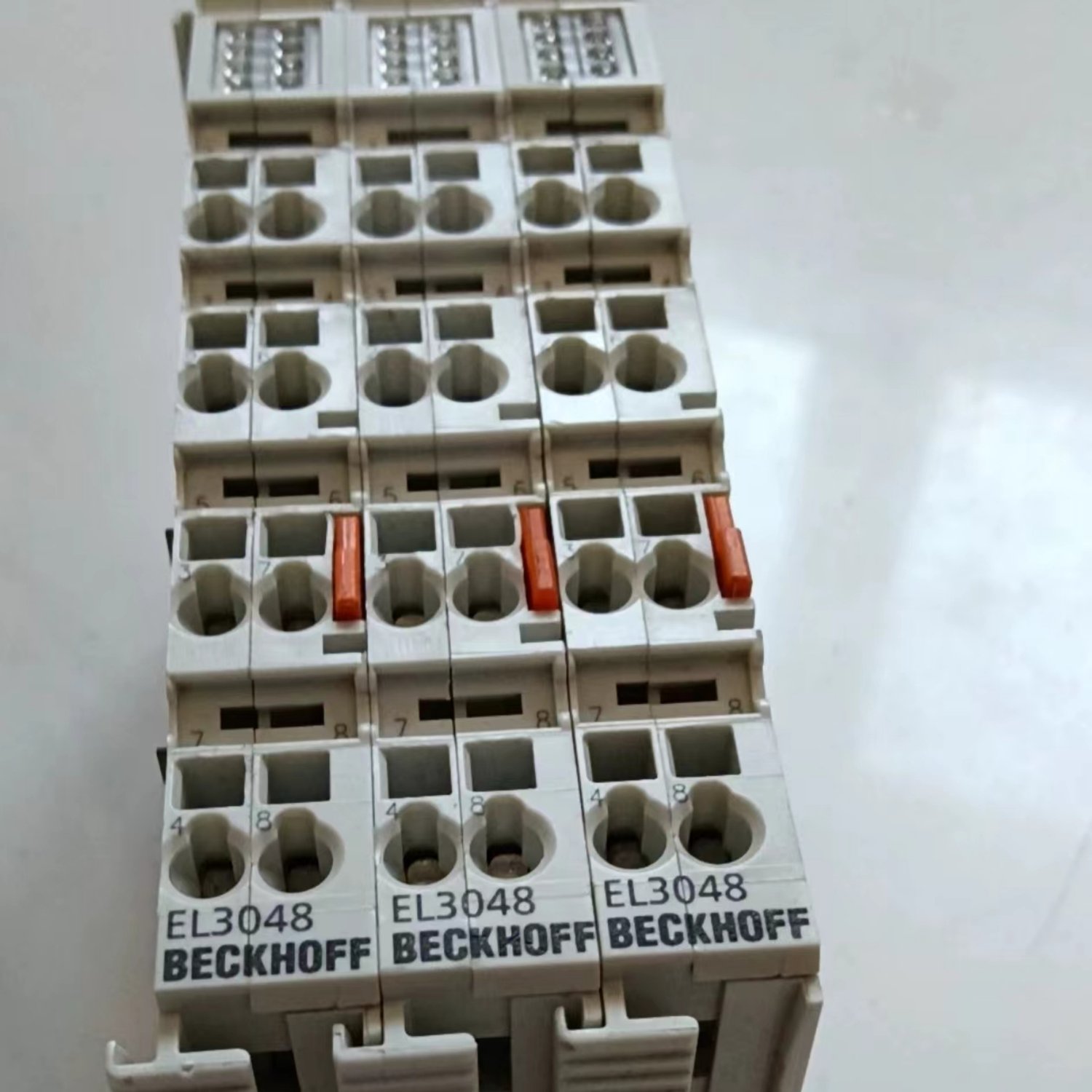

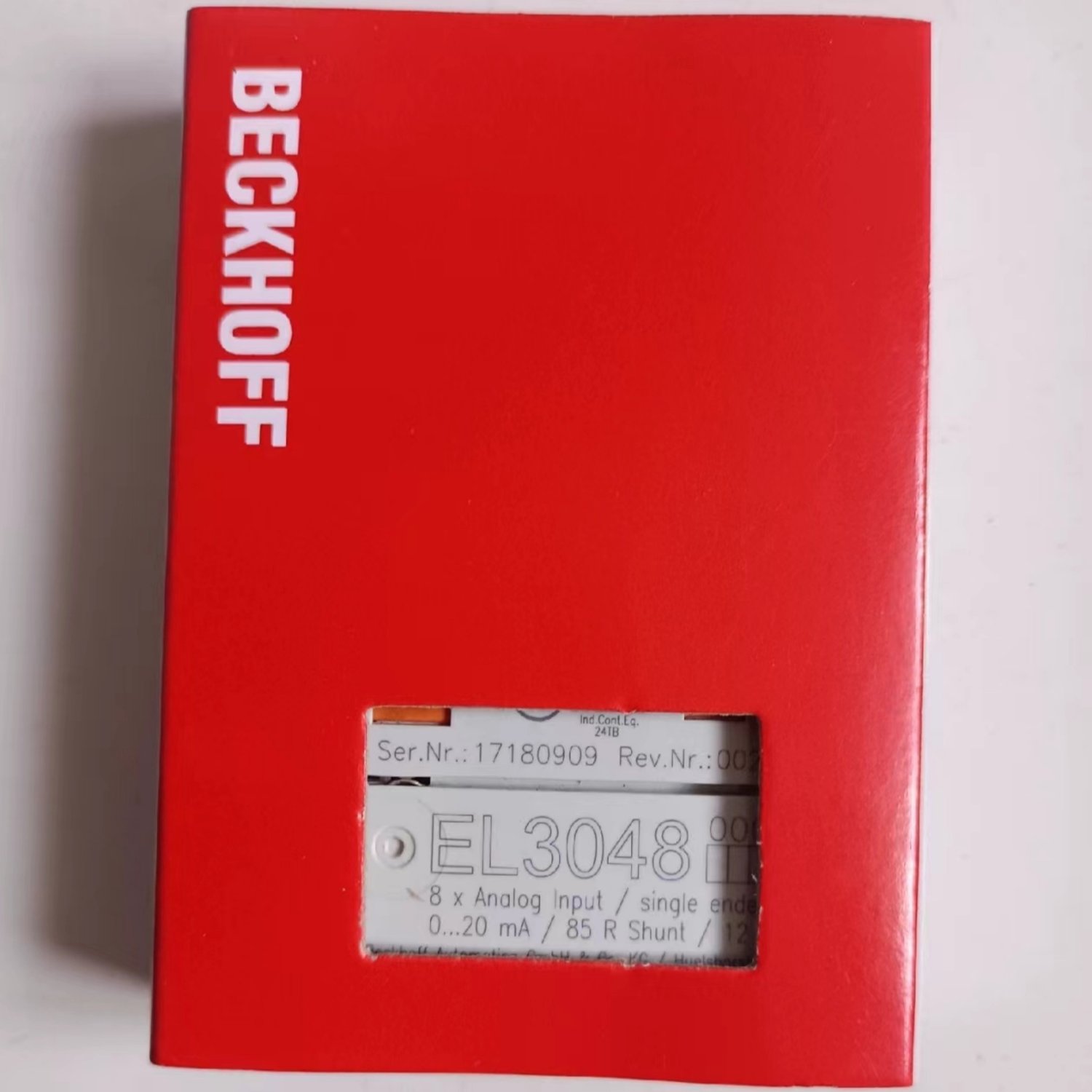

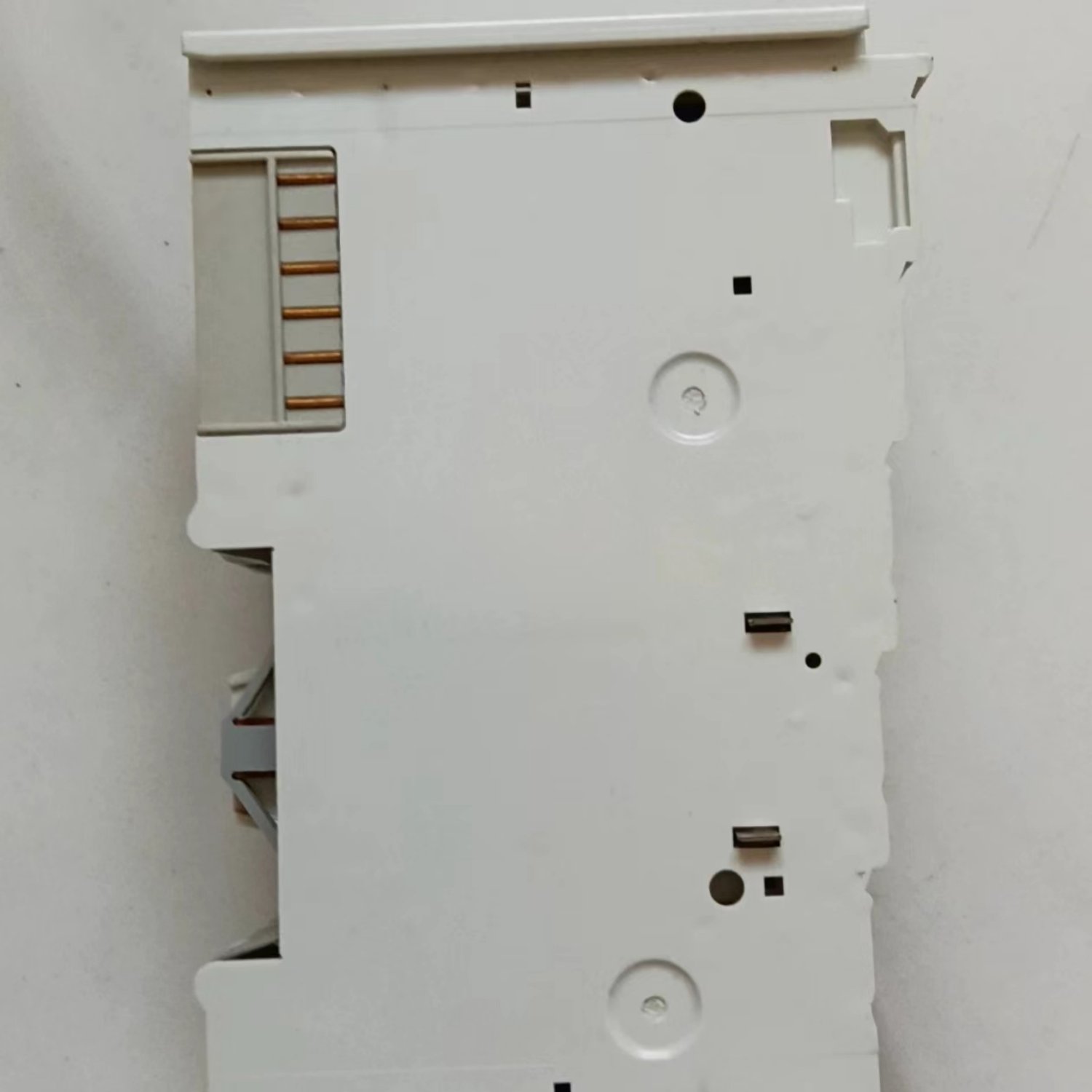

Beckhoff Automation EL3048 8-Channel Analog Input EtherCAT Terminal
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3048
- Number of inputs: 8 (single-ended), 0-20 mA current
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: typ. 85 ohm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 1.25 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 32 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
- SKU: EL3048
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
