Showing 225–240 of 309 results
-
REQUEST A QUOTE
- Specification Attribute: Details
- Module Type: Digital Output Expansion Module
- Number of Outputs: 16 points
- Output Type: Transistor Source (PNP)
- Rated Supply Voltage: 24V DC
- Current Rating: 0.3A per point
- Terminal Type: Removable / Pluggable Screw Terminal
- Mounting Type: 35mm DIN Rail
- IP Rating: IP20
- Operating Temperature: -25°C to 65°C (-13°F to 149°F)
IDEC FC6A-T16P1 Transistor Output Module (MicroSmart FC6A).
-
REQUEST A QUOTE
- Product Type: Programmable Logic Controller (PLC) CPU Module
- Series: MicroSmart (All-in-One CPU)
- I/O Capacity: 16 integrated I/O points
- Inputs: 9 digital inputs (24V DC)
- Outputs: 7 relay outputs (240V AC / 30V DC, 2A general/resistive, 7A common)
- Operating Line Voltage: 100-240V AC
- Mounting Style: DIN Rail / Panel Mount
- Operating Temperature: Up to 55°C (65°C under de-rating conditions)
- Programming Software: IDEC WindLDR
IDEC FC6B-C16R1A PLC CPU Module (MicroSmart Series).
-
REQUEST A QUOTE
- I/O Capacity: 40 Embedded I/O points (typically divided into 24 inputs and 16 outputs).
- Power Supply: 24V DC operating voltage.
- Output Type: Transistor Source (PNP).
- Termination Style: Screw Terminal block connections.
- Hardware Ports: Built-in USB Mini-B port for easy programming and maintenance.
- Memory & Performance: Offers 384KB program capacity, 1024 timers, and 56,000 data registers.
- Industrial Approvals: Built to handle harsh environments with an IP20 rating, Class I Division 2 hazardous location certification, CE marking, and UL listing.
- Temperature Range: Built for extreme environments with an operating temperature range of -25°C to 65°C.
IDEC FC6B-C40P1C PLC CPU Module (MicroSmart FC6B).
-
REQUEST A QUOTE
- I/O Capacity: 40 built-in I/O points (typically split as 24 inputs and 16 relay outputs).
- Power Supply: 100 to 240V AC broad-range voltage input.
- Output Type: Mechanical Relay, providing isolated, robust current switching.
- Industrial Connectivity: Integrated support for Modbus TCP and RTU protocols alongside embedded Ethernet and serial communication capabilities.
- Data & Memory: Features data logging to an embedded SD memory card slot and an integrated web server for remote monitoring.
IDEC FC6B-C40R1A PLC CPU Module (MicroSmart FC6B).
-
REQUEST A QUOTE
- Product Line: ClassicLine 4DI-Y
- Digital Inputs: 4 x PNP
- Network Address: Extended Addressing Mode
- Connection Type: 4 x M12 Connectors
- Ingress Protection: IP67
- Mean Time to Failure: 405 Years
- Quick Mounting Technology: Features toolless, rapid insulation-piercing contacts designed specifically for standard AS-i flat yellow cables. The lower mounting section holds the cable firmly without screws.
- Flexible Orientation: The internal routing allows the flat bus cable to exit or enter from three different selectable directions, eliminating tight bend radius issues in compact control boxes or machine profiles.
- On-board Diagnostics: Outfitted with high-visibility, powerful status LEDs:
IFM AC5215 AS-i Input Module (AS-Interface).
-
- Manufacturer: IFM
- Model / Part Number: CR721S
- Processor: Powerful 32-bit triple-core controller.
- Software: Programmable using CODESYS 3.5, which follows the standard IEC 61131-3 rules for industrial programming.
- Digital Inputs: 68
- Analog Inputs: 24
- Frequency Inputs: 16
- Resistor Inputs: 4
- Digital Outputs: 54
- Analog Outputs: 2
- Safety Rating: Fully certified safety controller supporting CANopen Safety protocol.
- Network Interfaces: Includes high-performance CAN interfaces (4 ports) and Ethernet (1 port) to talk to other machine components.
- Dimensions: 219 mm x 271 mm x 47 mm
- Protection Rating: IP67 (completely sealed against dust and water splashes, perfect for harsh outdoor environments).
-
REQUEST A QUOTE
- Manufacturer: Inovance Technology
- Series: AM400 Series
- Program Storage: 10 MB
- Data Storage: 20 MB
- Built-in Digital Inputs: 16 High-Speed Inputs
- Built-in Digital Outputs: 8 High-Speed Outputs
- Output Circuit Type: Sink (NPN Type)
- Motion Control Capacity: Supports up to 4 axes of synchronized control
- Weight: Approximately 0.27 kg (0.60 lbs)
- Integrated Communication Interfaces: Features a built-in Ethernet port for network programming, data acquisition, and upper-level SCADA/HMI communication, alongside embedded fieldbus capabilities.
INOVANCE AM401-CPU1608TN PLC CPU Module (AM400).
-
REQUEST A QUOTE
- TP: High-speed digital outputs are Source (PNP) type. (Note: "TN" signifies Sink/NPN).
- Manufacturer: Inovance Technology
- Motion Axis Control: Up to 4 axes via EtherCAT bus
- Built-in High Speed Inputs: 16 channels (Supports up to 8 AB-phase high-speed counters)
- Built-in High Speed Outputs: 8 channels (PNP / Source type; supports 4 groups of pulse positioning)
- Memory Architecture: 10 MB Data Storage Space / 20 MB Program Storage Space / 512 KB Retain Space
- Programming Environment: CODESYS V3 platform executed via Inovance InoProShop software
- Local Expansion: Supports up to 16 local I/O modules on the main rack (GL10/GR10 series)
- Physical Weight: Approximately 0.27 kg (0.60 lbs)
- USB Port: Mini-USB interface used for local PC connection, program downloading, and diagnostic tracking.
INOVANCE AM401-CPU1608TP PLC CPU Module (AM400).
-
REQUEST A QUOTE
Technical Specifications
- Specification Attribute: Details & Metrics
- Manufacturer: Suzhou Inovance (Guangdong, China)
- Controller Platform: AM400 Series Motion Controller / PLC
- Power Supply Requirements: 24V DC
- Built-in Digital Inputs: 16 High-Speed Inputs (Sink/NPN type, up to 202 kHz)
- Built-in Digital Outputs: 8 High-Speed Transistor Outputs (Drain/NPN type, up to 202 kHz)
- Motion Axis Capacity: Supports up to 8 Axes via bus synchronization
- Net Weight: ≈ 0.27 kg to 0.48 kg (standalone); 0.85 kg (packaged assembly)
INOVANCE AM402-CPU1608TN PLC CPU Module (AM400).
-
REQUEST A QUOTE
- Specification Attribute: Details & Capabilities
- Manufacturer: Inovance Technology
- Core Controller Platform: Codesys (IEC 61131-3 standard programming)
- Motion Axis Support: 8 Axes controlled via EtherCAT master
- Digital Inputs (DI): 16 High-Speed Inputs
- Digital Outputs (DO): 8 High-Speed Outputs
- Output Transistor Type: Source (PNP) type
- Physical Weight: 0.27 kg (approx. 0.6 lbs)
INOVANCE AM402-CPU1608TP PLC CPU Module (AM400).
-
REQUEST A QUOTE
- Manufacturer: Inovance Technology
- Model Number: AM403-CPU1608TN
- Device Type: PLC Main CPU / Motion Controller Module
- Input Channels: 16 digital input points
- Output Channels: 8 digital output points
- Output Type: NPN transistor
- Operating Voltage: 24 VDC
- Current Rating: 1.0 A
- Safety & Installation: Vital structural safety precautions, terminal layout diagrams, and wiring safeguards tailored for the NPN transistor output architecture.
- Interfaces & Connectivity: Complete mapping of the external communication interfaces and step-by-step procedures for establishing programming tool connections.
INOVANCE AM403-CPU1608TN PLC CPU Module (AM400).
-
REQUEST A QUOTE
- Series: Inovance AM400 Motion Controller
- Model: AM403-CPU1608TP
- Motion Axis Support: Up to 16 physical axes via EtherCAT / pulse
- High-Speed Digital Inputs: 16 channels (Optimized for encoders, high-speed registration)
- High-Speed Digital Outputs: 8 channels
- Output Transistor Type: Source (PNP) type (Note: The "TN" variant signifies NPN Sink)
- Communication Protocols: EtherCAT, CANopen, Modbus TCP, Modbus RTU, Ethernet
- Physical Weight: ~0.27 kg
- Advanced Motion Control: Seamlessly coordinates multi-axis movement using a dedicated EtherCAT master port, allowing for synchronous control of servo drives, electronic cams, and complex interpolation.
- Rich Connectivity: The built-in Ethernet interface allows integration into factory local area networks for SCADA/HMI interaction via Modbus TCP.
INOVANCE AM403-CPU1608TP PLC CPU Module (AM400).
-
REQUEST A QUOTE
- Processor Architecture: Built on a multi-core CPU architecture designed to process motion control calculations and PLC logic simultaneously.
- Digital Inputs: 8 digital inputs supporting high-speed configurations (up to 200 kHz) for reading encoder and pulse feedback.
- Digital Outputs: 8 transistor outputs (Transistor NPN type denoted by "TN").
- Motion Axes Control: Supports up to 8 synchronized EtherCAT axes for complex path movements like linear and circular interpolation or electronic CAM profiles.
- Network Capacities: Features a real-time EtherCAT master port capable of controlling up to 127 network slaves.
- Ethernet Communication: Dual integrated Ethernet ports supporting standard industrial protocols and programming interfaces.
- Local I/O Expansion: Compatible with up to 16 GL20 local expansion modules directly attached to the controller rack.
- Remote I/O Expansion: I/O can be expanded further across decentralized setups using the EtherCAT bus coupler GL20-RTU-ECT.
- Alternative Axis Options: Offers up to 4 pulse axes and supports an optional card configuration for up to 30 CANopen axes doing point-to-point (PTP) movements.
INOVANCE AM521-0808TN PLC Motion Controller (AM500 Series).
-
REQUEST A QUOTE

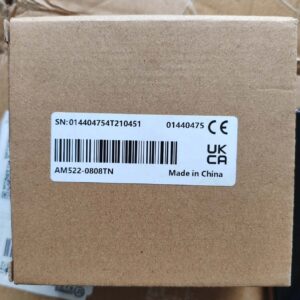

- Manufacturer: INOVANCE
- Model / Part Number: AM522-0808TN
- Supply: 24 V DC
- Digital inputs: 8
- Digital outputs: 8 NPN outputs
- EtherCAT synchronous axes: 16
- Pulse axes: 4
- Serial interface: RS-485
- USB interface: Type-C
- Programming software: InoProShop
-
- Brand: Inovance
- Model: AM600-3200END
- Series: AM600
- Input channels: 32, arranged in 4 groups of 8
- Rated input voltage: 24 V DC
- Maximum input voltage: 30 V DC
- Input type: Source or sink
- Input connector: 40-pin
- Input impedance: 5.6 kΩ
- Typical input current: 4 mA
- ON threshold: Above 19 V
- OFF threshold: Below 5 V
- Hardware input filter: 10 ms
- Isolation: Optocoupler
- Internal supply consumption: 65 mA typical at 5 V
- Hot swapping: Not supported
-
REQUEST A QUOTE
- Device Type: IO-Link I/O Hub (Class A or Class B port compatible expansion module).
- Channel Capacity: Maximum of 16 configurable channels for digital input or output.
- Signal Type: PNP switching logic with single-wire digital I/O configuration.
- Connector Type: M12 industrial standard circular connectors for signal and network connection.
- Housing/Enclosure: Rugged IP67-rated engineering plastic housing designed for direct machine mounting without a control cabinet.
- PROFINET: IOL7-PN01B-8A (8-port Class A)
- EtherNet/IP: IOL7-EI01B-8A (8-port Class A)
- EtherCAT: IOL7-EC01B-8A (8-port Class A)
IOL7-16CB-M12 sDot IO-Link I/O Hub.
