Showing 65–80 of 303 results
-
- Manufacturer: B&R
- Model / Part Number: X20DI6371
- Number of inputs: 6 digital inputs, 24 VDC, for 1- or 2-wire connections
- Input characteristics: IEC 61131-2 Type 1, sink input circuit
- Input voltage range: 24 VDC -15% / +20% (nominal 24 VDC)
- Switching thresholds: Low <5 VDC, High >15 VDC
- Input current / resistance: Typ. 3.75 mA at 24 VDC; typ. 6.4 kohm
- Input filter: Hardware <=100 us; software default 1 ms, configurable 0 to 25 ms
-
REQUEST A QUOTE
- Nominal Voltage: 24 VDC (Typical range: 18–30 VDC)
- Max Continuous Current: 0.5 A per channel
- Wiring Architecture: 1-wire connection interface
- B&R ID Code: 0xC0EA (Decimal: 49386)
- Protection Mechanics: Integrated overload & short-circuit protection
- Bus Power Draw: 0.28 W
- Internal I/O Power Draw: 0.95 W (+0.56 W max actuator power dissipation)
B&R X20DOF322 Digital Output Module (X20 System).
-
REQUEST A QUOTE
- Safety Certification: PL e (Category 4) / SIL 3
- Logic Capacity: 256 function blocks + 5120 Bytes maker memory
- Safety Manager Capacity: Coordinates up to 10 SafeNODEs (some configurations allow up to 11)
- Rated Supply Voltage: 24 VDC
- Operating Temperature: 0°C to +60°C (Cabinet I/O, plug-in mounting)
- Compliance & Ratings: ATEX compliant, CE, RoHS compliant
- Input Type: Safe digital Type A inputs.
- Circuit Configuration: Sink circuit, 24 VDC.
- Features: Software input filters are individually configurable for each channel.
- Output Type: Safe digital Type B / B2 outputs.
B&R X20SLX806 Fail-Safe Mixed I/O Module (X20 System).
-
REQUEST A QUOTE

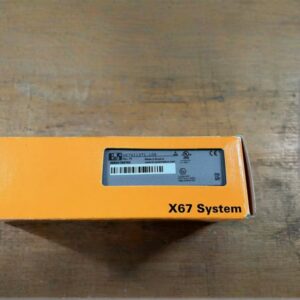

- Manufacturer: B&R
- Model / Part Number: X67DI1371.L08
- Digital inputs: 16
- Input circuit: Sink, EN 61131-2 Type 1
- Nominal input voltage: 24 V DC
- Input voltage range: 18–30 V DC
- Typical input current: 7 mA at 24 V DC
- Switching thresholds: Low <5 V DC; high >15 V DC
- Hardware input filter: ≤100 µs
- Software input filter: 1 ms
- Input connectors: 16 × M8, 3-pin
- Network interface: X2X Link, M12 B-coded
- I/O supply connector: M8, 4-pin
- Sensor supply: 0.5 A maximum total; short-circuit protected
- I/O supply range: 18–30 V DC
- Internal I/O power: 0.5 W
- X2X Link power: 0.75 W
- Isolation: Channels isolated from bus; channels not isolated from each other
- Channel-to-bus insulation: 500 V RMS
- Protection: IP67
- Operating temperature: −25 to +60 °C
- Dimensions: 53 × 155 × 42 mm (W × H × D)
- Weight: 300 g
-
REQUEST A QUOTE
- Feedback Inputs: Features 2 independent input channels that support both incremental and SSI (Synchronous Serial Interface) encoders.
- High-Speed Counter: Equipped with a full 32-bit counter for high-resolution positioning tracking.
- Hardware Triggers: Allows for near-instantaneous position measurement and latching/storage initiated directly via hardware triggers.
- Diagnostics: Built-in monitoring safeguards, including encoder supply voltage monitoring and cable break detection to prevent runaway conditions if a feedback line is damaged.
- Wind Energy: Controlling blade pitch and yaw alignment systems.
- Marine Automation: Monitoring rudder feedback and winch operations.
- Industrial Machinery: High-accuracy CNC, packaging, or material handling axis control.
BACHMANN ISI202 Encoder Resolver Interface Module (MX200 Series).
-
REQUEST A QUOTE
- Sensing Range: 25 mm to 300 mm (0.98" to 11.81")
- Light Source: Visible Red Class 1 Laser (655 nm)
- Sensing Mode: Proximity / Diffuse with Background & Foreground Suppression
- Input Voltage: 12 V DC to 30 V DC
- Output Type: Analog: 0 to 10 V
- Connection Type: 5-Pin Euro-style M12 Integral Quick Disconnect (QD)
- Housing Material: Heavy-duty Stainless Steel
- Ingress Protection: IP67, IP68, and IP69K (Washdown rated)
- Operating Temp: -10°C to +50°C (14°F to 122°F)
- Response Time: 0.5 ms minimum response time
BANNER Q4XTULAF300-Q8 Laser Distance Sensor (Q4X Series).
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2622
- Output channels: 2 relay outputs, make contacts
- Nominal voltage: 230 VAC / 30 VDC
- Switching current: 5 A per channel, ohmic load
- Inductive load: 2 A per channel
- Electrical isolation: 500 V
- E-bus current consumption: Typically 170 mA
- Dimensions: 12 x 100 x 68 mm
- Operating temperature: -25 to 55 °C
- Protection rating: IP20
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2889
- Output channels: 16 digital outputs, ground switching
- Nominal voltage: 24 VDC (-15% / +20%)
- Rated output current: 0.5 A per channel
- Connection technology: 1-wire
- Switch-on time: Typically 50 µs
- Switch-off time: Typically 200 µs
- Electrical isolation: 500 V
- E-bus current consumption: Typically 140 mA
- Operating temperature: -25 to 60 °C
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3048
- Number of inputs: 8 (single-ended), 0-20 mA current
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: typ. 85 ohm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 1.25 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 32 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3064
- Number of inputs: 4 (single-ended), 0-10 V signal voltage, 2-wire connection with common internal ground
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: > 130 kOhm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 0.625 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 16 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
REQUEST A QUOTE
- Manufacturer: Beckhoff
- Model / Part Number: BK2000
- Fieldbus: Lightbus
- Maximum Bus Terminals: 64
- Process data: 512 bytes input and 512 bytes output
- Digital peripheral signals: 512 inputs/outputs
- Analog peripheral signals: 128 inputs/outputs
- Transmission rate: 2.5 Mbaud
- Bus interface: 2 fiber-optic connectors; Z1000 plastic fiber or Z1010 HCS fiber
- Supply voltage: 24 V DC (−15%/+20%)
- K-bus supply current: 1750 mA
- Power contacts: 24 V DC maximum, 10 A maximum
- Electrical isolation: 500 V between power contacts and supply
- Station distance: 45 m with APF fiber; 300 m with HCS fiber
- Dimensions: 51 × 100 × 69 mm (W × H × D)
- Mounting: 35 mm DIN rail
- Operating temperature: 0 to +55 °C
- Protection: IP20
- Weight: Approximately 150 g
-
- Manufacturer: Beckhoff
- Model / Part Number: BK3120
- Product type: PROFIBUS Economy plus Bus Coupler (BK3120)
- Number of Bus Terminals: 64 (255 with K-bus extension)
- Max. number of bytes fieldbus: 128 byte input and 128 byte output
- Transmission rate: Automatic detection up to 12 Mbaud
- Bus interface: 1 x D-sub 9-pin socket with shielding
- Transmission medium: Shielded copper cable, 2 x 0.25 mm²
-
REQUEST A QUOTE

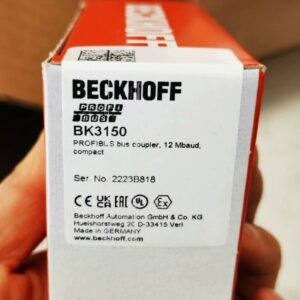

- Manufacturer: Beckhoff
- Model / Part Number: BK3150
- Fieldbus: PROFIBUS DP
- Bus Terminals: 64; up to 255 with K-bus extension
- Data capacity: 128 bytes input/output in DP operation
- Transmission rate: Up to 12 Mbaud
- Bus connection: Shielded 9-pin D-sub
- Supply voltage: 24 V DC (−15%/+20%)
- Supply current: 70 mA + total K-bus current/4; maximum 320 mA
- K-bus current: 1000 mA through hardware 04; 1750 mA from hardware 05
- Power contacts: 24 V DC maximum, 10 A maximum
- Isolation withstand: 500 V
- Operating temperature: −25 to +60 °C
- Protection: IP20
- Weight: Approximately 100 g
-
REQUEST A QUOTE
- Processor: Intel Atom Z530 running at 1.6 GHz with single-core hyperthreading technology.
- Memory & Storage: Equipped with 512 MB DDR2 RAM (expandable) and an exchangeable 128 MB Compact Flash card slot for OS and application storage.
- System Connectivity: Automatically recognizes and supports E-bus (EtherCAT) or K-bus (Standard Bus Terminals) for direct local I/O connection.
- Interfaces: Onboard connectivity features 2 x RJ45 Gigabit Ethernet ports, 1 x DVI-D/I port, 4 x USB 2.0 ports, and 1 x slot for an optional communication interface (e.g., Profibus, CANopen).
- Software Support: Configured for TwinCAT 2 runtime (PLC and NC PTP) or TwinCAT 3 (Platform Level 40 – Performance) execution environment.
- Power Supply: Standard 24 V DC with an integrated 1-second hardware UPS to save persistent memory data during sudden power failures.
BECKHOFF CX5020-0112 Embedded PC Controller (CX5000 Series).
-
- Manufacturer: Beckhoff
- Model / Part Number: EK1100
- Task in System: Coupling of EtherCAT Terminals to 100BASE-TX EtherCAT networks
- Connection Technology: 2 x RJ45 sockets (Upper: Network In, Lower: Optional downstream extension)
- Data Transfer Rate: 100 Mbit/s (Ethernet 100BASE-TX)
- Max Cable Length: Up to 100 m between stations (CAT5 or higher)
- Max Number of Terminals: Up to 65,535 in the overall system
- System Power Supply: 24 V DC (-15% / +20%)
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1110
- Function: Conversion of E-bus signals to 100BASE-TX Ethernet NEX Instrument Inc
- Data Transfer Rate: 100 Mbps PLC Parts Solution
- Bus Interface: 1 × RJ45 socket Beckhoff USA
- Power Supply: Directly from the E-bus (No external power needed) Beckhoff USA
- Current Consumption: Approx. 130 mA from E-bus PLC Parts Solution
- Electrical Isolation: 500 V (supply voltage / Ethernet) NEX Instrument Inc
- Configuration: None required (No parameterization necessary) Beckhoff USA
- Protection Rating: IP20 PLC Parts Solution
- Mounting: 35 mm DIN rail (conforming to EN 60715) NEX Instrument Inc
- Approvals / Markings: CE, UL, ATEX (Ex marking: II 3 G Ex nA IIC T4 Gc) NEX Instrument Inc
