BECKHOFF EK1110

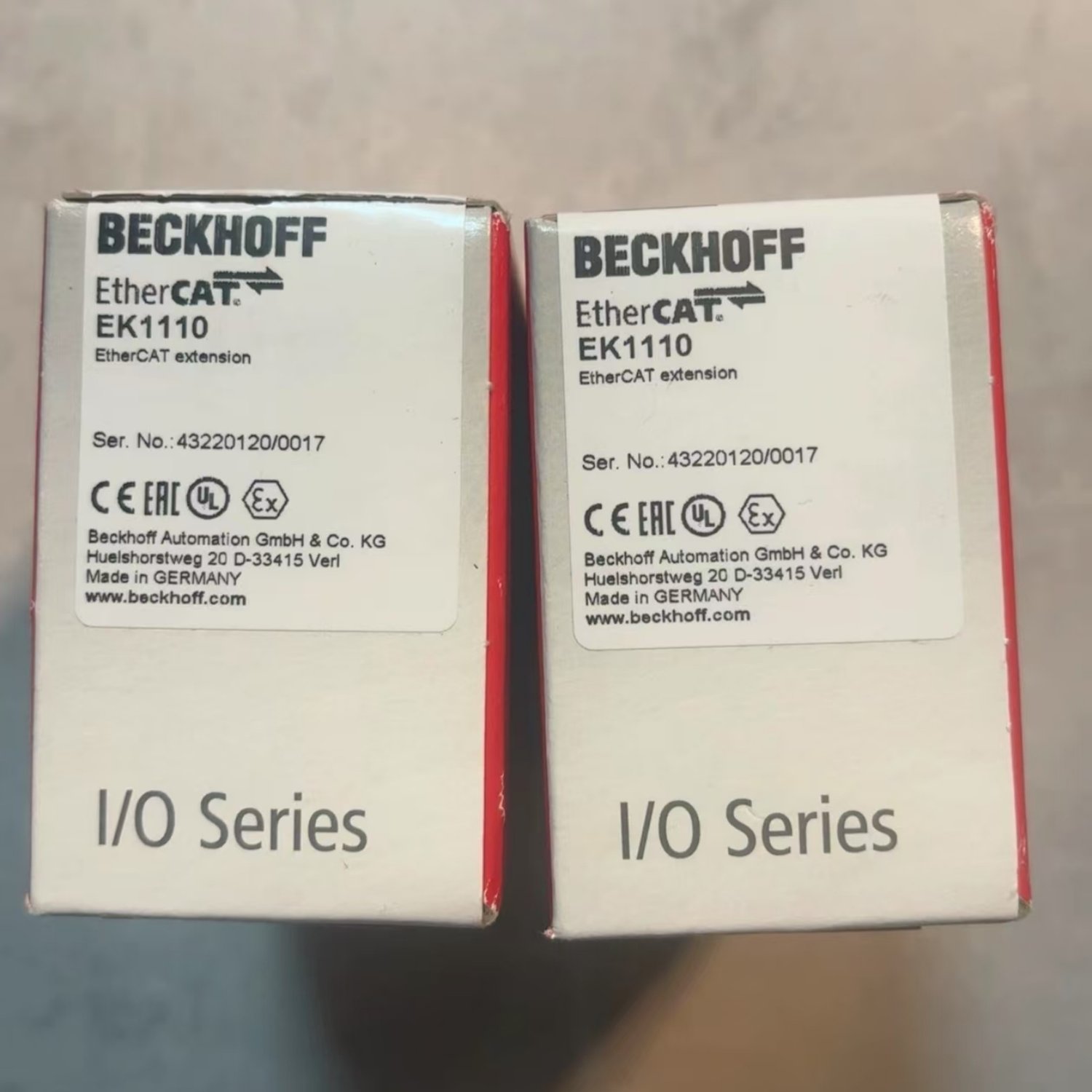

BECKHOFF EK1110 EtherCAT Extension Module

REQUEST A QUOTE

Manufacturer: BECKHOFF
Model / Part Number: EK1110
Function: Conversion of E-bus signals to 100BASE-TX Ethernet NEX Instrument Inc
Data Transfer Rate: 100 Mbps PLC Parts Solution
Bus Interface: 1 × RJ45 socket Beckhoff USA
Power Supply: Directly from the E-bus (No external power needed) Beckhoff USA
Current Consumption: Approx. 130 mA from E-bus PLC Parts Solution
Electrical Isolation: 500 V (supply voltage / Ethernet) NEX Instrument Inc
Configuration: None required (No parameterization necessary) Beckhoff USA
Protection Rating: IP20 PLC Parts Solution
Mounting: 35 mm DIN rail (conforming to EN 60715) NEX Instrument Inc
Approvals / Markings: CE, UL, ATEX (Ex marking: II 3 G Ex nA IIC T4 Gc) NEX Instrument Inc
