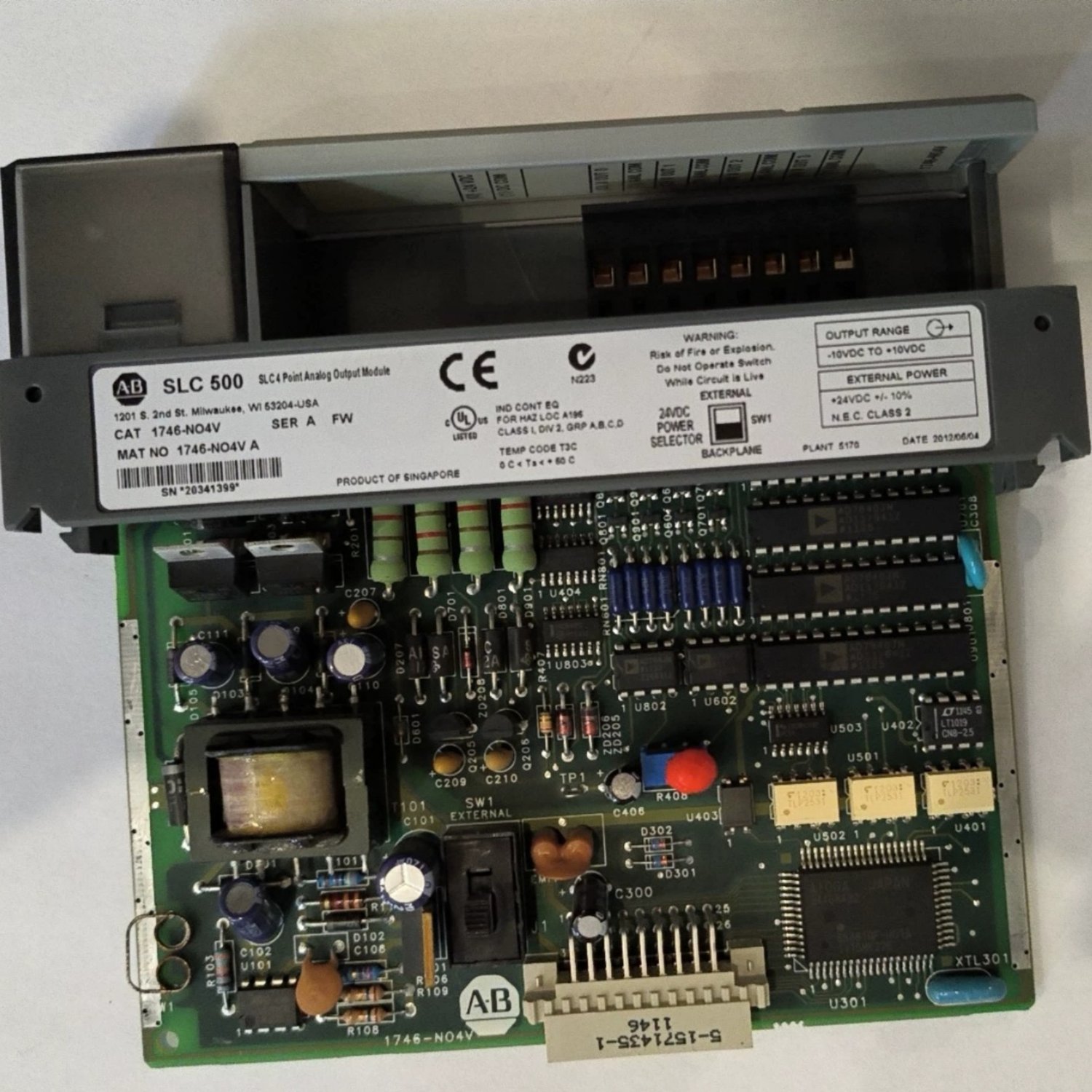

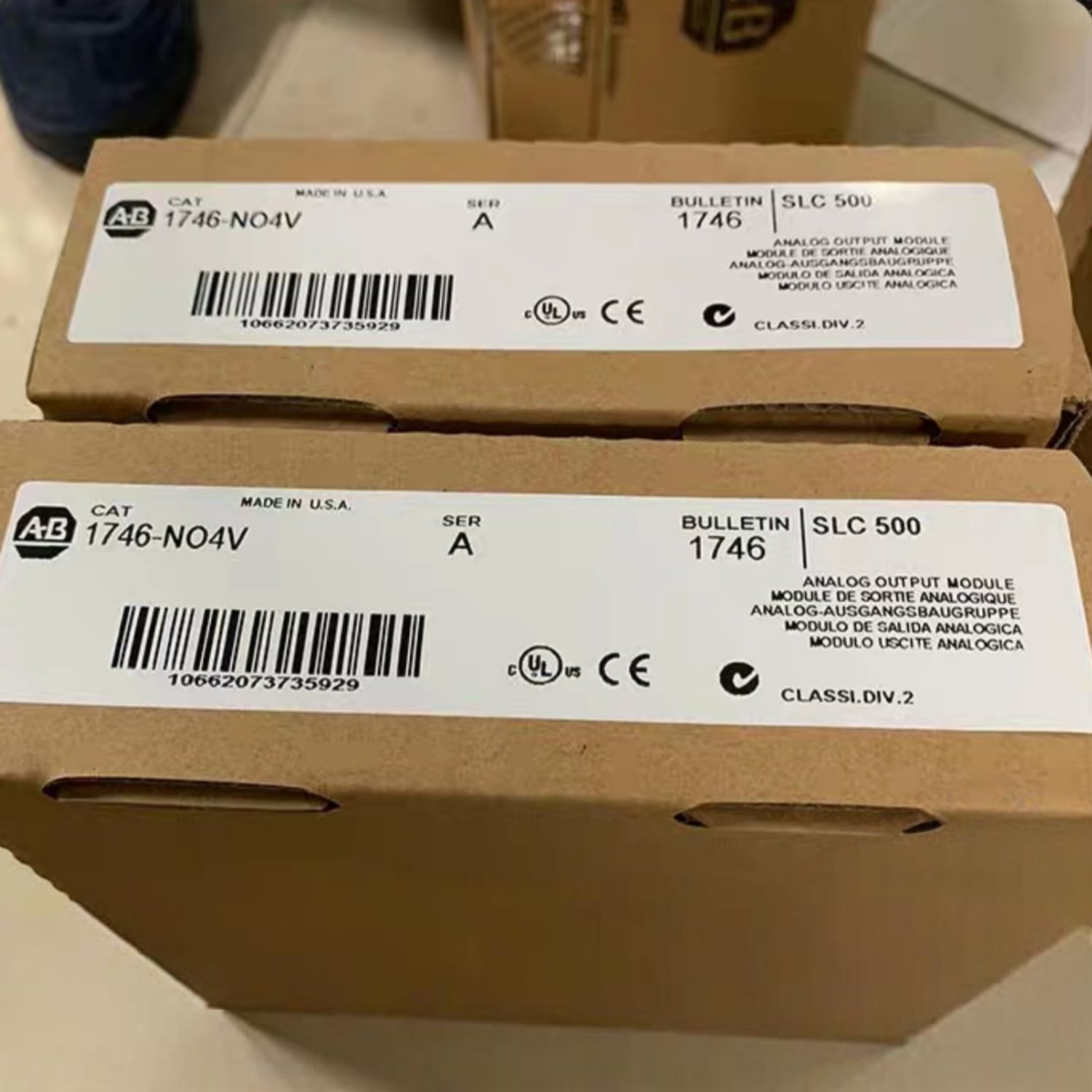

Allen-Bradley 1746-NO4V Analog Voltage Output Module

Manufacturer: Allen-Bradley
Model / Part Number: 1746-NO4V
Product type: SLC 500 analog output module, 4 voltage outputs (single-slot)
Output channels: 4 analog voltage outputs, not individually isolated
Voltage output range: -10 to +10 V dc – 1 LSB (single range and scale)
Output converter: 14-bit, R-2R ladder; resolution 1.22070 mV/LSB; full scale 10 V dc
Load range: 1K ohm to infinity; maximum load current 10 mA; max load reactance 1 uF
Accuracy: +-0.208% of full scale at 25 C; +-0.384% over 0 to +60 C
Step response: 2.5 ms (at 95%)
Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc; external 24 V dc +-10% (21.6-26.4 V) for some applications
Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
Lifecycle status: End of Life 2015-12-30; replacement option 1746-NO8V
