- Manufacturer: Banner Engineering
- Model / Part Number: Q20PDL
- Sensing mode: Long-range diffuse (proximity), 624 nm visible red; range 800 mm (32 in) on 90% reflectance test card
- Supply voltage: 10-30 V DC (10% max ripple) at less than 18 mA, exclusive of load
- Output: Complementary solid-state PNP (light operate + dark operate); max 100 mA with short-circuit protection
- Connection: Integral 2 m (6.5 ft) 4-wire unterminated cable
- Environmental rating: IP67, NEMA 4X; -20 to +60 deg C; 95% RH @ 50 deg C
- Construction: Overmolded ABS housing, PMMA lenses, PBT gain adjuster, rectangular thermoplastic body
- Adjustments / indicators: Single-turn gain potentiometer; power (green) and output (amber) LEDs with marginal-signal flashing
- Item status: RELEASED
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q3XTBLD-Q8
- Product type: Q3X Series Laser Contrast Sensor (Laser Expert diffuse); model Q3XTBLD-Q8 belongs to the Q3XT Series laser diffuse group
- Sensing range: Contrast sensing range 0 to 300 mm (11.81 in); background suppression distance: Not Applicable
- Sensing beam: Visible red Class 2 laser, 655 nm; laser output power < 0.42 mW; pulse duration 5 us
- Supply voltage: 10-30 V DC; supply power < 675 mW; current consumption < 28 mA at 24 V DC; protected against reverse polarity and transient overvoltages
- Outputs: Bipolar: 1 PNP + 1 NPN solid-state outputs, 100 mA maximum each (protected against continuous overload and short circuit); off-state leakage < 10 uA
- Response speed: User selectable 250 us / 1 ms / 5 ms; repeatability 60 us; delay at power-up 1 s
- Output operation: Light Operate / Dark Operate (TEACH modes: two-point static, dynamic, window, light set, dark set); ambient light immunity > 5000 lux
- Connection: 5-pin M12 integral quick disconnect (Q8 suffix); QD models require a mating cordset
- Environmental rating: IP67 / IP68 / IP69K (IEC 60529, ISO 20653), NEMA 4X; washdown rated; -10 to +50 deg C; 35-95% RH
- Construction: Rugged nickel-plated zinc die-cast housing with nickel-plated aluminum side cover and scratch-resistant PMMA acrylic lens; rectangular housing with M18 mounting
- Adjustment / indication: Two tactile buttons below angled 3-digit display with bright output indicator; remote TEACH input supported
- Item status: RELEASED (active product; Banner part number 91638)
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q45AD9DLQ
- Product type: Q45 Series Rugged Rectangle Sensor, NAMUR type; Q45AD9DLQ = diffuse (proximity), long-range model with 4-pin M12 QD
- Sensing mode / range: Diffuse (proximity), 880 nm infrared; range 1 m (40 in) based on a 90% reflectance white test card (long-range diffuse model)
- Supply voltage: 5 to 15 V DC; supply voltage is provided by the certified NAMUR switching amplifier / intrinsically safe barrier to which the sensor is connected
- Output: NAMUR constant-current output: <= 1.2 mA in the 'dark' condition and >= 2.1 mA in the 'light' condition (output passes the sensor supply current)
- Output response time: 5 ms on/off (does not include amplifier response; opposed-mode receivers are 2 ms on / 0.4 ms off)
- Construction: Molded thermoplastic polyester housing, o-ring sealed transparent Lexan top cover, molded acrylic lenses, stainless steel hardware; designed to withstand 1200 psi washdown
- Environmental rating: Banner tested to NEMA 6P and IEC IP67; -40 to +70 deg C; maximum RH 90% at 50 deg C (non-condensing)
- Connection: 4-pin M12 integral quick disconnect (Q suffix); QD models require mating MQD9-4.. cordset (2 m cable version is Q45AD9DL)
- Hazardous area approvals: Intrinsically safe when used with certified switching amplifiers/barriers: ATEX II 1 G Ex ia IIC T5 Ga; IECEx Ex ia IIC T5 Ga; FM/CSA IS Class I/II/III Div 1 Groups ABCDEFG T5; entity parameters Ui=15 V, Ii=60 mA, Pi=225 mW
- Item status: RELEASED (active product; Banner part number 37628)
-
- Manufacturer: Banner
- Model / Part Number: GM-FA-10J
- Supply Voltage: 24 V AC/DC universal power
- Safety Outputs: 2 NO (Normally Open), 6 A resistive switching capacity
- Housing & Dimensions: 22.5 mm width, robust polycarbonate housing, IP20 rated
- Mounting Type: 35mm DIN rail mount
- Termination: Removable plug-in screw terminal blocks
- Reset Configurations: Automatic reset or monitored manual reset
-
REQUEST A QUOTE
- Manufacturer: Banner
- Model / Part Number: K50LGRYP
- Part number: 76118
- Supply: 18–30 V DC
- Input type: PNP
- Colours: Green, red and yellow
- Colour control: Individual wire per colour
- Cable: 2 m integral cable, 4 conductors
- Mounting thread: M30 × 1.5
- Indicator diameter: 50 mm
- Dimensions: 50 × 58 mm (D × H)
- Housing: Polycarbonate
- Maximum current per colour: 40 mA
- Maximum input response: 1 ms
- Protection: IP67/IP69K
- Operating temperature: −40 to +50 °C
-
- Manufacturer: Banner
- Model / Part Number: LTF12IC2LDQ
- Sensing Range: 50 mm to 12,000 mm (0.05 m to 12 m)
- Emitter: Visible red Class 2 laser (660 nm)
- Operating Voltage: 12 to 30 V DC
- Analog Output: 4–20 mA current configuration
- Discrete Output: 1 x configurable NPN/PNP output
- Connection Type: Integral M12 Quick Disconnect (5-pin Euro-style QD)
-
REQUEST A QUOTE

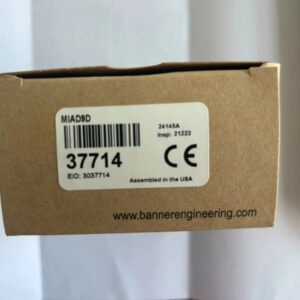

- Manufacturer: Banner
- Model / Part Number: MIAD9D
- Part number: 37714
- Supply: 5–15 V DC
- Output: NAMUR
- Sensing range: 380 mm with 90% white target
- Emitter: Infrared, 880 nm
- Response time: 5 ms
- Cable: 2 m, 2-wire PVC
- Protection: IP67
- Operating temperature: −40 to +70 °C
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6
- Operation Mode: Momentary action (active only while a finger interrupts the optical beam).
- Input Supply Voltage: 10–30 V DC (12–24 V DC nominal).
- Output Configuration: Complementary PNP solid-state output with both Normally Open (NO) and Normally Closed (NC) functions.
- Electrical Connection: Pre-wired with a 2-meter (6.5 ft) 4-wire integral cable terminating in bare flying leads.
- Housing & Materials: Saddle/yoke-shaped black housing featuring a Polysulfone upper housing and a Thermoplastic Polyester base.
- Environmental Protection: Rugged IP66 rating (also rated NEMA 1, 3, 4, 4X, 12, and 13) making it highly resilient in washdown environments.
- Field Cover: Includes a black field cover (F.C.) to prevent inadvertent activation from falling objects or side contact. (Note: A yellow field cover variant is available under part number 35094).
- Mounting Thread Size: 30 mm base/flush mounting hole.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Status Indicators: Built-in dual LEDs indicating "Power On" and "Output Activated" conditions.
- Manufacturer Part Number: 28589.
- Official Documentation: Technical layout files, including 3D CAD data and the complete user manual, can be accessed directly on the Banner Engineering OTBVP6 Product Page.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QD
- Manufacturer: Banner Engineering
- Part Number: 28590
- Operating Voltage: 10–30 V DC (12–24 V DC Nominal)
- Output Type: Complementary PNP (1 Normally Open / 1 Normally Closed)
- Action Type: Momentary
- Connection Type: 4-pin 7/8"-16UN-2B MINI-style Quick Disconnect (Integral QD)
- Housing Materials: Polysulfone upper housing / Thermoplastic Polyester (Valox®) base
- Field Cover Color: Black
- Mounting Size: 30 mm threaded base (Flush mountable)
- Environmental Rating: IP66 / NEMA 1, 3, 4, 4X, 12, 13
- Certifications: CE, cULus Listed, CSA
- Operation Principle: The solid-state output activates as long as an object (such as a finger) is placed into the saddle/yoke area and interrupts the infrared sensing beam. No physical pressure is required.
- Required Cable: Quick disconnect models require a matching MBCC-412 cable (Part Number: 25226), which must be purchased separately.
- LED Diagnostics: Built-in LED lights indicate when power is on and when the output is actively triggered.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QDH
- Operation: Momentary action (activated only while the infrared beam in the yoke area is broken).
- Input Voltage: 10–30 V DC (12–24 V DC nominal).
- Connection Type: Integral 4-pin M12 Euro-style quick-disconnect (QD) connector.
- Housing Materials: Highly durable Polysulfone upper housing with a thermoplastic polyester base.
- Environmental Rating: NEMA 1, 3, 4, 4X, 12, 13, and IP66 moisture/dust protection.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Field Cover: Standard black field cover included to minimize accidental activations from ambient debris or dropped items.
-
- Manufacturer: Banner Engineering
- Model / Part Number: OTBVR81
- Series / function: OTB Series optical touch button, momentary action, single-point optical sensing
- Supply voltage: 20-30 V AC/DC
- Output: SPDT electromechanical relay; 5 conductors
- Connection: 2 m integral cable; base-mount saddle housing style
- Mounting: M30 x 1.5 mounting thread
- Response time: Max 100 ms input response; max 100 ms output response
-
- Manufacturer: Banner
- Model / Part Number: Q126EQ
- Component Type: Emitter only (does not have a discrete electrical output).
- Sensing Mode: Opposed mode / Through-beam.
- Sensing Range: Up to 2 meters (approx. 6.5 feet).
- Sensing Beam: Visible red LED (640 nm wavelength).
- Input Voltage: 10–30 V DC (12V DC or 24V DC nominal).
- Connection Type: 150 mm (6 in) PUR Pigtail with a 4-pin M8 Pico-style quick disconnect connector.
-
- Manufacturer: BANNER
- Model / Part Number: Q45BB6DQ5
- Sensing Range: Up to 450 mm (17.7 inches).
- Sensing Beam: Infrared LED (880 nm wavelength).
- Input Voltage: 10–30 V dc.
- Output Type: Bipolar discrete outputs (includes 1 NPN output and 1 PNP output).
- Connection Type: Integral M12 (Euro-style) 4-pin quick-disconnect connector.
- Environmental Protection: IP67 and NEMA 6P rated, making it highly resistant to dust and water submersion.
-
- Manufacturer: Banner
- Model / Part Number: Q45ULIU64BCRQ
- Sensing Range: It can detect objects from 250 mm to 3 meters (about 10 inches to 10 feet) away.
- Output Signal: Features a selectable analog output. You can set it to send either a 0–10 V DC voltage signal or a 4–20 mA current signal based on how far away an object is.
- Power Supply: It requires an input voltage of 15 to 24 V DC to run.
- Connection Type: Built with a 5-pin, 7/8-inch mini-style integral quick-disconnect connector rather than a hardwired cable.
- Durability Rating: It has an IP67 and NEMA 6P rugged design. This means it is highly protected against dust, heavy rain, and even brief underwater dipping.
- Liquid Level Tracking: Measuring how full a tank or container is from the top.
-
- Manufacturer: BANNER
- Model / Part Number: Q4XTILAF300-Q8
- Part Number: 94797
- Sensing Range: 25–300 mm
- Analog Output: 4–20 mA
- Emitter: Class 1 red laser, 655 nm
- Response Time: 500 µs
- Resolution: 1 mm; 0.5 mm repeatability
- Supply Voltage: 10–30 VDC
- Housing: 316L stainless steel
- Environmental Rating: IP67, IP68 and IP69K
- Operating Temperature: -10 to +50 °C
-
REQUEST A QUOTE
- Sensing Range: 25 mm to 300 mm (0.98" to 11.81")
- Light Source: Visible Red Class 1 Laser (655 nm)
- Sensing Mode: Proximity / Diffuse with Background & Foreground Suppression
- Input Voltage: 12 V DC to 30 V DC
- Output Type: Analog: 0 to 10 V
- Connection Type: 5-Pin Euro-style M12 Integral Quick Disconnect (QD)
- Housing Material: Heavy-duty Stainless Steel
- Ingress Protection: IP67, IP68, and IP69K (Washdown rated)
- Operating Temp: -10°C to +50°C (14°F to 122°F)
- Response Time: 0.5 ms minimum response time
BANNER Q4XTULAF300-Q8 Laser Distance Sensor (Q4X Series).
