Showing 369–384 of 2131 results
-
- Manufacturer: BALLUFF
- Model / Part Number: BGL00016
- Optical Principle: Through-beam fork sensor
- Emitter: Red LED, 636 nm
- Light Spot: 1.2 mm at light exit
- Switching Output: PNP antivalent, NO/NC
- Connection: M8 x 1 male, 3-pin
- Housing: Painted die-cast zinc
- Dimensions: 10 x 50 x 68 mm
-
- Manufacturer: BALLUFF
- Model / Part Number: BGL0019 BGL 30A-003-S49
- Fork Opening: 30 mm
- Light Type: Laser Red Light (Laser Class 1)
- Light Spot Size: Ø 0.3 mm at light exit
- Beam Characteristic: Collimated (straight, parallel laser beams)
- Principle of Operation: Through-beam fork sensor
- Switching Frequency: 5000 Hz maximum
-
REQUEST A QUOTE
- Manufacturer: BALLUFF
- Model / Part Number: BNI004L BNIIOL-310-000-K025
- Operating Voltage: 18–30.2 V DC
- Rated Operating Voltage: 24 V DC
- Protocol: IO-Link 1.0
- Transfer Rate: COM2, 38.4 kbaud
- Digital Inputs: 16 × PNP, Type 2
- Digital Outputs: 16 × PNP
- Mounting: DIN rail
- Enclosure Rating: IP20
- Ambient Temperature: −20 to 50 °C
BALLUFF BNI004L BNIIOL-310-000-K025 IO-Link Sensor/Actuator Hub. Key specifications include Operating Voltage: 18–30.2 V DC; Rated Operating Voltage: 24 V DC; Protocol: IO-Link 1.0; Transfer Rate: COM2, 38.4 kbaud.
-
REQUEST A QUOTE
- Switching Positions: 2x Chisel plungers
- Continuous Current: 0.1 A
- Connection Type: Screw terminal
- Housing Material: Anodized Aluminum
- Environmental Protection: IP67 rated (water and dust resistant)
- Operating Temperature: -5 to 85 °C
- Approach Speed: Max 40 m/min (longitudinal, parallel to attachment surface)
- Certifications: CE, UKCA, CCC, WEEE
BALLUFF BNS819-B02-D12-61-12-3B Multiple-Position Limit Switch (BNS Series).
-
REQUEST A QUOTE
- Manufacturer & Order Code: Balluff / BOS008E
- Series & Form Factor: 26K
- Dimensions: 17 x 50 x 50 mm
- Operating Principle: Photoelectric / Diffuse
- Sensing Feature: Background Suppression
- Sensing Range: 30…150 mm
- Light Source: Laser Red Light
- Light Spot Size: Ø 0.1 mm
- Output Interface: PNP Normally Open (NO) / Normally Closed (NC)
- Electrical Connection: M12x1 Male Connector, 4-pin
BALLUFF BOS26K-PA-1LHB-S4-C Photoelectric Sensor (BOS Series).
-
REQUEST A QUOTE

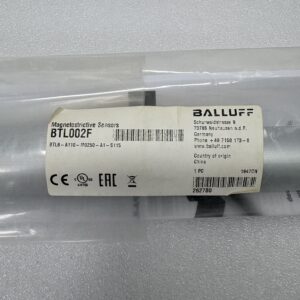

- Manufacturer: Balluff
- Model / Part Number: BTL6-A110-M0250-A1-S115
- Order code: BTL002F
- Measuring length: 250 mm
- Supply: 20–28 V DC
- Outputs: 0–10 V and 10–0 V
- Connector: M12, 8-pin, axial
- Maximum current consumption: 70 mA at 24 V
- Repeatability: 10 micrometers or better
- Protection with connector: IP67
- Operating temperature: 0 to +70 °C
-
REQUEST A QUOTE
- Supply Voltage: 24 V AC/DC (Universal Power)
- Safety Inputs: 2 x Digital Inputs (1 NO / 1 NC complementary per button)
- Safety Outputs: 2 NO (Normally Open) Redundant, Forced-Guided Contacts
- Contact Rating: 6 A Resistive @ 250 V AC
- Safety Ratings: SIL 3, PLe, Category 4
- Simultaneity Window: ≤ 500 ms (typical)
- Enclosure / IP Rating: Polycarbonate housing, IP20
- Mounting & Width: 35 mm DIN Rail Mount, 22.5 mm wide
- Terminal Type: Removable screw terminals
- LED Indicators: 5 LEDs (Power, Fault, Input 1, Input 2, Output)
BANNER AT-FM-10K Two-Hand Control Safety Relay (Duo-Touch).
-
REQUEST A QUOTE
- Manufacturer: Baumer
- Mounting Type: Flush / Shielded
- Output Circuit: Push-Pull (NPN/PNP selectable depending on wiring)
- Maximum Output Current: < 100 mA
- Current Consumption (No Load): Max. 15 mA
- Switching Frequency: < 35 Hz
- Dimensions: 52.4 mm (Length) x 25 mm (Width) x 6 mm (Depth)
- Housing Material: Polyamide (PA 12)
- Connection Type: 2-meter PVC Cable (3 × 0.14 mm²)
- IP Protection Rating: IP 65
BANNER CFDK-25G1125-LN4 Capacitive Proximity Sensor (CFDK Series).
-
REQUEST A QUOTE
- Part Number: 73121
- Sensing Beam: Visible Red LED
- Response Time: 0.2 ms (200 µs) / High-Speed
- Input Voltage: 10–30 V DC
- Output Type: 1 x Single Discrete Transistor (NPN/PNP configuration)
- Physical Interface: Pre-wired 2 m (6.5 ft) 4-wire cable with bare ends
- Housing Dimensions: 11 mm Width x 68.1 mm Length x 35.9 mm Depth
- Mounting: 35 mm DIN Rail mount
- Environmental Protection: IP50, NEMA 1 rated
- Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
BANNER D10AFPY Fiber Optic Sensor Amplifier (D10 Series).
-
REQUEST A QUOTE
- Output Type: Bipolar: 1 x NPN and 1 x PNP discrete digital outputs
- Supply Voltage: 10 V DC to 30 V DC (12V / 24V nominal)
- Sensing Beam: Visible Red Light, 680 nm wavelength
- Response Time: 200 ms / 0.2 seconds
- Repeatability: 66 to 100 μs
- Adjustment Interface: TEACH mode button with a dynamic bar-graph display
- Connection Type: 2-meter (6.5 ft) pre-wired cable with bare-end flying leads (6 pins)
- Housing Material: Thermoplastic with a Polycarbonate (PC) cover
- Environmental Protection: IP50, NEMA 1 (intended for indoor DIN-rail tracks)
- Operating Temperature: -20°C to +55°C (-4°F to 131°F)
BANNER D10BFP 74036 Fiber Optic Sensor Amplifier (D10 Expert Series).
-
REQUEST A QUOTE
- Sensing Beam: Visible Red Light (Wavelength: 680 nm)
- Input Voltage: 12–24 V DC
- Output Type: Dual Discrete PNP Transistor (150mA max load)
- Response Time: Ultra-fast: Selectable between 50 μs, 200 μs, 1 ms, and 2.5 ms
- Housing Material: Thermoplastic housing with a Polycarbonate (PC) cover
- Environmental Rating: IP50; NEMA 1
- Operating Temp: -10 to +55 °C
- Connection Type: Pre-wired 2 m (6.5 ft) cable with bare-end flying leads
- Required Fiber: Banner P-Series plastic fiber optic cables (T5 Termination)
- Application Variant Notice: Note that there is a highly specialized version of this unit designated as D10DPFP-10788 (Part #10788). This specific variant is hardware-modified for high-speed pharmaceutical pill-counting applications and features a truncated 0.840 m cable rather than the standard 2 m line. Double-check your current hardware markings to verify which baseline you need.
BANNER D10DPFP Fiber Optic Sensor Amplifier (D10 Expert Series).
-
REQUEST A QUOTE
- Part Number: 19350
- Input Voltage: 10–30 V DC (12V DC / 24V DC nominal)
- Output Type: 1 x NPN Transistor Digital Output
- Response Time: 0.2 ms (200 μs)
- Sensing Beam: Visible Red Light (660 nm wavelength)
- Connection Type: Pre-wired 2 m (6.5 ft) cable with bare end flying leads
- Housing Material: Thermoplastic
- Environmental Rating: IP50, NEMA 1
- Operating Temperature: -10°C to +55°C
- Sensing Range: Dependent upon the specific fiber optic assembly attached
BANNER DF-G1-NS-2M Dual Display Fiber Optic Sensor Amplifier (DF-G1 Series).
-
REQUEST A QUOTE
- Part Number: 19355
- Supply Voltage: 10–30 V DC (12 V DC / 24 V DC nominal)
- Output: 1 PNP digital transistor output
- Connection: Pre-wired 2-meter (6.5 ft) PVC cable terminated with bare-end flying leads
- Sensing Beam: Visible red light (660 nm wavelength)
- Response Speed: Fast response time of 200 µs (0.2 ms) ideal for small object detection
- Mounting & Housing: DIN rail mountable rectangular thermoplastic housing
- Environmental Rating: IP50, NEMA 1 rated for temperatures between -10°C and +55°C
- Fiber Compatibility: Built with a lever-action fiber clamp compatible with any standard 2.2 mm diameter plastic or glass fiber optic assembly
BANNER DF-G1-PS-2M Fiber Optic Amplifier (DF-G1 Series).
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6FF30
- Sensing mode: Fixed-field background suppression
- Cutoff distance: 30 mm
- Focus distance: 16 mm
- Supply voltage: 10-30 VDC
- Output: Bipolar light-operate: 1 NPN and 1 PNP
- Connection: 2 m cable, 3-wire
- Sensing beam: Visible red LED, 640 nm
- Response time: 0.85 ms ON/OFF
- Protection rating: IP67
- Operating temperature: -20 to 55 °C
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6FF50
- Sensing mode: Fixed-field background suppression
- Cutoff distance: 50 mm
- Focus distance: 16 mm
- Supply voltage: 10-30 VDC
- Output: Bipolar light-operate: 1 NPN and 1 PNP
- Connection: 2 m cable, 3-wire
- Sensing beam: Visible red LED
- Protection rating: IP67
- Housing style: Miniature rectangular thermoplastic housing
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6RQ
- Sensing mode: Opposed mode receiver (effective beam 5.7 mm); 2 m (6.5 ft) range with matching Q12 emitter
- Supply voltage: 10-30 V DC (10% max ripple) at 20 mA maximum current
- Output: Light Operate (LO), bipolar: 1 PNP + 1 NPN solid-state outputs
- Connection: 150 mm (6 in) cable with 4-pin M8 pigtail quick disconnect
- Sensing beam: 640 nm visible red LED
- Output response time: 1.3 ms ON / 900 microseconds OFF (opposed mode)
- Switching frequency: 385 Hz (opposed mode)
- Environmental rating: IP67; thermoplastic housing; -20 to +55 deg C; 95% RH @ 50 deg C
- Housing: Compact 8 mm (0.31 in) rectangular thermoplastic housing, polycarbonate lens, LED indicators
- Item status: RELEASED
