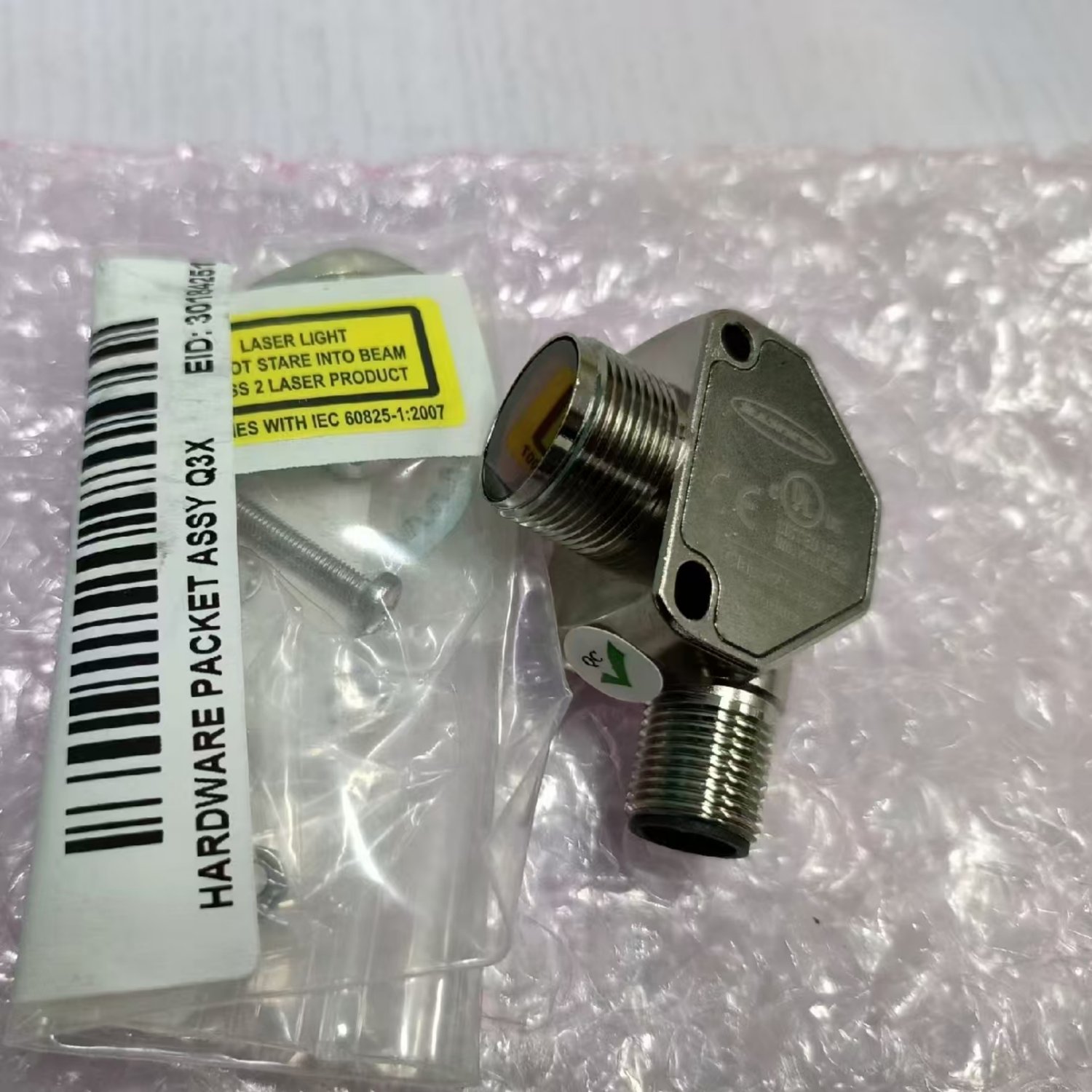

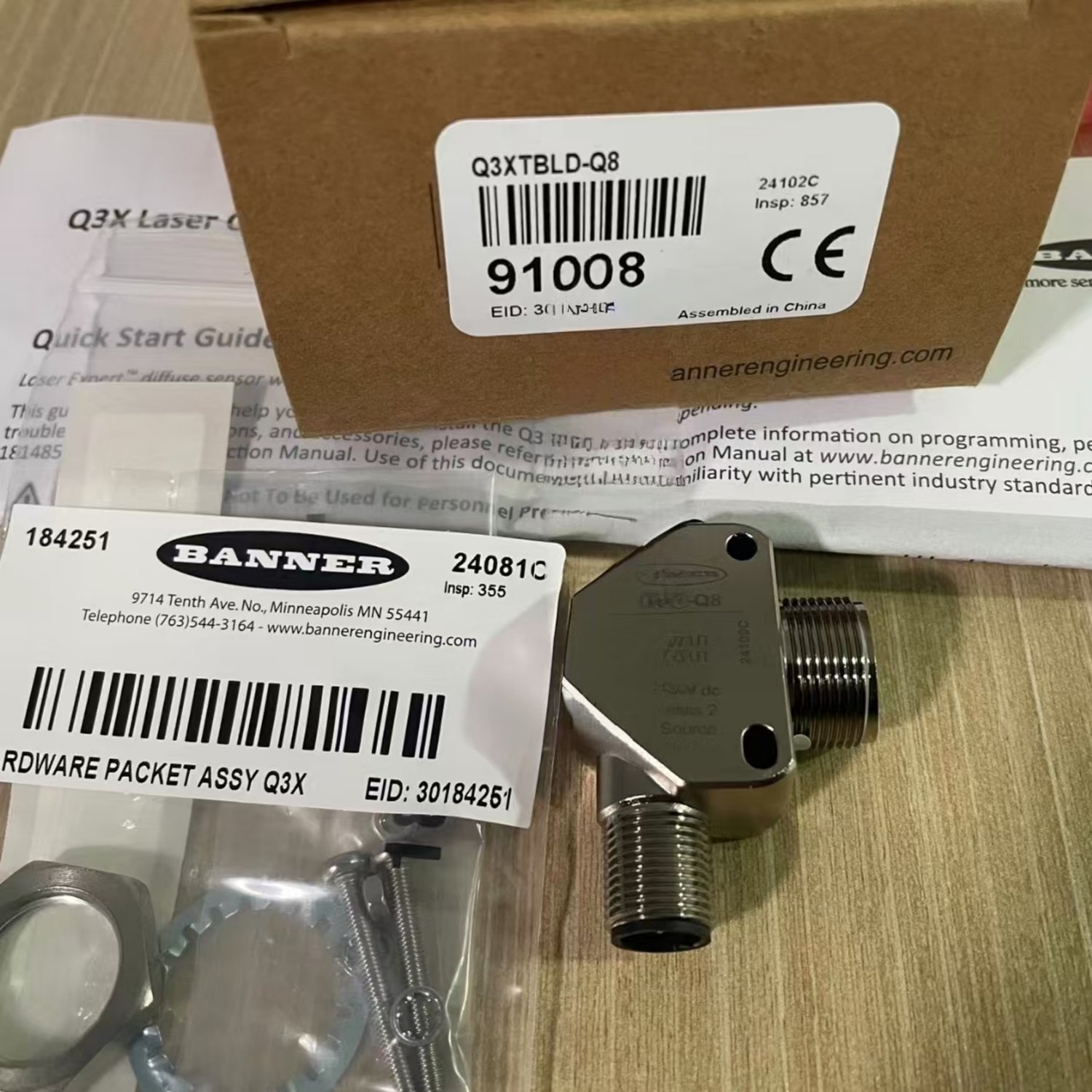

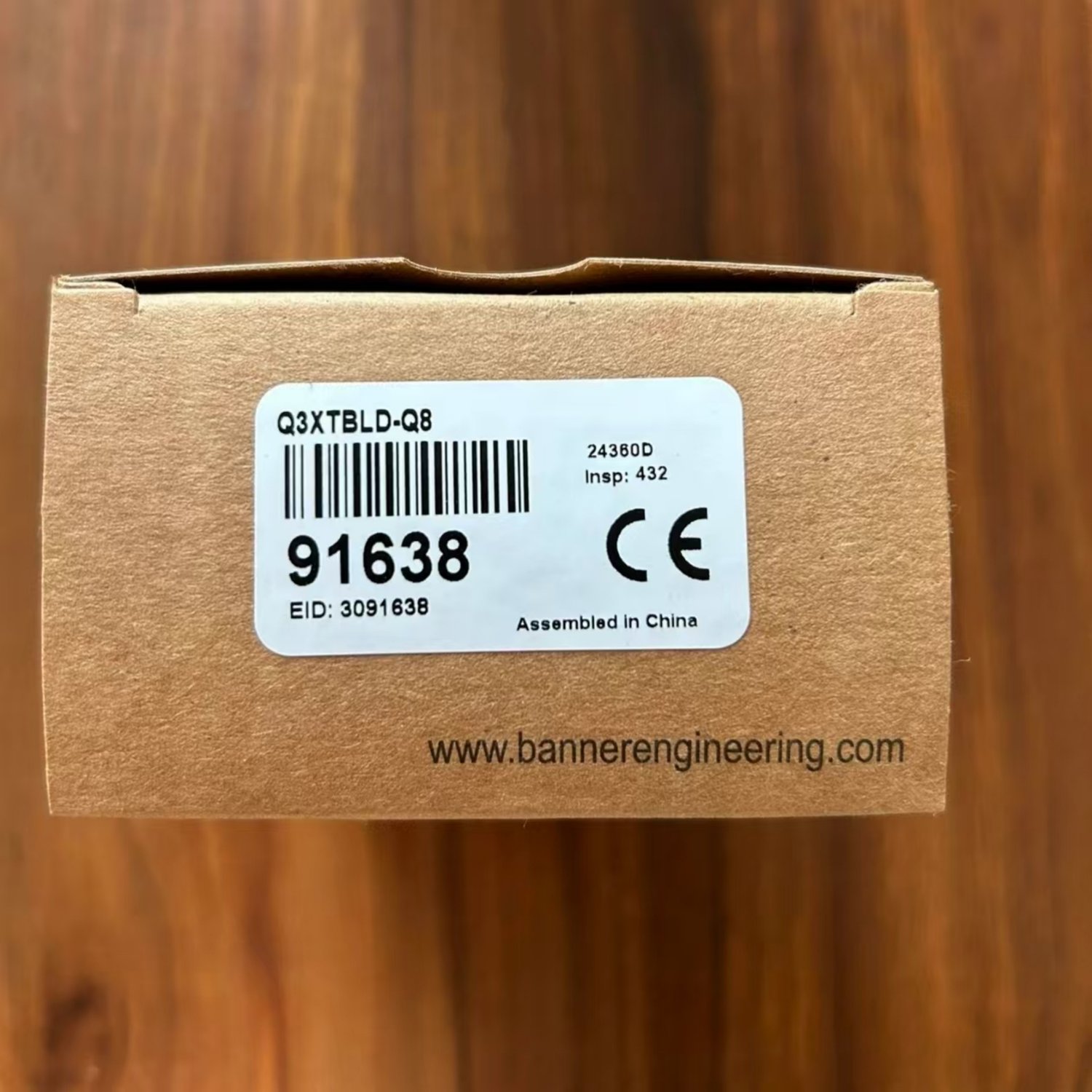

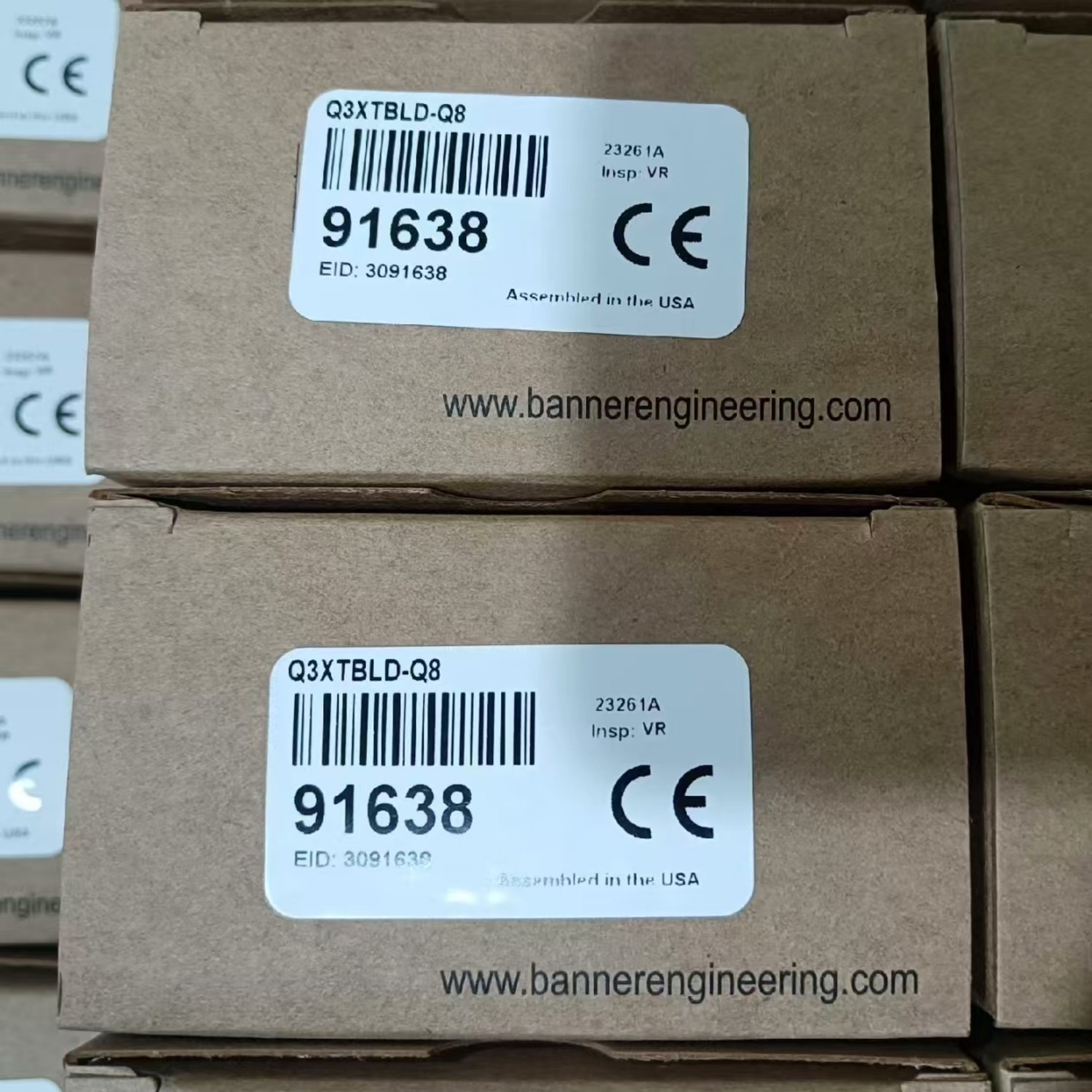

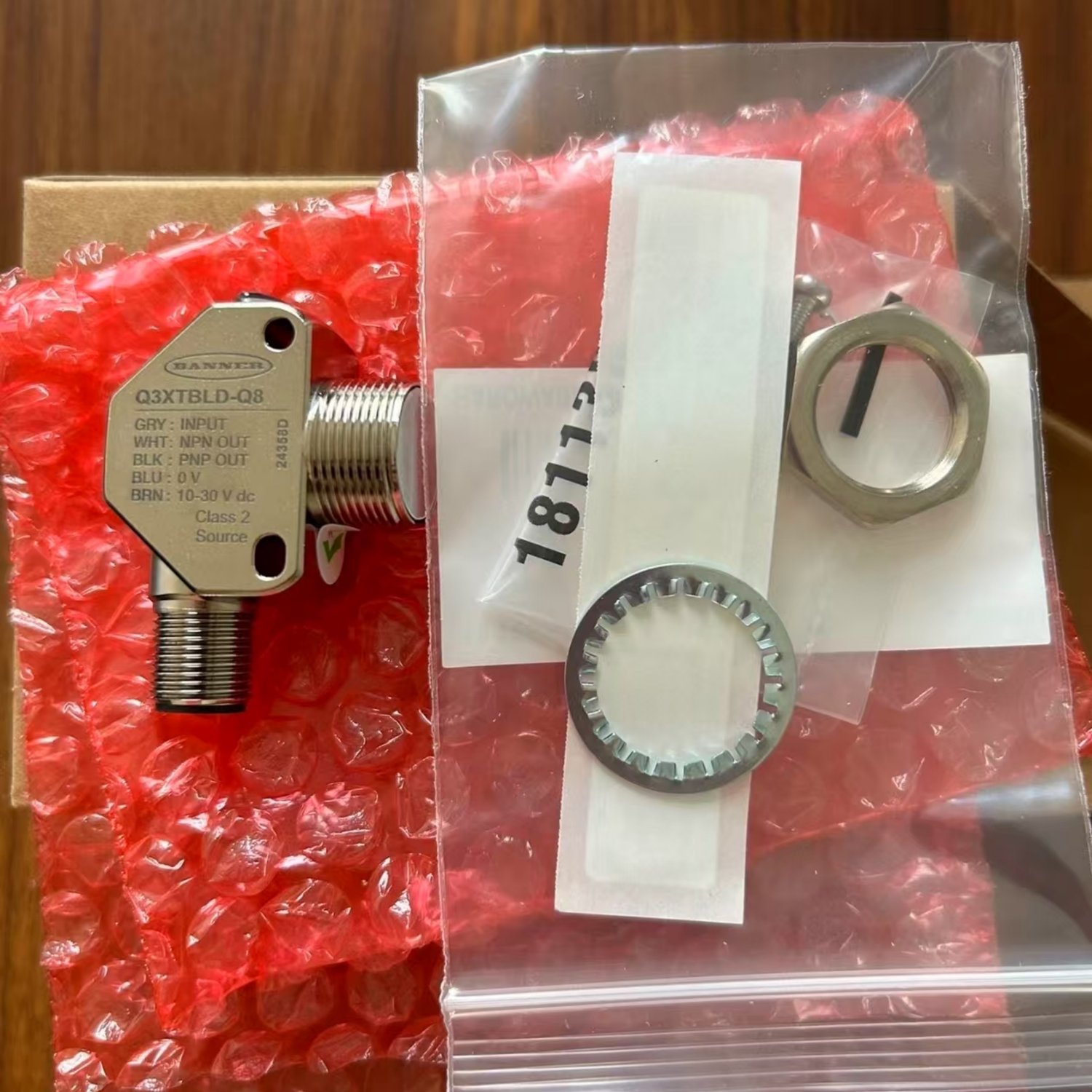

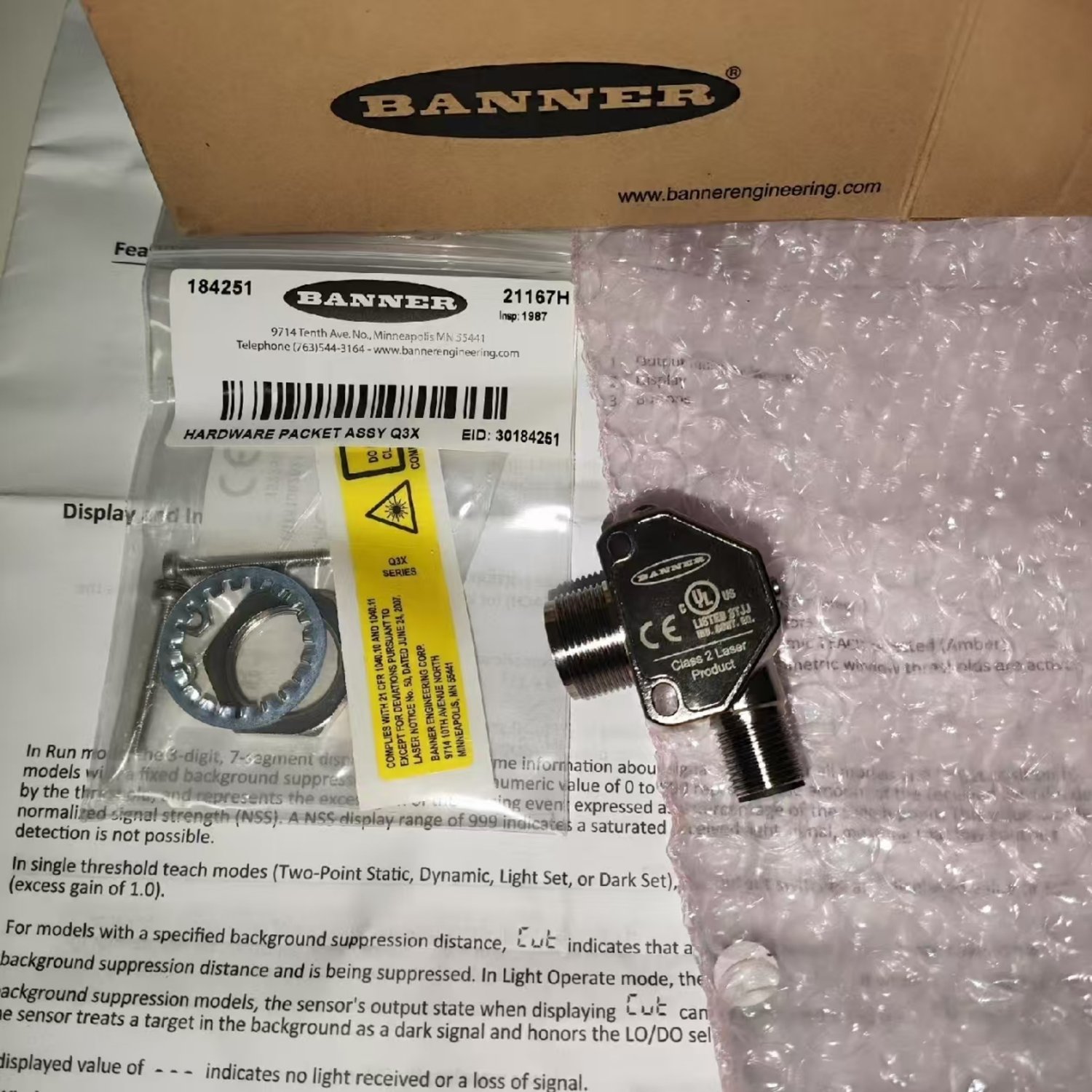

Banner Engineering Q3XTBLD-Q8 Laser Contrast Sensor
- Manufacturer: Banner Engineering
- Model / Part Number: Q3XTBLD-Q8
- Product type: Q3X Series Laser Contrast Sensor (Laser Expert diffuse); model Q3XTBLD-Q8 belongs to the Q3XT Series laser diffuse group
- Sensing range: Contrast sensing range 0 to 300 mm (11.81 in); background suppression distance: Not Applicable

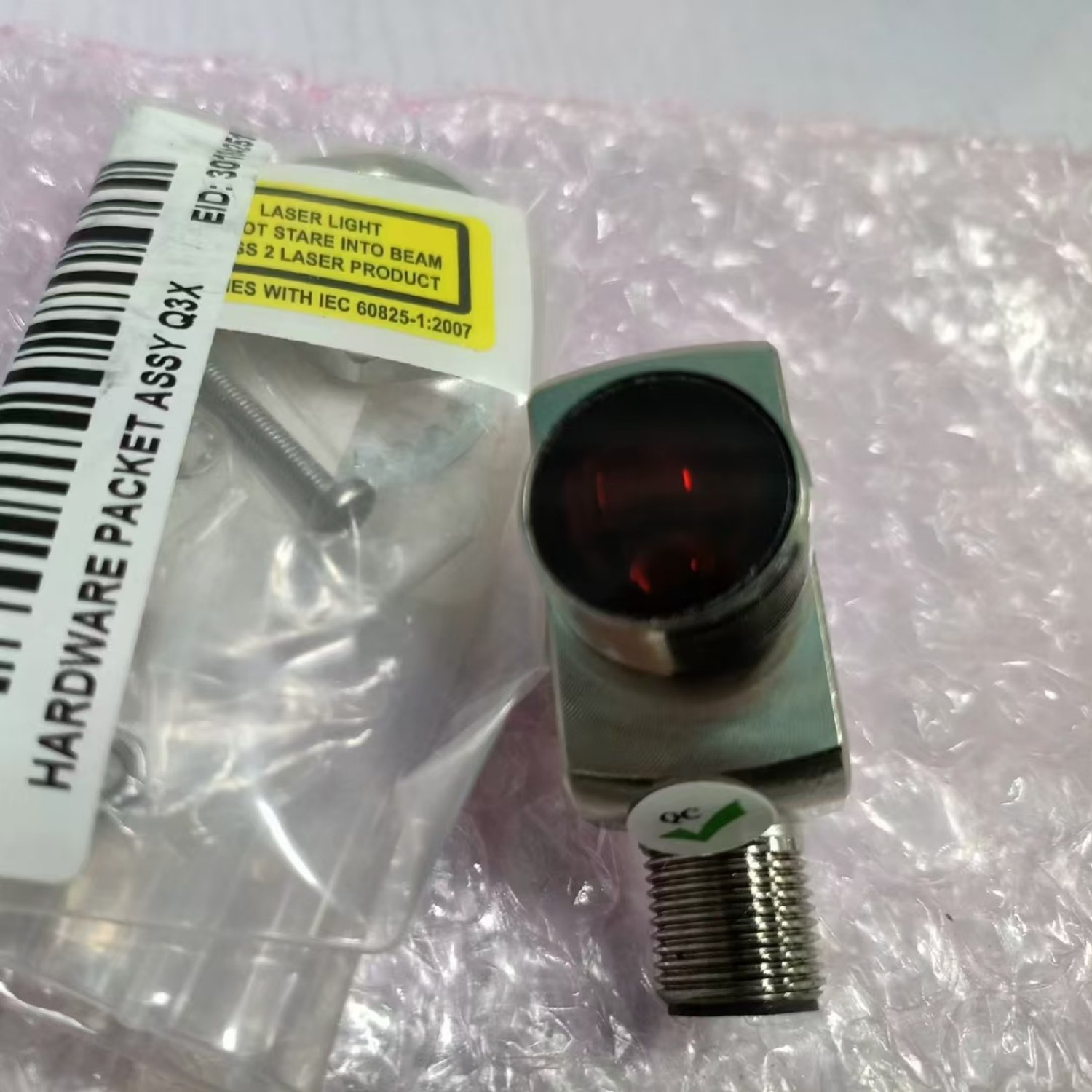

- Sensing beam: Visible red Class 2 laser, 655 nm; laser output power < 0.42 mW; pulse duration 5 us
- Supply voltage: 10-30 V DC; supply power < 675 mW; current consumption < 28 mA at 24 V DC; protected against reverse polarity and transient overvoltages

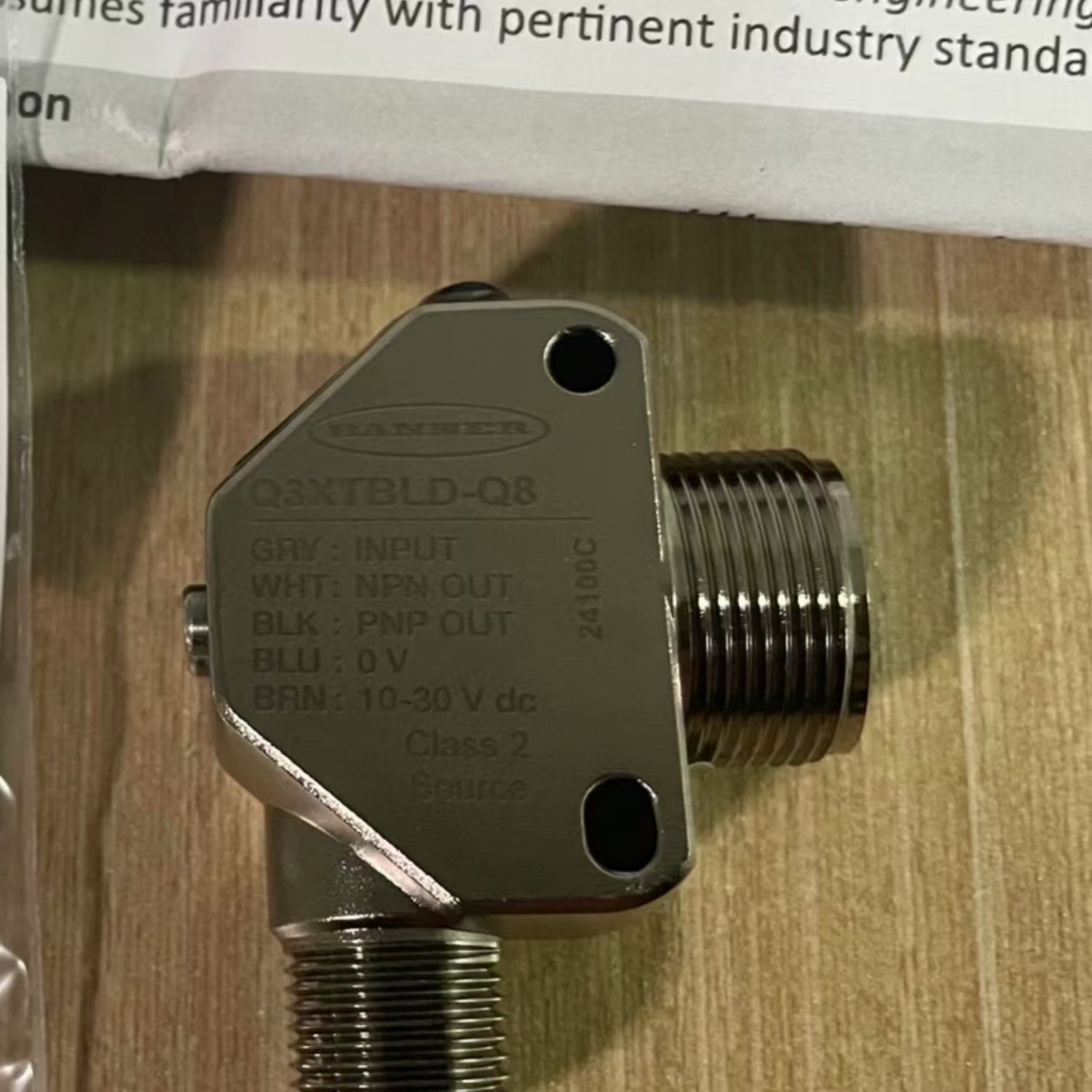

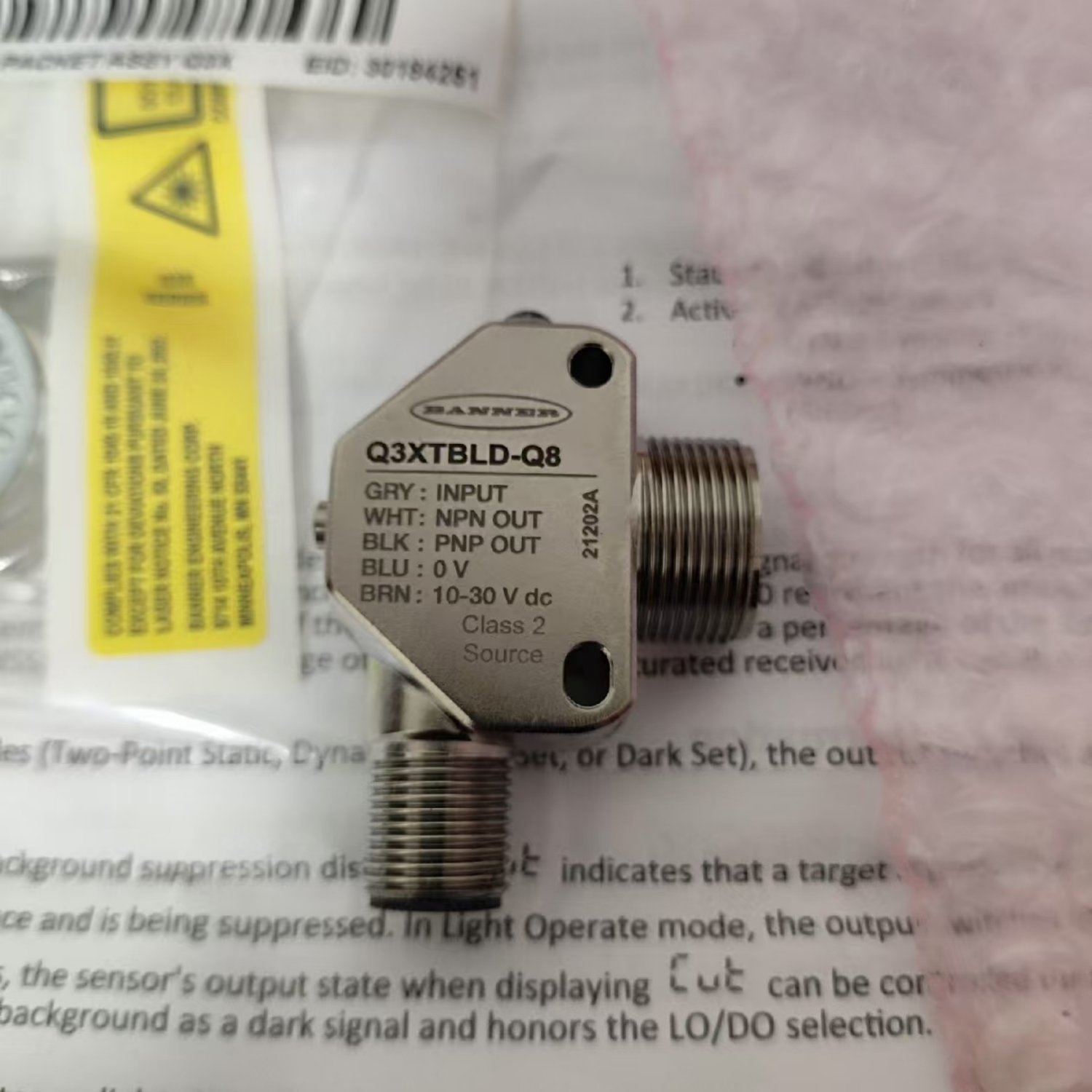

- Outputs: Bipolar: 1 PNP + 1 NPN solid-state outputs, 100 mA maximum each (protected against continuous overload and short circuit); off-state leakage < 10 uA
- Response speed: User selectable 250 us / 1 ms / 5 ms; repeatability 60 us; delay at power-up 1 s
- Output operation: Light Operate / Dark Operate (TEACH modes: two-point static, dynamic, window, light set, dark set); ambient light immunity > 5000 lux
- Connection: 5-pin M12 integral quick disconnect (Q8 suffix); QD models require a mating cordset
- Environmental rating: IP67 / IP68 / IP69K (IEC 60529, ISO 20653), NEMA 4X; washdown rated; -10 to +50 deg C; 35-95% RH
- Construction: Rugged nickel-plated zinc die-cast housing with nickel-plated aluminum side cover and scratch-resistant PMMA acrylic lens; rectangular housing with M18 mounting

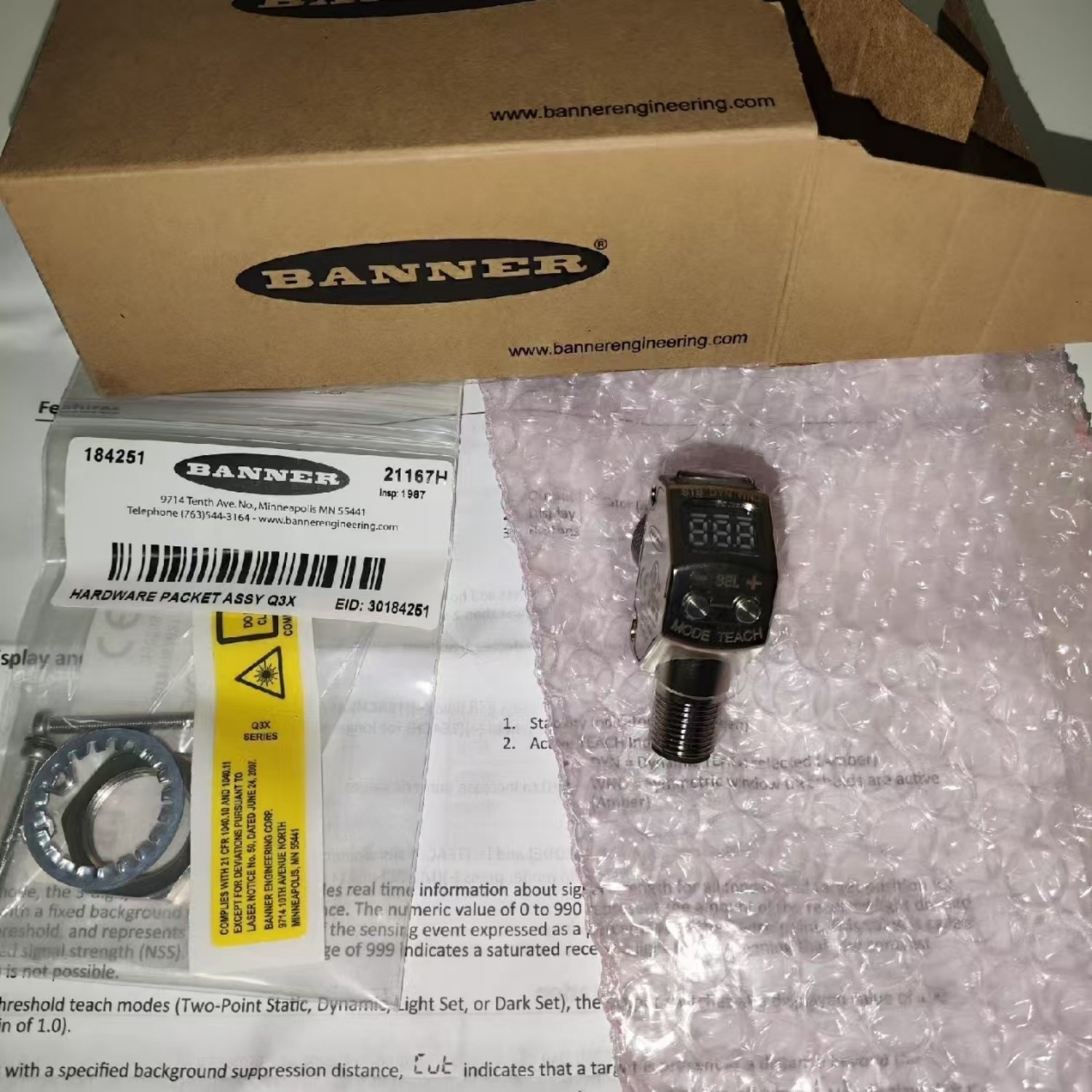

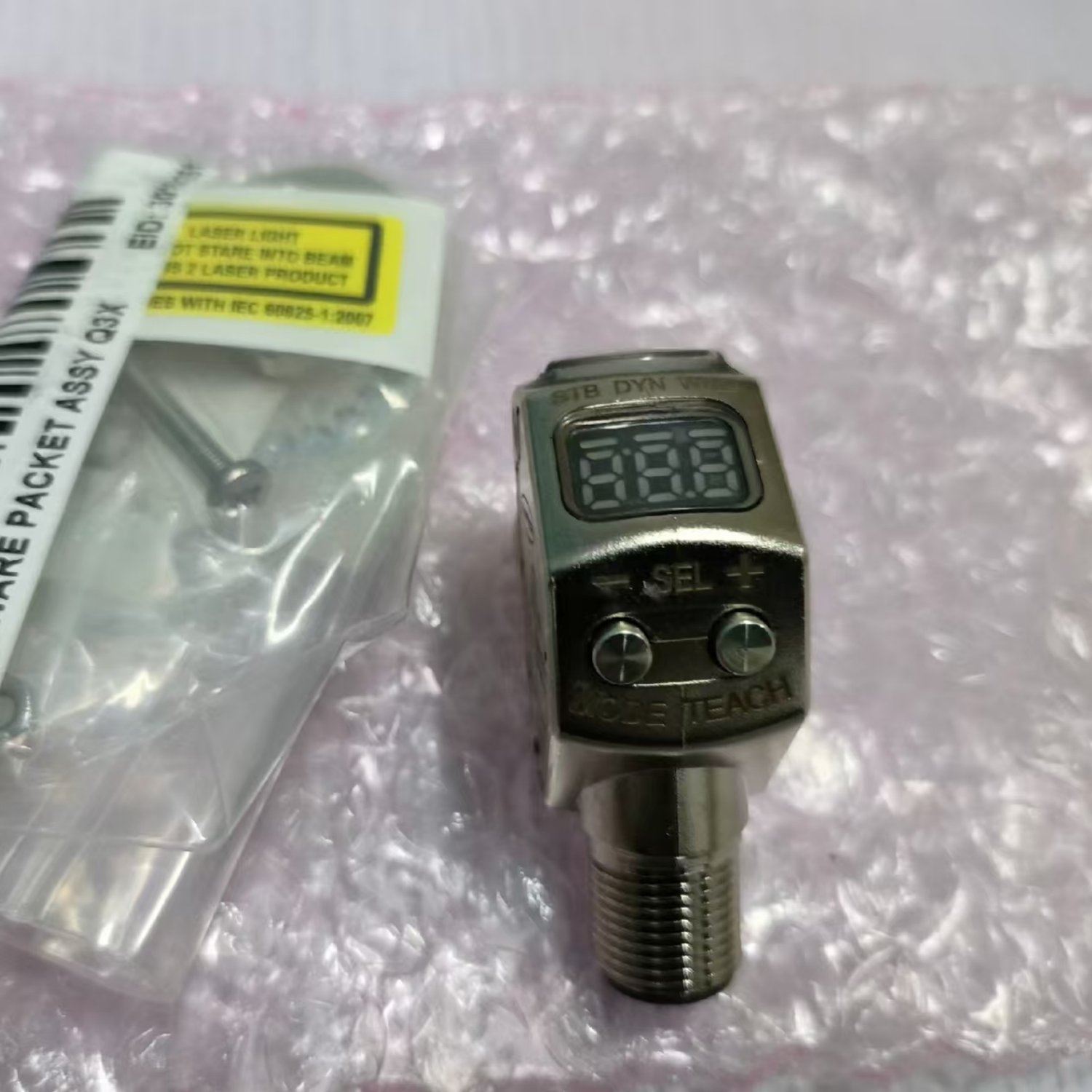

- Adjustment / indication: Two tactile buttons below angled 3-digit display with bright output indicator; remote TEACH input supported

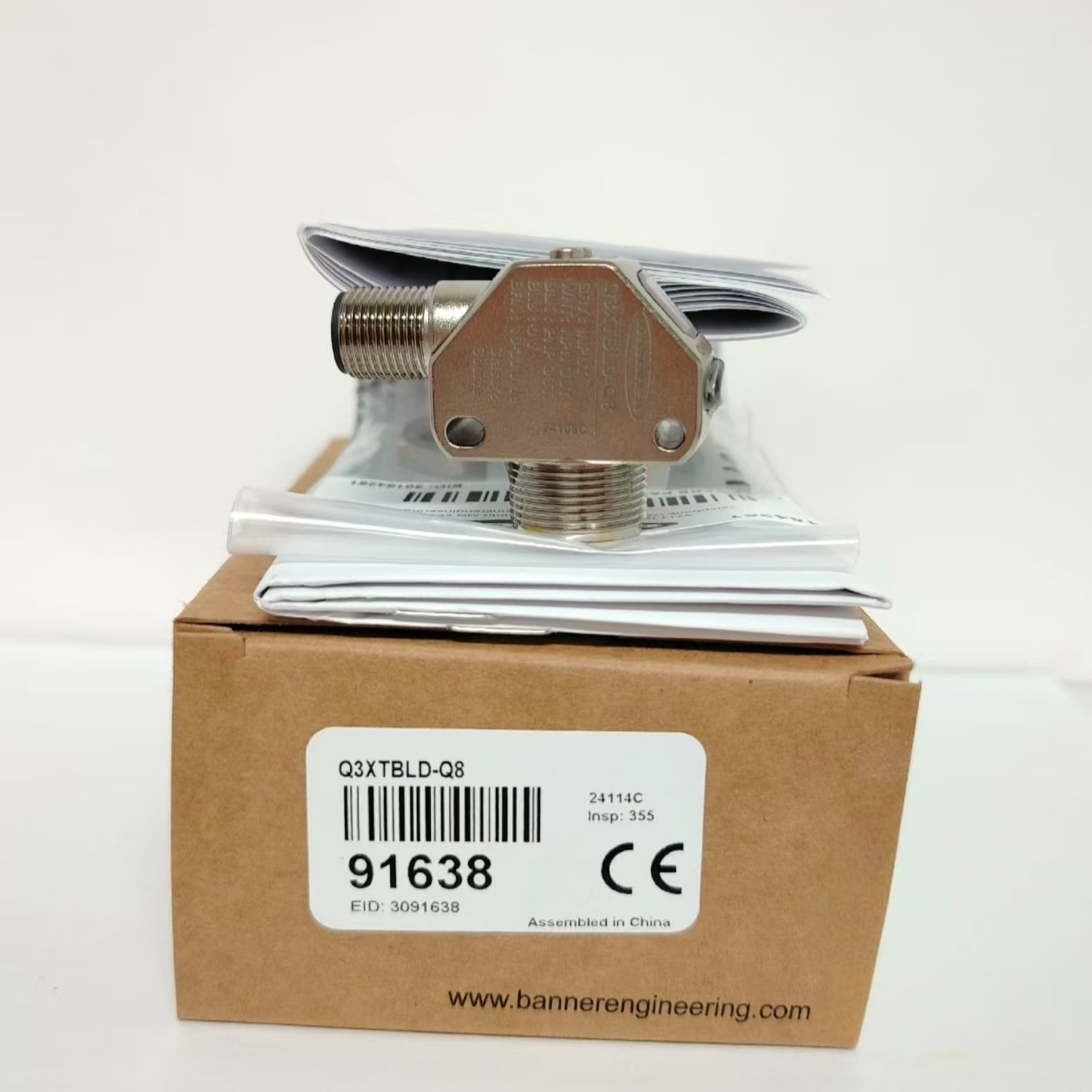

- Item status: RELEASED (active product; Banner part number 91638)
- SKU: Q3XTBLD-Q8
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
