BANNER OTBVP6QD Optical Touch Button Sensor
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QD
- Manufacturer: Banner Engineering
- Part Number: 28590
- Operating Voltage: 10–30 V DC (12–24 V DC Nominal)
- Output Type: Complementary PNP (1 Normally Open / 1 Normally Closed)
- Action Type: Momentary

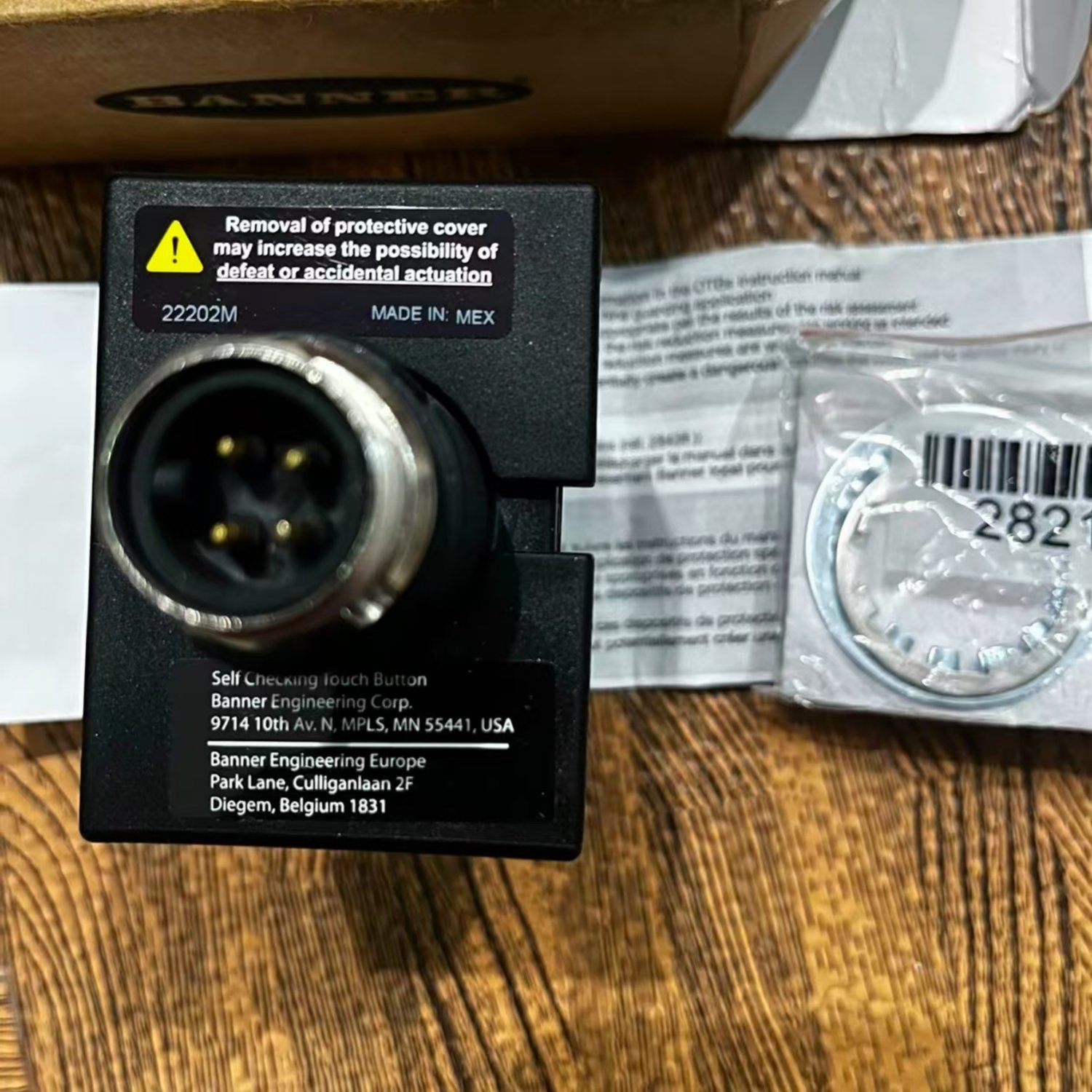

- Connection Type: 4-pin 7/8"-16UN-2B MINI-style Quick Disconnect (Integral QD)
- Housing Materials: Polysulfone upper housing / Thermoplastic Polyester (Valox®) base
- Field Cover Color: Black
- Mounting Size: 30 mm threaded base (Flush mountable)
- Environmental Rating: IP66 / NEMA 1, 3, 4, 4X, 12, 13
- Certifications: CE, cULus Listed, CSA
- Operation Principle: The solid-state output activates as long as an object (such as a finger) is placed into the saddle/yoke area and interrupts the infrared sensing beam. No physical pressure is required.
- Required Cable: Quick disconnect models require a matching MBCC-412 cable (Part Number: 25226), which must be purchased separately.
- LED Diagnostics: Built-in LED lights indicate when power is on and when the output is actively triggered.
- SKU: OTBVP6QD
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
