Showing 273–288 of 2086 results
-
- Manufacturer: Autonics
- Model / Part Number: MP5W-41
- Display: 5-digit, 7-segment, high-brightness red LED with a 14mm character height.
- Measurement Range: -19,999 to 99,999.
- Input Capabilities: Supports input frequencies from 0.0005Hz up to 50kHz. It is compatible with both Voltage input (PNP) and No-voltage input (NPN) proximity or photoelectric sensors.
- Power Supply: Universal 100–240VAC at 50/60Hz.
- Output Configuration: Features 3 triple relay control outputs for limit alerts or system automation triggers.
- Dimensions: Built for standard 96x48mm panels with a required panel cutout of roughly 92x45mm.
-
- Manufacturer: Autonics
- Model / Part Number: MP5W-4N
- Display Type: 5-digit 7-segment red LED
- Character Height: 14 mm (0.55 inches) for easy reading
- Display Range: -19,999 to 99,999
- Power Supply: 100–240 VAC (50/60 Hz)
- Input Options: Supports both PNP (voltage) and NPN (no-voltage) sensor inputs
- Physical Size: Standard 1/8 DIN panel size (Dimensions: 96mm wide x 48mm high)
-
- Manufacturer: Autonics
- Model / Part Number: MT4W-DV-41
- Measurement Type: DC Voltage
- Power Supply: 100–240 VAC (~ 50/60 Hz)
- Display Method: 4-digit, 7-segment red LED display (character height: 14.2 mm)
- Display Range: -1999 to 9999
- Selectable Input Ranges: 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV
- Main Control Output: 3 Relay Outputs (HI, GO, LO comparative values)
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: MT4Y-AA-4N
- Display Method: 4-digit 7-segment red LED Character height: 14.2mm
- Measurement Range: -1999 to 9999 Max allowable input: 110% Full Scale
- Monitored Variables: AC Current & Frequency Frequency range: 0.1 Hz to 9999 Hz
- Current Input Specs: Multi-range selectable 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA
- AC Measurement Type: AVG or RMS Selectable Average value or Root Mean Square
- Supply Voltage: 100–240 VAC ~ 50/60Hz Power consumption: Max 5 VA
- Main Output: Indicator Pure indication unit (No relay/transmission outputs)
- Sampling Cycle: 16.6 ms Powered by a Sigma Delta (ΣΔ) ADC
- Dimensions: W72mm × H36mm panel size.
- Panel Cutout: 68mm (Width) × 31.5mm (Height).
- Operating Temperature: -10°C to 50°C (Storage: -20°C to 60°C).
- Ambient Humidity: 35% to 85% RH.
- Key Features: Zero-point adjustment, peak display value monitoring, high display correction, and external hold function.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: MT4Y-DA-44
- Display Type: 4-digit, 7-segment red LED with a 14.2mm character height.
- Display Range: -1999 to 9999.
- Measurement Target: DC Current.
- Input Specifications: Selectable ranges including 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, and 0-2mA.
- Power Supply: 100–240 VAC (~50/60 Hz).
- Main Output: Relay contact output (LOW OUT).
- Sub Output: RS485 communication interface.
- Sampling Cycle: 50 ms.
- A/D Conversion Method: ΣΔ (Sigma Delta) ADC.
- Dimensions & Form Factor: DIN W72 x H36mm panel meter.
- Environment Limits: Operating temperature of -10°C to 50°C (Storage: -20°C to 60°C).
- Certifications: CE, cURus.
- High/Low Limit Scaling: Allows adjusting the display output relative to input ranges.
- Advanced Monitoring: Features peak display value monitoring and correction.
- Hold & Zero-Point Functions: Includes an external hold function and digital zero-point configuration adjustments.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: MT4Y-DA-4N
- Measurement Type: DC Current
- Display Method: 4-digit, 7-segment LED display
- Display Range: -1999 to 9999
- Character Height: 14.2 mm
- Power Supply: 100–240 VAC (50/60 Hz)
- Dimensions: W72 x H36 mm (Panel cutout: 68 x 31.5 mm)
- Output Configuration: Indication only (No output)
- Programmable Input Specs: 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA
- High/Low-Limit Scale Function: Allows users to scale the display values relative to the specific high or low min/max DC input configurations.
- Peak Monitoring: Tracks and displays the maximum and minimum peak values monitored during operation.
- Display Customization: Features a display cycle delay function to smooth out rapid input fluctuations, alongside zero-point adjustment and peak display value correction.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: PA10-U
- Input Logic: NPN open collector.
- Sensor Capacity: Connects up to 2 units simultaneously.
- External Sensor Power: Supply of 12VDC (approximately 200mA).
- Power Supply Voltage: 100–240VAC ~ 50/60Hz.
- Power Consumption: Maximum 10VA.
- Control Output Options: 1 Relay SPDT (1c) and 2 NPN open collector outputs.
- Mounting Options: Supports standard DIN rail or panel mounting.
- Logic Input Actions: Programmable Input signal reverse, OR/AND logic gating, and IN2 derivative actions.
- Built-in Timer Modes: Normal, ON delay, OFF delay, ON/OFF delay, and one-shot delay.
- Application Modes: Flicker, flicker one-shot, flip-flop (ideal for system level control), low-speed detection, high-speed detection, and encoder tracking.
-
- Manufacturer: AUTONICS
- Model / Part Number: PR12-4DN
- Housing: M12 cylindrical threaded body
- Sensing Distance: 4 mm
- Output: NPN normally open
- Supply Voltage: 12–24 VDC
- Degree of Protection: IP67
-
- Manufacturer: AUTONICS
- Model / Part Number: PR18-5DN
- Installation: Flush / Shielded (can be mounted flush into metal)
- Sensing Distance: 5mm
- Barrel Diameter: M18 (Ø18mm)
- Output Type: NPN Normally Open (NO), 3-wire type
- Operating Voltage: 10 – 30 VDC (Power voltage: 12 – 24 VDC)
- Response Frequency: 500 Hz
-
- Manufacturer: Autonics
- Model / Part Number: PR18-8AC
- Type: Cylindrical inductive proximity sensor
- Sensing side diameter: 18 mm
- Sensing distance: 8 mm
- Installation: Non-flush
- Standard sensing target: 25 x 25 x 1 mm (iron)
- Response frequency: 20 Hz
- Power voltage: 100…240 VAC~ 50/60 Hz (operating 85…264 VAC~)
- Control output: 5 to 200 mA; leakage current max. 2.5 mA
- Indicator: Operation indicator (red LED)
- Protection circuit: Surge protection circuit
- Unit weight: approx. 118 g
-
REQUEST A QUOTE

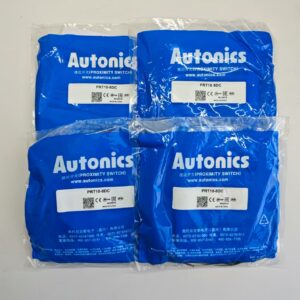

- Manufacturer: Autonics
- Model / Part Number: PRT18-8DC
- Installation: Non-flush
- Sensing diameter: 18 mm
- Sensing distance: 8 mm
- Response frequency: 350 Hz
- Nominal supply: 12–24 V DC
- Operating voltage: 10–30 V DC
- Output current: 2–100 mA
- Leakage current: ≤0.6 mA
- Residual voltage: ≤3.5 V
- Hysteresis: ≤10% sensing distance
- Indicator: Red operation LED
- Protection: IP67
- Ambient temperature: −25 to +70 °C
- Connection: Cable
- Housing: Nickel-plated brass
-
REQUEST A QUOTE
- Dimensions: DIN W72 × H72 mm (Approx. 38% depth reduction compared to older models)
- Display Method: 4-digit, 7-segment single LED display
- Power Supply: 100–240 VAC ~ 50/60 Hz
- Sampling Cycle: 100 ms
- Control Methods: ON/OFF, P, PI, PD, PID
- Input Specifications: Thermocouple: K(CA), J(IC), L(IC)
- RTD: DPt100Ω, Cu50Ω
- Control Outputs: Relay: 250 VAC ~ 3A
- SSR Drive: 12 VDC [ON/OFF, phase, cycle]
- Alarm Outputs: 2 Independent Alarm Outputs
AUTONICS TC4M-24R Temperature Controller (TC Series).
-
- Manufacturer: Autonics
- Model / Part Number: TC4S-14R
- Panel size: DIN 48 x 48 mm
- Display: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD or PID
- Input types: K, J and L thermocouples; DPt100 and Cu50 RTDs
- Sampling period: 100 ms
- Control output: Relay 250 VAC 3 A or 12 VDC SSR drive
- Optional output: Alarm 1
- Supply voltage: 100-240 VAC, 50/60 Hz
- Ambient temperature: -10 to 50 °C
-
- Manufacturer: Autonics
- Model / Part Number: TC4S-24R
- Product type: Economical single-display digital PID temperature controller (TC4S series)
- Size (panel cutout): DIN W48 x H48 mm (1/16 DIN)
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification: Thermocouple K(CA), J(IC), L(IC); RTD DPt100 ohm, Cu50 ohm
- Sampling cycle: 100 ms
- Control output: Relay 250 VAC~ 3 A (SSR drive 12 VDC selectable on AC-voltage model: ON/OFF, phase, cycle)
- Option output: Alarm 1/2
- Power voltage: 100-240 VAC~ 50/60 Hz
- Display accuracy: (PV +-0.5% or +-1 degree C, higher one) +-1 digit at room temperature (TC and RTD)
- Environment: Ambient -10 to 50 degree C (storage -20 to 60 degree C), 35 to 85% RH
- Insulation / weight: Double or reinforced insulation, 2 kV AC dielectric; approx. 141 g (approx. 94 g unit only)
-
- Brand: Autonics
- Model: TCN4S-24R
- Series: TCN4
- Panel size: 48 × 48 mm
- Power supply: 100–240 V AC, 50/60 Hz
- Control modes: PID, P, PI, PD or ON/OFF
- Thermocouple inputs: K, J, T, R, S and L
- RTD inputs: DPt100 and Cu50
- Sampling cycle: 100 ms
- Relay control output: 250 V AC, 3 A
- SSR drive output: 12 V DC, selectable instead of relay output
- Alarm outputs: Alarm 1 and Alarm 2
- Operating temperature: -10 to +50 °C
-
- Manufacturer: Autonics
- Model / Part Number: TK4H-14CN
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification (universal): Thermocouple K/J/E/T/B/R/S/N/C/G/L/U & Platinel II; RTD DPt100, DPt50, JPt100, Cu100, Cu50, Nickel 120 ohm; Analog 0-100 mV, 0-5 V, 1-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Sampling cycle: 50 ms
- Control output 1: Selectable current (DC 0/4-20 mA) or SSR drive (11 VDC) output
- Option input / option output: Option input: CT, Digital (DI-1/2); Option output: Alarm 1
- Power voltage: 100-240 VAC~ 50/60 Hz
- Protection structure: IP65 (front panel)
- Display accuracy: TC/RTD: +/-0.3% or +/-1 deg C (+/-1 digit) at room temp (23+/-5 deg C); Analog: +/-0.3% F.S. +/-1 digit
- Ambient environment: -10 to 50 deg C (storage -20 to 60 deg C), 35-85% RH
- Insulation: Double or reinforced insulation; dielectric strength 2 kV between measuring input and power parts
- Weight: Approx. 141 g (unit only; approx. 211 g including packaging)
