Showing 257–272 of 1316 results
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6RQ
- Sensing mode: Opposed mode receiver (effective beam 5.7 mm); 2 m (6.5 ft) range with matching Q12 emitter
- Supply voltage: 10-30 V DC (10% max ripple) at 20 mA maximum current
- Output: Light Operate (LO), bipolar: 1 PNP + 1 NPN solid-state outputs
- Connection: 150 mm (6 in) cable with 4-pin M8 pigtail quick disconnect
- Sensing beam: 640 nm visible red LED
- Output response time: 1.3 ms ON / 900 microseconds OFF (opposed mode)
- Switching frequency: 385 Hz (opposed mode)
- Environmental rating: IP67; thermoplastic housing; -20 to +55 deg C; 95% RH @ 50 deg C
- Housing: Compact 8 mm (0.31 in) rectangular thermoplastic housing, polycarbonate lens, LED indicators
- Item status: RELEASED
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q20PDL
- Sensing mode: Long-range diffuse (proximity), 624 nm visible red; range 800 mm (32 in) on 90% reflectance test card
- Supply voltage: 10-30 V DC (10% max ripple) at less than 18 mA, exclusive of load
- Output: Complementary solid-state PNP (light operate + dark operate); max 100 mA with short-circuit protection
- Connection: Integral 2 m (6.5 ft) 4-wire unterminated cable
- Environmental rating: IP67, NEMA 4X; -20 to +60 deg C; 95% RH @ 50 deg C
- Construction: Overmolded ABS housing, PMMA lenses, PBT gain adjuster, rectangular thermoplastic body
- Adjustments / indicators: Single-turn gain potentiometer; power (green) and output (amber) LEDs with marginal-signal flashing
- Item status: RELEASED
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6
- Operation Mode: Momentary action (active only while a finger interrupts the optical beam).
- Input Supply Voltage: 10–30 V DC (12–24 V DC nominal).
- Output Configuration: Complementary PNP solid-state output with both Normally Open (NO) and Normally Closed (NC) functions.
- Electrical Connection: Pre-wired with a 2-meter (6.5 ft) 4-wire integral cable terminating in bare flying leads.
- Housing & Materials: Saddle/yoke-shaped black housing featuring a Polysulfone upper housing and a Thermoplastic Polyester base.
- Environmental Protection: Rugged IP66 rating (also rated NEMA 1, 3, 4, 4X, 12, and 13) making it highly resilient in washdown environments.
- Field Cover: Includes a black field cover (F.C.) to prevent inadvertent activation from falling objects or side contact. (Note: A yellow field cover variant is available under part number 35094).
- Mounting Thread Size: 30 mm base/flush mounting hole.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Status Indicators: Built-in dual LEDs indicating "Power On" and "Output Activated" conditions.
- Manufacturer Part Number: 28589.
- Official Documentation: Technical layout files, including 3D CAD data and the complete user manual, can be accessed directly on the Banner Engineering OTBVP6 Product Page.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QD
- Manufacturer: Banner Engineering
- Part Number: 28590
- Operating Voltage: 10–30 V DC (12–24 V DC Nominal)
- Output Type: Complementary PNP (1 Normally Open / 1 Normally Closed)
- Action Type: Momentary
- Connection Type: 4-pin 7/8"-16UN-2B MINI-style Quick Disconnect (Integral QD)
- Housing Materials: Polysulfone upper housing / Thermoplastic Polyester (Valox®) base
- Field Cover Color: Black
- Mounting Size: 30 mm threaded base (Flush mountable)
- Environmental Rating: IP66 / NEMA 1, 3, 4, 4X, 12, 13
- Certifications: CE, cULus Listed, CSA
- Operation Principle: The solid-state output activates as long as an object (such as a finger) is placed into the saddle/yoke area and interrupts the infrared sensing beam. No physical pressure is required.
- Required Cable: Quick disconnect models require a matching MBCC-412 cable (Part Number: 25226), which must be purchased separately.
- LED Diagnostics: Built-in LED lights indicate when power is on and when the output is actively triggered.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QDH
- Operation: Momentary action (activated only while the infrared beam in the yoke area is broken).
- Input Voltage: 10–30 V DC (12–24 V DC nominal).
- Connection Type: Integral 4-pin M12 Euro-style quick-disconnect (QD) connector.
- Housing Materials: Highly durable Polysulfone upper housing with a thermoplastic polyester base.
- Environmental Rating: NEMA 1, 3, 4, 4X, 12, 13, and IP66 moisture/dust protection.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Field Cover: Standard black field cover included to minimize accidental activations from ambient debris or dropped items.
-
REQUEST A QUOTE
- Sensing Range: 25 mm to 300 mm (0.98" to 11.81")
- Light Source: Visible Red Class 1 Laser (655 nm)
- Sensing Mode: Proximity / Diffuse with Background & Foreground Suppression
- Input Voltage: 12 V DC to 30 V DC
- Output Type: Analog: 0 to 10 V
- Connection Type: 5-Pin Euro-style M12 Integral Quick Disconnect (QD)
- Housing Material: Heavy-duty Stainless Steel
- Ingress Protection: IP67, IP68, and IP69K (Washdown rated)
- Operating Temp: -10°C to +50°C (14°F to 122°F)
- Response Time: 0.5 ms minimum response time

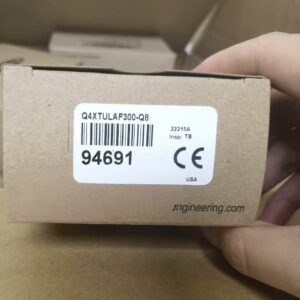

Brand New BANNER Q4XTULAF300-Q8 I/O Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Mode: Opposed / Through-beam (Emitter Only)
- Sensing Beam: Visible Red Laser (650 nm)
- Laser Classification: Class 1
- Maximum Range: 30 meters (98.4 feet)
- Input Voltage: 10–30 V DC
- Output Type: Not Applicable
- Current Indicators: Green LED
- Housing Style: Rectangular with M18 Mount
- Materials: ABS Thermoplastic / PMMA Lens
- Connection Type: 2-meter (6.5 ft) Pre-wired Cable
Brand New BANNER QS186LE Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Metric / Attribute: Specification Details
- Sensing Mode: Laser Diffuse (Proximity)
- Sensing Distance: Max 300 mm (11.81")
- Sensing Beam: Visible Red Laser (650 nm wavelength)
- Laser Classification: Class 1
- Supply Voltage: 10–30 V DC
- Output Type: Discrete Complementary Solid-State PNP (Light-ON / Dark-ON selectable)
- Output Response Time: 0.7 milliseconds (700 µs)
- Electrical Connection: 150 mm (6 in) PVC Pigtail with a 4-pin M12 Euro-style Quick Disconnect (QD)
- Adjustments: Integrated Potentiometer
Brand New BANNER QS18VP6LDQ5 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 1626 × 1236 Pixels (~2.0 Megapixels)
- Frame Rate: Up to 20 frames per second (fps) at full resolution
- Sensor Type: Sony ICX274 (Progressive Scan CCD)
- Sensor Size: 1/1.8" optical format
- Pixel Size: 4.4 μm × 4.4 μm
- Shutter Type: Global Shutter (ideal for fast-moving objects)
- Interface: Gigabit Ethernet (GigE Vision compatible, RJ45)
- Pixel Depth: 12-bit
- Lens Mount: C-mount / CS-mount options
- Power Input: Power over Ethernet (PoE) or 12 VDC via 6-pin Hirose/M8
Brand New BASLER ACA1600-20GM Machine Vision Camera. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensor Model: ams CMV2000 (Global Shutter, CMOS)
- Resolution: 2048 px × 1088 px (2.0 MP)
- Max Frame Rate: 340 frames per second
- Pixel Size: 5.5 μm × 5.5 μm
- Sensor Format: 2/3" (Diagonal: 12.75 mm)
- Monochrome/Color: Monochrome
- Data Interface: Camera Link (SDR 26-Pin receptacle)
- Pixel Bit Depth: 10 bits or 12 bits
- Quantum Efficiency: 63% typical (at visible spectrum)
- Dynamic Range: 56.5 dB typical
Brand New BASLER ACA2000-340KM 105702 Machine Vision Camera. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Principle: Retro-reflective (Requires a reflector, sold separately)
- Light Source: Pulsed Red LED (660 nm wavelength)
- Sensing Range (Sb / Sn): Actual: 3.5 m (11.5 ft) / Nominal: 4.0 m (13.1 ft)
- Output Circuit: PNP (Digital output)
- Output Function: Light / Dark operate (selectable via wiring)
- Supply Voltage Range: 10 – 30 VDC
- Response / Release Time: < 0.5 ms
- Connection Type: M8 4-pin male connector
- Protection Rating: IP 67 (Dust-tight and water immersion resistant)
- Housing Material: Plastic (ASA) with PMMA optics front
Brand New BAUMER FPDK10P5130 S35A Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Distance: 30 to 200 mm
- Sensing Version: Background suppression
- Light Source: Pulsed PinPoint LED (630 nm red light)
- Output Circuit: Push-Pull (Supports Light/Dark operate)
- Connection Type: M8 4-pin connector
- Supply Voltage: 10 to 30 VDC
- Response Time: < 0.49 ms
- Adjustment Method: qTeach / External control
- Protection Rating: IP 67 (Dust and water resistant)
- Dimensions: 12.9 mm (W) x 32.3 mm (H) x 23 mm (D)
Brand New BAUMER O300.GP-11110415 Diffuse Photoelectric Sensor with Background Suppression (O300 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2622
- Output channels: 2 relay outputs, make contacts
- Nominal voltage: 230 VAC / 30 VDC
- Switching current: 5 A per channel, ohmic load
- Inductive load: 2 A per channel
- Electrical isolation: 500 V
- E-bus current consumption: Typically 170 mA
- Dimensions: 12 x 100 x 68 mm
- Operating temperature: -25 to 55 °C
- Protection rating: IP20
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2889
- Output channels: 16 digital outputs, ground switching
- Nominal voltage: 24 VDC (-15% / +20%)
- Rated output current: 0.5 A per channel
- Connection technology: 1-wire
- Switch-on time: Typically 50 µs
- Switch-off time: Typically 200 µs
- Electrical isolation: 500 V
- E-bus current consumption: Typically 140 mA
- Operating temperature: -25 to 60 °C
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3048
- Number of inputs: 8 (single-ended), 0-20 mA current
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: typ. 85 ohm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 1.25 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 32 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3064
- Number of inputs: 4 (single-ended), 0-10 V signal voltage, 2-wire connection with common internal ground
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: > 130 kOhm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 0.625 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 16 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
