• Torque: 2 Nm (Newton meters)
• Nominal Voltage: AC/DC 24 V (50/60 Hz)
• Control Signal Input: 2…10 V proportional
• Position Feedback: 2…10 V (operating range U)
• Running Time: 75 seconds for a 90° rotation
• Enclosure Rating: IP54 / NEMA 2
• Power Consumption: 1 W in operation / 0.5 W in standby
• Brushless DC Motor Technology: Utilizes an Application Specific Integrated Circuit (ASIC) to monitor rotation and prevent damage during stall conditions, eliminating the need for mechanical limit switches.
• Overload Protection: Completely electronic overload protection guarantees high functional safety by automatically stopping when it hits a mechanical end stop.
• Manual Override: Equipped with a magnet or button mechanism that disengages the internal gear train, allowing manual damper adjustment.

Brand New BELIMO CM24-SR-L Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Torque: 2 Nm (Newton meters)
• Nominal Voltage: AC/DC 24 V (50/60 Hz)
• Control Input (Y): 2…10 V modulating signal
• Position Feedback (U): 2…10 V
• Running Time: 75 seconds for a 90° rotation
• Angle of Rotation: 95° max, fixed setting with adjustable mechanical stops
• Power Consumption: 1 W during operation / 0.5 W in rest position
• Mechanical Interface: Form fit 8×8 mm shaft connection
• Non-Spring Return: This is a non-fail-safe actuator, meaning it maintains its last position if power is lost.
• Overload Protection: It features automatic overload protection and does not require limit switches; it simply stops when it hits a mechanical end stop.

Brand New BELIMO CM24-SR-R Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Torque: 40 Nm
• Nominal Voltage: AC 100…240 V (50/60 Hz)
• Control Type: Open/Close or 3-point floating (Not suitable for 2…10V continuous modulating control)
• Running Time: 150 seconds for a 90° rotation
• Max Angle of Rotation: 95° (Adjustable on both sides with built-in mechanical end stops)
• Damper Spindle Compatibility: Reversible universal shaft clamp fitting 12…26.7 mm spindles
• Enclosure Rating: IP54 / NEMA 2
• Power Consumption: 5 W during operation / 2.5 W in rest position (9 VA wire sizing)
• Overload Protection: The actuator is entirely overload-proof. It does not require any electrical limit switches and stops automatically when it reaches its mechanical end stop.
• Manual Override: Features a manual override push-button that detaches the gear train so you can adjust the damper by hand. The override mechanism can also be locked into position.

Brand New BELIMO GM230A 40NM Rotary Damper Actuator (GM Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Torque: 40 Nm (suitable for air dampers up to approximately 8 m²)
• Nominal Voltage: AC 100…240 V, 50/60 Hz
• Control Type: Open-close (Not designed for 3-point applications)
• Power Consumption: 4.5 W in operation / 2 W at rest / 7 VA for wire sizing
• Running Time: 150 seconds for 90° rotation
• Angle of Rotation: Max. 95°, adjustable with mechanical end stops
• Shaft Clamp: Universal reversible clamp supporting 12…26.7 mm shafts
• Protection Class: IP54 / NEMA 2, Class II reinforced insulation
• Cable Connection: It comes pre-equipped with a 1-meter, 3 x 0.75 mm² cable.
• Direction of Rotation: Selectable using an onboard switch marked 0 (counter-clockwise) or 1 (clockwise).

Brand New BELIMO GM230A Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Torque & Capacity: Delivers 40 Nm of torque, suitable for dampers up to approximately 8 square meters (86 sq. ft.).
• Power & Control: Operates on AC/DC 24 V power with a 2 to 10 V DC modulating control input and matching position feedback signal.
• Operation & Rating: Features a 150-second running time for 90° rotation, an adjustable angle up to 95°, and an IP54 / NEMA 2 enclosure rating.
• Installation: Offers direct mounting via a universal shaft clamp and manual rotation reversal via a toggle switch.
• Operation & Protection: Includes a manual override push-button and electronic overload protection without needing limit switches.

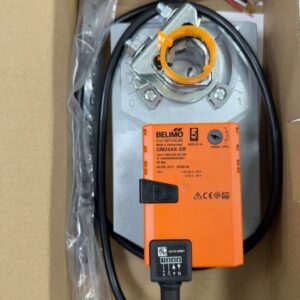

Brand New BELIMO GM24AX-SR Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Torque: 40 Nm
• Power Supply: AC/DC 24 V (50/60 Hz)
• Control Input: Modulating DC 2…10 V (or DC 0…10 V typical)
• Position Feedback: DC 2…10 V for continuous system monitoring
• Running Time: 150 seconds for a 90° rotation
• Enclosure Rating: IP54 (weather-proof/dust-protected)
• Mounting Interface: ISO 5211-F07 flange
• Merchant: Condition

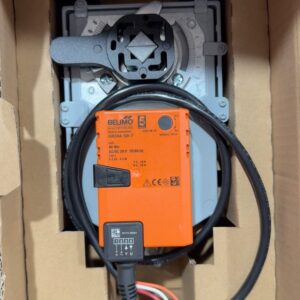

Brand New BELIMO GR24A-SR-7 Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Control Types: Supports open/close (2-point) and 3-point floating control.
• Angle of Rotation: Up to 95°, fully adjustable using integrated mechanical end stops.
• Running Time: 150 seconds for standard motor operation.
• Power Consumption: Energy-efficient operation consuming 1.5 W while running and only 0.5 W in the rest position.
• Ingress Protection: IP54 rating (NEMA 2 equivalent), providing reliable protection against dust and splashing water.
• Mechanical Interface: Universal shaft clamp compatible with damper spindles ranging from 6 mm to 20 mm.
• Manual Override: Features a temporary or lockable manual override push-button that disengages the gear train for quick maintenance or commissioning.
• Direction of Rotation: Direction (clockwise or counter-clockwise) is easily selectable via a built-in switch.
• Overload Protection: Completely protected against internal electrical overloads; it automatically stops when reaching physical end stops without requiring limit switches.
• Maintenance-Free: Designed with internal lubrication, ensuring a long life span without routine servicing.

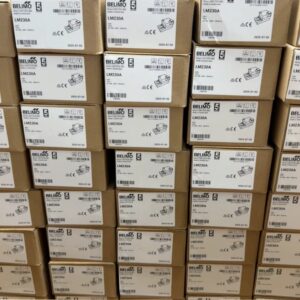

Brand New BELIMO LM230A Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

• Torque: 5 Nm
• Nominal Voltage: AC 100…240 V (50/60 Hz)
• Control Type: Open/close or 3-point
• Running Time: 150 seconds for a 90° rotation
• Integrated Auxiliary Switch: 1x SPDT (Single Pole Double Throw)
• Protection Rating: IP54, NEMA 2
• Ambient Temperature Range: -30°C to +50°C
• Manual Override: You can temporarily disengage the gear train using a push-button to adjust the damper manually.
• Selectable Rotation: Direction of motion can be reversed using a built-in switch (0 for counter-clockwise, 1 for clockwise).
• Mechanical End Stops: The angle of rotation can be adjusted mechanically to fit your specific damper limits.

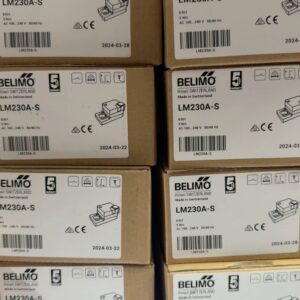

Brand New BELIMO LM230A-S Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
