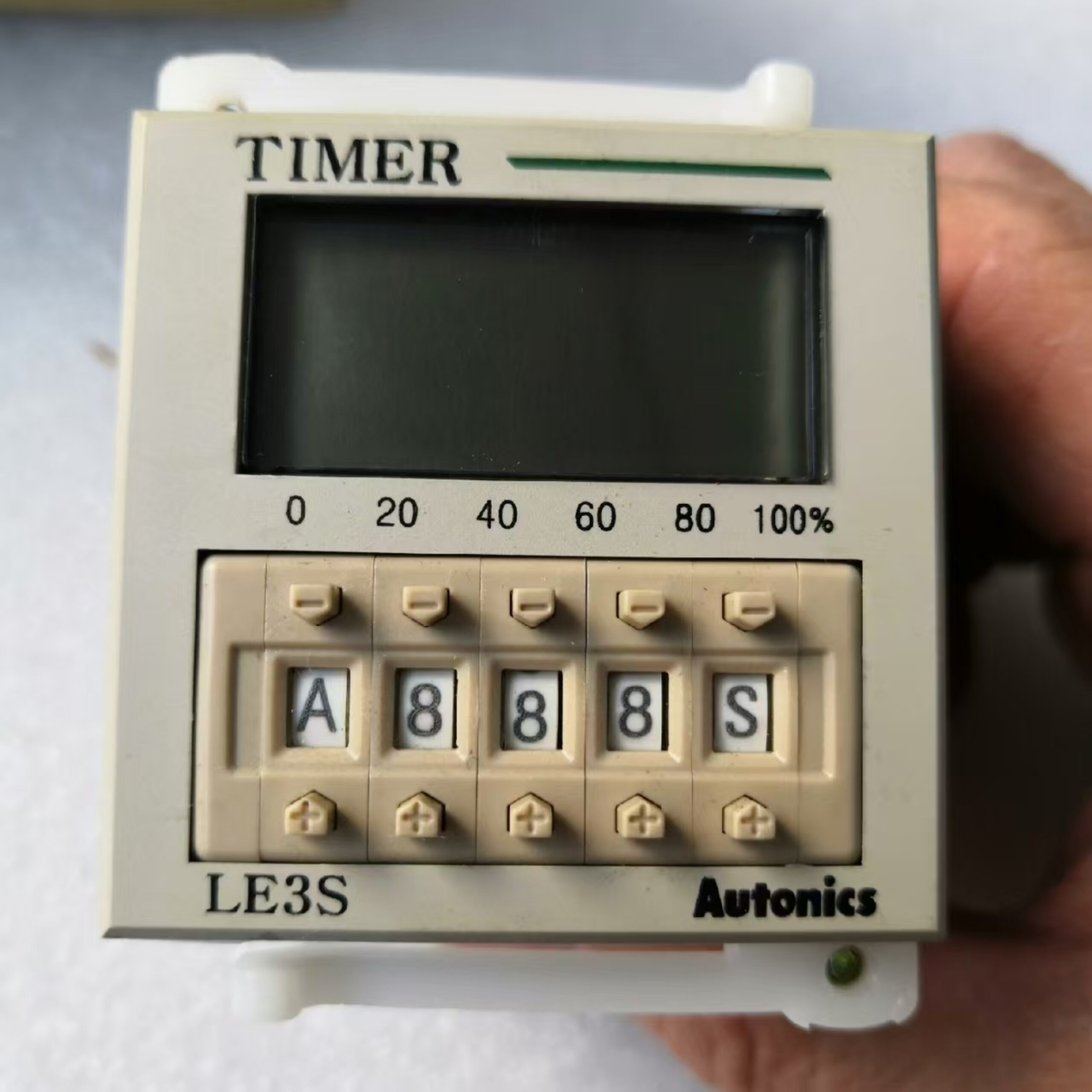

AUTONICS LE3S digital, programmable LCD timer

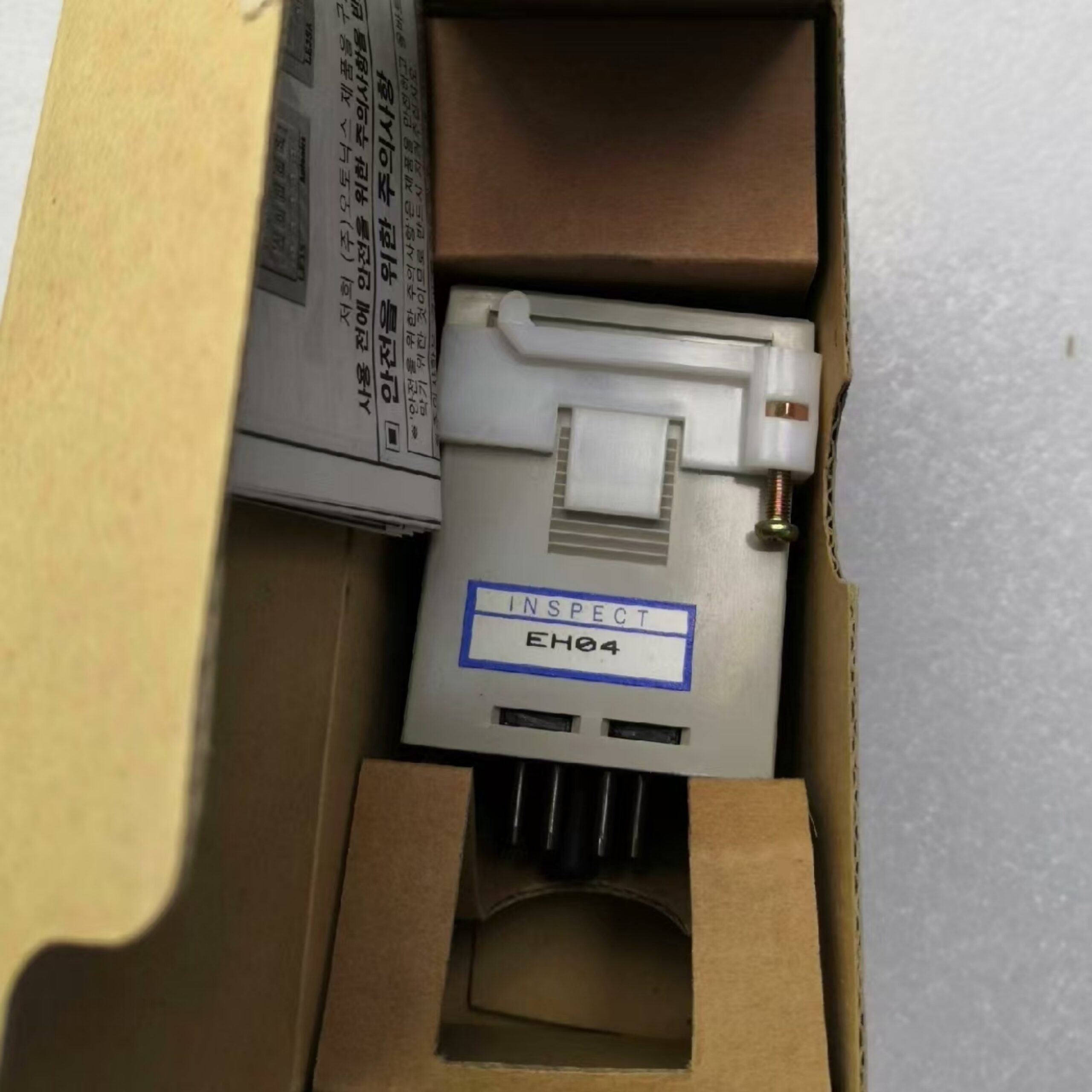

AUTONICS LE3S digital, programmable LCD timer - Image 2

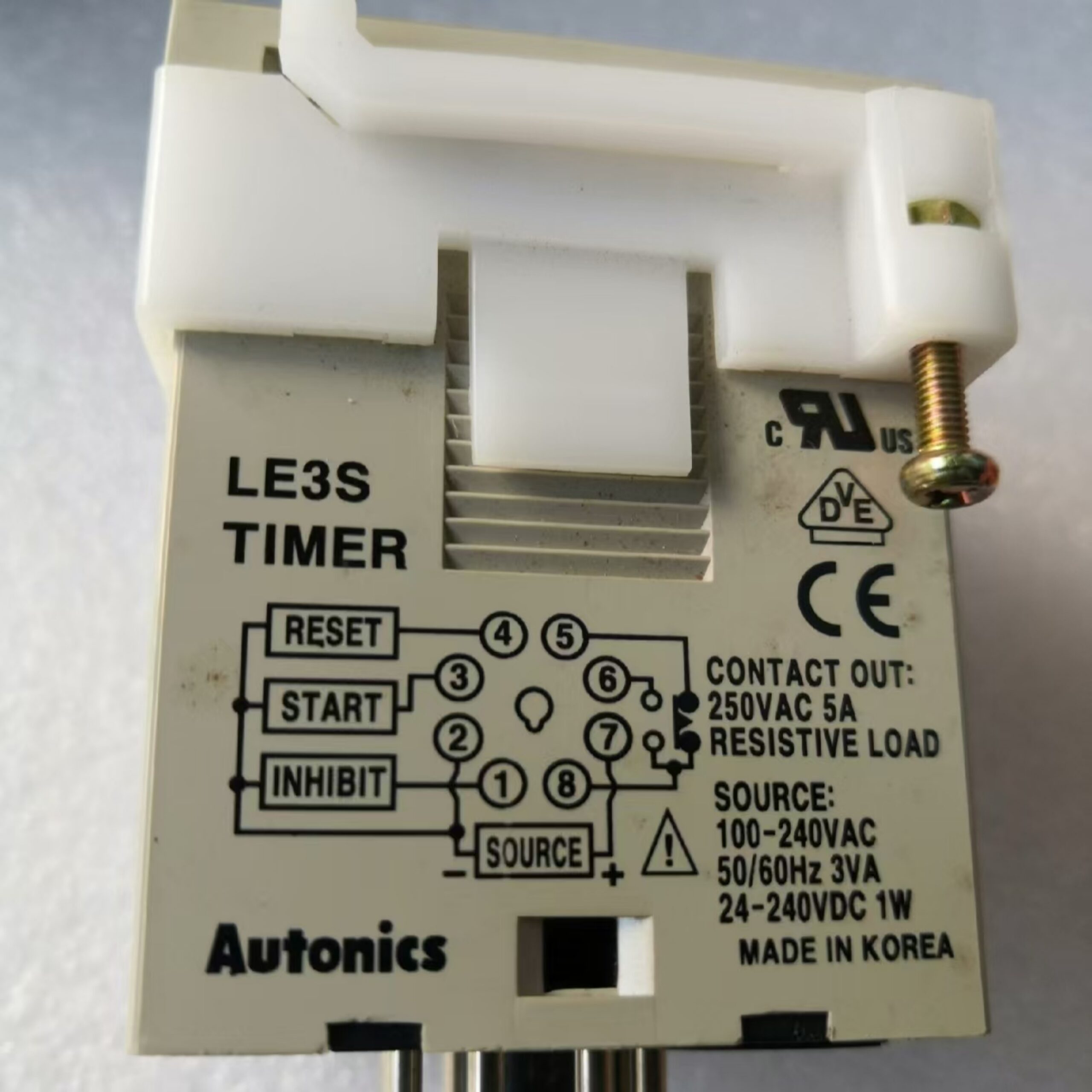

AUTONICS LE3S digital, programmable LCD timer - Image 3

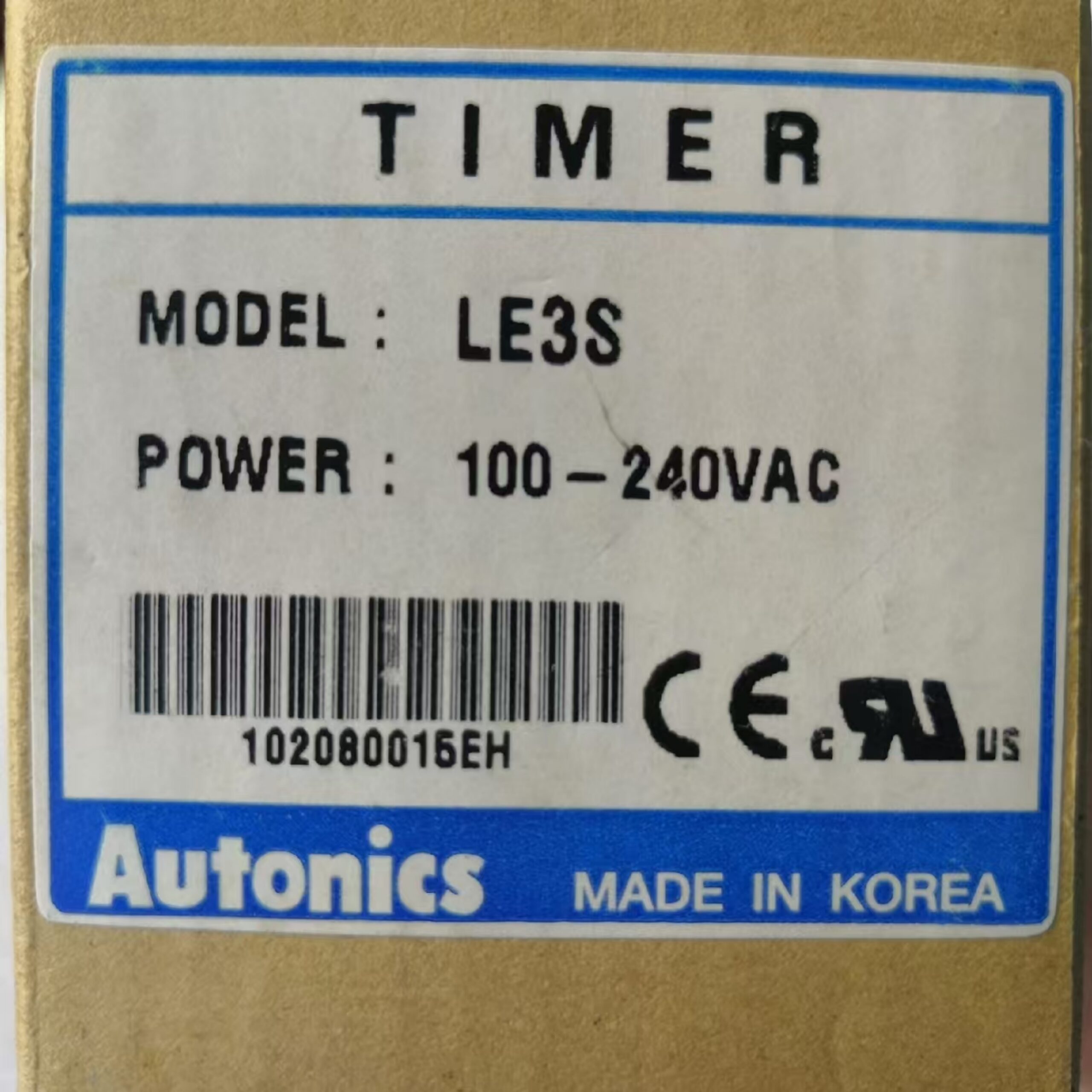

AUTONICS LE3S digital, programmable LCD timer - Image 4

AUTONICS LE3S digital, programmable LCD timer

  • Manufacturer: AUTONICS
  • Model / Part Number: LE3S
  • Time Range: It can track time from 0.01 seconds up to 9,990 hours.
  • Output Type: SPDT (Single Pole Double Throw) relay output rated at 250 VAC / 5A. This allows it to act as an automatic switch for another device.
  • Size: Standard 1/16 DIN size (W48mm × H48mm × L67mm), making it compact enough to fit into tightly packed electrical control panels.
  • Mounting: Built as an 8-pin plug type device. You will need a matching 8-pin socket (like a PG-08 or PS-08 base) to wire it up to a panel or DIN rail.
  • ON Delay: Waits for a set amount of time after receiving a signal before turning on.
  • OFF Delay: Keeps a machine running for a set time before turning it off.
  • Flicker (Cycle): Continuously flashes a device on and off at set intervals (useful for warning lights or sirens).
  • Interval Delay: Turns an output on immediately when triggered, keeps it on for the set duration, and then turns it off.
  • Integration Time: Accumulates time over multiple short periods.
  • The Numbers: Shows the current counting time. You can set it to count up from zero or count down from your target time.
  • The Bar Graph: A small visual progress bar fills up in 5% steps to show you how close the timer is to finishing.
  • Contact Status: Displays a graphic icon showing whether the internal switch is currently Open (NO) or Closed (NC).
  • Start: Tells the timer to begin running.
  • Reset: Instantly resets the current time count back to the beginning.
  • Inhibit: Freezes the current count in place temporarily without resetting it.
  • SKU: LE3S
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
