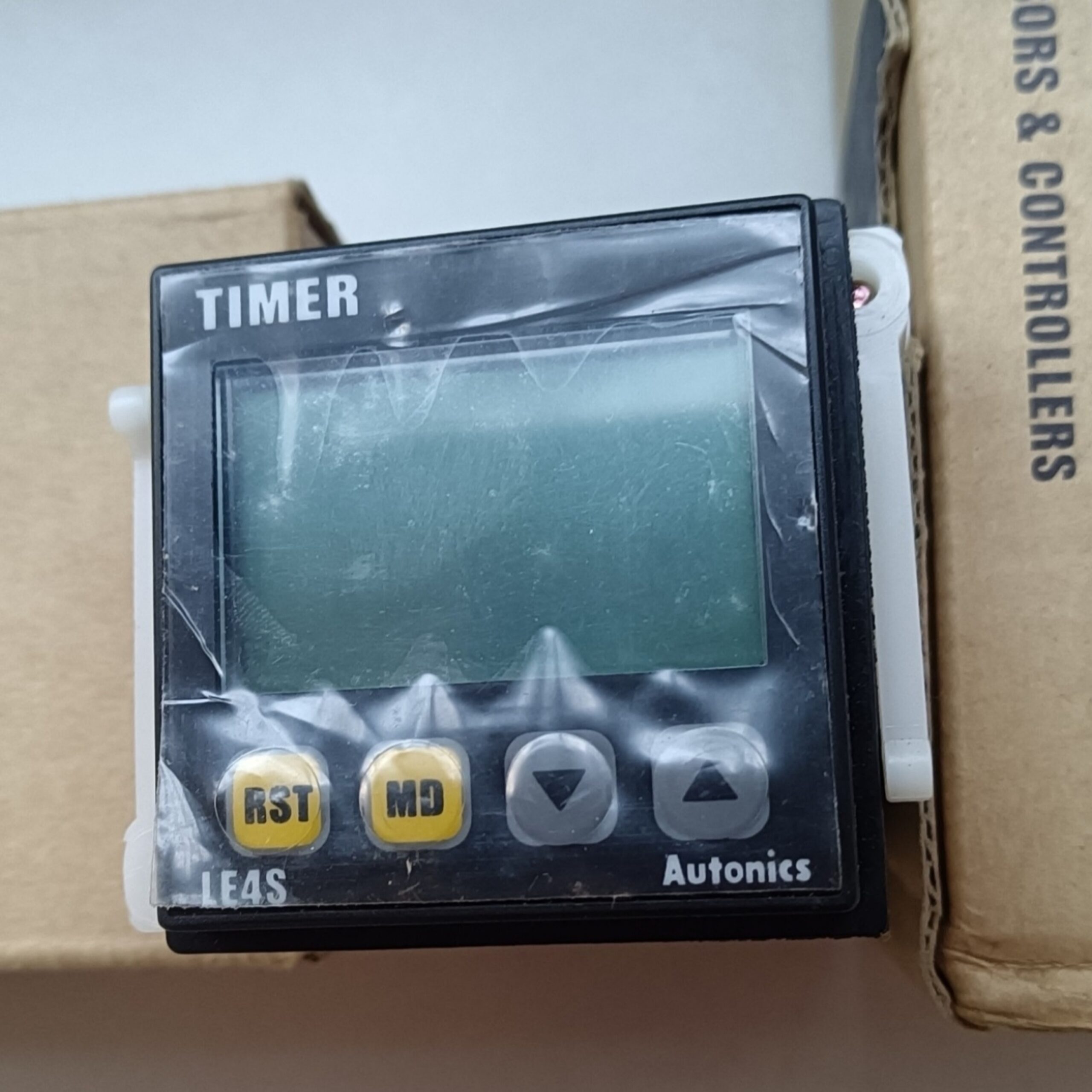

AUTONICS LE4S Industrial Electrical Component
- Manufacturer: AUTONICS
- Model / Part Number: LE4S
- Power Supply: 24–240 VAC (50/60 Hz) or 24–240 VDC

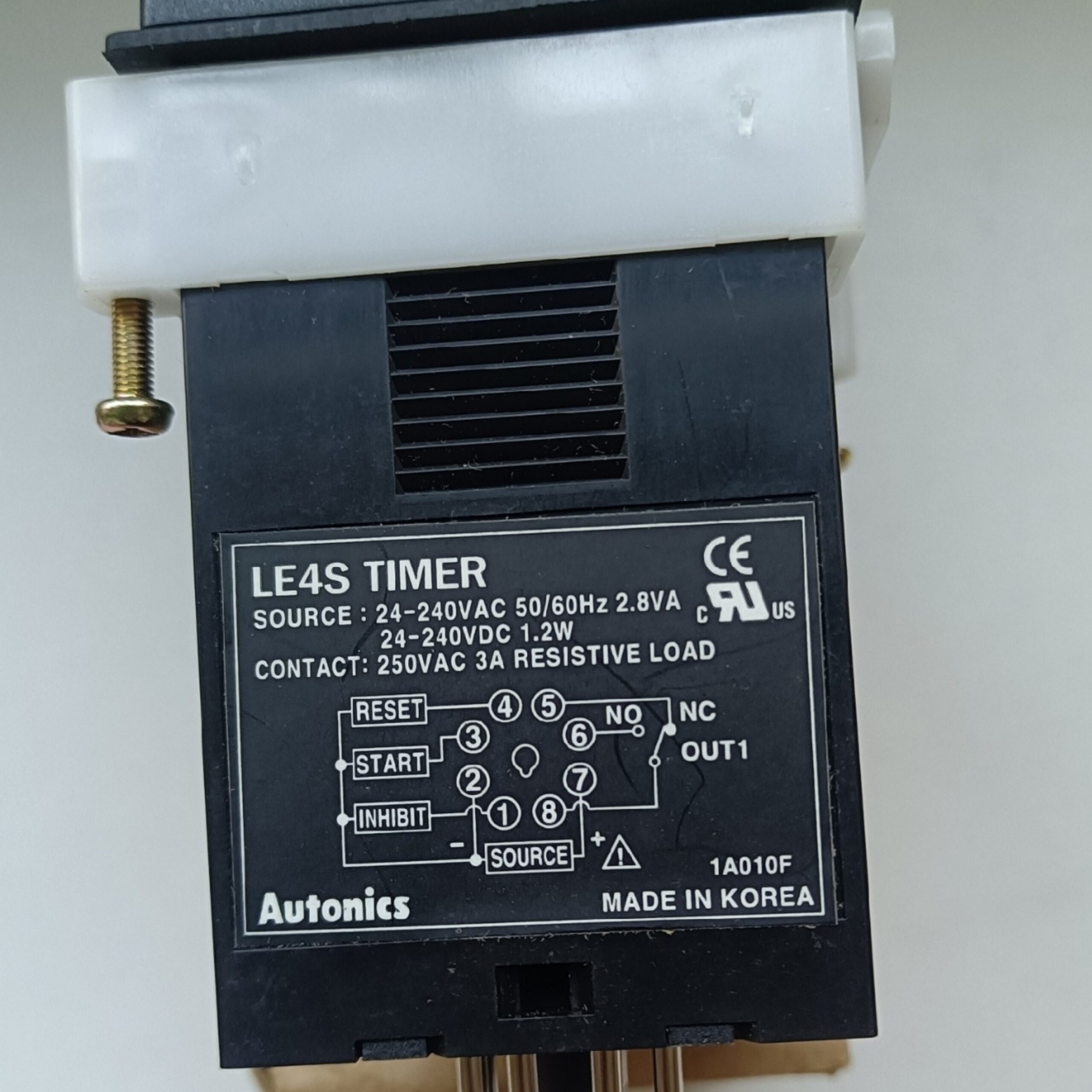

- Terminal Type: 8-pin plug
- Input Method: No-voltage NPN input
- Minimum Input Time: Selectable between 1 ms or 20 ms
- Return/Reset Time: Max 100 ms
- Control Output Type: Time-limit SPDT (Single Pole Double Throw) relay
- Contact Capacity: 5 A at 250 VAC / 30 VDC (resistive load)
- Output Modes: 10 variations including ON Delay, Interval, Flicker, ON-OFF Delay, and OFF Delay
- Time Operation: SIGNAL ON START (the timer begins when an electrical signal is received)
- Overall Time Range: Extremely wide window from 0.01 seconds up to 9999 hours
- Fine-Tuning: High-precision setting option down to 0.001-second units (for the 9.999s range)
- One-Shot Output Time: Configurable from 0.01 to 99.99 seconds
- Screen Display: 4-digit, 7-segment LCD screen with a bright backlight
- Counting Direction: Can count up or count down
- Data Protection: Includes a key-lock setting function to safely store configuration data
- Interface: Soft-touch front buttons for simple programming
- SKU: LE4S
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
