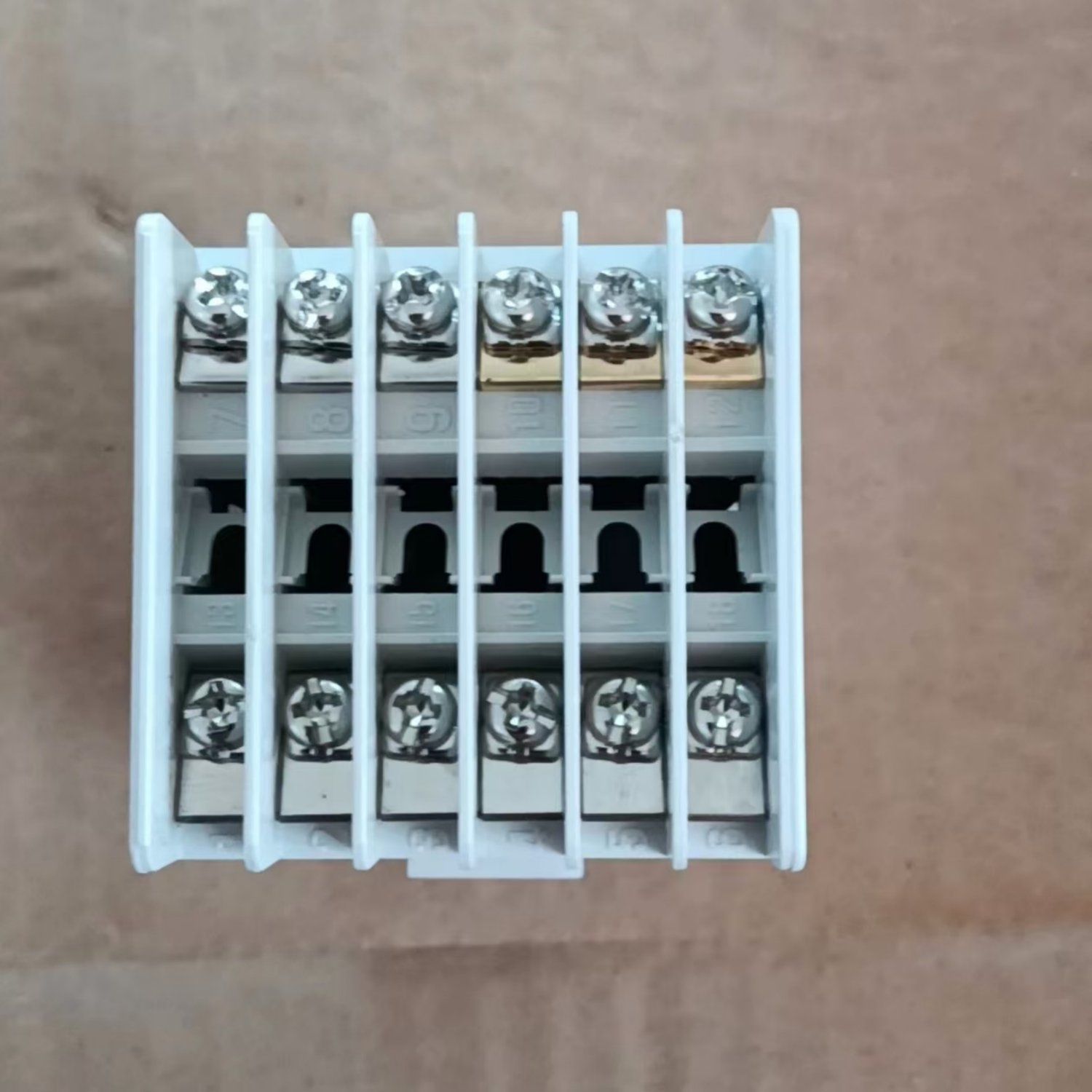

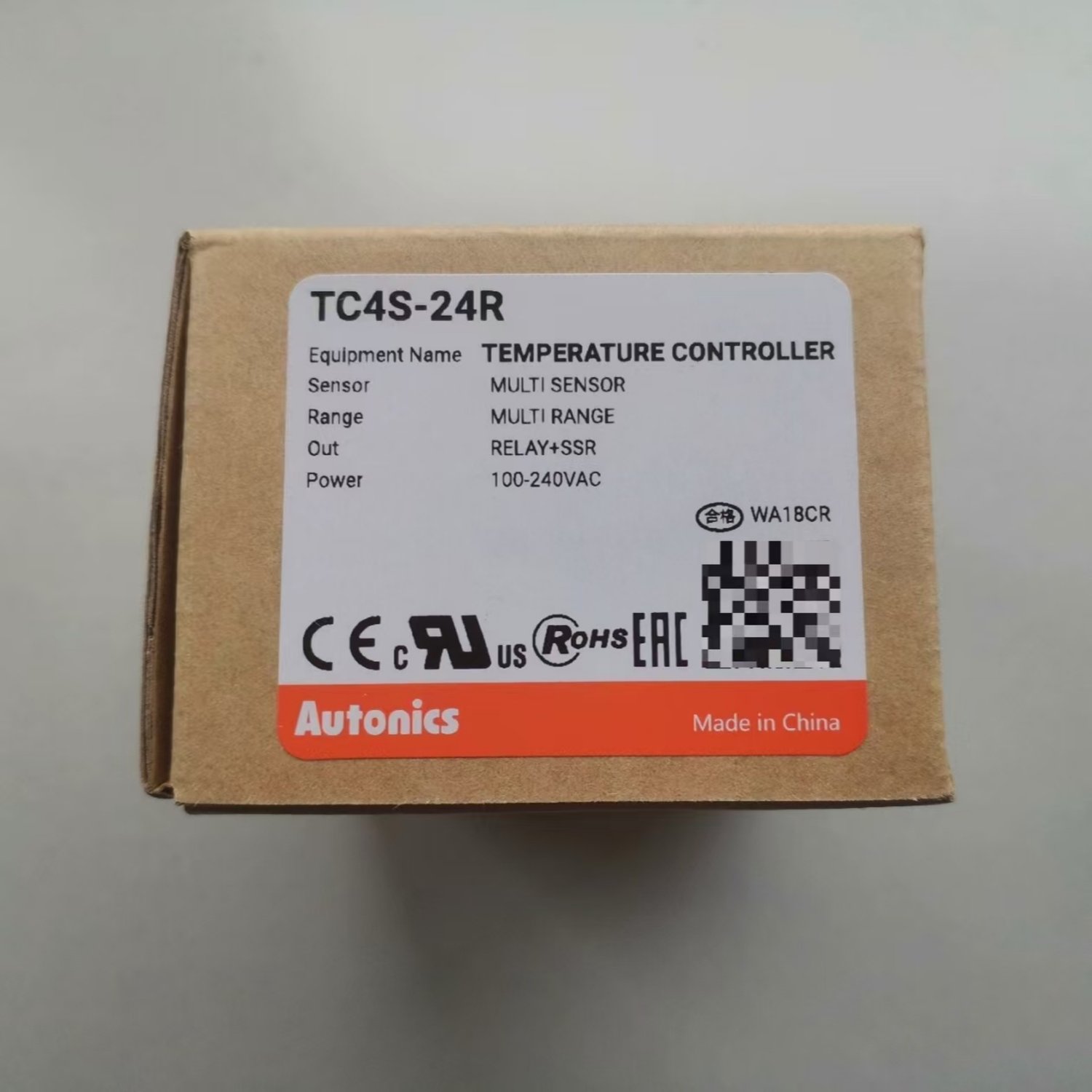

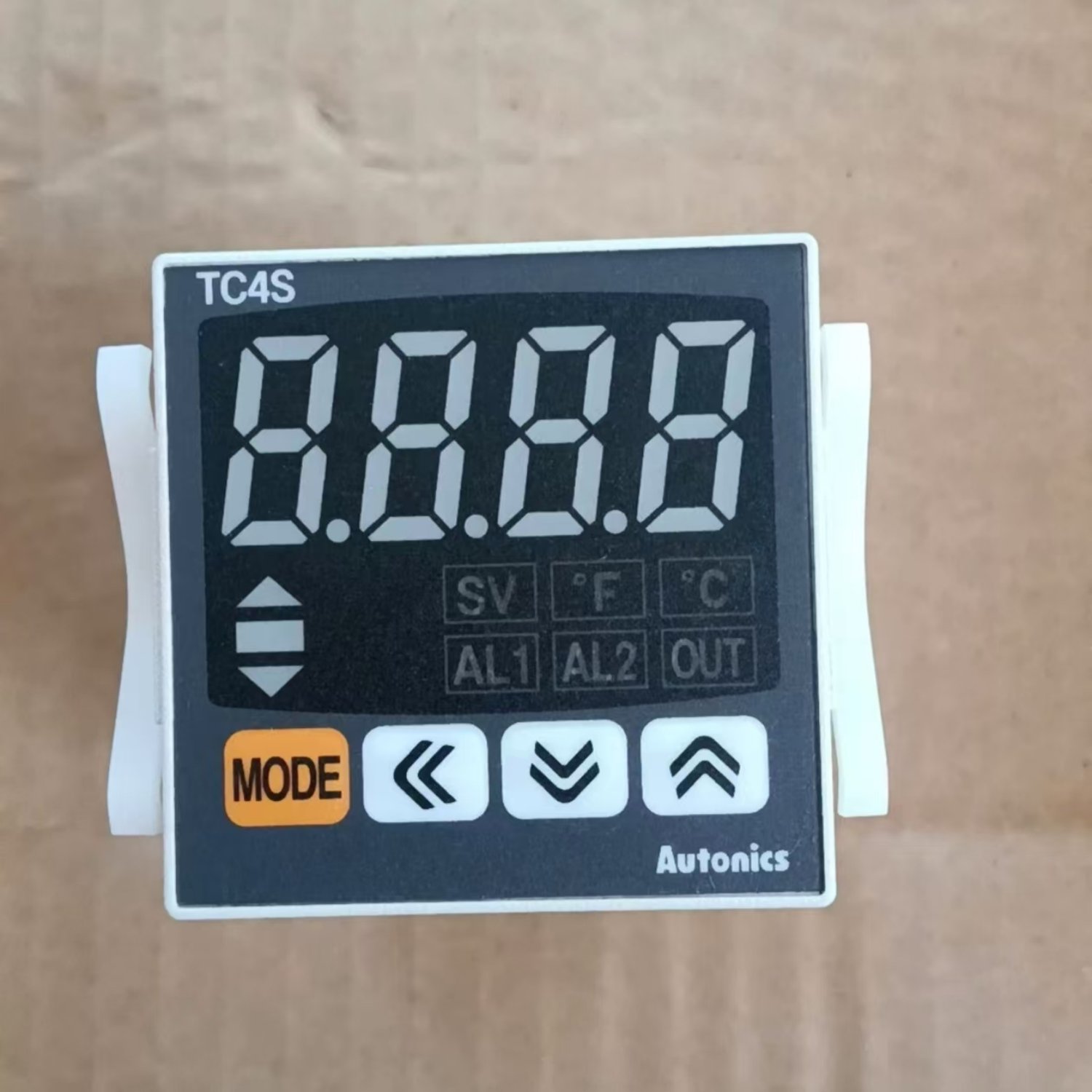

Autonics TC4S-24R Single-Display PID Temperature Controller
- Manufacturer: Autonics
- Model / Part Number: TC4S-24R
- Product type: Economical single-display digital PID temperature controller (TC4S series)
- Size (panel cutout): DIN W48 x H48 mm (1/16 DIN)
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification: Thermocouple K(CA), J(IC), L(IC); RTD DPt100 ohm, Cu50 ohm
- Sampling cycle: 100 ms
- Control output: Relay 250 VAC~ 3 A (SSR drive 12 VDC selectable on AC-voltage model: ON/OFF, phase, cycle)
- Option output: Alarm 1/2
- Power voltage: 100-240 VAC~ 50/60 Hz
- Display accuracy: (PV +-0.5% or +-1 degree C, higher one) +-1 digit at room temperature (TC and RTD)
- Environment: Ambient -10 to 50 degree C (storage -20 to 60 degree C), 35 to 85% RH
- Insulation / weight: Double or reinforced insulation, 2 kV AC dielectric; approx. 141 g (approx. 94 g unit only)
- SKU: TC4S-24R
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
