Autonics TK4H-14CN High Performance PID Temperature Controller

Manufacturer: Autonics
Model / Part Number: TK4H-14CN

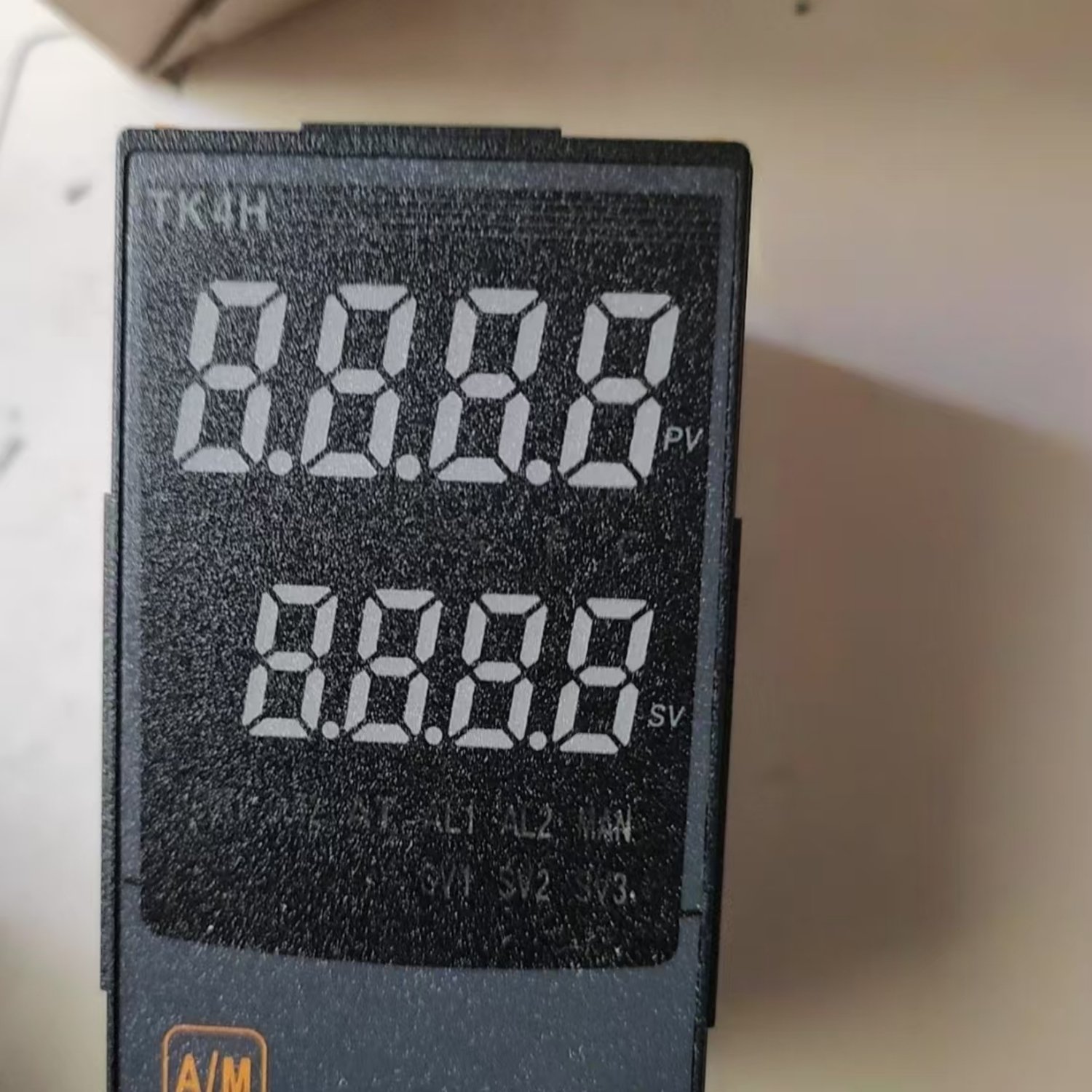

Display method: 4-digit 7-segment LED
Control method: ON/OFF, P, PI, PD, PID
Input specification (universal): Thermocouple K/J/E/T/B/R/S/N/C/G/L/U & Platinel II; RTD DPt100, DPt50, JPt100, Cu100, Cu50, Nickel 120 ohm; Analog 0-100 mV, 0-5 V, 1-5 V, 0-10 V, 0-20 mA, 4-20 mA
Sampling cycle: 50 ms
Control output 1: Selectable current (DC 0/4-20 mA) or SSR drive (11 VDC) output
Option input / option output: Option input: CT, Digital (DI-1/2); Option output: Alarm 1
Power voltage: 100-240 VAC~ 50/60 Hz
Protection structure: IP65 (front panel)
Display accuracy: TC/RTD: +/-0.3% or +/-1 deg C (+/-1 digit) at room temp (23+/-5 deg C); Analog: +/-0.3% F.S. +/-1 digit
Ambient environment: -10 to 50 deg C (storage -20 to 60 deg C), 35-85% RH
Insulation: Double or reinforced insulation; dielectric strength 2 kV between measuring input and power parts
Weight: Approx. 141 g (unit only; approx. 211 g including packaging)

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
