Showing 369–384 of 2131 resultsSorted by latest
-
- Manufacturer: OMRON
- Model / Part Number: S82K-10024
- Input Voltage: Universal input handling 100–120V AC or 200–240V AC (50/60Hz).
- Output Voltage: 24V DC.
- Output Current: Around 4.2A to 4.5A.
- Total Power: 100W to 108W.
- Mounting Type: Built to snap directly onto a standard DIN rail.
-
- Manufacturer: NAKANISHI
- Model / Part Number: EM-3060
- Rotation Speed: It can spin anywhere from 1,000 to 60,000 RPM (rotations per minute).
- Max Power: It has a maximum output of 350 Watts, which gives it plenty of strength for cutting through tough materials.
- Size & Width: The outside body has a diameter of 30 mm (about 1.18 inches), making it very compact.
- Weight: It is lightweight, weighing only 325 grams (around 11.4 ounces) without its power cord.
- Air Cooling: It uses a small stream of air (30 liters per minute) to keep itself cool. This lets it run all day long without overheating.
-
- Manufacturer: MINDMAN
- Model / Part Number: MACP401-10A-CD
- Medium: Compressed air.
- Operating Pressure Range: 0.15 to 1.0 MPa (constrained by the auto-drain function).
- Proof Pressure: 2.0 MPa.
- Ambient Temperature: -5°C to +60°C (with zero freezing).
- Filter Element: 40μm standard filtration level.
- Drain Capacity: 70 cm³.
- Lubricator Capacity: 200 cm³.
- Recommended Lubricating Oil: Turbine oil ISO-VG32.
-
- Manufacturer: MAC
- Model / Part Number: 225B-111CAAA
- Valve Type: 3-way, 2-position single direct solenoid poppet valve (can be used as Normally Open or Normally Closed).
- Port Size: 1/4" NPTF female pneumatic ports.
- Flow Rate: 0.50 Cv (flow coefficient).
- Pressure Range: Vacuum up to 150 PSI.
- Reset Mechanism: High-force steel mechanical spring reset for consistent monostable operation.
- Lubrication: No lubrication is required during operation.
-
- Manufacturer: LENZE
- Model / Part Number: E82MV402-4B151
- Power Output: 4.0 kW
- Input Voltage: 3-phase 400 V AC (±10%)
- Output Frequency: 0 to 240 Hz
- Enclosure Rating: IP31 (Protection against solid objects over 2.5mm and vertical water sprays)
- Control Modes: V/f control and sensorless vector control for stable motor torque
- Cooling: Built-in internal fan
-
- Manufacturer: HITECH
- Model / Part Number: PWS6620T-P
- Screen Size: 5.7 inches diagonally.
- Display Type: Color TFT LCD with 64,000 colors.
- Resolution: 320 x 240 pixels (QVGA).
- Backlight: Long-lasting LED backlight (lasts up to 50,000 hours).
- Front Protection: IP65 rated, meaning it is dust-tight and protected against water splashes.
-
- Manufacturer: FSP
- Model / Part Number: FSP700-80PSA
- Power Output: 700 Watts of total capacity to handle high-load setups.
- Efficiency Rating: 80 PLUS Bronze certified, meaning it converts power efficiently and wastes less electricity as heat.
- Power Factor Correction (PFC): Features Active PFC circuit design to improve power stability and match industrial electrical needs.
- Input Voltage: Supports a wide input range from 90V to 264V AC, letting it work safely worldwide.
- Cooling: Equipped with a built-in 80mm thermal sensor fan that speeds up or slows down based on temperature.
- Built-in Protections: Includes multi-level defenses against over-current, over-voltage, short-circuits, and over-temperatures.
-
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1373
- Current Rating: 350 Amps — It is designed to handle very large amounts of electricity.
- Voltage Rating: 690V to 700V AC — Built safely for high-power industrial machinery.
- Interrupting Rating: 200 kAIC — This means it can safely stop a massive short-circuit current of up to 200,000 amps without exploding.
- Class aR: Partial-range semiconductor protection — It triggers ultra-rapidly specifically during short circuits to protect delicate power electronics.
- Size & Body: Size 000 with a square body — Features standard DIN 43 620 blade ends that slot into standard industrial fuse blocks.
- Visual Indicator: Includes a top status indicator — A small visual window on top lets maintenance workers see instantly if the fuse is blown without needing tools.
-
- Manufacturer: CAREL
- Model / Part Number: IR33V7LR20
- Power Supply: Works on low voltage, accepting 12 to 24 Vac or 12 to 30 Vdc.
- Inputs: Includes 2 probe inputs that are compatible with NTC, PTC, or PT1000 temperature sensors.
- Outputs: Features 1 relay output (8A max current) to control devices like compressors, fans, or heaters.
- Control Types: Supports ON/OFF control as well as advanced PID control with auto-tuning.
- Mounting & Protection: Designed for panel mounting and features an IP65 waterproof front panel to protect against dust and moisture.
- Extra Features: Built-in internal buzzer for audible alerts and an infrared (IR) receiver for remote control programming.
-
- Manufacturer: MEAN WELL
- Model / Part Number: DR-4512
- Output Voltage: 12V DC.
- Voltage Adjust Range: 10.8V to 13.2V (tuned using a small built-in dial).
- Output Current: 0 to 3.5 Amps.
- Total Power: 42 Watts.
- Input Voltage Range: 85 to 264V AC (Universal wall electricity).
- Mounting Type: DIN Rail TS-35 / 7.5 or 15.
-
- Manufacturer: LG
- Model / Part Number: LB121S02(A2)
- Screen Size: 12.1 inches diagonally.
- Resolution: 800 x 600 pixels (known as SVGA quality) with a standard 4:3 square-ish screen shape.
- Screen Type: Active Matrix TFT-LCD, which helps show clear images on older systems.
- Surface: It features an anti-glare hard coating to reduce reflections in bright workspaces.
- Touch Screen: No, this is a display panel only and does not have built-in touch capabilities.
-
- Manufacturer: KINCO
- Model / Part Number: G070E-CAN
- Display Size: 7 inches TFT widescreen
- Resolution: 800 × 480 pixels
- Colors: 16.77 million colors for a rich, sharp image
- Processor: ARM RISC 32-bit 800MHz industrial-grade CPU
- Memory: 256MB Flash Memory + 128MB RAM
- Touch Panel: 4-wire precision resistance network (4H surface hardness)
- Protection Rating: IP65-rated front panel (dustproof and water-resistant)
- Power Requirement: DC 12V to DC 28V input
- Software: Programmed using Kinco's Dtools configuration software
- CANbus Port: Multiplexed on the COM1 D-SUB connector for bus-style control.
- Ethernet Port: Built-in RJ45 port for connecting to local factory networks, online simulations, PC software downloads, or network-capable PLCs.
- USB Host/Slave: For uploading/downloading programs or attaching external storage devices.
-
- Manufacturer: FATEK
- Model / Part Number: FBS-16TC
- Input Channels: 16 channels for thermocouple input.
- Supported Thermocouple Types: J, K, R, S, E, T, B, and N type sensors.
- Built-In Features: Cold Junction Compensation (CJC) and open thermocouple wire fault detection.
- High Resolution Option: Gives you a fine 0.1°C resolution with a 6-second temperature update cycle.
- Fast Mode Option: Gives you a 1.0°C resolution with a faster 3-second temperature update cycle.
-
- Manufacturer: DELTA
- Model / Part Number: DVP08XN211T
- Function: Output expansion module (it adds extra output plugs but has zero input plugs).
- Number of Outputs: 8 output channels.
- Output Type: Transistor (Solid State). Transistors switch on and off very fast and last a long time because they have no moving parts.
- Operating Voltage: 24V DC (Direct Current).
- Mounting Style: Attaches to a standard DIN rail or chassis mount inside a control panel.
- Wiring Connection: Secure screw terminals to lock wires in place.
- DVP: Delta Main PLC Series.
- XN: Extension output module.
-

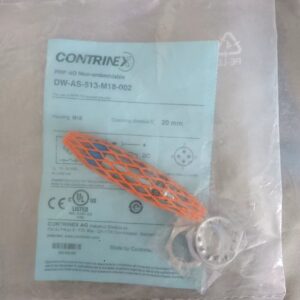

- Manufacturer: CONTRINEX
- Model / Part Number: DW-AS-513-M18-002
- Size: It has an 18mm diameter and a 63.5mm long body.
- Sensing Distance: It can sense metal objects up to 20mm away. This is considered a long "triple range" for an 18mm sensor.
- Mounting: It is non-flush, which means the tip of the sensor sticks out of the surrounding metal frame to look for objects sideways as well as forward.
- Electrical Output: It uses a PNP, Normally Open (N.O.) setup. This means it stays "off" until it detects metal, then it completes the circuit and sends a positive electrical signal to the machine.
- Connection: It plugs in using a standard 4-pin M12 quick-disconnect plug.
- Toughness: It is rated IP67, which means it is totally protected against dust and can handle being splashed or briefly submerged in water.
- Voltage: It runs on 10 to 30 Volts DC power.
-
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1469
- Current Rating: 160 Amps
- Voltage Rating: 690 Volts AC (IEC standard) / 700 Volts AC (UL standard)
- Interrupt Rating: 200 kA RMS Symmetrical (highly effective at stopping massive short circuits)
- Fuse Class: aR (partial-range protection for semiconductors)
- Body Size: Size 000 (compact dimensions of 24 x 36 x 96 mm)
- Mounting Style: Stud mount / center-bolted blade tags
- Visual Indicator: None (non-indicating style)
