Showing 129–144 of 151 results
-
REQUEST A QUOTE
- Connection Size: 3/4" (Rc 3/4 Internal Female Pipe Thread / FPT)
- Pressure Connection: 1/4" Flare nut (Standard for the AWR series)
- Valve Body Material: Cast Bronze (suitable for both water and glycol mixtures)
- Compatible Refrigerants: Fluorinated/fluorocarbon refrigerants including R134a, R404A, R407C, and R22
- Pressure Range: 590 to 1,760 KPa (5.9 to 17.6 bar)
- Factory Default Setting: 740 KPa (7.4 bar)
- Maximum Working Pressure (Refrigerant Side): 1,960 KPa (1.96 MPa / 19.6 bar)
- Maximum Water Pressure (Coolant Side): 980 KPa (0.98 MPa / 9.8 bar)
- Maximum Bellows Pressure: 2,350 KPa (2.35 MPa / 23.5 bar)
- Maximum Fluid Temperature: 60°C (140°F)
- Length (L): 80 mm
- Total Height (H): 104 mm
- Body Height (h): 87 mm
- Depth/Diameter (D): 42 mm
- Flow Direction: The water flow must strictly follow the directional arrow stamped onto the bronze valve body. Reversing the flow orientation can lead to erratic, uncontrolled valve behavior.
- Pressure Adjustment: System adjustments must only be performed using the dedicated Adjusting Spindle. Turning any other structural housing screws can breach structural seals and induce a coolant leak.
Brand New SAGINOMIYA AWR-2006GLW Water Regulating Valve (AWR Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Type: 5/2-Way (5 ports, 2 positions)
- Actuation Type: Single Solenoid (Spring return / Internal pilot acting)
- Port Size: 1/4" (Available in BSP or NPT threads)
- Body Width: 22 mm (Medium size, high flow rate)
- Operating Pressure: 0.5 to 8 bar (1.5 to 8 kgf/cm²)
- Proof Pressure: 10 bar
- Body Material: Anodized Aluminum
- Operating Temperature: -10°C to +50°C (Ambient)
- Coil Voltage: 24V DC
- Power Consumption: 5 Watts
Brand New SHAKO BM520-02-S DC24V Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Type: 5 Port / 2 Position (5/2-Way)
- Port Size: 1/4" (denoted by the -02 code)
- Actuation Type: Detent manual hand lever (denoted by the M code, which locks into position until manually moved back)
- Body Material: Aluminum alloy
- Fluid Media: Compressed air
- Operating Pressure: 0 to 9 kgf/cm² (Max proof pressure: 10 kgf/cm²)
- Temperature Range: -10°C to 60°C
- Sectional Area: 18 mm²
- No Electricity Needed: Ideal for environments lacking an electrical supply, manual setup testing, or safety backup emergency exhaust.
- Vacuum Capabilities: The mechanical design makes it fully suitable for vacuum operations.
Brand New SHAKO TSV8652-02M Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model: UFR-03
- Port Size: 3/8" (Available in BSP, NPT, or Rc threads)
- Operating Pressure Range: 0.5 to 10 Bar (Tested to 15 Bar)
- Filtration Rating: 5μm (Standard PE) or 40μm (Sintered brass/bronze)
- Filter Bowl Capacity: 105 cc
- Operating Temperature: 0°C to +60°C
- Body Material: Aluminum die-cast
- Filter Elements: The 5μm and 40μm elements are easily interchangeable and replaceable.
- Drain Types: Comes standard with a semi-automatic drain. Fully automatic or manual drains are optional.
- Bowl Options: Standard polycarbonate bowl. Optional aluminum or acid/alkali-resistant bowls are available for harsh chemical environments or paint booths.
Brand New SHAKO UFR-03 Filter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Torque & Capacity: 25 Nm nominal torque for air damper sizes up to 4 m².
- Control Type: Modulating control via a DC 0…10 V positioning signal with matching DC 0…10 V position feedback.
- Operating Voltage: AC 24 V (50/60 Hz) or DC 24 V.
- Power Consumption: 8 VA / 8 W during operation (efficient 1.1 W standby/quiet power).
- Positioning Time: 150 seconds for a full 90° nominal rotation.
- Environmental Ratings: IP54 protection class; operates in temperatures ranging from -32°C to +55°C (-25.6°F to 131°F).
Brand New SIEMENS GBB161.1E Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: AC/DC 24 V (50/60 Hz)
- Control & Positioning Signal: DC 0…10 V or 2…10 V (Modulating)
- Position Feedback: DC 0…10 V linear electrical feedback
- Torque Rating: 5 Nm (Nominal torque)
- Positioning Time: 150 seconds for 90° angular rotation
- Power Consumption: 1.0 W (Operating) / 0.7 W (Standby / Quiet power)
- Ingress Protection: IP54 (Dust and splash-resistant)
- Non-Spring Return: This model does not feature an emergency fail-safe spring return. It maintains its position during a localized power interruption.
- Universal Connection: Features a patented, self-centering shaft adapter that accommodates round shafts (8 to 16 mm) and square shafts (6 to 12 mm).
- Manual Override: Includes a manual gear train disengagement button to allow manual positioning during commissioning or maintenance.

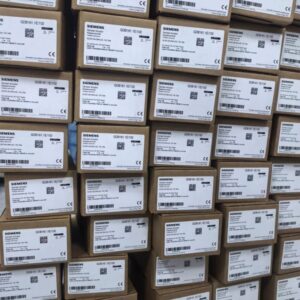

Brand New SIEMENS GDB161.1E/102 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: AC/DC 24 V
- Torque / Holding Torque: 4 Nm / 4 Nm
- Positioning Signal: DC 0…10 V
- Position Feedback: DC 0…10 V
- Angular Rotation: 90° (with mechanical limits)
- Positioning Time: Motor (Open): 60 s | Spring (Close): 15 s
- Power Consumption: 4 VA / 2.4 W (Quiet/Holding power: 1.5 W)
- Enclosure Protection: IP54
- Pre-wired Cable: 0.9 m length
- Ambient Operating Temp: -32°C to 55°C (-25.6°F to 131°F)
Brand New SIEMENS GPC161.1A Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Function: Controls the opening angle (0 to 90 degrees) of the burner's air or fuel damper.
- Torque: 1.5 Nm rated torque.
- Running Time: 4 seconds for a 90° rotation.
- Power Supply: AC 230 V.
- Internal Components: Includes 2 auxiliary switches and 2 relays.
- Housing Length: 117 mm.
- Compatibility: Controlled directly by burner control units like the Siemens LME22 series.
- BPZ: SQN72.2A4A20 SQN72.2A4A20 Actuator Actuator, 90°/4 s, 1.5Nm, 2 auxiliary switches, 2 relays, housing 117mm, AC230V.
Brand New SIEMENS SQN72.2A4A20 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rotational Direction: Clockwise
- Running Time: 4 seconds for a 90-degree rotation
- Torque: 1.5 Nm rated torque (holding torque of 0.7 Nm)
- Power Supply: 220–240 V AC, 50–60 Hz, 6 VA
- Switching Capacity: 7(1) A, 250 V~
- Features: Equipped with 2 auxiliary switches and 1 relay
- Origin: Made in Germany
Brand New SIEMENS SQN75.294A21B Electric Damper Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Bore Size: 16 mm
- Stroke Length: 30 mm
- Gripping Width: 98 mm when fully open; 68 mm when closed
- Holding Force: 45 N (both internal and external) at 72 psi / 0.5 MPa
- Operating Pressure: 15 to 87 psi (0.1 to 0.6 MPa)
- Port Size: M5 x 0.8
- Temperature Rating: 14°F to 140°F (-10°C to 60°C)
- Double Piston Construction: Delivers a compact profile while maintaining a significantly large holding force.
- Synchronized Parallel Motion: A rack-and-pinion design ensures both fingers travel perfectly together.
- Versatile Mounting: Supports both axial (via tapped body or through-hole) and lateral mounting configurations.
Brand New SMC MHL2-16D Cylinder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Actuation Type: 3-Position Closed Center (Double Solenoid)
- Rated Voltage: 24V DC (designated by the "-5" code)
- Mounting Style: Base Mounted (without a sub-plate unless ordered via variant -02 or -03)
- Electrical Entry: DIN Terminal with connector (designated by the "Z" code)
- Indicator & Protection: Built-in LED light and surge voltage suppressor
- Fluid: Compressed Air
- Operating Pressure Range: 0.1 to 0.7 MPa (Internal Pilot)
- Max Fluid/Ambient Temp: 50°C (122°F)
- Manual Override: Non-locking push style
Brand New SMC SY7340-5DZ 5-Port Pneumatic Solenoid Valve (SY7000 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Type / Operation: Solenoid Valve, Normally Closed (Nor.Close)
- Size: 15A
- Compatible Medium: Water
- Operating Voltage: 100V AC (50/60Hz) or 110V AC (60Hz) (Note: Replacement coils are also manufactured for 220V systems)
- Operating Pressure Range: 0 to 0.6 MPa
- Proof Test Pressure: 1.5 MPa
- Electrical Connection: Typically equipped with a Hirschmann style (GDM) connector
- Unit Weight: Approximately 1.15 kg (complete unit)
Brand New SUN JDSPE7-15WLIPJ Electric Solenoid Valve (JDSPE7 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Nichiden Kogyo Co., Ltd. (Japan)
- Valve Type: Solenoid Valve
- Model/Series: SX3S
- Operating Voltage: 200V AC (Alternating Current)
- Power Consumption: 13 Watts
- Frequency: 50 / 60 Hz
- Orifice Size: 8 mm (with approximately 3/8 inch pipe connection capability)
- Construction Material: Corrosion-resistant stainless steel and copper alloy body
- High-Speed Actuation: Engineered for fast response and short activation cycles.
- Industrial Sealing: High-grade sealing performance to entirely prevent fluid leakage under pressure.
- Application Flexibility: Frequently utilized in specialized boiler control systems (such as Miura boilers), pneumatic installations, and hydraulic gas controls.

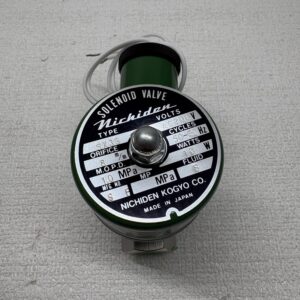

Brand New NICHIDEN SX3S AC200V 13W Solenoid Valve (SX3S Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Pressure Rating: 10K (Maximum continuous operating pressure of 1.0 MPa).
- Connection Interface: Wafer Type, uniquely designed to fit cleanly between both JIS 5K and JIS 10K pipe flanges without risk of pipeline misalignment.
- Body Material: ADC12 Aluminum Alloy Die-Cast—which provides a highly durable construction that is up to 50% lighter than standard cast-iron options.
- Disc (Valve Body): SCS13A Stainless Steel.
- Seat / O-Ring Rubber: EPDM.
- Fluid Temperature Compatibility: Ranges safely from -20°C to 100°C.
- Applicable Media: Suitable for static water lines, compressed air, and compressed nitrogen gas.
- Anti-Condensation Mechanism: Incorporates an austenitic stainless steel insulation yoke positioned cleanly between the body and the hand lever to drastically suppress condensation.
- Long Neck Body Structure: Specifically engineered with an extended neck length to provide optimal clearance for building-standard thermal insulation wrap without hindering hand-lever actuation.
- Low Torque Sealing: Uses a precision spherical disc and seat geometry to establish an incredibly tight seal at significantly reduced operating torques, minimizing general rubber wear.
Brand New TOYO 10ALM-N-LUE Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Body & Bonnet Material: Cast Bronze (CAC406 / EN CC491K equivalent)
- Stem Material: Brass / Copper Alloy (C3531)
- Handle Material: Aluminum Die-Cast (ADC12)
- Pressure Rating: Class 125 / 200 WOG (Water, Oil, Gas) / 125S (Saturated Steam)
- Max Allowable Pressure: 1.2 MPa for static water below 120°C; 0.9 MPa for saturated steam
- Connection Type: Female Threaded / Screwed (NPT or BSP)
- Applicable Fluids: Water, saturated steam, and oil
Brand New TOYO 125E-BS-N Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Type: Swing-type check valve
- Body Material: Cast Bronze (CAC406)
- Connection Type: Threaded female ports (Rc / NPT depending on region)
- Compatible Fluids: Water, saturated steam, oil, and seawater
- Saturated Steam/Vapor: 0.9 MPa (approx. 130 PSI)
- Type: Swing type; Compatible Fluid: Water / Steam; Nominal Pressure: 125; Material: [Bronze] CAC406; Supply Side Connection Type: …
Brand New TOYO 125H-BNS-N Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
