- Valve Size / Pattern: NG06 / CETOP 03 / NFPA D03
- Configuration: 4-way, 2-position (4/2)
- Spool Type: Type B (Spring return mechanics)
- Electrical Supply: 24V DC solenoid coil (drawing ~1.29A / 30W)
- Maximum Flow Rate: Up to 70–80 L/min (~18–20 GPM) depending on the hydraulic circuit pressure
- Maximum Pressure: 350 bar (5,000 PSI) on ports P, A, and B; 210 bar (3,000 PSI) maximum tank port (T) pressure
- Construction Material: Cast iron/ductile iron body with Nitrile (NBR/Buna-N) seals
- Electrical Connection: DIN 43650 connector pattern (IP65 rated)
- JW: 24V DC voltage rating with a DIN connector pattern
Parker D1VW020BNJW D1VW020BNJW91 Hydraulic Directional Control Valve (D1VW Series).
-
REQUEST A QUOTE
- Manufacturer: Parker
- Model / Part Number: D1VW020BNJW91
- Valve Type: Direct-operated solenoid directional control valve
- Configuration: 4/2-way, single solenoid, spring offset
- Spool Code: 020
- Coil Voltage: 24 V DC
- Mounting Interface: NG06 / CETOP 03 / NFPA D03
- Maximum Operating Pressure: 350 bar
- Maximum Flow: 70 L/min
- Seal Material: NBR
- Electrical Connector: EN 175301-803
- Fluid: Hydraulic oil per DIN 51524
- Operating Temperature: −25 to +60 °C
- Approximate Weight: 1.5 kg
Parker D1VW020BNJW91 Directional Control Valve. Contact us for product information and quotation.
-
REQUEST A QUOTE
- Adjustable Pressure Range: 0.1 to 0.8 MPa (14.5 to 116 PSI).
- Max Supply Pressure: 1.0 MPa (145 PSI).
- Features: Built-in pressure gauge (5% accuracy), integrated pressure relief mechanism for easier downstream adjustments.
- Differences: RVUM6-6 vs. RVUMP6-6 (Successor)
- Higher Flow Capacity: The new design enables roughly 1.3 times higher flow rate than the legacy model.
- Improved Stability: Features a push-lock setting knob and a reduced set pressure fluctuation range.
- Form Factor: Keeps the same 6mm inline configuration for an easy drop-in replacement.
PISCO RVUM6-6 Pneumatic Pressure Regulator (RVUM Series).
-
REQUEST A QUOTE
- Model / Order Code: 4WE6E6X/EG24N9K4 / R900561278
- Valve Type: Directional spool valve, direct operated, solenoid actuation
- Size: 6 (NG6)
- Spool Symbol: E (4/3-way, all ports blocked in center position)
- Operating Voltage: 24 V DC
- Max Pressure: 350 bar
- Max Flow: 80 L/min
Rexroth R900561278 4WE6E62-EG24N9K4 Directional Spool Valve (4WE6 Series).
-
REQUEST A QUOTE
Technical Specifications
- Size & Mounting: Size 6 with a CETOP 3 porting pattern, compliant with ISO 4401-03-02-0-05 for subplate mounting.
- Operating Pressure: Maximum operating pressure of 350 bar (approx. 5,076 PSI).
- Maximum Flow Rate: Up to 80 L/min for DC applications.
- Spool Symbol: Type E (4/3-way or 4/2-way options depending on execution, typically three-position spring-centered with all ports blocked in the center position).
- Electrical Rating: 24 VDC power supply via a standard 3-pole square plug-in connector.
- Actuation Type: High-power, wet-pin dual solenoids featuring a detachable coil. Coils can be rotated 90° and replaced smoothly without releasing any hydraulic fluid.
- Seals: Built with standard Nitrile (NBR) seals, ensuring compatibility with a wide range of mineral oil-based and synthetic hydraulic fluids (HL, HLP, HVLP, etc.).
- Manual Override: Outfitted with a concealed/flush manual override for safe testing or troubleshooting.
- Configuration: Delivered without a locating pin hole, position switch, or factory throttle inserts.
REXROTH R900561278 Directional Spool Valve (Rexroth).
-
REQUEST A QUOTE
- Upgraded IP Rating: Can achieve up to IP 55 when used with an additional fine filter mat.
- NEMA Protection: Complies with NEMA 1 (or NEMA 12 depending on the filter configuration).
- Storage Temperature Range: -30 °C to +70 °C.
- Tool-free assembly: Uses a quick-fit snap-in system for easy mounting directly into cabinet cut-outs.
RITTAL SK3322.207 Outlet Filter (SK Series).
-
REQUEST A QUOTE
- Series / Model: Rotoflux A Series / A10-1371-05L
- Primary Media: Coolant, Air, and MQL (Minimum Quantity Lubrication)
- Dry Run Capability: Yes. Features balanced and microlapped seals that remain closed and effective with or without fluid, preventing premature wear.
- Maximum Rotation Speed: Up to 15,000 RPM (model dependent)
- Maximum Pressure: Up to 10 BAR (model dependent)
- Design Type: Radial connection (axial available upon request)
- Body: Lightweight anodized aluminum
- Rotor: Robust stainless steel
- Seals: High-grade Viton seals
- Packing: Polished carbide-mirror balanced packing for specialized sealing security
ROTOFLUX A10-1371-05L Rotary Union (A10 Series).
-

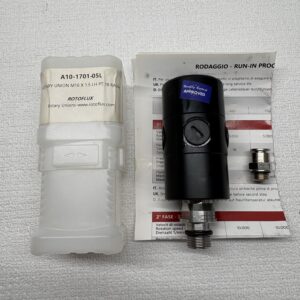

- Manufacturer: ROTOFLUX
- Model / Part Number: A10-1701-05L
- Connection Type: 90° Radial Connection
- Rotor Thread Size: M16 x 1.5
- Thread Direction: Left-Hand (LH) Thread
- Housing Port Connection: G 3/8" (Gas/BSPP)
- Maximum Fluid Pressure: 40 bar (580 PSI)
- Maximum Air Pressure: 10 bar (145 PSI)
- Maximum Rotation Speed: 10,000 RPM
- Maximum Temperature: 90°C (195°F)
- Fluid Passage Diameter: 9 mm
- Unit Weight: Approx. 0.5 kg (1.1 lbs)
-
REQUEST A QUOTE
- Connection Thread: M16 x 1.5 Left-Hand (LH)
- Maximum Speed: Up to 10,000 RPM
- Maximum Pressure: Up to 70 Bar (7 MPa) for coolant applications (some variants scale up to 40 Bar depending on the specific medium)
- Temperature Range: 60°C to 80°C
- Media Compatibility: Coolant, Air, and Dry Run operations
- Materials: Features a robust stainless steel rotor and a lightweight, durable aluminum alloy body.
- Dry Run Capability: The primary advantage of Series A unions is their balanced, micro-ground carbide seal assemblies. They remain closed and securely sealed whether fluid is running (wet) or during dry-machining cycles (dry run), preventing seal failure.
- Low Friction & Wear: Dual precision internal bearings ensure low friction torque, minimizing heat generation and extending spindle life even when filtration quality is sub-optimal.
- Common Industries: Extensively used in automated lathe machining, deep drilling setups, CNC machining centers, and general high-speed industrial automation.
- High-Speed Performance: The ROTOFLUX A10-1771-05L rotary joint operates at an impressive 10,000 RPM, ensuring efficient fluid tran…
ROTOFLUX A10-1771-05L Rotary Joint (A10 Series).
-
REQUEST A QUOTE
- Connection Size: 3/4" (Rc 3/4 Internal Female Pipe Thread / FPT)
- Pressure Connection: 1/4" Flare nut (Standard for the AWR series)
- Valve Body Material: Cast Bronze (suitable for both water and glycol mixtures)
- Compatible Refrigerants: Fluorinated/fluorocarbon refrigerants including R134a, R404A, R407C, and R22
- Pressure Range: 590 to 1,760 KPa (5.9 to 17.6 bar)
- Factory Default Setting: 740 KPa (7.4 bar)
- Maximum Working Pressure (Refrigerant Side): 1,960 KPa (1.96 MPa / 19.6 bar)
- Maximum Water Pressure (Coolant Side): 980 KPa (0.98 MPa / 9.8 bar)
- Maximum Bellows Pressure: 2,350 KPa (2.35 MPa / 23.5 bar)
- Maximum Fluid Temperature: 60°C (140°F)
- Length (L): 80 mm
- Total Height (H): 104 mm
- Body Height (h): 87 mm
- Depth/Diameter (D): 42 mm
- Flow Direction: The water flow must strictly follow the directional arrow stamped onto the bronze valve body. Reversing the flow orientation can lead to erratic, uncontrolled valve behavior.
- Pressure Adjustment: System adjustments must only be performed using the dedicated Adjusting Spindle. Turning any other structural housing screws can breach structural seals and induce a coolant leak.
SAGINOMIYA AWR-2006GLW Water Regulating Valve (AWR Series).
-
REQUEST A QUOTE
- Valve Type: 5/2-Way (5 ports, 2 positions)
- Actuation Type: Single Solenoid (Spring return / Internal pilot acting)
- Port Size: 1/4" (Available in BSP or NPT threads)
- Body Width: 22 mm (Medium size, high flow rate)
- Operating Pressure: 0.5 to 8 bar (1.5 to 8 kgf/cm²)
- Proof Pressure: 10 bar
- Body Material: Anodized Aluminum
- Operating Temperature: -10°C to +50°C (Ambient)
- Coil Voltage: 24V DC
- Power Consumption: 5 Watts
SHAKO BM520-02-S DC24V Solenoid Valve (BM520).
-
REQUEST A QUOTE
- Valve Type: 5 Port / 2 Position (5/2-Way)
- Port Size: 1/4" (denoted by the -02 code)
- Actuation Type: Detent manual hand lever (denoted by the M code, which locks into position until manually moved back)
- Body Material: Aluminum alloy
- Fluid Media: Compressed air
- Operating Pressure: 0 to 9 kgf/cm² (Max proof pressure: 10 kgf/cm²)
- Temperature Range: -10°C to 60°C
- Sectional Area: 18 mm²
- No Electricity Needed: Ideal for environments lacking an electrical supply, manual setup testing, or safety backup emergency exhaust.
- Vacuum Capabilities: The mechanical design makes it fully suitable for vacuum operations.
SHAKO TSV8652-02M Manual Valve (TSV Series).
-
REQUEST A QUOTE
- Model: UFR-03
- Port Size: 3/8" (Available in BSP, NPT, or Rc threads)
- Operating Pressure Range: 0.5 to 10 Bar (Tested to 15 Bar)
- Filtration Rating: 5μm (Standard PE) or 40μm (Sintered brass/bronze)
- Filter Bowl Capacity: 105 cc
- Operating Temperature: 0°C to +60°C
- Body Material: Aluminum die-cast
- Filter Elements: The 5μm and 40μm elements are easily interchangeable and replaceable.
- Drain Types: Comes standard with a semi-automatic drain. Fully automatic or manual drains are optional.
- Bowl Options: Standard polycarbonate bowl. Optional aluminum or acid/alkali-resistant bowls are available for harsh chemical environments or paint booths.
SHAKO UFR-03 Filter Regulator (UFR Series).
-
REQUEST A QUOTE
- Torque & Capacity: 25 Nm nominal torque for air damper sizes up to 4 m².
- Control Type: Modulating control via a DC 0…10 V positioning signal with matching DC 0…10 V position feedback.
- Operating Voltage: AC 24 V (50/60 Hz) or DC 24 V.
- Power Consumption: 8 VA / 8 W during operation (efficient 1.1 W standby/quiet power).
- Positioning Time: 150 seconds for a full 90° nominal rotation.
- Environmental Ratings: IP54 protection class; operates in temperatures ranging from -32°C to +55°C (-25.6°F to 131°F).
SIEMENS GBB161.1E Damper Actuator (GBB Series).
-
REQUEST A QUOTE
- Operating Voltage: AC/DC 24 V (50/60 Hz)
- Control & Positioning Signal: DC 0…10 V or 2…10 V (Modulating)
- Position Feedback: DC 0…10 V linear electrical feedback
- Torque Rating: 5 Nm (Nominal torque)
- Positioning Time: 150 seconds for 90° angular rotation
- Power Consumption: 1.0 W (Operating) / 0.7 W (Standby / Quiet power)
- Ingress Protection: IP54 (Dust and splash-resistant)
- Non-Spring Return: This model does not feature an emergency fail-safe spring return. It maintains its position during a localized power interruption.
- Universal Connection: Features a patented, self-centering shaft adapter that accommodates round shafts (8 to 16 mm) and square shafts (6 to 12 mm).
- Manual Override: Includes a manual gear train disengagement button to allow manual positioning during commissioning or maintenance.
SIEMENS GDB161.1E/102 Modulating Damper Actuator (GDB Series).
-
REQUEST A QUOTE
- Operating Voltage: AC/DC 24 V
- Torque / Holding Torque: 4 Nm / 4 Nm
- Positioning Signal: DC 0…10 V
- Position Feedback: DC 0…10 V
- Angular Rotation: 90° (with mechanical limits)
- Positioning Time: Motor (Open): 60 s | Spring (Close): 15 s
- Power Consumption: 4 VA / 2.4 W (Quiet/Holding power: 1.5 W)
- Enclosure Protection: IP54
- Pre-wired Cable: 0.9 m length
- Ambient Operating Temp: -32°C to 55°C (-25.6°F to 131°F)
SIEMENS GPC161.1A Damper Actuator (GPC Series).
