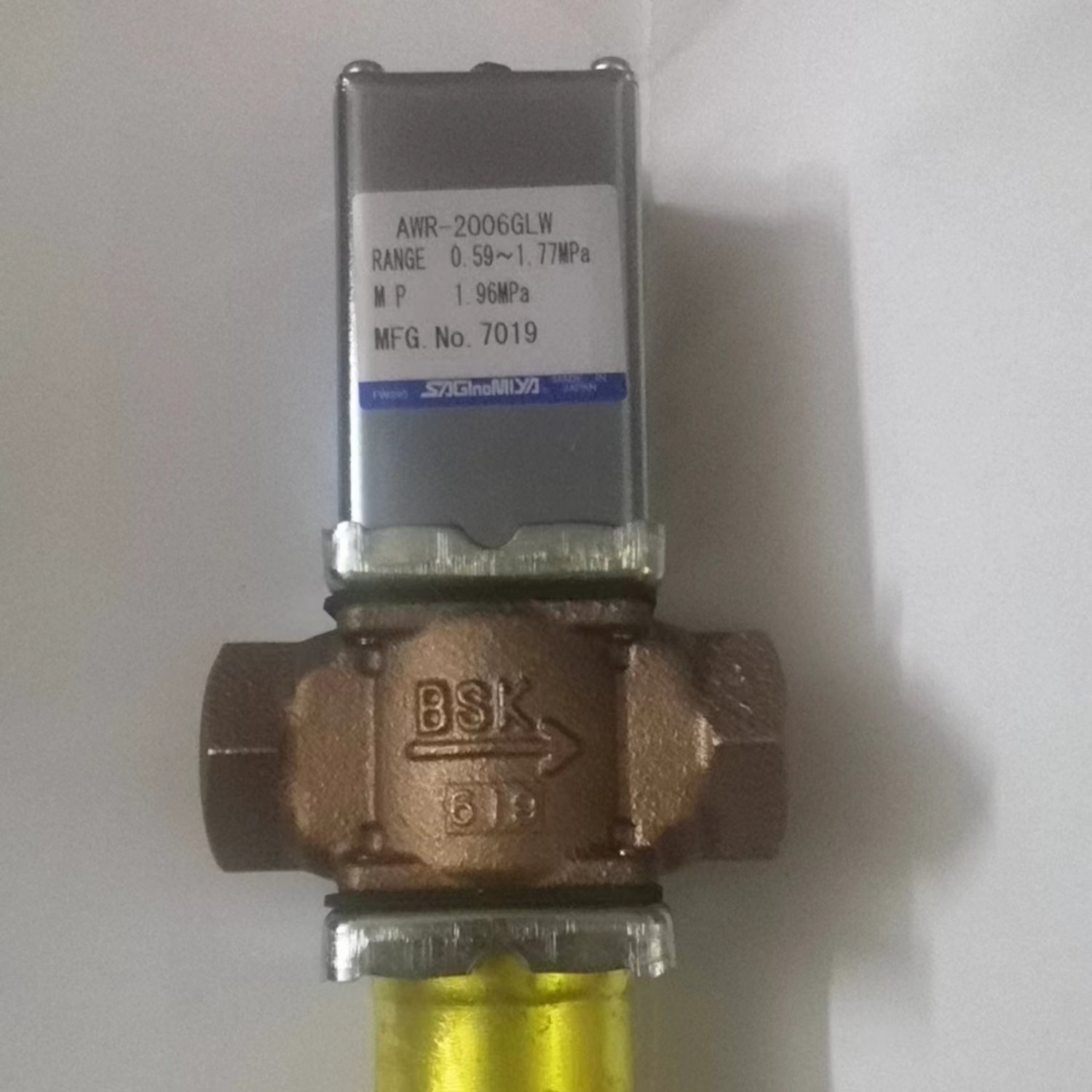

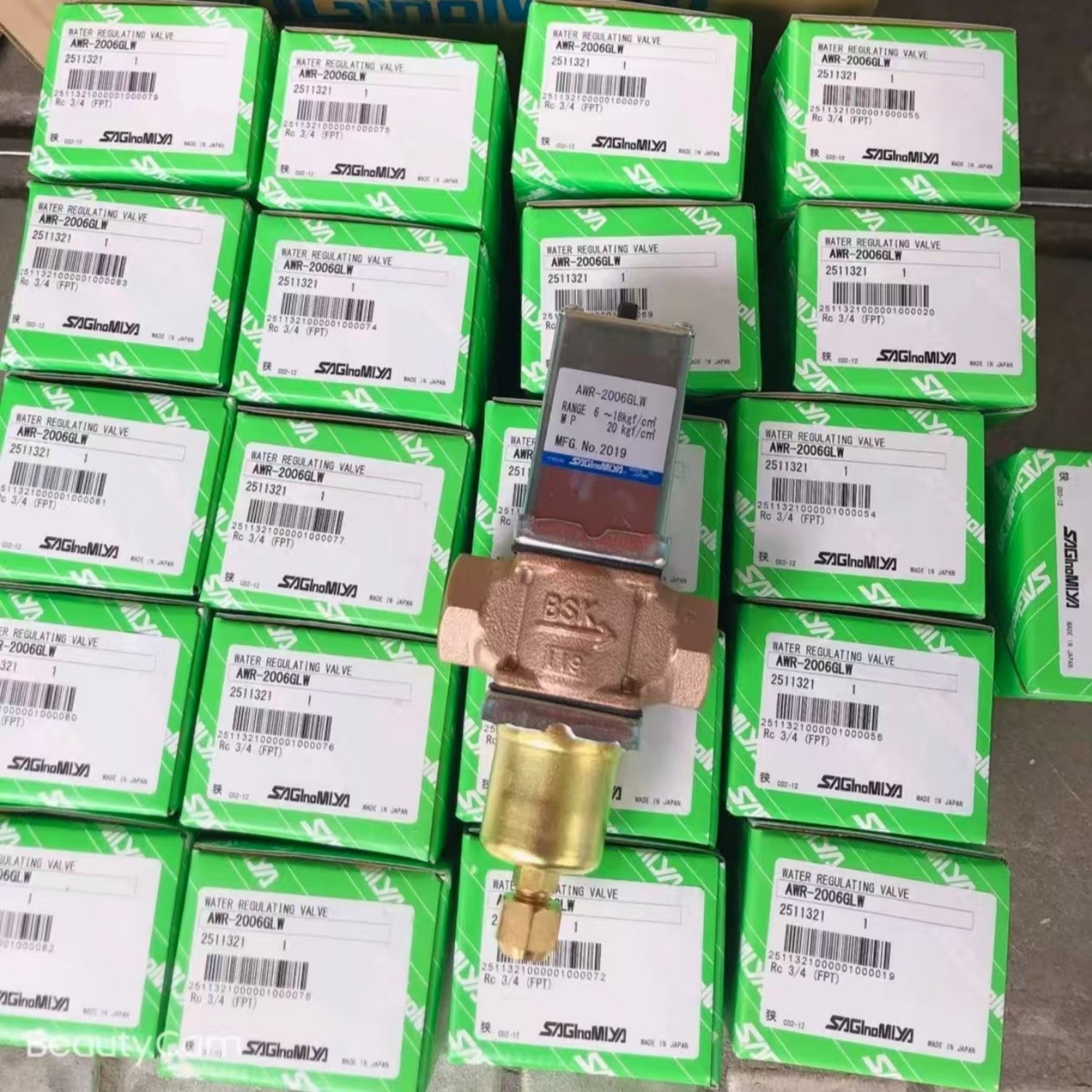

SAGINOMIYA AWR-2006GLW Water Regulating Valve (AWR Series)

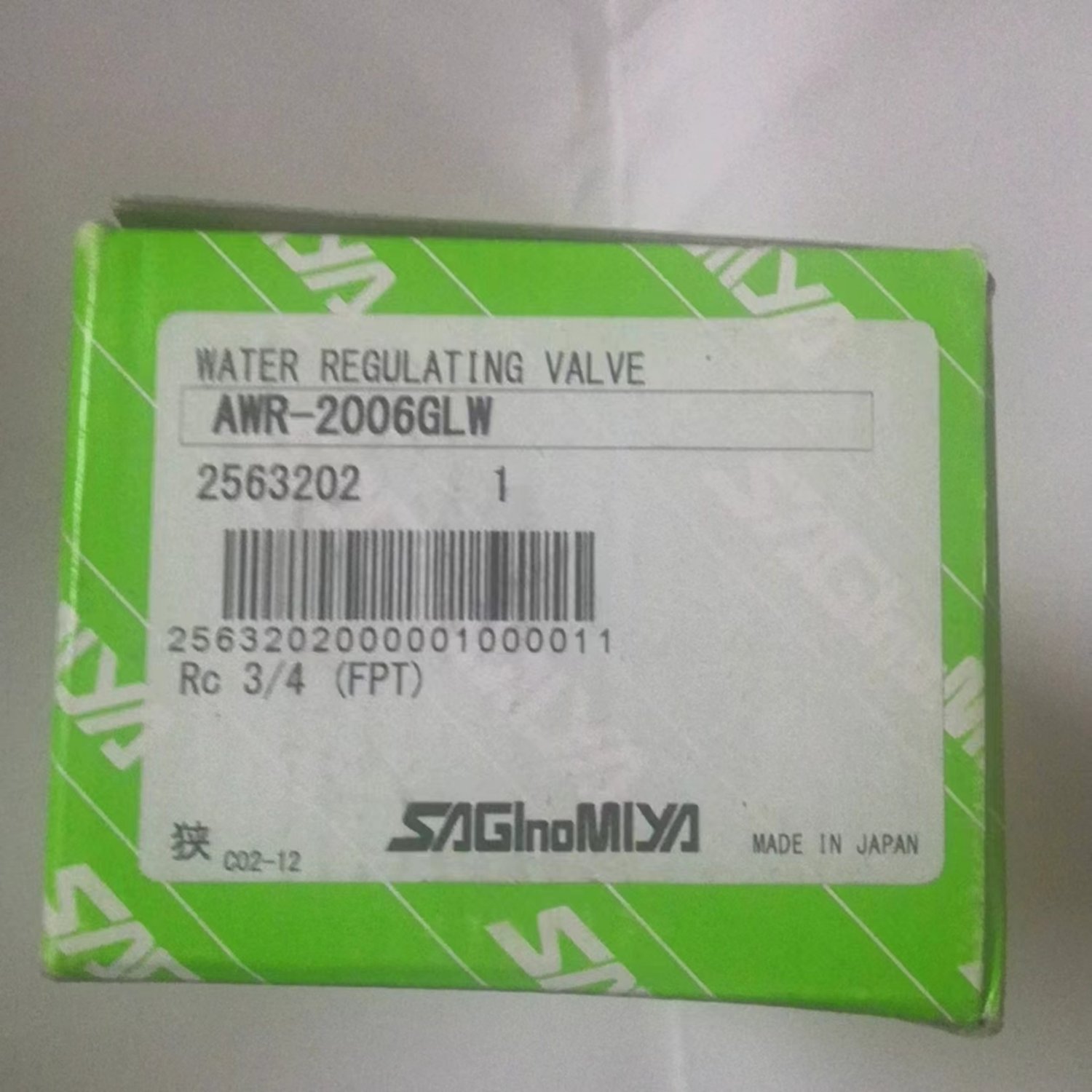

Connection Size: 3/4" (Rc 3/4 Internal Female Pipe Thread / FPT)

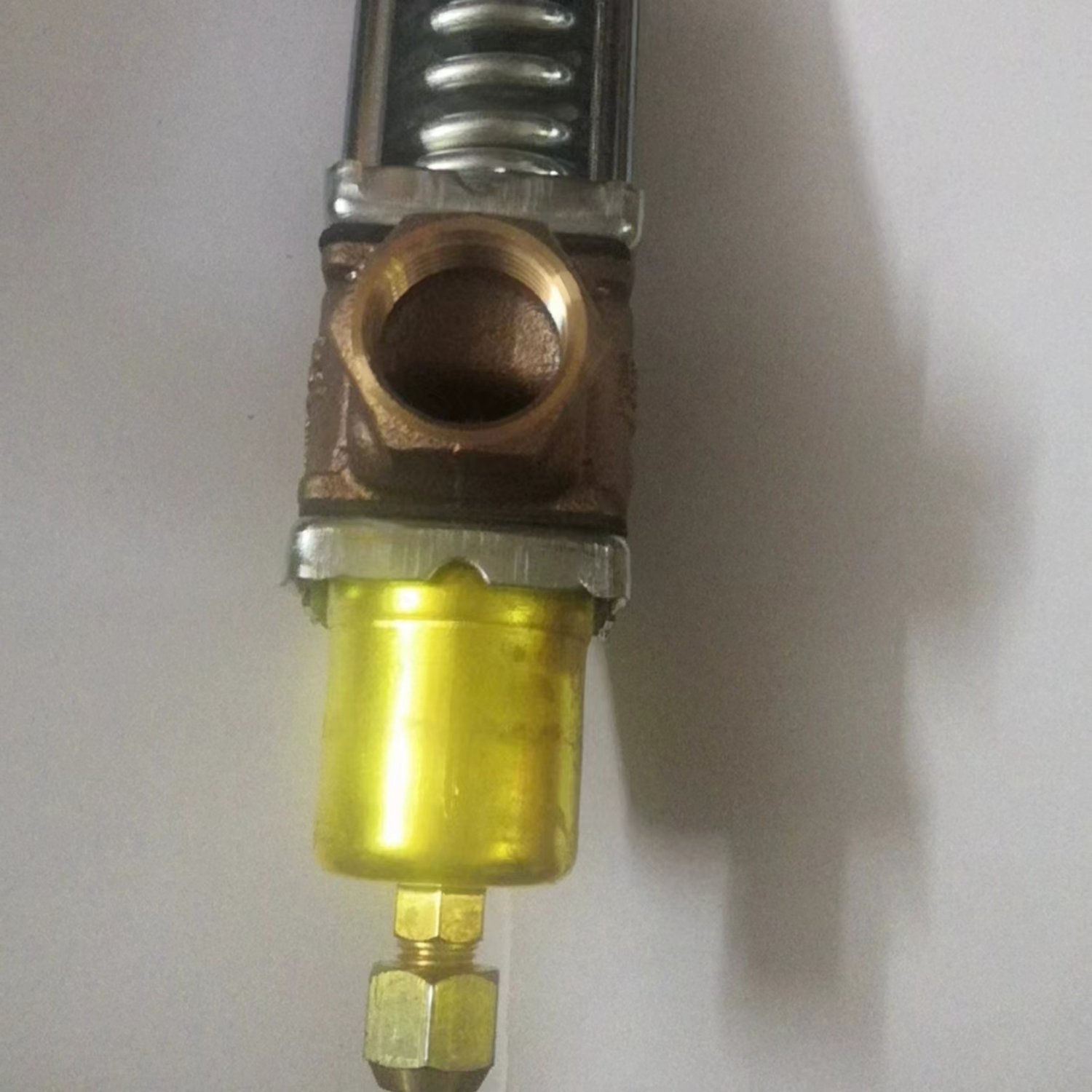

Pressure Connection: 1/4" Flare nut (Standard for the AWR series)
Valve Body Material: Cast Bronze (suitable for both water and glycol mixtures)
Compatible Refrigerants: Fluorinated/fluorocarbon refrigerants including R134a, R404A, R407C, and R22
Pressure Range: 590 to 1,760 KPa (5.9 to 17.6 bar)
Factory Default Setting: 740 KPa (7.4 bar)
Maximum Working Pressure (Refrigerant Side): 1,960 KPa (1.96 MPa / 19.6 bar)
Maximum Water Pressure (Coolant Side): 980 KPa (0.98 MPa / 9.8 bar)
Maximum Bellows Pressure: 2,350 KPa (2.35 MPa / 23.5 bar)
Maximum Fluid Temperature: 60°C (140°F)
Length (L): 80 mm
Total Height (H): 104 mm
Body Height (h): 87 mm
Depth/Diameter (D): 42 mm

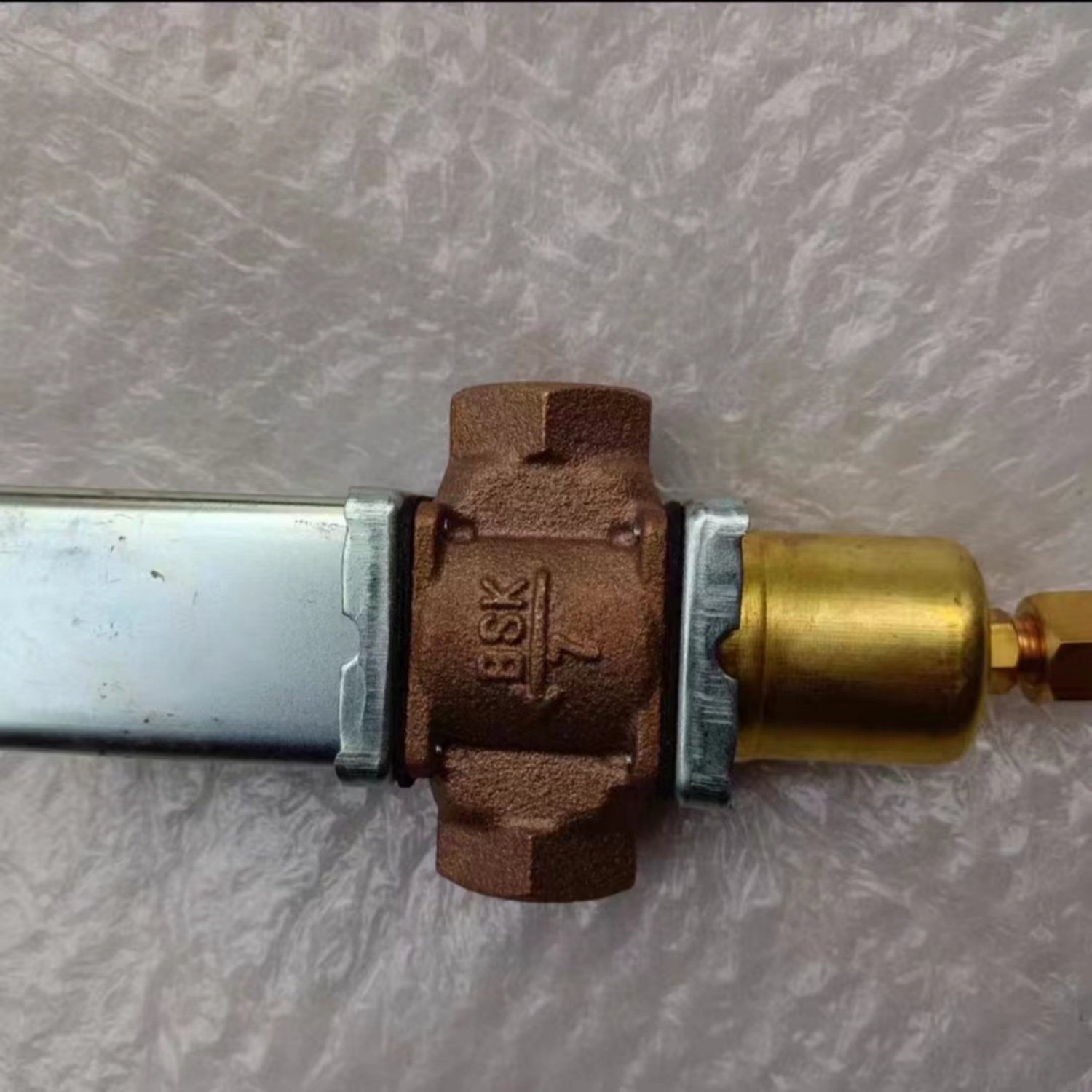

Flow Direction: The water flow must strictly follow the directional arrow stamped onto the bronze valve body. Reversing the flow orientation can lead to erratic, uncontrolled valve behavior.
Pressure Adjustment: System adjustments must only be performed using the dedicated Adjusting Spindle. Turning any other structural housing screws can breach structural seals and induce a coolant leak.

Brand New SAGINOMIYA AWR-2006GLW Water Regulating Valve (AWR Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
