Valves & Pneumatics

• Compatible Cylinder Series: Designed for several Norgren ISO/VDMA profile cylinder ranges, including the DA/8000, PRA/182000, PRA/8000, RA/8000, and RA/181/182 series.
• Seal Material: High-grade polyurethane, which offers high impact resistance, efficient low-friction operation, and a long operational lifespan.
• Kit Contents: Comes as a complete overhaul set including all necessary O-rings, pneumatic seals, linear seals, and a grease pack for proper lubrication during reassembly.

Norgren QA/8032/00 Cylinder Service Seal Kit (QA Series).

• Valve Configuration: 2-way normally closed (N.C.)
• Pipe Size / Connection: 3/8" thread
• Orifice / Through-Hole Diameter: 4.5 mm
• Pressure Limits: Minimum differential pressure of 0 bar, maximum inlet pressure up to 40 bar (with a maximum differential pressure of 12 bar).
• Compatible Environments: Water, hot water, steam, air, gasoline/benzine, and various oil products.
• QTY: 1 New FOR ODE Direct-acting diaphragm solenoid valve …

ODE 21A5KT45-WB25 Solenoid Valve (21A Series).

• Port Connection: 1/2" G thread (DN15).
• Body Material: Robust brass.
• Seal Material: Viton / FKM (Fluoroelastomer), denoted by the "V" in the model number.
• Temperature Range: Operates from -10°C to +140°C.
• Working Pressure: Broad range from 0.2 bar up to 20 bar.
• Orifice Size & Flow (Kv): 12 mm nominal diameter with a flow capacity of approximately 32 l/min.

ODE 21H8KV120B25 Solenoid Valve (21H Series).

• Valve Function: 2/2 Way, Normally Closed (NC)
• Actuation Type: Indirect Acting (Pilot Operated)
• Port Size: 3/4" Threaded (BSP / G)
• Body Material: Brass (UNI EN 12165 CW617N)
• Seal Material: FKM / Viton (High thermal resistance)
• Pressure Range: 1 to 232 PSI (approx. 0.07 to 16 Bar)
• Fluid Temperature: -10°C to +140°C
• Compatible Media: Optimized for a broad range of fluids including air, water, steam, inert gases, diesel, gasoline, and mineral oils.
• Internal Construction: Built with an AISI 300 series stainless steel armature tube and an AISI 400 series stainless steel plunger and spring for excellent corrosive resistance.
• Environmental Protection: Features an IP65 protection rating when fully fitted with its specialized electric plug connector.

ODE 21H9KV180 Solenoid Valve (21H Series).

• Core Function: Designed for automated, high-efficiency continuous shearing or workpiece cutting when integrated into manufacturing lines or robotic end-of-arm tooling (EOAT).
• Cutting Capability: Features a soft material cutting capacity of 1.5 mm x 15 mm (such as tape, film, paper, or soft plastics like PP, PE, PS, PVC) and an intricate/hard material cutting capacity of 0.5 mm x 15 mm.
• Operating Pressure: Typically functions within a 0.4 to 0.6 MPa (4–6 kg/cm²) air pressure range.
• Form Factor: Features a compact, square-body configuration with 4 integrated mounting holes built specifically for seamless mechanical installation and rigid fixed positioning.
• Blade Structure: Built with an "interlocking/wrong knife" embedded screw sleeve structure optimized specifically for clean, flush sheet cutting without blade deviation.
• Features: * AM-10 pneumatic shear is suitable for cutting paper, tape, film, hose, thin iron sheet, thin copper sheet, soft cuttin…

OPT AM-10-100S Pneumatic Air Scissor (AM Series).

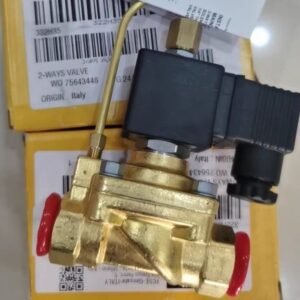

• Valve Function: 2-Way, Normally Closed (N.C.)
• Port Size: G 1/2" inch thread
• Orifice Size: 15 mm
• Maximum Operating Pressure: Up to 40 bar (approx. 580 PSI)
• Flow Factor (Kv): Up to 4.7 m³/h (approx. 60 l/min)
• Body Material: Heavy-duty Brass
• Seal Material: Polyurethane (PUR) for superior durability under pressure
• Standard DC Configuration: Frequently paired with a 24VDC coil pulling 9W to 12W, utilizing a standard 32mm DIN plug connection.
• Alternative Voltages: AC configurations (such as 110VAC or 220VAC at 50/60Hz) are also widely available through standard cross-references for industrial power grids.

PARKER 321H35 Solenoid Valve (Parker).
