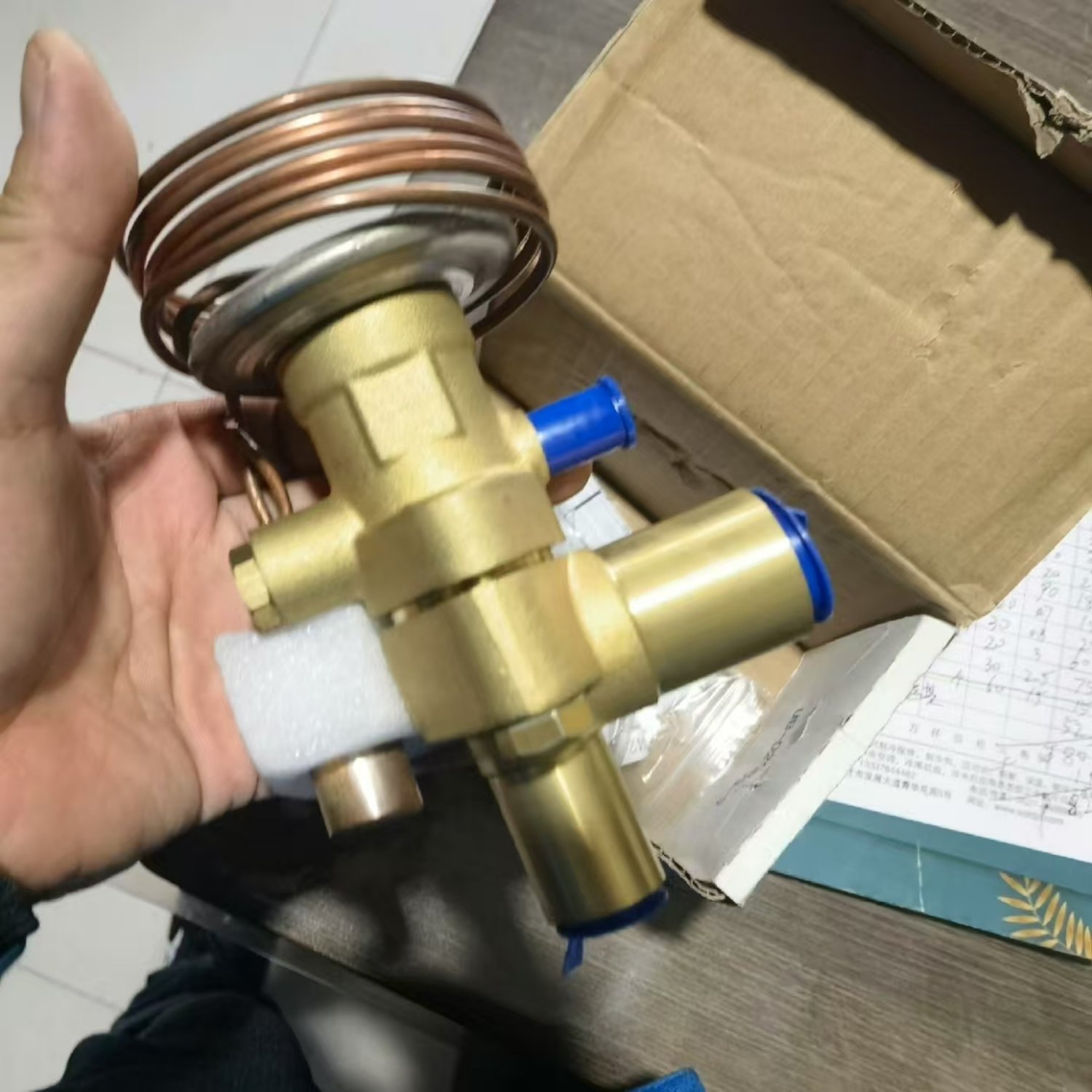

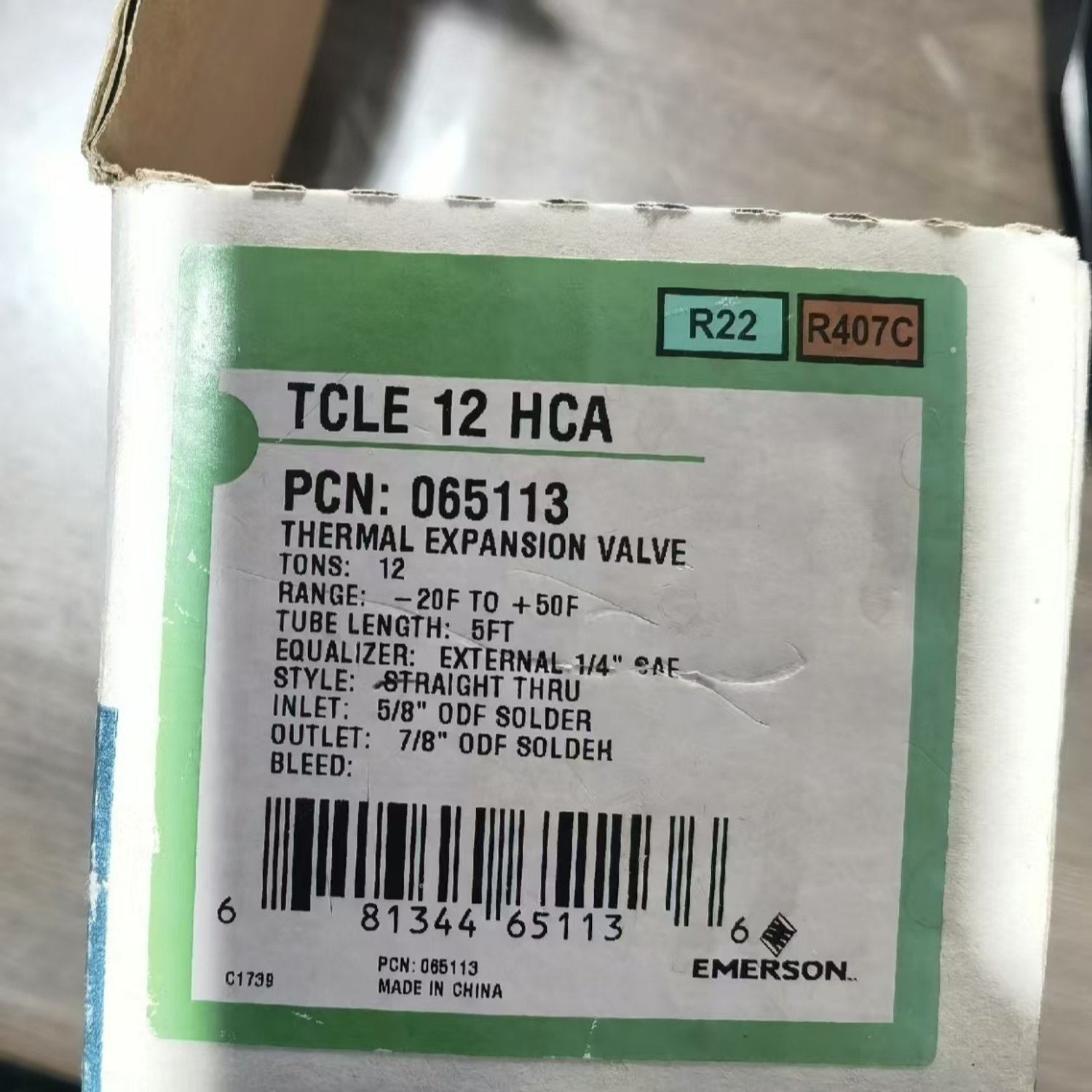

EMERSON TCLE12HCA Thermostatic Expansion Valve (ALCO T-Series)

• Nominal Capacity: 12 RT (~35.2 kW)
• Compatible Refrigerants: R22, R407C
• Inlet/Outlet Connections: 5/8" ODF / 7/8" ODF (Brazed)
• Max Working Pressure: 450 psig (31 bar)
• Features: Bi-Flow capability, Externally adjustable, Modular design
• Bulb Charge: Standard, No MOP protection
• Modular Assembly & Brazing: Properly align components and protect internal parts from heat damage when brazing 5/8" and 7/8" connections.
• Sensing Bulb Positioning: Secure the bulb on a clean, horizontal suction line, typically at the 4 or 8 o'clock position to avoid oil accumulation.
• External Equalizer Line: Connect to the top of the suction line downstream of the bulb.
• Reduce superheat (increase flow): Turn stem counter-clockwise.

Brand New EMERSON TCLE12HCA Valve. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
