Showing 113–128 of 229 results
-
REQUEST A QUOTE
- Model Designation: TGEL 6.5
- Compatible Refrigerants: Engineered specifically for R-410A and R-32.
- Capacity: Rated at 5.5 to 6.5 Tons / 24 kW.
- Inlet: 1/2 inch Solder, ODF
- Outlet: 5/8 inch Solder, ODF
- Equalization Line: 1/4 inch Solder, ODF (External equalization)
- Capillary Tube Length: 59 inches (1500 mm)
- Flow Design: Bi-flow capability with balanced port design to ensure stable performance under varying head pressures.
- Body & Material: Brass body with copper solder connections and a laser-welded stainless steel power element.
- Maximum Working Pressure: 46 Bar (667 Psig)
DANFOSS 067N3153 Thermostatic Expansion Valve (TGE Series).
-
REQUEST A QUOTE
- Manufacturer: DANFOSS
- Model / Part Number: 067N4154
- Refrigerant Compatibility: Specifically designed for R407C systems.
- Cooling Capacity: 19 kW / 5 Tons (Tonnage Capacity).
- Connection Configuration: 1/2 inch x 7/8 inch ODF solder / welding connection.
- Equalization: Externally equalized via a 1/4 inch solder ODF connection.
- Capillary Tube Length: 59 inches (1500 mm).
- Flow Design: Bi-flow operation capability.
- MOP (Maximum Operating Pressure): Designed without MOP protection.
DANFOSS 067N4154: Refrigerant Compatibility Specifically designed for R407C systems.; Cooling Capacity 19 kW / 5 Tons (Tonnage Capacity).; Connection Configuration 1/2 inch x 7/8 inch ODF solder / welding connection.; Equalization Externally equalized via a 1/4 inch solder ODF connection..
-
REQUEST A QUOTE
- Rotor Connection: G 1/4"-19 Right-Hand (RH) / BSP
- Housing Connection: 3.18 mm (Radial female)
- Overall Length: 70 mm
- Housing Diameter: 28.372 mm
- Maximum Speed: 3,500 RPM
- Housing Material: Aluminum
- Max Pressure: 10 bar (150 psi)
- Max Flow Rate: 283 l/min
- Max Temperature: 121 °C (250 °F)
- Max Pressure: 69 bar (1,000 psi)
DEUBLIN 1005-000-049 Self-Supported Monoflow Rotating Union (1000 Series).
-

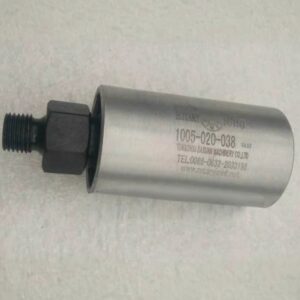

- Manufacturer: Deublin
- Model / Part Number: 1005-020-038
- Design: Monoflow, self-supported, radial housing connection
- Rotor connection: 1/8"-27 NPT RH
- Supply connection: 1/8"-27 NPT
- Media: Air, hydraulic oil, vacuum
- Maximum air pressure: 10 bar (150 psi)
- Maximum air flow: 283 l/min (10 CFM)
-
- Manufacturer: Deublin
- Model / Part Number: 1005-020-049
- Air: Maximum pressure: 10 bar (150 psi); flow rate: 283 l/min (10 cfm); maximum temperature: 121 °C (250 °F)
- Hydraulic Oil: Maximum pressure: 69 bar (1,000 psi); flow rate: 6.7 l/min (1.8 gpm); maximum temperature: 121 °C (250 °F)
- Vacuum: Maximum pressure: -0.95 bar (-13.75 psi); flow rate: 283 l/min; maximum temperature: 121 °C (250 °F)
- Maximum Rotational Speed: 3,500 RPM
- Rotor Connection (A): G 1/4"-19 BSP Right-Hand (RH) threaded
- Housing Connection (B Port): 1/8"-27 NPT radial female connection
-
REQUEST A QUOTE
- Metric Specification: Imperial Equivalent
- Primary Media: —
- Rotor Connection: M16x1.5 LH
- Supply/Housing Connection: 3/8"-19 PT
- Max Coolant Pressure: 103.4 bar
- Max Air Pressure: 10 bar
- Max Coolant Flow: 20.1 l/min
- Max Air Flow: 674 l/min
- Max Temperature: 71 °C
- Silicon Carbide Mechanical Seals: Balanced mechanical seals made from Silicon Carbide (SiC/CG) provide maximum wear resistance and extended service life under harsh conditions, minimizing leakage.
DEUBLIN 1101-202-651 Rotary Union (1101 Series).
-

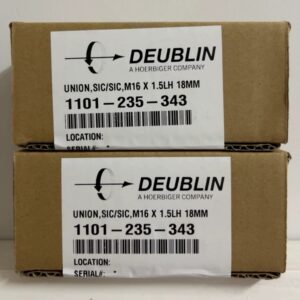

- Manufacturer: Deublin
- Model / Part Number: 1101-235-343
- Media: Coolant or Minimum Quantity Lubrication (MQL)
- Maximum Pressure: 103.4 bar (1,500 psi)
- Maximum Flow Rate: 20.1 l/min (5.3 GPM)
- Maximum Temperature: 71 °C (160 °F)
- Maximum Speed: 15,000 RPM
- Rotor Connection (A): M16x1.5 Left-Hand (LH) thread
-

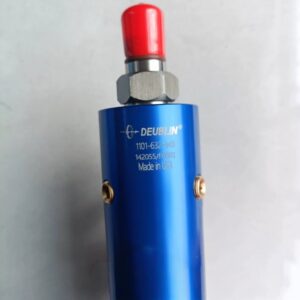

- Manufacturer: Deublin
- Model / Part Number: 1101-632-343
- Rotor Connection: M16 x 1.5 Left-Hand (LH) thread with an 18 mm pilot.
- Housing Connection (B Port): 3/8"-19 PT (Pipe Thread).
- Fluid Types: Coolant and MQL.
- Maximum Pressure: Up to 103.4 bar (1,500 PSI) for coolant.
- Maximum Temperature: 71°C (160°F).
- Overall Length: 103 mm.
-

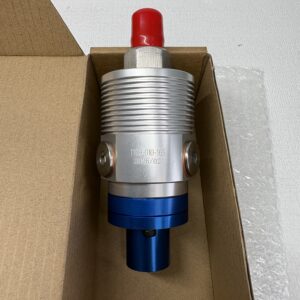

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-010-165
- Rotor Connection: 5/8"-18 UNF Left Hand (LH) thread with a 0.655" pilot.
- Housing Connection (B Port): 3/8"-18 NPT thread.
- Maximum Speed: 20,000 RPM.
- Coolant Limits: Maximum pressure of 103.4 bar (1,500 psi) and max flow rate of 81.8 liters per minute (21.6 GPM).
- MQL Limits: Maximum pressure of 10 bar (150 psi) and max flow rate of 2,040 liters per minute (72.1 CFM).
- Maximum Temperature: 71°C (160°F).
- Dry-Run Capability: Pop-Off™ seals close only under pressure, preventing wear during dry machining.
- Full-Flow Internal Design: Smooth inner channels lack obstructions, which stops metal chips and debris from getting trapped.
- Premium Bearings: It uses dual ABEC 7 (ISO class P4) angular contact ball bearings for stable, vibration-free rotation at high speeds.
- Rugged Materials: Built with a corrosion-resistant anodized aluminum housing, a stainless steel rotor, and rugged silicon carbide mechanical seals.
- Bearing Protection: A specialized labyrinth shield and large vents keep coolant from leaking into and ruining the ball bearings.
-

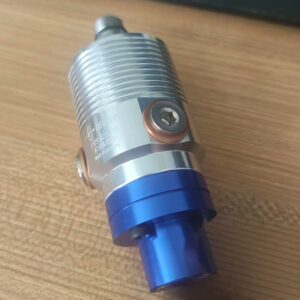

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-020-188
- Pop-Off Technology: The seals disconnect when pressure is removed. This allows for unlimited dry running without wearing out the parts when coolant is turned off.
- Full-Flow Design: The interior is smooth and has no obstacles, which prevents metal chips, swarf, or debris from getting trapped and causing clogs.
- Robust Bearing Protection: Built with high-precision dual angular contact ball bearings protected by a specialized labyrinth shield system and large cooling vents.
- Rugged Materials: It features a corrosion-resistant anodized aluminum housing, a tough stainless steel rotor, and durable silicon carbide mechanical seals.
- Max Pressure: 103.4 bar (1,500 psi) 10 bar (150 psi)
- Max Flow Rate: 81.8 l/min (21.6 GPM) 2,040 l/min (72.1 CFM)
- Max Temperature: 71 °C (160 °F) 71 °C (160 °F)
- Max Speed: 20,000 RPM 20,000 RPM
- Rotor Connection (A): M16 x 1.5 Left-Hand (LH) thread
- Pilot Diameter (I): 18 mm (17.993 mm actual)
- Housing Inlet Port (B): G 3/8"-19 radial connection
-
REQUEST A QUOTE
- Media Type: Water-based Coolant or Minimum Quantity Lubrication (MQL / oil mist)
- Rotor Connection: M16 x 1.5 Left-Hand (LH) Thread
- Pilot Diameter: 18 mm (0.708")
- Housing Connection: G 3/8"-19 (BSP)
- Maximum Speed: 20,000 RPM (min⁻¹)
- Maximum Pressure: Coolant up to 1,500 psi (MQL up to 10 bar / 145 psi)
- Max Flow Rate (Std): 82 L/min (21.6 GPM)
- Max Temperature: 71°C (160°F)
- Filtration Limit: ISO 4406 Class 17/15/12, max. 60 micron
- Full-Flow Architecture: Designed with zero internal obstructions to prevent swarf, metallic chips, or debris from getting trapped and causing clogs.
DEUBLIN 1109-021-188 Rotary Union (1100 Series).
-

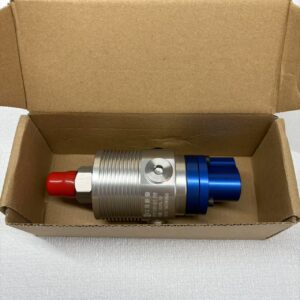

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-023-212
- Rotor Connection: M16 x 1.5 Left-Hand (LH) thread
- Pilot Size: 18 mm
- Housing Port (Inlet): G 1/4" (BSP) thread
- Max Liquid/Coolant Pressure: 2,030 PSI (~140 bar)
- Max MQL Pressure: 150 PSI (~10 bar)
- Max Fluid Flow Rate: 6.4 Gallons Per Minute (GPM)
- Max Temperature: 160°F (70°C)
- Rotational Speed: Up to 20,000 RPM
-

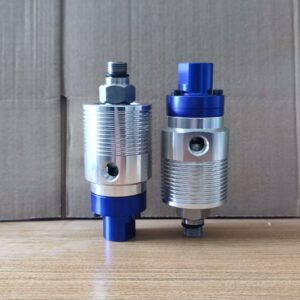

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-024-212
- Rotor Connection: M16 x 1.5 Left-Hand (LH) thread
- Rotor Pilot Size: 18 mm (0.708")
- Housing Connection: G 1/4"-19 Axial port
- Maximum Coolant Pressure: 140 bar (2,030 psi)
- Maximum MQL Pressure: 10 bar (150 psi)
- Maximum Flow Rate (Coolant): 24.3 L/min (6.4 GPM)
- Maximum Flow Rate (MQL): 21.5 CFM
- Maximum Temperature: 71°C (160°F)
- Overall Length: 129 mm (5.079 inches)
- Full-Flow Path: There are no narrow pockets or obstructions inside the union, which prevents metal chips and debris from getting stuck.
- Robust Support: It features dual angular contact ball bearings and an integrated labyrinth shield system. This design keeps coolant from leaking into the bearings and ruining them.
- Durable Construction: Built with an anodized aluminum housing to prevent rust and balanced silicon carbide mechanical seals for a long lifespan.
-

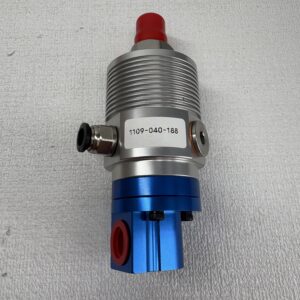

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-040-188
- Maximum Speed: 20,000 RPM
- Rotor Connection: M16 x 1.5 Left-Hand (LH) thread
- Spindle Pilot Size: 18 mm (0.708")
- Housing Connection: 3/8" PT (Radial port)
- Coolant Pressure (Max): 1,500 psi (103 bar)
- MQL Pressure (Max): 150 psi (10 bar)
- Maximum Temperature: 160°F (71°C)
-

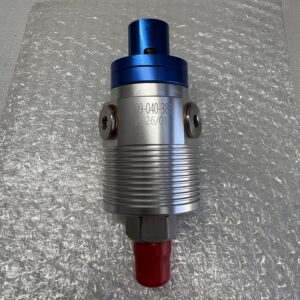

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-040-388
- Rotor Connection: M16x1.5 Left-Hand (LH) thread
- Pilot Size: 18 mm (0.708")
- Housing Connection: 3/8" PT (Pipe Taper)
- Maximum Speed: 20,000 RPM
- Maximum Temperature: 71°C (160°F)
- Media Types: Water-based coolant or MQL (No air pressure allowed while spinning)
- Full-Flow Design: The inner channel is smooth and free of obstructions, ensuring that metal chips, swarf, or debris do not get trapped inside.
- Heavy Duty Bearings: Equipped with dual angular contact ball bearings to handle high-speed rotation smoothly.
- Advanced Protection: Uses a labyrinth seal system and large visual vents to keep coolant away from the internal ball bearings.
- Rugged Construction: Built with silicon carbide mechanical seals, a stainless steel rotor, and an anodized aluminum outer shell to fight off rust and wear.
-

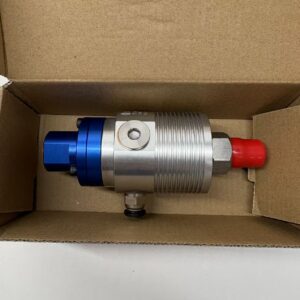

- Manufacturer: DEUBLIN
- Model / Part Number: 1109-041-188
- Maximum Speed: 20,000 RPM (revolutions per minute)
- Rotor Connection: M16x1.5 Left-Hand (LH) thread with an 18mm pilot
- Housing Connection: 3/8" PT (Pipe Thread)
- Max Coolant Pressure: 103.4 bar (1,500 psi)
- Max MQL Pressure: 10 bar (145 psi)
- Max Temperature: 71°C (160°F)
