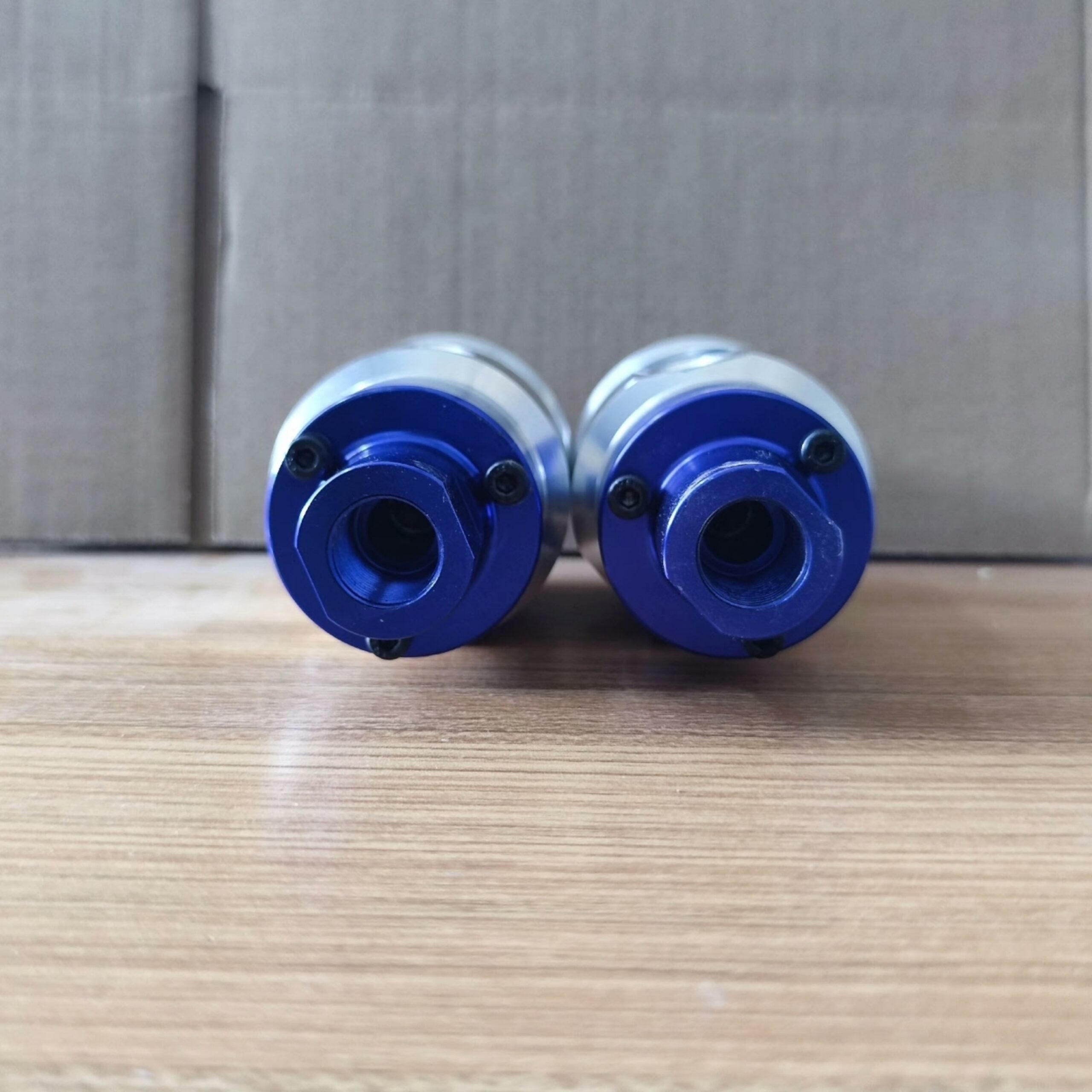

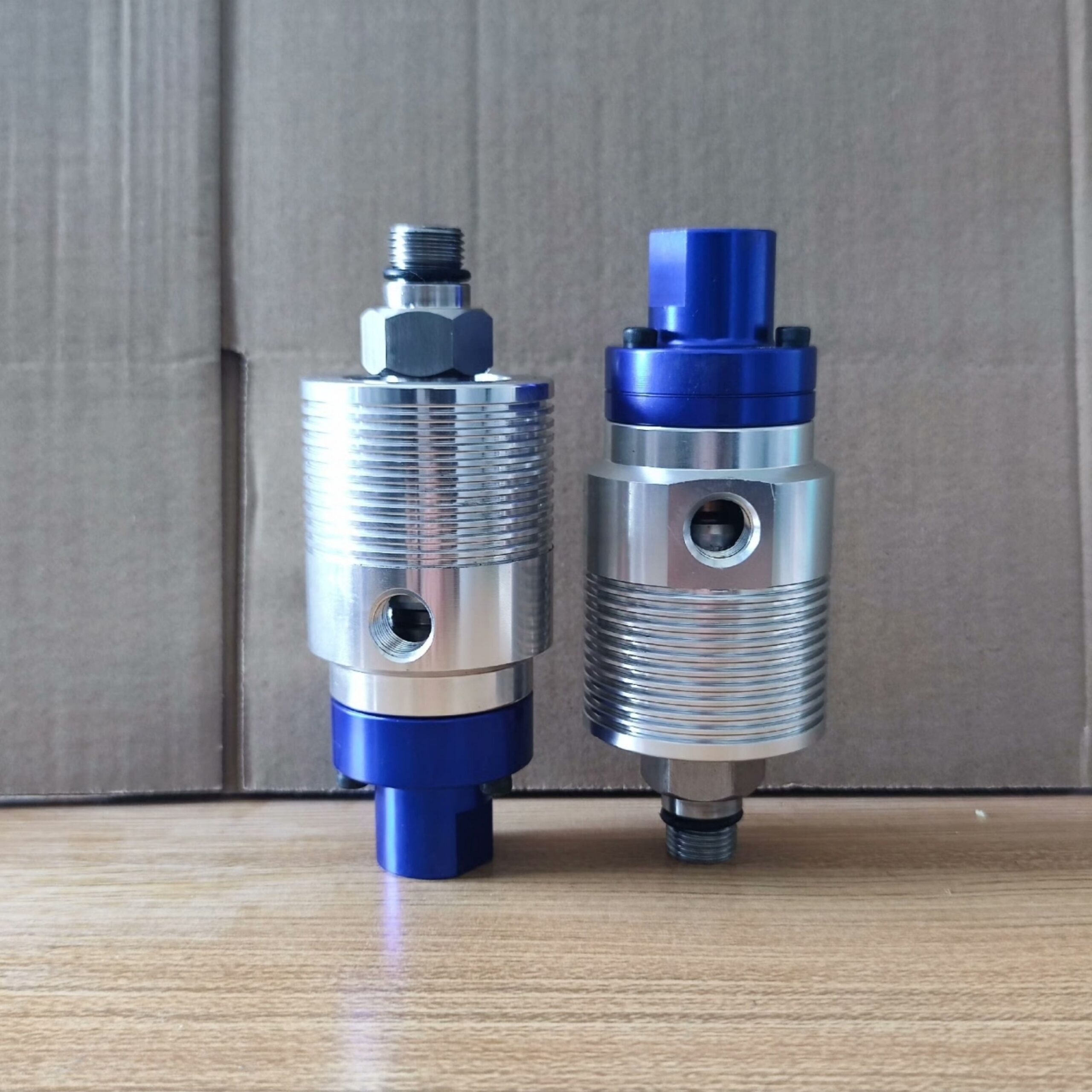

DEUBLIN 1109-024-212 High-Speed, Rotor-Mounted Rotating Union
DEUBLIN 1109-024-212 High-Speed, Rotor-Mounted Rotating Union - Image 2

DEUBLIN 1109-024-212 High-Speed, Rotor-Mounted Rotating Union

  • Manufacturer: DEUBLIN
  • Model / Part Number: 1109-024-212
  • Rotor Connection: M16 x 1.5 Left-Hand (LH) thread
  • Rotor Pilot Size: 18 mm (0.708")
  • Housing Connection: G 1/4"-19 Axial port
  • Maximum Coolant Pressure: 140 bar (2,030 psi)
  • Maximum MQL Pressure: 10 bar (150 psi)
  • Maximum Flow Rate (Coolant): 24.3 L/min (6.4 GPM)
  • Maximum Flow Rate (MQL): 21.5 CFM
  • Maximum Temperature: 71°C (160°F)
  • Overall Length: 129 mm (5.079 inches)
  • Full-Flow Path: There are no narrow pockets or obstructions inside the union, which prevents metal chips and debris from getting stuck.
  • Robust Support: It features dual angular contact ball bearings and an integrated labyrinth shield system. This design keeps coolant from leaking into the bearings and ruining them.
  • Durable Construction: Built with an anodized aluminum housing to prevent rust and balanced silicon carbide mechanical seals for a long lifespan.
  • SKU: 1109-024-212
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
