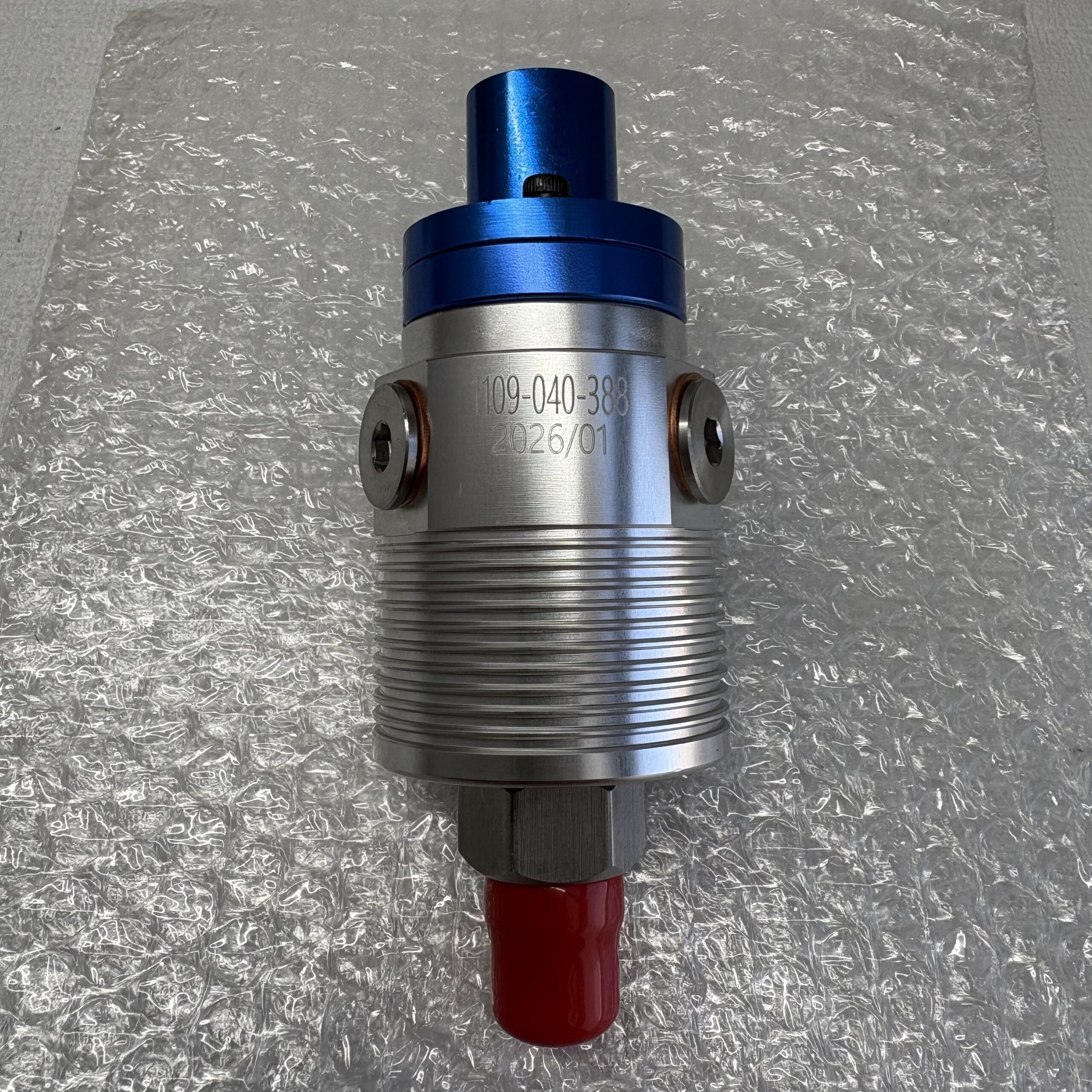

DEUBLIN 1109-040-388 Rotary Union

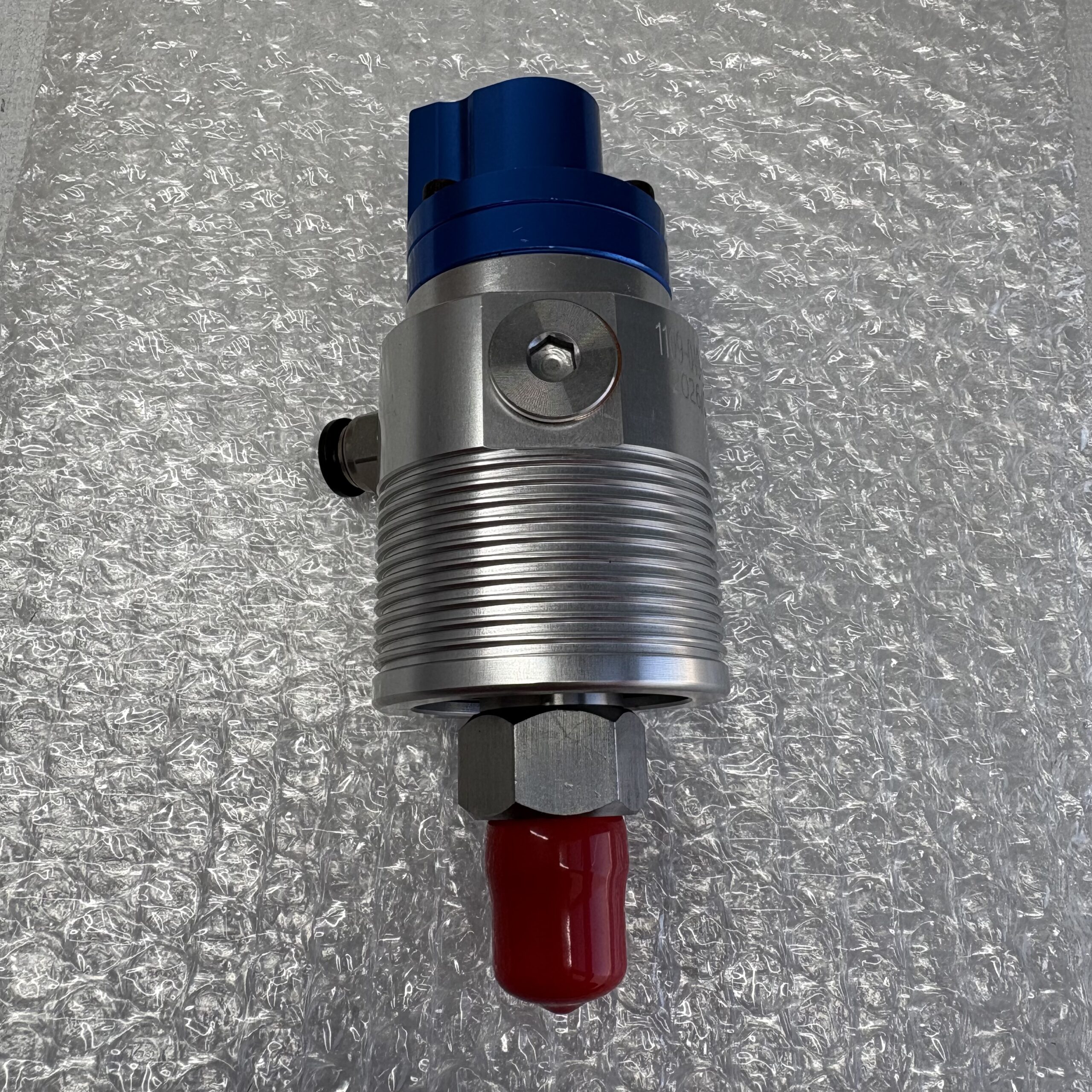

DEUBLIN 1109-040-388 Rotary Union - Image 2

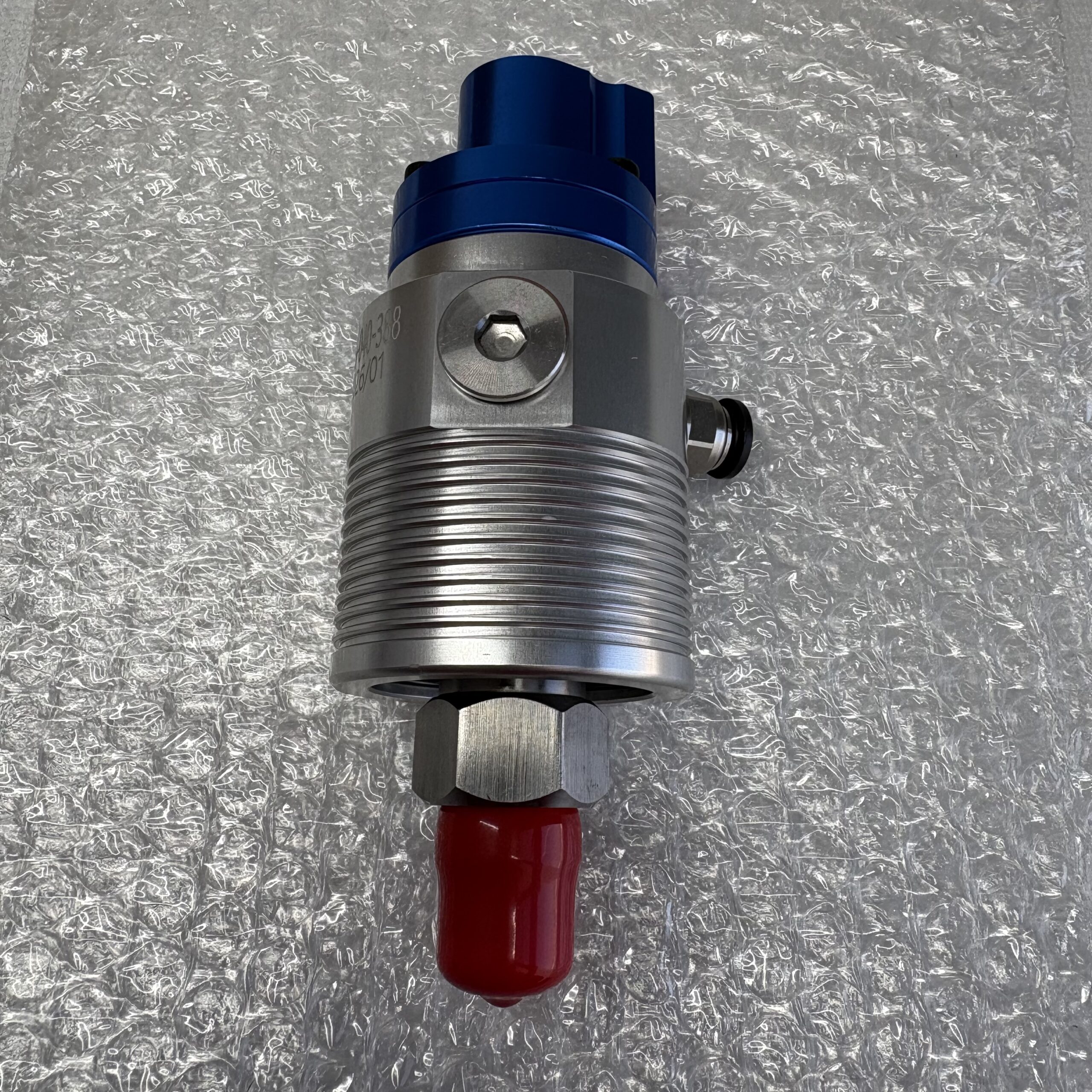

DEUBLIN 1109-040-388 Rotary Union - Image 3

DEUBLIN 1109-040-388 Rotary Union

  • Manufacturer: DEUBLIN
  • Model / Part Number: 1109-040-388
  • Rotor Connection: M16x1.5 Left-Hand (LH) thread
  • Pilot Size: 18 mm (0.708")
  • Housing Connection: 3/8" PT (Pipe Taper)
  • Maximum Speed: 20,000 RPM
  • Maximum Temperature: 71°C (160°F)
  • Media Types: Water-based coolant or MQL (No air pressure allowed while spinning)
  • Full-Flow Design: The inner channel is smooth and free of obstructions, ensuring that metal chips, swarf, or debris do not get trapped inside.
  • Heavy Duty Bearings: Equipped with dual angular contact ball bearings to handle high-speed rotation smoothly.
  • Advanced Protection: Uses a labyrinth seal system and large visual vents to keep coolant away from the internal ball bearings.
  • Rugged Construction: Built with silicon carbide mechanical seals, a stainless steel rotor, and an anodized aluminum outer shell to fight off rust and wear.
  • SKU: 1109-040-388
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
