Showing 1345–1360 of 2013 results
-
- Manufacturer: KUKA
- Model / Part Number: 00-316-581
- Function: Extension cordset cable for data and communication.
- Length: 10 meters (roughly 32 feet).
- Compatibility: Made for KUKA KRC4 and KCP4 robot controllers.
- Connection Type: Features an X19 male-to-female connector setup.
- Build Quality: Built for industrial spaces with dual-layer shielding to block electrical interference and an oil-resistant outer jacket.
-
- Manufacturer: KUKA
- Model / Part Number: 00-320-104
- Length: 10 meters (approximately 32.8 feet)
- Weight: 0.922 kg (2.03 lbs)
- Color: Gray
- Interface Connector: KUKA X19 standard connector
- Conductor Structure: Industrial-grade multi-stranded copper conductor
- Jacket Type: Shielded, continuous-flex jacket built to handle robot motion cycles and harsh factory environments
- Handheld Device: Made exclusively for the KUKA smartPAD-2 (00-291-556).
- Robot Controllers: Fully compatible with KRC4 and KRC5 industrial controller units.
- Function: Plug-and-play installation requires no software configuration. It carries the safety-critical signals (like the emergency stop and enabling switches) alongside data and screen power.
-
REQUEST A QUOTE
- Insert Shape (C): 80° Rhombic
- Clearance Angle (C): 7° Positive
- Tolerance (M): Standard Indexing Tolerance
- Type (T): Counter-hole, Single-sided
- Chipbreaker (GK): Semi-Finishing to Medium
- Target Materials: Optimized as a primary or secondary choice for Stainless Steel and HRSA processing under light to medium interruption.
- Cutting Environments: Excels in low-speed operations, showing high stability in continuous to heavily interrupted cutting profiles.
- Surface Finish: The periphery of the insert features a sharp, ground cutting edge designed to mitigate built-up edge (BUE) and work-hardening on sticky materials.
KYOCERA CCMT09T304GK PR1125 Carbide Insert (KYOCERA).
-
REQUEST A QUOTE
- Insert Shape: C Rhombic 80° (Diamond)
- Clearance Angle: N 0° (Negative)
- Tolerances: M Standard manufacturing tolerance class
- Fixing/Chipbreaker: G Double-sided with hole and chipbreaker
- Cutting Edge Length: 12 ~12.7 mm (1/2")
- Thickness: 04 4.76 mm (3/16")
- Corner Radius: 08 0.8 mm (1/32")
- Chipbreaker Style: MS Semi-finishing to medium cutting (Medium/Stainless focus)
- Insert Grade: PR1125 TiAlN PVD-coated micro-grain carbide
- Primary Target Materials: Stainless Steel (ISO M10–M30 series) and Low-Carbon/Alloy Steels.
- Operation Range: Best suited for finishing to medium cutting depths.
- Cut Type: Performs exceptionally well in stable continuous cutting to light-to-medium interrupted operations.
- High Wear & Fracture Resistance: The premium TiAlN PVD coating yields excellent fracture toughness under low speeds or interrupted conditions.
- Reduced Built-Up Edge (BUE): The smooth PVD surface coat resists adhesion, preventing workpiece material from welding onto the cutting edge.
- Sharp Cutting Profile: Peripheral grinding gives the cutting edge low cutting resistance, which minimizes burrs and maintains highly polished workpiece finishes.
KYOCERA CNMG120408MS PR1125 Rhombic Carbide Turning Insert (PR1125 Series).
-
- Manufacturer: KYOCERA
- Model / Part Number: KCS057QV1AJ-G20
- Screen Size: 5.7 inches diagonally.
- Resolution: 320 x 240 pixels (QVGA resolution).
- Display Type: CSTN (Color Super-Twist Nematic) passive matrix color LCD.
- Brightness: 200 cd/m² (nits).
- Contrast Ratio: 40:1.
- Backlight: CCFL (Cold Cathode Fluorescent Lamp) single tube.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Dimensions: 154.6 mm wide x 114.8 mm high x 8.5 mm thick.
- FRM: Frame synchronous signal (vertical sync)
- LOAD: Data latch clock
- CP: Data shift clock
- DISP: Display control signal
- VDD: Power supply for logic (usually 3.3V or 5V)
- VSS: Ground (GND)
- VEE: Power supply for the LCD panel itself
-
REQUEST A QUOTE
- Manufacturer: Kyocera Display Corporation
- Model Number: KCS057QV1AJ-G32
- Screen Size / Type: 5.7 inches (14.48 cm) diagonal / CSTN-LCD
- Native Resolution: 320 × 240 (QVGA) pixels
- Aspect Ratio / Format: 4:3 / RGB vertical stripe
- Luminance (Brightness): 200 cd/m² (Typical)
- Contrast Ratio: 40:1 (Typical)
- Viewing Angles: Horizontal: 50°/50° (Left/Right) | Vertical: 40°/50° (Up/Down)
- Backlight Type: Cold Cathode Fluorescent Lamp (CCFL)
- Backlight Lifespan: 40,000 operational hours (Typical)
KYOCERA KCS057QV1AJ-G32 CSTN-LCD Module (KCS Series).
-
- Manufacturer: KYOCERA
- Model / Part Number: KG057QV1CA-G00
- Screen Size: 5.7 inches diagonally
- Resolution: 320 × 240 pixels (QVGA)
- Display Type: FSTN-LCD, Monochrome (Black and White)
- Backlight: Single CCFL tube light (Cold Cathode Fluorescent Lamp)
- Signal Interface: 20-pin parallel data connector (4-bit)
- Brightness: 220 cd/m²
- Voltage Supply: 3.3V to 5.0V
- Industrial HMI Panels: It is the exact display panel used inside several Siemens Simatic HMI systems (like the 6AV6647 series).
- Testing Equipment: Portable measurement tools used by field engineers.
- Kiosks & Ticket Machines: Public-facing machines that require simple, highly durable screens.
-
REQUEST A QUOTE
- Designation Element: Code / Metric
- EN: Wiper Geometry
- GH: Chipbreaker
- Primary Workpieces: Optimized for Steel (ISO P) and Stainless Steel (ISO M). It is also highly effective on Cast Iron (ISO K), Non-Ferrous Metals (ISO N), and High-Temperature Superalloys (ISO S).
- Standout Feature: Utilizes 6 distinct cutting edges per insert, heavily reducing the cost-per-edge operating margin.
- Shank / End Mills: MFWN90050R-S32-3T, MFWN90063R-S32-4T, MFWN90080R-S32-5T
- Face Mill Cutters: MFWN90100R-7T, MFWN90125R-12T, MFWN90063R-3T-M, MFWN90100R-5T-M
KYOCERA WNMU080608EN-GH PR1525 Carbide Milling Insert (KYOCERA).
-
REQUEST A QUOTE
- Output Peak Current: 2.1 to 11.7 A (Configurable via DIP switch or ProTUNER software)
- Microstep Resolution: 200 to 25,600 steps/rev (via DIP switch); up to 104,000 (via software)
- Max Pulse Frequency: 200 kHz (Optically isolated signal inputs)
- Control Logic Modes: Pulse & Direction (PUL/DIR) or CW/CCW Dual Pulse
- Onboard Configuration: 16 Resolution settings, 7/8 Current settings, 50% / 100% Idle Current
- Communication Interface: RS232 (for ProTUNER PC configuration software)
- Protections: Over-voltage, Over-current error protections
LEADSHINE 3DM2283 3-Phase Stepper Drive (3DM Series).
-
REQUEST A QUOTE
- Input Voltage Range: 20–80 VDC (operational range is often rated up to 74VDC or 80VDC depending on the specific power supply overhead).
- Output Current: Adjustable from 2.2A to 8.3A (peak) using hardware DIP switches, or fine-tuned from 0.5A to 8.3A via PC software.
- Pulse Input Frequency: Up to 400 KHz maximum.
- Control Formats: Supports Step & Direction (PUL/DIR) or CW/CCW (double pulse) signals.
- Microstep Resolutions: 16 distinct hardware resolutions ranging from 200 to 25,600 steps/rev via DIP switches, or expandable up to 51,200 via software.
- Logic Voltage: Built-in 5V/24V logic voltage selector (defaulted to 24V) eliminating the need for external current-limiting resistors.
- Anti-Resonance: Features electronic tuning algorithms to calculate optimal torque distributions and suppress mid-range instability.
- Motor Compatibility: Explicitly optimized to drive 3-phase, 3-wire or 6-wire NEMA 23, 24, and 34 stepper motors.
- System Protections: Built-in defenses against over-voltage, over-current, and phase errors, alongside standard fault and brake outputs.
- Command Smoothing: Configurable control command filtering which smooths acceleration ramps and dampens physical machine vibrations.
LEADSHINE 3DM883 3-Phase Stepper Motor Driver (3DM Series).
-
REQUEST A QUOTE
- Peak Output Current: 0
- Continuous Output Current: 0
- Supply Input Voltage (DC): +18
- Pulse Input Frequency: 0
- Logic Signal Current: 7
- Encoder Current Supply: —
- Isolation Resistance: 500
- Compatible Motor Power: 20
- Weight: —
- Control Signals & Command Modes: Supports both PUL/DIR (Pulse & Direction) and CW/CCW command structures.
LEADSHINE ACS806 Stepper Drive (ACS Series).
-
REQUEST A QUOTE
- Drive Type: Digital Brushed DC Servo Driver
- Input Voltage Range: 18 VDC to 80 VDC
- Continuous Current: 10 A
- Peak Output Current: 20 A (0.5 seconds maximum duration)
- Compatible Motor Power: 20 W to 400 W (optimal for 200W~400W range)
- Control Signal Modes: PUL/DIR (Pulse/Direction) & CW/CCW (Double pulse)
- Logic Signal Current: 7 mA to 16 mA
- Pulse Input Frequency: 0 to 250 kHz
- Encoder Feedback Compatibility: It accepts both differential and single-ended encoder inputs. Differential signals are highly recommended for electrically noisy environments because of their excellent noise immunity.
- Onboard Encoder Power Supply: If the encoder draws less than 50 mA, the drive can power it directly. For encoders drawing more than 50 mA, an external DC power supply must be used.
LEADSHINE DCS810 Brushed DC Servo Drive (DCS Series).
-
REQUEST A QUOTE
- Compatible Motor Types: 2-phase and 4-phase hybrid stepper motors (Optimized for NEMA 34 and NEMA 42 frames)
- Output Current: 1.4A – 8.2A (Peak) via 8-step DIP switch configurations, or custom adjustable from 0.5A – 8.2A via tuning software
- Supply Voltage: 80 – 150 VAC (Operationally listed for standard 110V/120V AC direct mains input)
- Max Pulse Input Frequency: 200 KHz
- Logic Signal Voltage: Standard 5 VDC logic compatibility
- Control Modes: Pulse & Direction (PUL/DIR) or Double Pulse (CW/CCW) command signals
- Microstep Resolutions: 16 built-in resolutions ranging from 200 to 25,600 steps/rev via DIP switches, software-configurable up to 51,200 steps/rev
- Auto-Configuration Engine: Incorporates motor auto-test and parameter auto-configuration technology. Upon startup, it reads the motor’s electrical characteristics to instantly calculate and tune the optimal current loop coefficients.
- Anti-Resonance & Mid-Range Stability: The internal DSP algorithm effectively dampens mechanical resonances that typically plague stepper systems, allowing the motor to smoothly navigate its middle-frequency ranges without losing steps or vibrating aggressively.
- Command Smoothing: Includes software-configurable command execution smoothing filters to soften rapid accelerations and deceleration shocks, resulting in quieter operation and prolonged machine life.
LEADSHINE DM1182 Stepper Drive (DM Series).
-

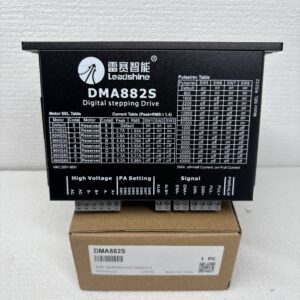

- Manufacturer: LEADSHINE
- Model / Part Number: DMA882S
- Motor Type: Two-phase stepper motor
- DC Input: 24–70 VDC
- Command Modes: Pulse/direction and CW/CCW
- Control Method: Digital current control
-

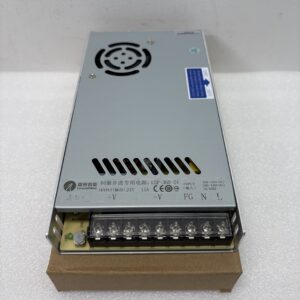

- Manufacturer: Leadshine
- Model / Part Number: LSP-360-24
- Output Voltage: 24 VDC
- Continuous Output Current: 15 Amps
- Peak Output Current: 27 Amps (built to handle high-demand motor starts)
- Total Rated Power: 360 Watts
- Physical Dimensions: 215mm x 115mm x 30mm
- Weight: 700.5 grams (about 1.54 lbs)
- High Overload Capacity: It can briefly handle up to 1.8 times its normal load to handle the high electrical surges caused when motors suddenly move or change direction.
- Slim Design: The compact design saves space inside industrial electrical enclosures.
-

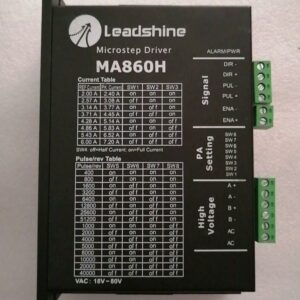

- Manufacturer: LEADSHINE
- Model / Part Number: MA860H
- Output Current: 2.4–7.2 A peak, switch selectable
- AC Input: 18–80 VAC
- DC Input: 24–110 VDC
- Pulse Input Frequency: Up to 300 kHz
- Protection: Overvoltage, overcurrent, short-circuit and undervoltage protection
- Current Control: Pure-sinusoidal current control
- Idle Current: Automatic idle-current reduction
