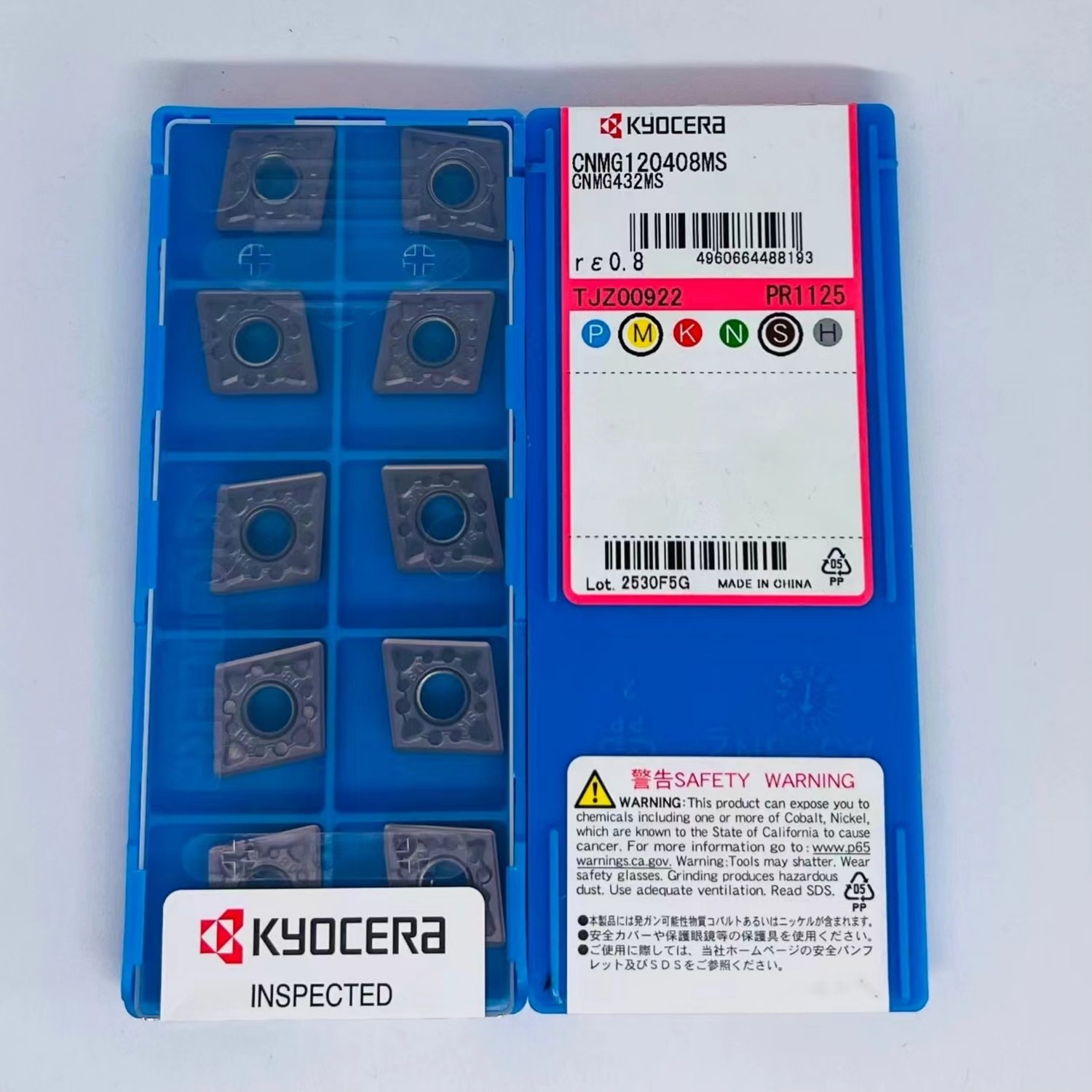

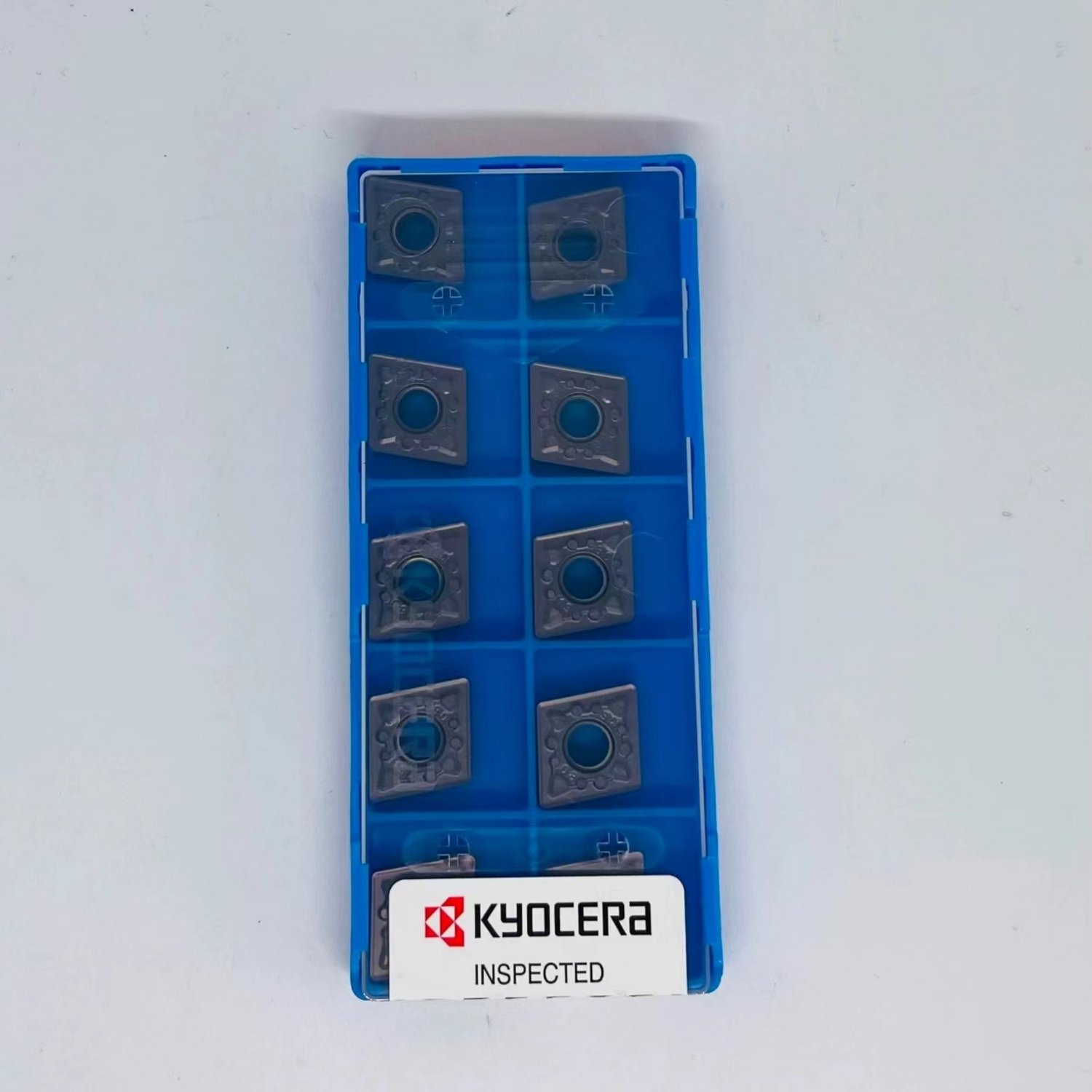

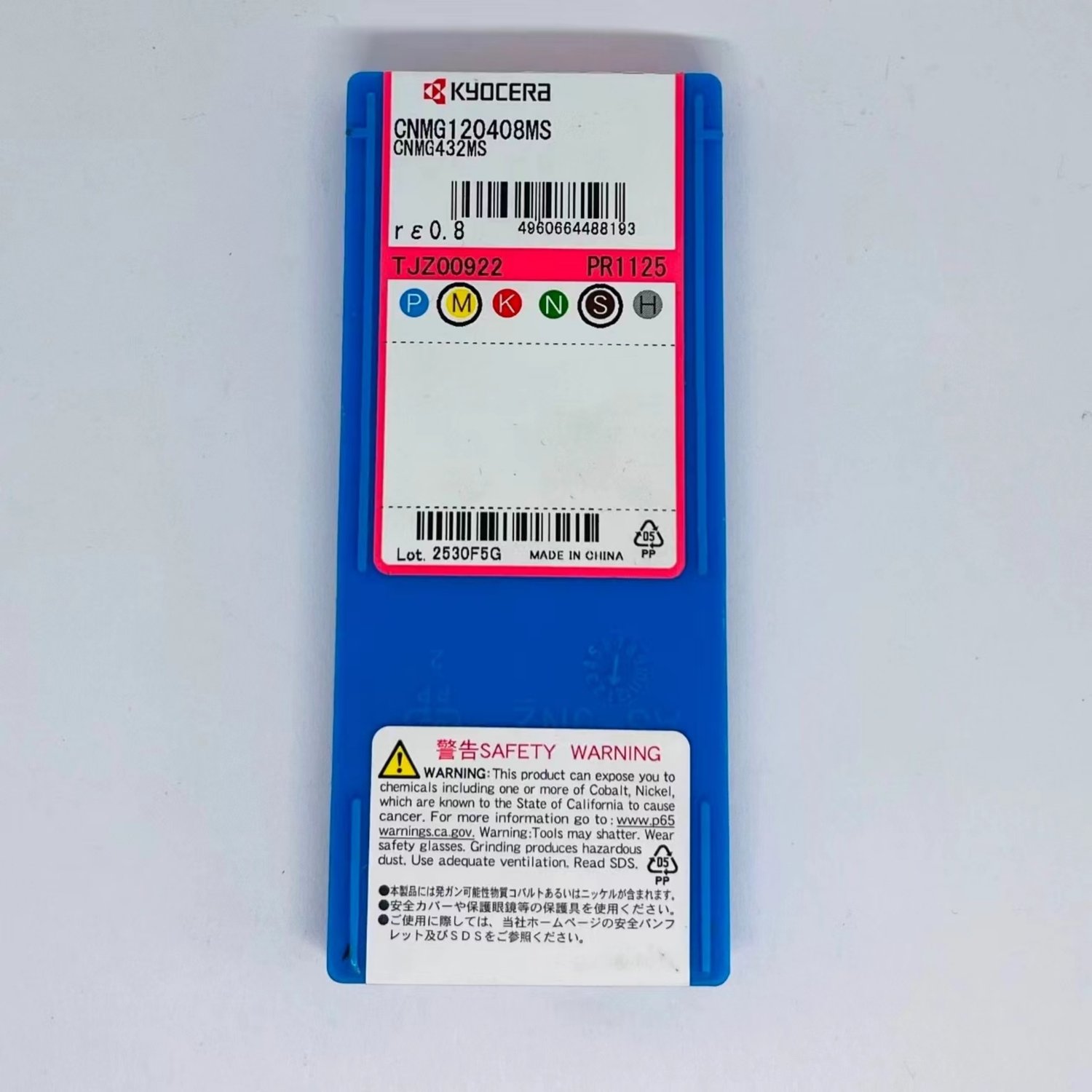

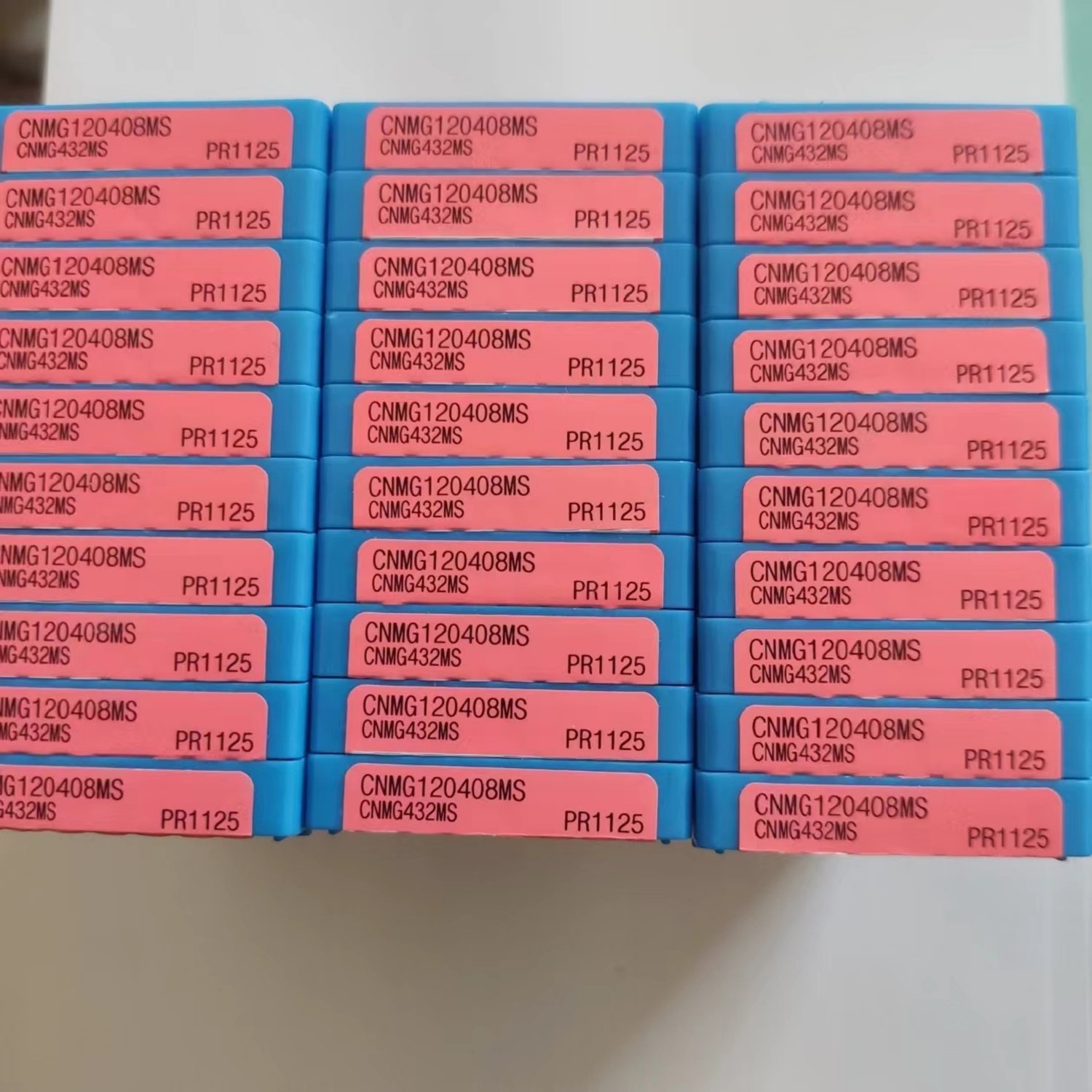

KYOCERA CNMG120408MS PR1125 Rhombic Carbide Turning Insert (PR1125 Series)

• Insert Shape: C Rhombic 80° (Diamond)
• Clearance Angle: N 0° (Negative)
• Tolerances: M Standard manufacturing tolerance class
• Fixing/Chipbreaker: G Double-sided with hole and chipbreaker
• Cutting Edge Length: 12 ~12.7 mm (1/2")
• Thickness: 04 4.76 mm (3/16")
• Corner Radius: 08 0.8 mm (1/32")
• Chipbreaker Style: MS Semi-finishing to medium cutting (Medium/Stainless focus)
• Insert Grade: PR1125 TiAlN PVD-coated micro-grain carbide
• Primary Target Materials: Stainless Steel (ISO M10–M30 series) and Low-Carbon/Alloy Steels.
• Operation Range: Best suited for finishing to medium cutting depths.
• Cut Type: Performs exceptionally well in stable continuous cutting to light-to-medium interrupted operations.
• High Wear & Fracture Resistance: The premium TiAlN PVD coating yields excellent fracture toughness under low speeds or interrupted conditions.
• Reduced Built-Up Edge (BUE): The smooth PVD surface coat resists adhesion, preventing workpiece material from welding onto the cutting edge.
• Sharp Cutting Profile: Peripheral grinding gives the cutting edge low cutting resistance, which minimizes burrs and maintains highly polished workpiece finishes.

Brand New KYOCERA CNMG120408MS PR1125 Rhombic Carbide Turning Insert (PR1125 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
