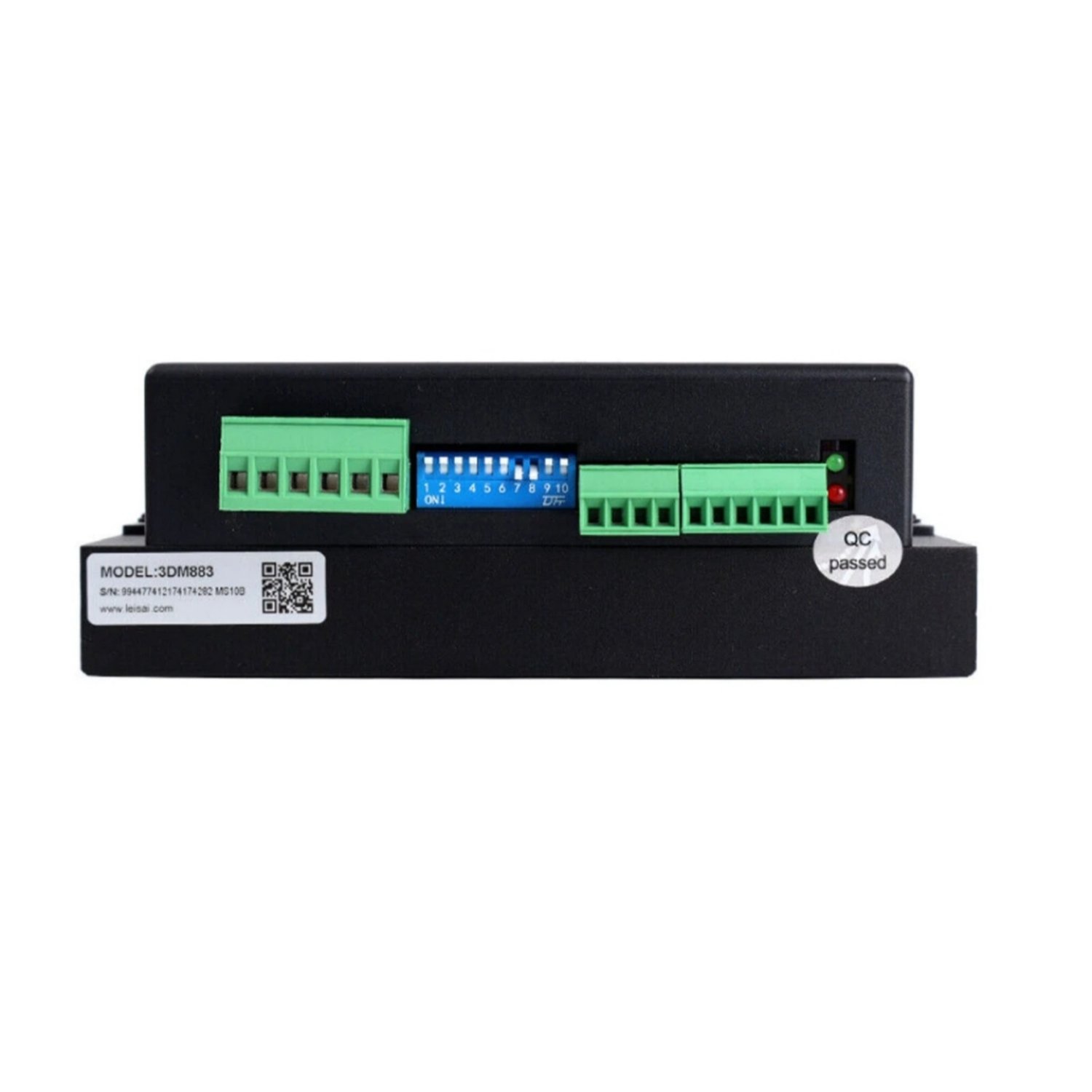

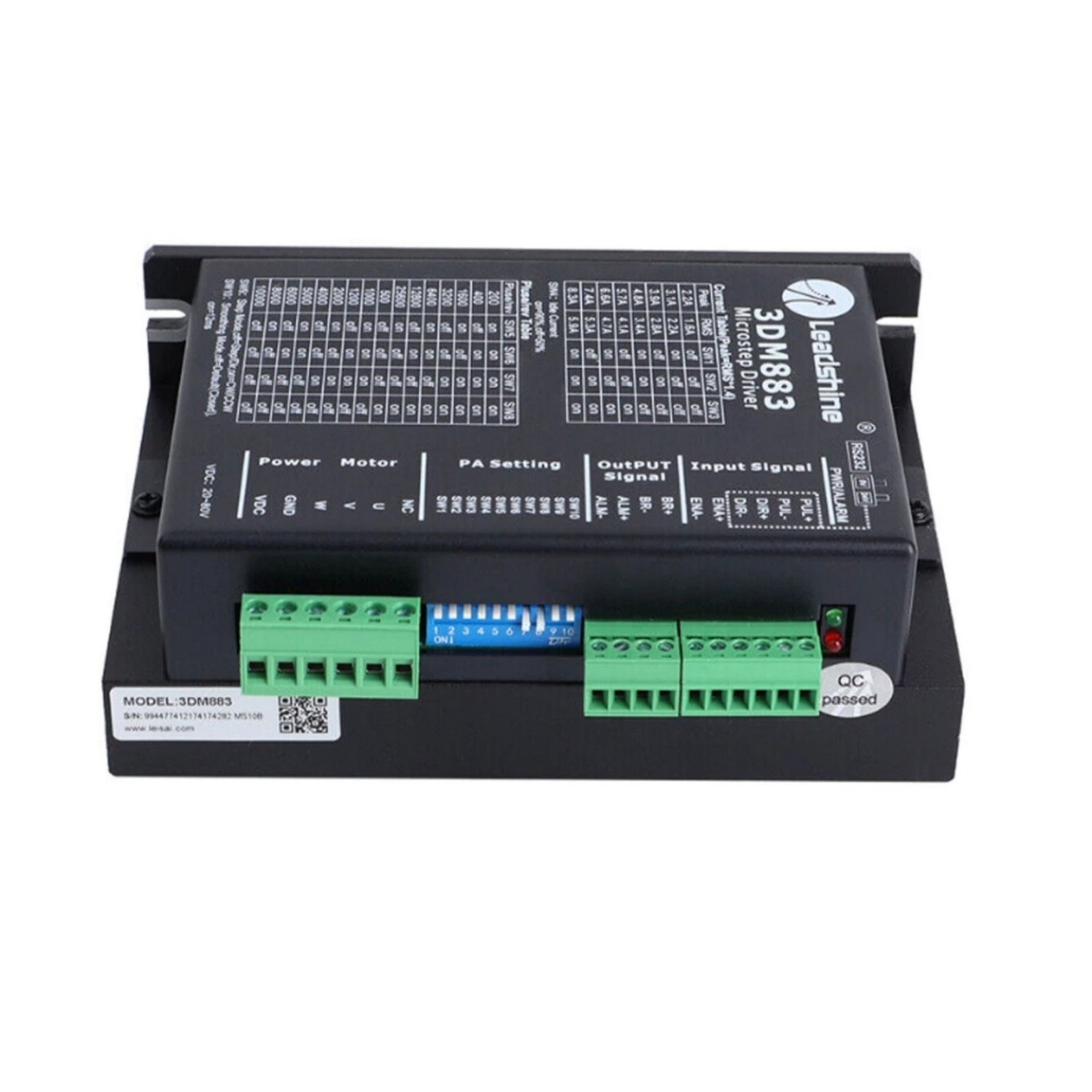

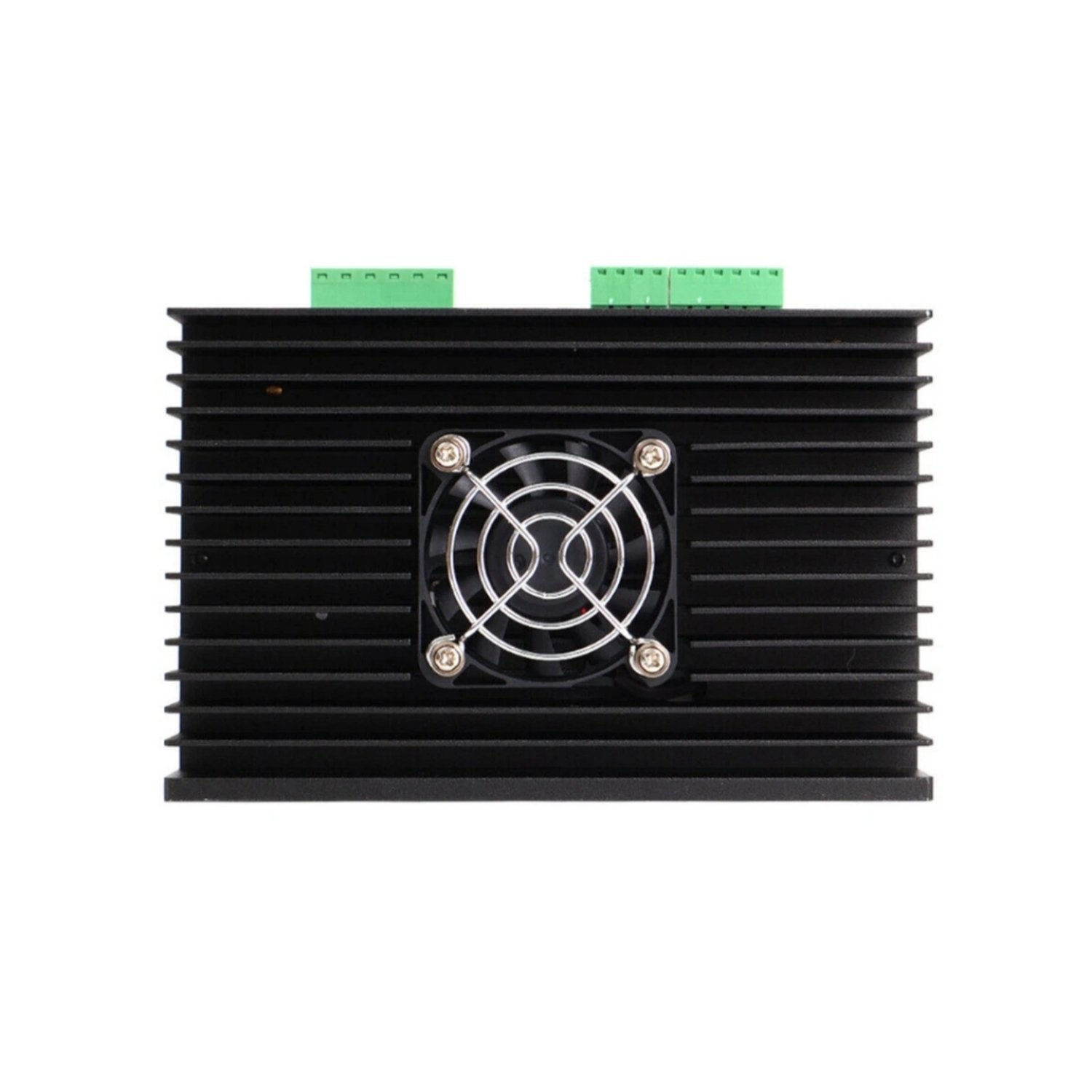

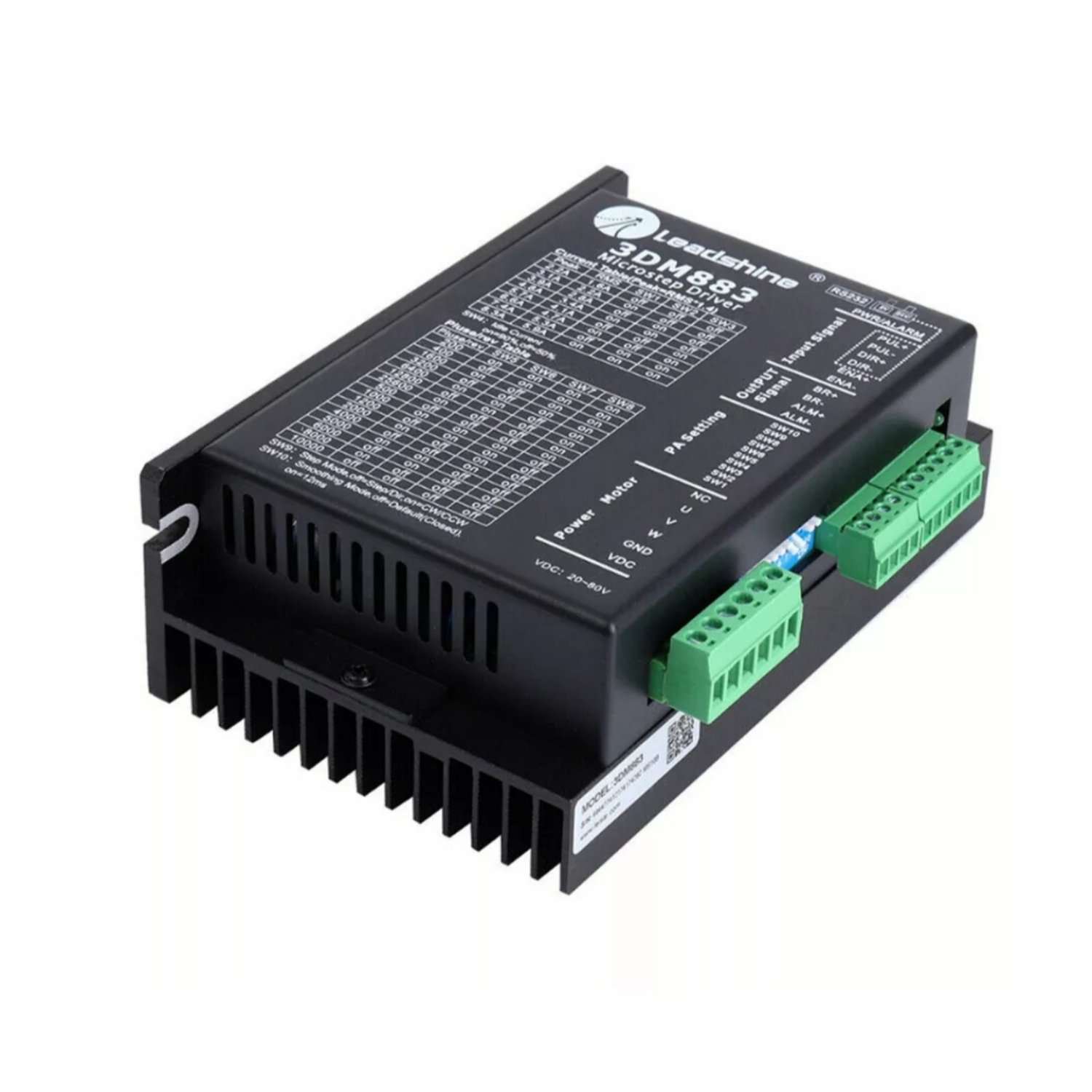

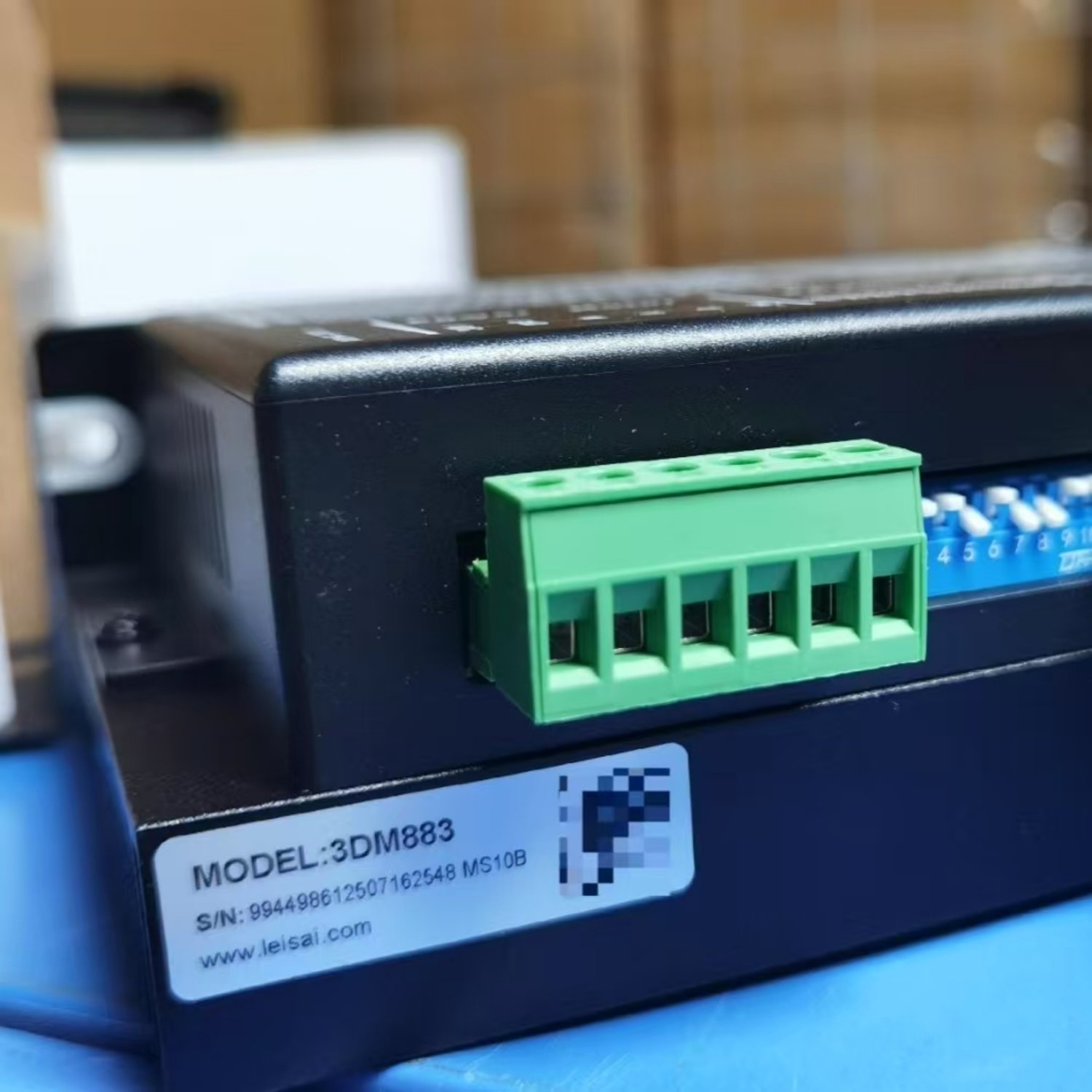

LEADSHINE 3DM883 3-Phase Stepper Motor Driver (3DM Series)

• Input Voltage Range: 20–80 VDC (operational range is often rated up to 74VDC or 80VDC depending on the specific power supply overhead).

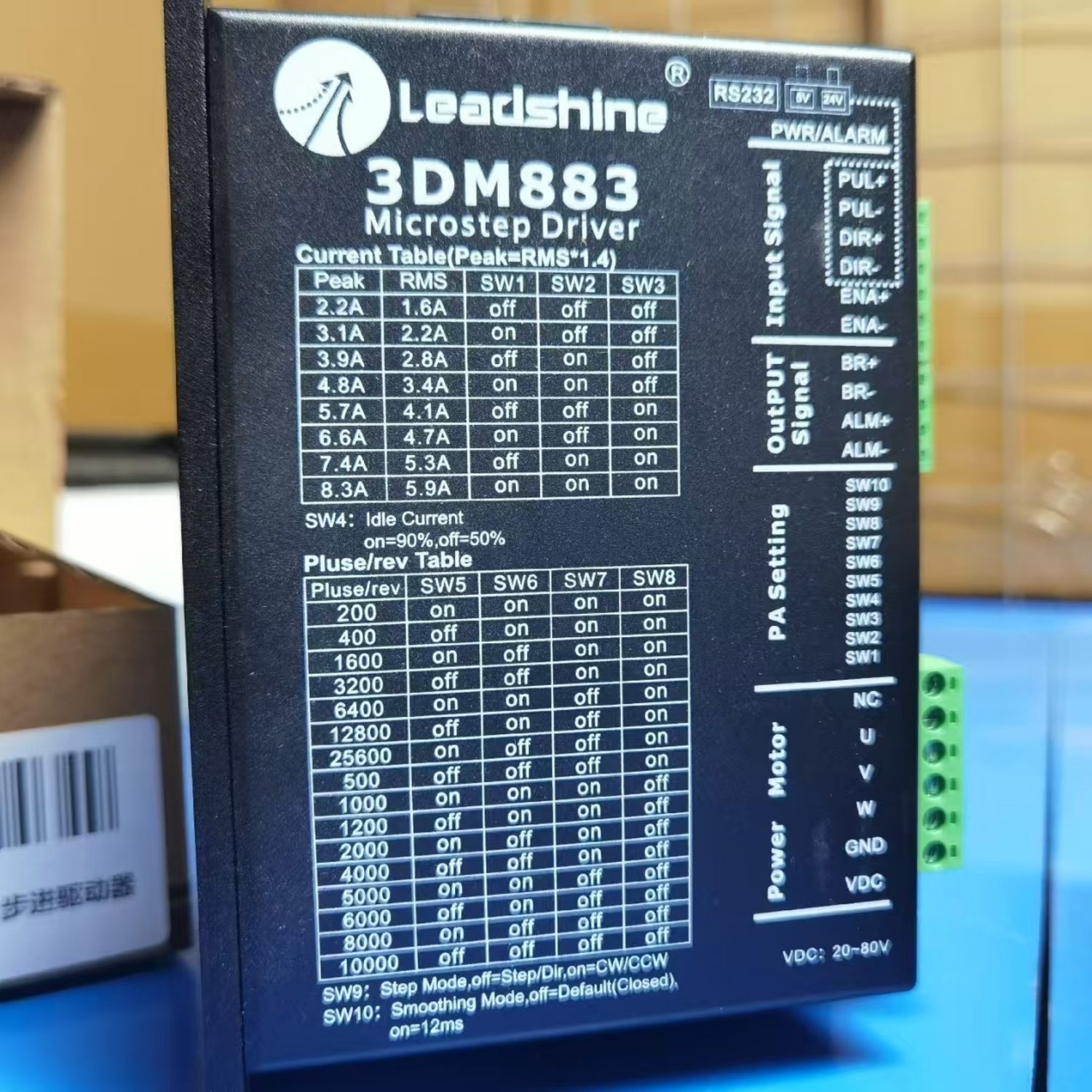

• Output Current: Adjustable from 2.2A to 8.3A (peak) using hardware DIP switches, or fine-tuned from 0.5A to 8.3A via PC software.
• Pulse Input Frequency: Up to 400 KHz maximum.
• Control Formats: Supports Step & Direction (PUL/DIR) or CW/CCW (double pulse) signals.
• Microstep Resolutions: 16 distinct hardware resolutions ranging from 200 to 25,600 steps/rev via DIP switches, or expandable up to 51,200 via software.
• Logic Voltage: Built-in 5V/24V logic voltage selector (defaulted to 24V) eliminating the need for external current-limiting resistors.
• Anti-Resonance: Features electronic tuning algorithms to calculate optimal torque distributions and suppress mid-range instability.
• Motor Compatibility: Explicitly optimized to drive 3-phase, 3-wire or 6-wire NEMA 23, 24, and 34 stepper motors.
• System Protections: Built-in defenses against over-voltage, over-current, and phase errors, alongside standard fault and brake outputs.
• Command Smoothing: Configurable control command filtering which smooths acceleration ramps and dampens physical machine vibrations.

Brand New LEADSHINE 3DM883 3-Phase Stepper Motor Driver (3DM Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
