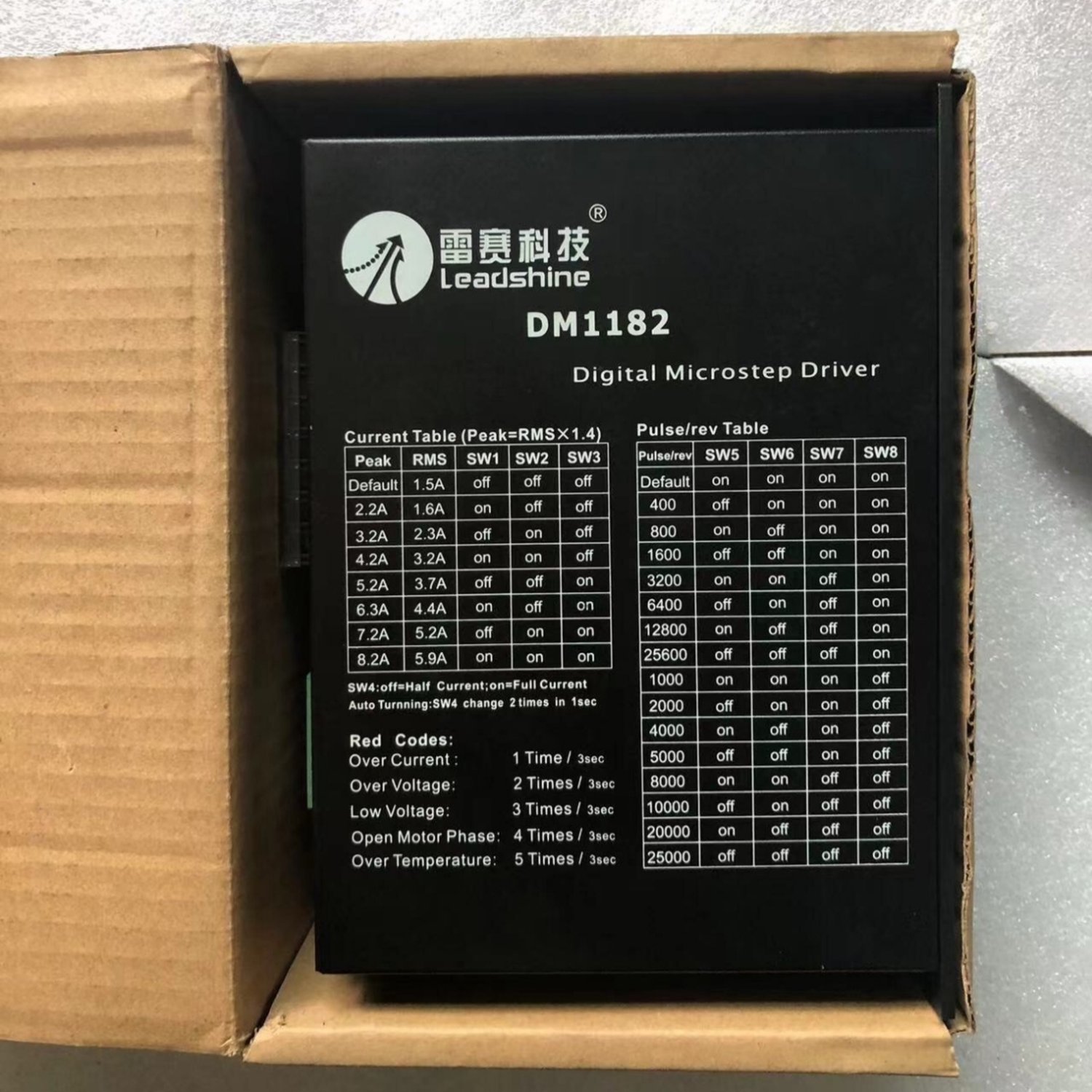

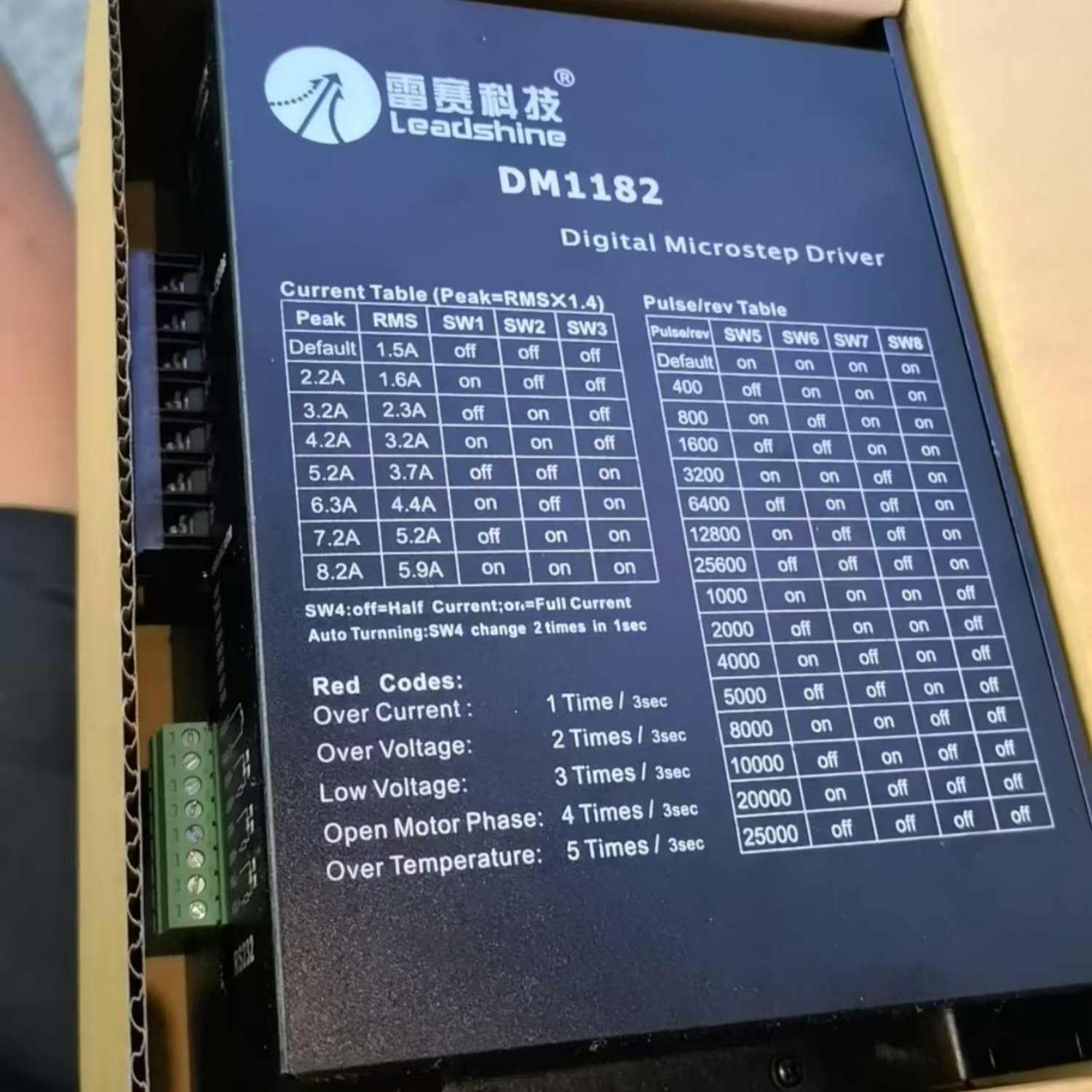

LEADSHINE DM1182 Stepper Drive (DM Series)

• Compatible Motor Types: 2-phase and 4-phase hybrid stepper motors (Optimized for NEMA 34 and NEMA 42 frames)
• Output Current: 1.4A – 8.2A (Peak) via 8-step DIP switch configurations, or custom adjustable from 0.5A – 8.2A via tuning software

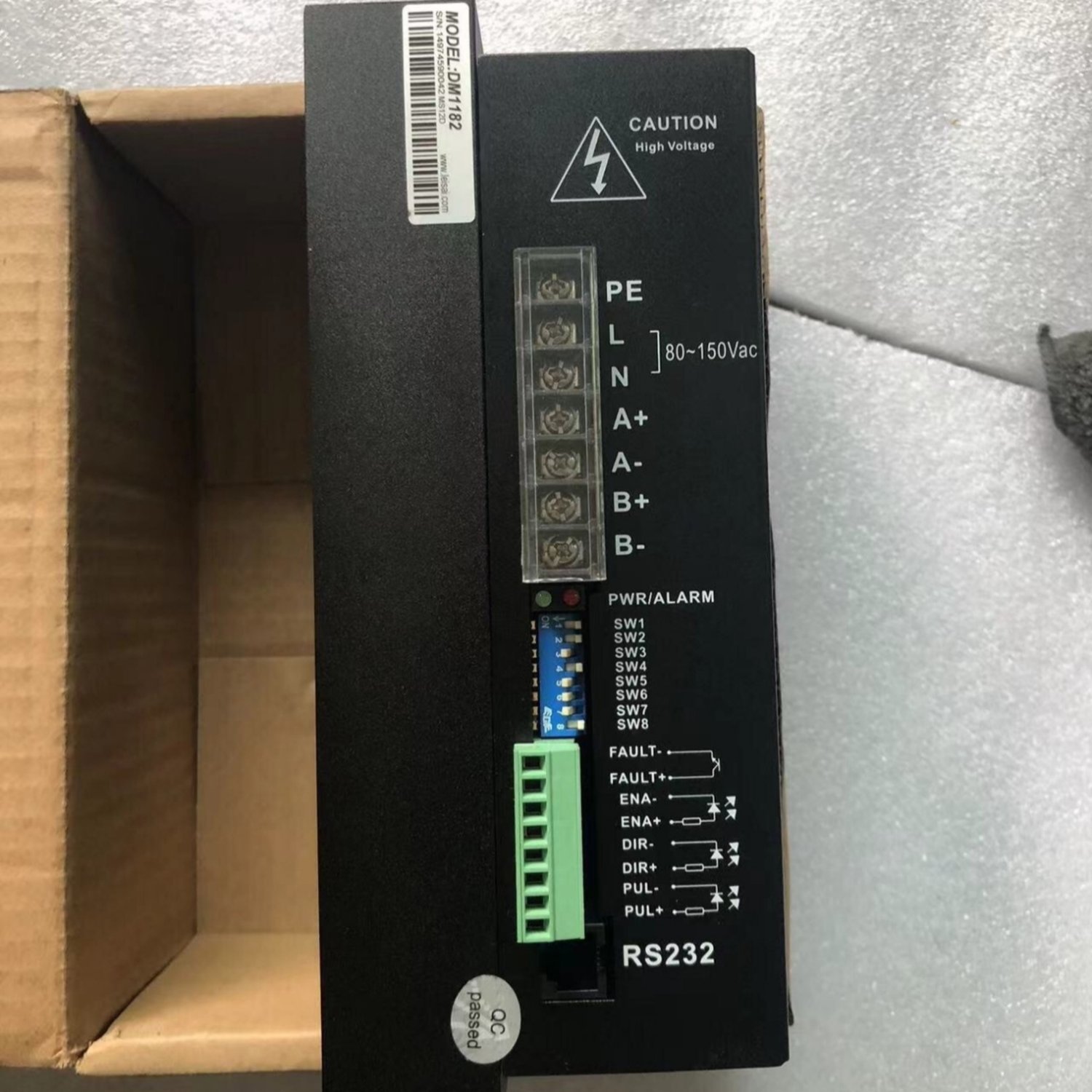

• Supply Voltage: 80 – 150 VAC (Operationally listed for standard 110V/120V AC direct mains input)
• Max Pulse Input Frequency: 200 KHz
• Logic Signal Voltage: Standard 5 VDC logic compatibility
• Control Modes: Pulse & Direction (PUL/DIR) or Double Pulse (CW/CCW) command signals
• Microstep Resolutions: 16 built-in resolutions ranging from 200 to 25,600 steps/rev via DIP switches, software-configurable up to 51,200 steps/rev
• Auto-Configuration Engine: Incorporates motor auto-test and parameter auto-configuration technology. Upon startup, it reads the motor’s electrical characteristics to instantly calculate and tune the optimal current loop coefficients.
• Anti-Resonance & Mid-Range Stability: The internal DSP algorithm effectively dampens mechanical resonances that typically plague stepper systems, allowing the motor to smoothly navigate its middle-frequency ranges without losing steps or vibrating aggressively.
• Command Smoothing: Includes software-configurable command execution smoothing filters to soften rapid accelerations and deceleration shocks, resulting in quieter operation and prolonged machine life.

Brand New LEADSHINE DM1182 Stepper Drive. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
