Showing 81–96 of 1316 results
-
REQUEST A QUOTE
- Catalog / Part Number: CM-PAS.41S / 1SVR730774R3300
- Measuring Voltage Range (L-L): 300 to 500 V AC (50/60 Hz)
- Monitored Parameters: Phase Failure, Phase Sequence, Phase Unbalance (Asymmetry)
- Output Contacts: 2 c/o (DPDT / Double Pole Double Throw) contacts
- Output Contact Rating: 250 V AC / 4 A (Resistive / AC-12)
- Tripping Time Delay: Adjustable ON-delay (0 s or 0.1 to 30 s)
- Response Time: < 100 ms on fault detection
- Terminal Connection Type: Screw Technology (Double-chamber cage connection terminals)
- Mounting Format: 35 mm DIN Rail (Top hat rail according to IEC/EN 60715)
- Operating Temperature: -25 °C to +60 °C (-13 °F to +140 °F)
Brand New ABB CM-PAS.41S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Catalog Number / Product ID: 1SVR550882R9500
- UPC / EAN: 4013614348136
- Measuring & Control Supply Voltage: 380–440 V AC (L₁, L₂, L₃ Line-to-Line, 50/60 Hz)
- Output Type: 1 Normally Open (N/O) contact, working on the closed-circuit principle
- Contact Rating: 250 V / 4 A
- Fixed Trip Threshold: Phase failure occurs when measuring voltage drops below 60% of rated voltage
- Timing Parameters: 500 ms start-up delay / 150 ms tripping delay
- Terminal / Mounting Type: Screw terminals; Snap-on mounting for standard DIN Rail (TH35)
- Status Indicators: Yellow LED for Relay Status (R)
- Compliance / Standards: UL 508, CAN/CSA C22.2 No.14, IEC/EN 61000-6-2/3, RoHS
Brand New ABB CM-PBE 3×380-440VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Phase Failure (Phase Loss): Instantly detects if one of the three phases goes completely dead or falls below fixed operational thresholds, preventing motors from "single-phasing" (which causes catastrophic winding burnouts).
- Phase Sequence: Ensures that the physical phase rotation matches the expected sequence (L1-L2-L3). If the rotation is reversed, the relay trips to prevent industrial equipment—like motors, pumps, and compressors—from spinning backwards and destroying themselves.
- Metric / Parameter: Specification Details
- Product ID (Standard): 1SVR550824R9100
- Frequency Range: 50 / 60 Hz
- Output Type: 1 c/o (SPDT / Changeover) contact operating on the closed-circuit principle
- Contact Rating: Maximum 250 V / 4 A
- Time Delay Response: ≈ 500 ms start-up/fault delay (fixed thresholds)
- Environmental Temperature: -20°C to +60°C (operational)
- Physical Dimensions: 22.5 mm (W) x 78 mm (H) x 78.5 mm (D)
Brand New ABB CM-PFE Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Frequency Range: 50 / 60 Hz
- Output Contacts: 2 c/o (SPDT changeover)
- Contact Rating: 250 V / 4 A
- Monitored Parameters: Phase Failure & Phase Sequence
- Response Time Delay: 500 ms
- Terminal Connection: Screw Terminals
- Mounting Type: DIN Rail Mountable
- Enclosure Rating: IP50 (Housing) / IP20 (Terminals)
- Self-Powered Efficiency: The relay does not require an external power supply; it is directly powered from the L1-L2-L3 measuring voltage lines.
- Phase Sequence Monitoring: Ensures that the phases are in the correct sequence (L1-L2-L3). If a sequence is inverted (which can cause three-phase motors to rotate backwards), the relay de-energizes.
Brand New ABB CM-PFS.S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Phase Loss Monitoring: Protects downstream equipment (such as three-phase motors) from running on a missing phase, which causes severe overheating and immediate winding damage.
- Overvoltage & Undervoltage Protection: Monitors the mains voltage to ensure it stays within a safe, fixed window. If the voltage swings outside the nominal thresholds, it trips to prevent insulation breakdown or equipment brownouts.
- Interrupted Neutral Monitoring: Ensures that single-phase loads tied to the neutral wire are protected from unpredictable voltage fluctuations or floating neutrals.
- Manufacturer: ABB
- Measuring & Supply Voltage: Phase-to-Neutral (L-N):
- Output Configuration: 1 N/O (Normally Open) output contact
- Output Contact Rating: 250 V / 4 A (AC-12 resistive load)
- Threshold Adjustments: Fixed (Non-adjustable windows)
- Connection Capacity: Rigid / Flexible: 2x 18-16 AWG
- Tightening Torque: 7.08 in⋅lb (0.8 N⋅m)
Brand New ABB CM-PVE 185-265VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product ID / Code: 1SVR550871R9500
- Measuring / Supply Range: 320–460 V AC (L₁-L₂-L₃)
- Rated Frequency: 50 / 60 Hz
- Output Contact: 1 N/O (Normally Open)
- Contact Rating: 250 V / 4 A
- Response Time: 80 ms
- Hysteresis: 5%
- Housing Width: 22.5 mm
- Connection Type: Screw Terminals
- Phase Loss Detection: Instantly drops the output relay if any of the three phases fail completely.
Brand New ABB CM-PVE 3×320-460VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Measuring & Supply Voltage: 3×300 to 500 V AC (50/60 Hz), self-powered from line
- Output Type: 2 c/o (DPDT / Change-over) contacts
- Contact Rating: 250 V AC / 4 A
- Tripping Delay Time: Adjustable from 0 s (instantaneous) up to 30 s
- Delay Behavior: Selectable ON-delay or OFF-delay configuration
- Terminal Connection: Screw terminals with double-chamber cage clamps
- Mounting Style: Standard 35 mm DIN Rail
- Protection Degree: Housing: IP50 | Terminals: IP20
- Approvals / Standards: CE, cULus, EAC, CCC, IEC 60255-27, Railway Approved
- R (Yellow): Indicates the state of the output relay contacts.
Brand New ABB CM-PVS.41S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

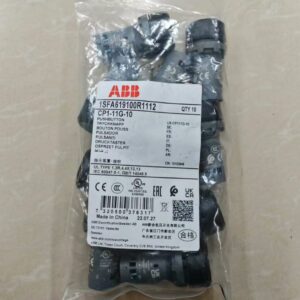

- ABB Article ID / EAN: 1SFA619100R1112 / 7320500550717
- Mounting Hole Diameter: 22.3 mm (Standard 22 mm panel cutout)
- Physical Dimensions: 30 mm × 30 mm × 55 mm (W × H × D)
- Net Weight: 0.018 kg (0.63 oz)
- Contact Configuration: 1 NO (Normally Open), 0 NC
- Operating Voltage: 24 V AC/DC (for the integrated green LED)
- Ingress Protection: IP20 (Terminals), IP66 / IP67 / IP69K (Front face)
- NEMA Enclosure Ratings: NEMA 1, 3R, 4, 4X, 12, 13
- Mechanical Durability: 500,000 operations (0.5 million cycles)
- Terminal Connections: Threaded screw clamp terminals
Brand New ABB CP1-11G-10 Pushbutton Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB (Asea Brown Boveri)
- Global Order Code / SKU: 1SVR405633R1100
- Relay Family Range: CR-MX (Pluggable Miniature Range)
- Contact Configuration: 4 c/o (SPDT) (4 Change-Over / Single Pole Double Throw contacts)
- Rated Output / Load Current: 5 A at 250 V AC (Note: Some manufacturing sheets list peak limits up to 7 A)
- Physical Pin Count: 14 Pins (Flat blade style plug-in design)
- Diagnostics Sub-Function: Integrated LED Indicator (Lights up when the coil is energized for easy troubleshooting)
- Environmental Compliance: RoHS Directive 2011/65/EU
- Visual Status Monitoring: The built-in LED provides immediate physical confirmation of control loop status without requiring manual multimeter probing.
- Modular Assembly: Designed to sit inside matching standard 14-pin DIN-rail mount sockets. It supports pluggable function modules (such as RC elements or varistor surge suppressors), mechanical holders, and identification markers.
Brand New ABB CR-MX024DC4L DC24V Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Channels: 8 digital inputs, individually galvanic isolated
- Input Signal Thresholds: "0" Signal: 0–50 V a.c., 0–40 V d.c.
- Input Impedance: 21 kΩ (a.c.) / 134 kΩ (d.c.)
- Filtering & Delays: 6 ms analog filter; Selectable digital filter times (2, 4, 8, 16 ms)
- Analog Filter On/Off Delay: 5 / 28 ms
- Power Dissipation: Typically 2.8 W
- Modulebus Consumption: 50 mA @ +5 V Modulebus; 0 mA @ +24 V
- Max Cable Length: 200 m / 218.7 yds (a.c.), 600 m / 656.1 yds (d.c.)
- Physical Weight: 0.2 kg / 0.44 lbs
- Individual Galvanic Isolation: Every input channel is isolated from the others, providing superior fault isolation and protection for your central control hardware.
Brand New ABB DI821 3BSE008550R1 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Network Protocol: EtherNet/IP (supports both standard ABB drives profiles and ODVA AC/DC drives profiles).
- Physical Interface: Two RJ-45 Ethernet ports utilizing twisted-pair media.
- Network Topologies: Supports Star, Daisy Chain, and Ring topologies.
- Enclosure Rating: IP20 / NEMA 1 equivalent (designed for indoor/cabinet installation).
- Embedded Switch for DLR: Features an integrated network switch that natively supports Device Level Ring (DLR). This allows you to construct a redundant, fault-tolerant Ethernet ring network without purchasing or installing an expensive external DLR switch.
- Rockwell/Allen-Bradley Ecosystem Optimization: Highly optimized for easy integration into Rockwell Automation environments (Studio 5000/Logix platforms) using downloadable Add-On Instructions (AOI) and electronic data sheets (EDS).
- Drive Composer Pro Support: Fully compatible with ABB's PC-based Drive Composer Pro Software, allowing commissioning engineers to perform startup, configuration, and monitoring directly over the Ethernet network.
- Primary Protocols: EtherNet/IP exclusively
- Hardware Performance: Modern chipset, optimized Requested Packet Interval (RPI) processing
Brand New ABB FEIP-21 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model / Part Number: MS132-32 / 1SAM350000R1015
- Current Setting Range: 25.0 to 32.0 A
- Trip Class: Class 10
- Number of Poles: 3P (3-Pole)
- Rated Operational Voltage: Up to 690 VAC
- Protection Degree: IP20 (Housing) / IP10 (Terminals)
- Operating Temperature: -25°C to +70°C
- Advanced Fault Indication: Unlike standard models (like the MS116), the MS132 features a separate, visual trip window that distinguishes between an overload trip and a short-circuit trip at a glance.
- Integrated Disconnect Function: Provides a reliable safety isolation mechanism that fully cuts off power downstream when switched to the "OFF" position.
- Lockable Rotary Handle: Built-in mechanism allows the handle to be padlocked directly in the "OFF" position for Lockout/Tagout (LOTO) safety compliance.
Brand New ABB MS132-32 Motor Starter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Identification: Model: OS800D03P | ID: 1SCA022825R4880
- Poles & Configuration: 3-Pole (3 Fuses); Position of line terminals: Top In – Bottom Out
- Voltage Ratings: Insulation
- Short-Circuit Capacity: Conditioned Rated Short-Circuit Current
- Fuse Compatibility: DIN-Type Size 3 (NH3 fuses)
- Operation Mechanism: Front-operated mechanism located at the end of the switch (Left side / "03" position)
- Physical Dimensions: Width: 343 mm | Height: 306 mm | Depth: 233 mm (Net Weight: 13.5 kg / 29.76 lbs)
- Environmental Standards: Protection Class: IP20 (Front Side) | RoHS Compliant: Yes
- Pistol Handle: Typically packaged with an OHB175J12 or OHB145J12 pistol-grip handle.
- Operating Shaft: Includes an OXP12X280 extended shaft (12 mm diameter, 280 mm length) to clear standard panel depths.
Brand New ABB OS800D03P Isolating Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Poles: 3-Pole
- Power Loss: 3.2 W per pole
- Mechanical Durability: 20,000 cycles
- Terminal Type: Lug terminals (Terminal Bolt Kit included)
- Standards: IEC 60947-3
- Handle: Black IP65-rated selector pistol handle (Model: OHB65J6), which is padlockable in the "OFF" position for Lockout/Tagout (LOTO) safety compliance.
- Shaft: Extended selector shaft (Model: OXP6X210).
- Hardware: M12 × 50mm connection bolt kit.
- Emergency & Maintenance Isolation: Allows plant operators to isolate powerful downstream equipment cleanly under full load conditions.
- Lockout/Tagout (LOTO): The pistol handle features built-in padlock holes ensuring a technician can physically lock out the panel during system service to prevent accidental restarts.
Brand New ABB OT160EV03P Isolating Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Poles: 3-Pole (3P)
- Amperage / Current Rating: 16 A (IEC) / 20 A (UL 508 standard)
- Transition Type: Open Transition (Break-before-make design ensures the connection to the primary power source is fully broken before connecting to the secondary source, preventing hazardous backfeeding).
- Contact Position Indication: I-O-II (Source 1 – OFF – Source 2)
- Mounting Configuration: Base mounting or standard DIN rail mounting
- Terminal Type: Protected clamp/screw terminals providing IP20 finger-safe protection.
- Dimensions: 68 mm H x 70 mm W x 68 mm D (2.68" x 2.76" x 2.68")
- Flexible Mechanics: The switch mechanism is front-operated and mounted directly on top of the device, making it highly accessible inside compact control panels.
Brand New ABB OT16F3C Isolating Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Current Rating: 63 A (IEC)
- Max Operational Voltage: 750 V AC (IEC)
- Number of Poles: 3-Pole
- Cable Cross-Section: 1.5 mm² to 35 mm²
- Mounting Capability: DIN-Rail or Base Plate
- Terminal Style: Screw / Protected Clamp
- Standards & Approvals: IEC 60947-3, UL 508, CSA
- Industrial Machinery Safety Lockout: Safely cuts off supply downstream during mechanical lockout/tagout (LOTO) maintenance procedures.
- Motor Control Centers (MCC): Acts as a high-durability, compact isolation link directly feeding sub-panel motor starters or variable frequency drives (VFDs).
- Solar & Building Infrastructure: Utilized as a main AC switch within commercial panelboards and distribution equipment.
Brand New ABB OT63F3 Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
