Showing 49–64 of 1316 results
-
REQUEST A QUOTE
- Manufacturer: ABB (Asea Brown Boveri)
- Part Number (MPN): 3HAC2530-1
- Replaced Legacy ID: 3HAB2679-1
- Cable Length: 15 m (49.2 ft)
- Physical Weight: 1.46 kg (3.22 lbs)
- Dimensions: 150 mm × 60 mm (packaged net profile)
- Connector Configuration: One straight connector and one right-angle (bent) connector
- Application Compatibility: ABB IRC5, IRC5C controllers; industrial robot SMB encoder and signal track positioning.
- Standout Features: 15m shielded design specifically built to sustain the complex high-flex demands of robotic tracking systems.
- Compatibility Warning: When utilizing this product as a direct substitution, verify if your system originally specified the older part code 3HAB2679-1, as this newer line replaces it completely.
Brand New ABB 3HAC2530-1 Robot Cable. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer Part Number: 3HAC9038-1
- Cable Type: R1.MP Power Control / Robot Body Signal Cable
- Length: 7 Meters
- Weight: ~0.38 kg (0.84 lbs)
- Operating Temperature Range: –10 °C to +50 °C (14 °F to 122 °F)
- Compatibility: ABB Industrial Robot Systems (including IRC5/IRC5C controller setups paired with IRB 1600 or IRB 2400 arms)
- Material Construction: Reinforced polymer insulation designed for high oil, chemical, and flexing resistance in demanding assembly environments.
- IAS Robot Supply: New Original
- Model Validation: Always check the explicit pinouts on your current R1.MP connector block before hot-swapping cables. Ensure your controller software registry matches the physical axis assignment.
- Bend Radius Safety: When routing through the cable track or floor conduit, maintain the manufacturer-specified dynamic bend radius to mitigate long-term structural strain and avoid unexpected signal loss.
Brand New ABB 3HAC9038-1 Robot Cable. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB (A-Line Series)
- Number of Poles: 3 Power Poles (3NO) + 2 Auxiliary (1NO / 1NC)
- Coil Voltage: 110V AC @ 50Hz / 110V–120V AC @ 60Hz
- Amperage Rating: 130 A (NEMA / AC-3 operation)
- Maximum Voltage: 690V AC / 1000V AC Insulation
- Horsepower (HP) Ratings: 208V: 40 HP | 240V: 50 HP | 480V: 100 HP | 600V: 125 HP
- Dimensions: 111.5 mm (W) x 196 mm (H) x 160 mm (D) / 4.39" x 7.71" x 6.30"
- Net Weight: 2.9 kg / 6.39 lbs
Brand New ABB A145-30-11 110V Contactor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Output: 0.37 kW / 0.5 HP (Horsepower)
- Input Supply: 1-Phase, 200V to 240V AC (± 10%)
- Output Supply: 3-Phase, 200V to 240V AC (Variable Frequency)
- Max Output Current: 2.4 A
- Frequency Range: 50 Hz / 60 Hz
- Enclosure Rating: IP20 / NEMA 1 (Open type, needs a panel/enclosure for dusty environments)
- Motor Control Mode: Scalar Control (U/F or V/f)
- Frame Size: R1
- Phase Conversion: This unit conveniently takes standard single-phase household or commercial power (200–240V) and converts it into a three-phase output to drive industrial-grade 3-phase AC induction motors.
- User Interface: Features a fixed, built-in control panel keypad and an integrated speed potentiometer right on the front for easy, manual frequency adjustments.
Brand New ABB ACS150-01E-02A4-2 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Specification Attribute: Metric Measurement
- Output Power (Pn): 0.75 kW
- Input Supply Voltage: 200 V to 240 V (± 10%)
- Output Voltage & Phase: 3-Phase, 0 to Input Voltage
- Rated Output Current: 4.7 A
- Input Current: 11.4 A (8.1 A with input choke)
- Overload Capability: 150% current for 60 seconds
- Enclosure Protection: IP20
- Control Interface: 5x Digital Inputs, 1x Analog Input
- Motor Control Method: Scalar Control (U/f)
Brand New ABB ACS150-01E-04A7-2 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB (Asea Brown Boveri)
- Product Series: ACS150
- Input Phase Count: 1-Phase (-01)
- Regional Design: European/EMC Filter (E)
- Output Current: 6.7 Amperes (-06A7)
- Voltage Class: 200–240V AC (-2)
- Power Output: 1.1 kW / 1.5 HP
- Enclosure Rating: IP20 / UL Open Type
- Motor Control Mode: Scalar Control (V/f)
- Overload Capacity: 150% for 1 min every 10 min
Brand New ABB ACS150-01E-06A7-2 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Rating: 1.5 kW (2.0 Hp)
- Input Supply Phase: 1-Phase
- Output Phase: 3-Phase (for driving 3-phase induction motors)
- Input Voltage Range: 200 V to 240 VAC ± 10% (50/60 Hz)
- Maximum Output Current: 7.5 A continuous
- Maximum Input Current: 16.8 A (Requires appropriate upstream circuit protection)
- Output Frequency Range: 0 to 500 Hz
- Frame Size: R2
- Enclosure Rating: IP20 / UL Open Type
- Motor Control Method: Scalar Control (U/F Voltage/Frequency curve scaling)
Brand New ABB ACS150-01E-07A5-2 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Phase & Voltage: 1-Phase, 200 V to 240 V AC (±10%)
- Output Phase & Voltage: 3-Phase, 0 to Input Voltage (230 V nominal)
- Output Current: 9.8 A
- Power Rating: 2.2 kW (3 HP)
- Output Frequency: 0 to 500 Hz
- Frame Size: R2
- Overload Capacity: 150% of rated current for 60 seconds
- Protection Class: IP20 / NEMA Open Type
- Integrated Hardware: Built-in keypad, speed potentiometer, and C3 EMC filter
- Net Weight: 1.8 kg (3.97 lbs)
Brand New ABB ACS150-01E-09A8-2 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Rating: 0.37 kW (0.5 HP)
- Output Current: 1.2 A
- Input Voltage: 380 V to 480 V AC
- Phases: 3-Phase Input & Output
- Frequency Range: Input: 50/60 Hz | Output: 0 to 500 Hz
- Enclosure Rating: IP20 / NEMA Open Type
- Physical Dimensions: 14.2 cm × 7.0 cm × 23.9 cm
- Integrated User Interface: Features a built-in LCD control pad with an integrated speed potentiometer (rotary dial) for instantaneous user tuning and easy parameter scrolling.
- Built-in EMC Filter: Includes an internal "E" class European EMC filter to curb electromagnetic interference without requiring external chassis real estate.
- Brake Chopper: Built-in dynamic braking chopper allows the drive to handle regenerative energy from decelerating loads directly via an optional external resistor.
Brand New ABB ACS150-03E-01A2-4 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Global Commercial Alias / MPN: ACS150-03E-01A9-4 (Product ID: 3ABD68865824 / 68581745)
- Phase / Input Voltage Range: 3-Phase, 380 V to 480 V AC (+10% / -15%), 50/60 Hz
- Motor Power Rating: 0.55 kW (0.75 HP)
- Output Current: 1.9 A (Continuous)
- Overload Capacity: 150% for 60 seconds every 10 minutes (Heavy Duty)
- Output Frequency: 0 Hz to 500 Hz
- Motor Control Method: Scalar (V/f) control
- Enclosure Rating: IP20 / Open type (Optional IP21 kit available)
- EMC Filter: Integrated / Built-in C3 filter
- Braking Chopper: Integrated as standard
Brand New ABB ACS150-03E-01A9-4 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Rating: 0.75 kW (1 HP)
- Output Current: 2.4 A
- Input Supply: 380–480 V AC, 3-Phase, 50/60 Hz
- Control Type: Scalar (V/f)
- Enclosure Rating: IP20 / UL open type
- Dimensions: 142 mm H x 70 mm W x 151 mm D (Frame R1)
- Frequency Range: 0 to 500 Hz
- Built-in Interface: Includes an integrated LCD keypad configuration display accompanied by a speed-adjusting potentiometer.
- Integrated Hardware: Equipped with a built-in EMC filter (C3 category) and an internal braking chopper, minimizing the need for extra external wiring.
- Flexible Mounting: Designed to support straightforward symmetrical DIN-rail snapping or direct wall/cubicle screw mounting.
Brand New ABB ACS150-03E-02A4-4 Variable Frequency Drive (ACS150 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Rating: 1.5 kW / 2 HP
- Input Voltage: 3-phase, 380 V to 480 V AC
- Output Current: 4.1 A
- Enclosure Rating: IP20 / Open type
- Control Type: Scalar (V/f)
- Dimensions: 142 mm x 70 mm x 151 mm
- Integrated Interface: Features a built-in control panel keypad and a speed potentiometer directly on the unit.
- Pre-defined Macros: Includes quick-config I/O setups such as 3-wire control, PID control, and motor potentiometer macros.
- Hardware Inclusions: Built-in EMC filter (C3 category) and an integrated braking chopper.
- Volume Configuration: Supports the optional FlashDrop tool to flash parameters without powering up the drive.
Brand New ABB ACS150-03E-04A1-4 Variable Frequency Drive (ACS150 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage: 3-phase, 380 V to 480 V AC (+/- 10%), 50/60 Hz
- Rated Output Current: 5.6 A (continuous)
- Motor Power: 2.2 kW or 3 Horsepower (HP)
- Output Frequency: 0 to 500 Hz
- Enclosure Rating: IP20 / UL Open type (standard cabinet installation)
- Frame Size: R1
- Control Interface: Features a fixed control panel with an LCD display and an integrated speed potentiometer.
- Control Method: Scalar control (U/F voltage-to-frequency ratio).
- Target Machinery: Ideally suited for simple, high-volume applications such as conveyors, fans, pumps, mixers, and basic material handling equipment.
- Built-in Braking: Includes an integrated brake chopper to manage rapid deceleration or overhauling loads.
- I/O Interface: Offers 5 digital inputs, 1 analog input, and 1 relay output for external control wiring.

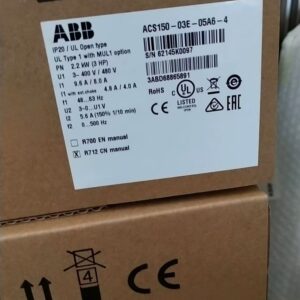

Brand New ABB ACS150-03E-05A6-4 Variable Frequency Drive (ACS150). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
The ABB ACS310-03E-17A2-4 is a general purpose low-voltage AC drive from the ABB ACS310 series (0.37 to 22 kW family), configured for three-phase 380 to 480 V AC supply and rated for a typical motor power of 7.5 kW (10 hp). It delivers a maximum continuous output current of 17.2 A (I2N, at 40 °C ambient without overloa
-

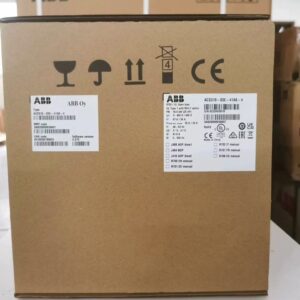

The ABB ACS310-03E-41A8-4 is the largest power class of the ABB ACS310 general purpose AC drive family (0.37 to 22 kW series), configured for three-phase 380 to 480 V AC supply and rated for a typical motor power of 18.5 kW (25 hp). It provides a maximum continuous output current of 41.8 A (I2N, at 40 °C ambient withou
-
REQUEST A QUOTE
- Power Rating: 1.1 kW (1.5 HP)
- Input Voltage Range: 3-Phase 380V to 480V AC
- Output Voltage Range: 3-Phase 0 to Input Voltage
- Output Frequency: 0 to 600 Hz
- Rated Output Current: 3.3 Amps
- Enclosure Rating: IP20 / UL Open Type
- Motor Compatibility: AC Induction & Permanent Magnet
- Integrated Safe Torque Off (STO): Built-in dual-channel SIL3/PL e compliant safety circuit eliminates the need for expensive external safety contactors.
- Sequence Programming: Allows the drive to execute independent, time- or event-driven state logic, drastically reducing the programming and I/O overhead required from an external PLC.
- Cabinet Optimization: Designed with a unified height and depth across the product framework, enabling side-by-side DIN-rail mounting to minimize physical cabinet space.
Brand New ABB ACS355-03E-03A3-4 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
