- Output Frequency Range: 0.1 to 400 Hz.
- Control Modes: Selectable Constant V/f mode or high-torque sensorless vector control.
- Overload Capacity: 150% for 60 seconds.
- Compact & Vertically Oriented: Features a vertical main circuit terminal block layout resembling a power distributor, making wiring straightforward and saving enclosure space.
- Energy Saving: Features an automated auto-energy-saving mode optimized for fans, pumps, and small machinery.
- User-Friendly Setup: Includes a "turn-and-push" setting dial and rapid access to standard configuration parameters.
- Durability: Rated for up to a 10-year operating life under standard industrial environments and supports ambient operating temperatures up to 60°C (with current derating).
- Communication: Includes a built-in RS-485 port supporting standard Modbus RTU communication.
VFNC3C-4004P TOSHIBA Variable Frequency Drive.
-
REQUEST A QUOTE
- Maximum Flow Rate: Up to 80 LPM (21 GPM).
- Maximum Operating Pressure: 350 bar (5076 PSI) at ports A, B, and P.
- Tank Port Rating: Up to 210 bar (3045 PSI) maximum.
- Power Consumption: 30 Watts.
- Seal Material: Standard Buna-N (Viton options exist under variant codes).
VICKERS DG4V-3-2N-M-U-H7-60 Solenoid Directional Valve (DG4V).
-
- Manufacturer: VICKERS
- Model / Part Number: DG4V-3-6C-M-U-H7-60
- Maximum Flow Rate: 80 L/min (21 US gal/min)
- Maximum Pressure at P, A and B Ports: 350 bar (5075 psi)
- Maximum Tank Port Pressure: 210 bar (3045 psi)
- Seal Material: Nitrile rubber
- Operating Temperature: -20 to 70 °C
-
REQUEST A QUOTE
- Mounting Interface: ISO 4401-03 (Size 03 / CETOP 3 / NG6 stackable)
- Maximum Operating Pressure: 4,500 psi (315 bar)
- Maximum Flow Rate: 16 USgpm (60 L/min)
- Cracking Pressure: 14.5 psi (1 bar)
- Body Material: Cast Iron
- Seal Material: Standard Buna-N (Viton variants available depending on strict industrial model suffixes)
- Design Series: 41 Series
- SB Industrial Supply: Carries new stock units ready for delivery SB Industrial Supply.
VICKERS DGMPC-3-ABK-BAK-41 Directional Control Valve (DGMPC).
-
REQUEST A QUOTE
Technical Specifications
- Voltage: 24V DC
- Power Consumption: 30W
- Core Inner Diameter (ID): 23mm to 23.5mm
- Length: 60 mm
- Electrical Connection: "G" DIN 43650 Connector
- Duty Cycle: Continuous duty
- Enclosure Protection: IP65–IP69K rated (with integrated connections)
- Alternative Part Numbers: 507848, H507848, H-507848, 103690, H 0507848
- Construction & Agriculture: Excavators, bulldozers, cranes, harvesters, and concrete pump trucks.
- Industrial Machinery: Hydraulic presses, punch machines, and injection molding systems.
- Material Handling: Conveyor belts and hydraulic lifting platforms.
- WiAutomation US: Offers the OEM Eaton Vickers 507848 Coil in new condition.
- FridayParts: Provides an Aftermarket Replacement Coil for H507848 designed for heavy equipment.
- WD Part: Stocks the Solenoid Valve Coil H507848 as a budget-friendly option.
Vickers H-507848 DC24V Solenoid Valve Coil (DG4V Series).
-
REQUEST A QUOTE

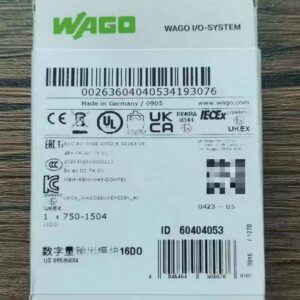

- Manufacturer: WAGO
- Model / Part Number: 750-1504
- Digital outputs: 16
- Output voltage: 24 V DC
- Output current: 0.5 A per channel
- Switching type: Positive switching
- Conductor size: 0.08–2.5 mm²
- Wire range: 28–14 AWG
- Strip length: 8–9 mm
- Dimensions: 12 × 64 × 100 mm (W × H × D)
- Weight: 49.5 g
-
REQUEST A QUOTE
- Function: Closes the communication path and marks the termination point of the module node.
- Mounting: 35mm DIN-rail mounting (Horizontal or Vertical orientation).
- Dimensions: 12 mm Width × 100 mm Length × 64 mm Height.
- Environmental Protections: IP20 safety protection rating; operating temperature range from 0°C to 55°C.
- Industrial Certifications: UL 508, ANSI/ISA 12.12.01, ATEX, CCC, KEMA, and CE conformity.
Wago 750-600 I/O End Module (750 Series).
-
REQUEST A QUOTE

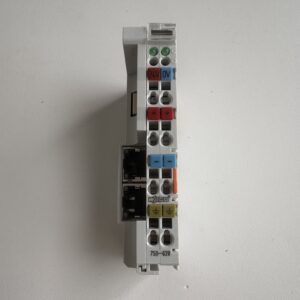

- Manufacturer: WAGO
- Model / Part Number: 750-628
- Function: Internal bus extension coupler
- Conductor cross-section: 0.08–2.5 mm²
- Wire range: 28–14 AWG
- Strip length: 8–9 mm
- Dimensions: 25 × 65 × 100 mm (W × H × D)
- Weight: 73.73 g
- Colour: Light grey
-
REQUEST A QUOTE
- Networking & Topology: Features two ETHERNET interfaces with an integrated switch. This hardware setup supports a line topology, eliminating the need for external network switches or hubs.
- Supported Protocols: Fully compatible with industrial standards like Modbus/TCP and EtherNet/IP for seamless integration with SCADA systems or Human-Machine Interfaces (HMIs).
- Programming Environment: Programmable to the IEC 61131-3 standard, primarily configured using CODESYS V2.3 software.
- Local Processing: It automatically detects connected digital and analog I/O modules, synthesizing them into a localized process image map.
- Onboard Configuration: Includes an integrated web server for status monitoring, diagnostic checks, and system configuration. A physical DIP switch allows manual hardcoding of the final byte of its IP address.
WAGO 750-881 Ethernet Controller (WAGO 750).
-
REQUEST A QUOTE
- Display: 7.0-inch resistive touchscreen with an 800×480 resolution.
- Core Hardware: High-performance quad-core CPU backed by 128MB Flash and 128MB RAM.
- Network Connectivity: Built-in Wi-Fi, 1x 10/100M Ethernet port, and cloud integration.
- Serial Interfaces: Multi-protocol COM ports supporting RS232, RS422, and RS485.
- Physical Layout: Standard industrial cutout sizing of 192.0×138.0 mm.
- Protection Rating: Front-panel IP65 rating, making it dust-tight and resistant to water splashes in rugged environments.
- V-NET Cloud Platform: Connects seamlessly to Wecon's proprietary V-NET Cloud platform. This enables global remote tracking, configuration updates, and online data logging.
- Mobile & Web SCADA Access: Operators can view real-time operations, trigger virtual buttons, and manage alarms directly via mobile devices using dedicated cloud apps.
- Flexible Project Uploads: Projects can be compiled and uploaded via standard USB cables, USB flash drives, local LAN, or fully remote over-the-air (OTA) cloud transfers.
Wecon PI3070ig（WIFI） IoT HMI with WiFi (PI3000ig Series).
-
REQUEST A QUOTE
- Module Type: Analog Output Module
- IP Rating: IP20
- Connection Type: PUSH IN
- Wire Connections: 2-wire, 3-wire, or 4-wire technology per plug-in connector
- Galvanic Isolation: 500 V DC between the current paths
- Interface: u-remote system bus (Max transmission speed: 48 MBit/s)
- Supply Voltage: 24 V DC
- Number of Channels: 4 analog outputs
- Resolution: 16-bit
- Accuracy: ±0.05% FSR (Full Scale Range End Value)
WEIDMULLER 1315680000 Analog Output Module (u-remote).
-
REQUEST A QUOTE
- Model/Type: PRO ECO 72W 24V 3A
- Output Power: 72 W
- Rated Output Voltage: 24 VDC (Adjustable from 22 V to 28 V)
- Nominal Output Current: 3 A @ 55 °C
- Efficiency: 87%
- Mounting Type: DIN Rail (TS 35)
- Protection Features: Short-circuit proof, overload protection, overheating protection, reverse/inverse voltage protection
- Status Indicators: Tri-colored LED (Green, Yellow, Red)
- Dimensions: 125 mm Height × 34 mm Width × 100 mm Depth
- Lifecycle Note: Official manufacturer data indicates this specific part number is scheduled for phase-out/end of life, with the recommended drop-in replacement being the Weidmüller 3025560000 (PROeco II Series).
WEIDMULLER 1469470000 Power Supply (PRO ECO).
-
REQUEST A QUOTE
- Series & Model: Klippon® A Series, A2T 2.5 Weidmüller E-Shop
- Connection Type: PUSH IN (Spring connection) Weidmüller E-Shop
- Rated Voltage: 800 V (AC/DC) Gabby Electric
- Rated Current: 24 A (IEC) iAutomation
- Clamping Wire Range: 0.14 mm² to 2.5 mm² (up to 4 mm² solid core) Gabby Electric
- Wire Gauge Compatibility: #28 AWG to #12 AWG iAutomation
- Number of Levels / Clamps: 2 Decks / 4 Clamping points (2 per level) Gabby Electric
- Mounting Type: Snap-on TS 35 DIN Rail (5.1 mm block width) iAutomation
- Color: Dark Beige Gabby Electric
- End Plate Required: The open side of the final terminal block unit must be safely closed using a compatible end cover plate.
- Potentials: The top and bottom levels are not cross-connected internally, meaning they maintain two independent electrical paths.
- Factory Lead-Time: 8 Weeks.
Weidmuller 1547610000 A2T 2.5 Feed-Through Terminal Block (A2T Series).
-
REQUEST A QUOTE
- Input Type: PT100 / Ni100 (2-, 3-, or 4-wire configuration), resistors, and potentiometers
- Output Signal: Analogue DC signals of 0(4) to 20 mA or 0 to 10 V
- Configuration: Configured manually via onboard DIP switches
- Physical Housing: 17.5 mm width add-on housing designed for TS35 DIN rail mounting
- Connection Type: MNT Screw connection with a nominal cross-section of 2.5 mm²
- Protection Rating: IP20
- Official Alternative: Weidmüller recommends part number 1176030000 as the direct modern replacement.
WEIDMULLER 8560700000 RTD Isolating Transformer (WAS5).
-
REQUEST A QUOTE

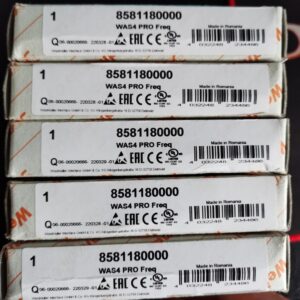

- Manufacturer: Weidmüller
- Model / Part Number: WAS4 PRO FREQ
- Order number: 8581180000
- Input: Frequency
- Output: Current or voltage
- Supply: 24 V DC ±25%
- Galvanic isolation: 3-way
- Nominal consumption: 0.5 VA
- Maximum consumption: 1.6 W at 20 mA output
- Protection: IP20
- Rail: TS35
- Connection: Screw
- Conductor range: 0.5–2.5 mm²
- Terminal torque: 0.4–0.5 Nm
- Dimensions: 12.5 × 92.4 × 112.4 mm
- Net weight: 118.7 g
- Operating temperature: 0 to +55 °C
- Storage temperature: −20 to +85 °C
-
REQUEST A QUOTE

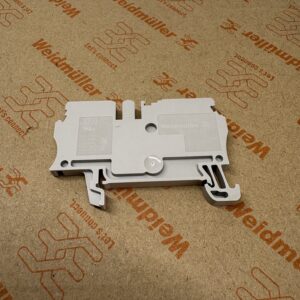

- Manufacturer: Weidmüller
- Model / Part Number: ZDU 2.5
- Order number: 1608510000
- Connection: Tension clamp
- Rated cross-section: 2.5 mm²
- Rated voltage: 800 V
- Rated current: 24 A
- Colour: Dark beige
- Width: 5.1 mm
- Height: 59.3 mm
- Depth: 38.5 mm
- Depth including DIN rail: 39.5 mm
- Net weight: 6.925 g
