Showing 193–208 of 1316 results
-
- Manufacturer: Autonics
- Model / Part Number: TK4H-14CN
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification (universal): Thermocouple K/J/E/T/B/R/S/N/C/G/L/U & Platinel II; RTD DPt100, DPt50, JPt100, Cu100, Cu50, Nickel 120 ohm; Analog 0-100 mV, 0-5 V, 1-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Sampling cycle: 50 ms
- Control output 1: Selectable current (DC 0/4-20 mA) or SSR drive (11 VDC) output
- Option input / option output: Option input: CT, Digital (DI-1/2); Option output: Alarm 1
- Power voltage: 100-240 VAC~ 50/60 Hz
- Protection structure: IP65 (front panel)
- Display accuracy: TC/RTD: +/-0.3% or +/-1 deg C (+/-1 digit) at room temp (23+/-5 deg C); Analog: +/-0.3% F.S. +/-1 digit
- Ambient environment: -10 to 50 deg C (storage -20 to 60 deg C), 35-85% RH
- Insulation: Double or reinforced insulation; dielectric strength 2 kV between measuring input and power parts
- Weight: Approx. 141 g (unit only; approx. 211 g including packaging)
-
REQUEST A QUOTE

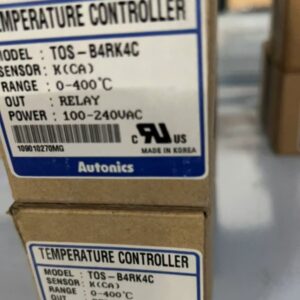

- Form Factor / Size: 1/16 DIN (48mm × 48mm)
- Power Supply Voltage: 100–240 VAC (±10%), 50/60 Hz
- Input Sensor Type: Thermocouple Type K (CA)
- Temperature Range: 0°C to 400°C
- Control Output: Relay Contact (SPDT / Single Pole Changeover)
- Control Method: ON/OFF or Proportional (P)
- Display/Setting: Analog Dial
- Built-in Safety: Burn-Out Function
Brand New AUTONICS TOS-B4RK4C Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Dimensions: 150mm × 150mm × 38mm
- Operating Voltage: 220V – 240V AC
- Current Draw: 0.16A / 0.17A
- Cross-References / Alternates: Also identified by model codes RAH1538B1-C1 or AS1538L-230M.
- Design Features: Built with lightweight, corrosion-resistant plastic housing and engineered for high-temperature resistance to protect continuous-duty industrial hardware.
Brand New AXIA RAH1538B1-C AC Axial Cooling Fan (RAH Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

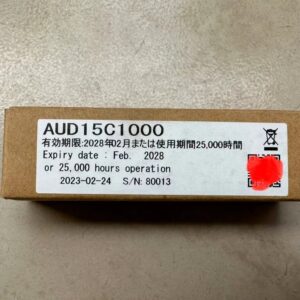

- Device Type: Ultraviolet photoelectric tube unit
- Operation Type: Batch operation
- Service Life: 25,000 hours of operation
- Ambient Temperature: −20 °C to +120 °C
- Storage Temperature: −20 °C to +70 °C
- Ambient Humidity: 90% RH at 40 °C (non-condensing)
- Allowable Pressure: Max 35 kPa
- Ingress Protection: IP65 (when properly connected to pipes/wires)
- Mounting Nut: G1 (compatible with R1 and 1-11BSP)
- Flame Signal Wire: Max length of 200 meters (using 2.0 mm² 600 Vac IV cable)
Brand New AZBIL AUD15C1000 UV Flame Detector Tube (AUD100/110 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

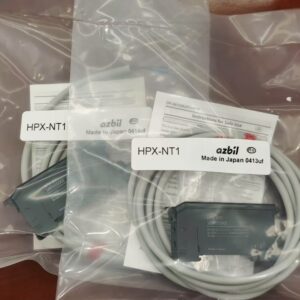

- Device Type: Fiber Optic Cable Sensor Amplifier.
- Input Voltage: 10 to 30 V DC.
- Light Source: Red LED.
- Output Configuration: NPN open collector.
- Control Function: Typically features fine-tuning threshold adjustments for precise target detection on fast-moving industrial lines.
- Newegg: New (Boxed)
- OKmarts Industrial: New
- Compatible Fibers: Typically pairs with the Yamatake HPF Series plastic or glass fiber optic cables (such as the threaded M6 HPF-D001 bifurcated core) to complete the sensor setup.
Brand New AZBIL HPX-NT1 Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Main Function: Communication bus expansion unit.
- Slot Configuration: Contains 1 x slot for a standard 32-bit PCI card.
- Card Compatibility: Specially designed to house PCI half-size expansion cards.
- Hardware System Compatibility: Exclusively compatible with the B&R Automation PC 910 (APC910) series industrial computer system.
- Standards and Certifications: Complies with CE, cULus, and maritime standards like DNV GL and Bureau Veritas.
Brand New B&R 5AC901.BX01-00 Connector Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Slot Configuration: 2 expansion slots total (1 PCI slot and 1 PCI Express slot).
- PCI Interface: 1 x 32-bit PCI slot supporting a 33 MHz clock and standard 2.2 half-size cards.
- PCI Express Interface: 1 x PCIe x8 slot (4 GB/s data transfer rate) supporting PCIe standard 2.0 half-size cards. It accepts x1, x4, and x8 physical PCIe devices.
- Architecture: Includes an integrated PCIe-to-PCI bridge feature to manage communication across both legacy and modern bus formats simultaneously.
Brand New B&R 5AC901.BX02-01 Connector Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Capacity: 60 GB
- Flash Memory Type: Multi-Level Cell (MLC) technology, balancing performance and write endurance.
- Interface Compatibility: SATA 3.1 compliant (backwards compatible).
- Performance: Up to 510 MB/s continuous read speed and up to 430 MB/s continuous write speed.
- Industrial Hardening: Features S.M.A.R.T. support for health monitoring, cULus HazLoc approval for hazardous environments, and an extended operational temperature rating from -40°C to +85°C.
Brand New B&R 5AC901.CSSD-03 Solid State Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Storage Capacity: 128 GB
- Flash Technology: Multi-level cell (MLC) flash memory
- Interface/Storage Type: SATA III / SATA 3.1 compatible
- Data Integrity & Diagnostics: Built-in Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) support
- Form Factor: Slide-in compact module
- System Compatibility: Designed for use in B&R Automation PC 910 (APC910) and Panel PC 900 (PPC900) system units.
- Continuous Read Speed: Max 510 MB/s to 520 MB/s
- Continuous Write Speed: Max 350 MB/s to 430 MB/s
- Shock Resistance: Rated for 1500 g for 0.5 ms
- Storage Temperature: -40°C to +85°C ambient air temperature
Brand New B&R 5AC901.CSSD-04 Solid State Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Capacity: 256 GB
- Flash Memory Type: Multi-level cell (MLC) technology
- Interface: SATA 3.1 compatible (SATA III)
- Performance: Maximum continuous reading speed of 510 MB/s and writing speed of 460 MB/s
- Operating Temperature: Rated for extreme environments ranging from -40°C to +85°C
- Monitoring: Built-in S.M.A.R.T. support for health monitoring and predictive failure analysis
- Certifications: cULus HazLoc approved for hazardous locations
Brand New B&R 5AC901.CSSD-05 Solid State Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Interface Types: 1x RS-232 / RS-422 / RS-485 interface.
- Automatic Switching: The operating mode adjusts automatically depending on the electrical connection.
- Connector Type: 9-pin D-Sub male connector.
- Operating Temperature: Rated for 0°C to +55°C ambient environments.
- Approvals: cULus HazLoc approved for hazardous locations.
- Automation Studio: Requires minimum version V3.0.90 or V4.0.16 to operate.
- Hypervisor Support: Fully supports the B&R Hypervisor starting with Automation Studio V4.4.
Brand New B&R 5AC901.I485-00 Interface Card. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Number: 5AC901.IHDA-00
- Primary Function: Audio Interface Option Card
- Sound Chip: High Definition Audio (HDA) chip
- Power Consumption: 0.4 W
- Audio Interfaces: • 1x Microphone Input (MIC)
- Connection Accessibility: Externally accessible audio channels
- Automation PC Series: Compatible with APC910, APC3x00, and APC4100.
- Panel PC Series: Compatible with PPC900, PPC3x00, Panel PC 3100, and Panel PC 3200.
Brand New B&R 5AC901.IHDA-00 Expansion Card. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Type: Interface Option Card / Communication Module
- Interfaces: 1x Ethernet POWERLINK interface (RJ45 connector)
- Network Speed: 100 Mbit/s
- Onboard Memory: 2 MB SRAM (Memory Capacity)
- Power Consumption: 1.5 W
- Operating Temperature: 0 to +55 °C
- Storage Temperature: -20 to +60 °C
- Hardware ID / Code: 0xE025 (57381)
- Certifications: CE, cULus (E115267), cULus HazLoc (E180196), DNV GL
- Automation PC Series: APC910, APC3100, APC3200, and APC4100
Brand New B&R 5AC901.IPLK-00 Expansion Card. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Primary Function: Memory interface option card
- Memory Capacity: 2 MB (2,032 kB available for user data; 16 kB reserved for Automation Runtime management)
- Memory Type: SRAM (Static Random-Access Memory)
- Power Consumption: 2 W
- Manufacturing Origin: Austria
- Official Data: View technical parameters on the official B&R 5AC901.ISRM-00 Product Page.
Brand New B&R 5AC901.ISRM-00 Expansion Card. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Function: Serves as a UPS interface card for industrial computers, specifically the Automation PC 910 as well as compatible APC3100, APC3200, and APC4100 series.
- Battery Pairing: Used in conjunction with the external maintenance-free lead-acid battery unit 5AC901.BUPS-01 (24 VDC, 2.2 Ah capacity).
- Power Ratings: Draws a maximum power consumption of 25 W with a rated DC input current of 0.9 A.
- Operating Temperature: Rated for ambient environments spanning 0 to +55 °C.
- Certifications: Holds cULus HazLoc (Hazardous Locations), CE, and cULus E115267 safety standards.
Brand New B&R 5AC901.IUPS-01 Expansion Card. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Primary Function: Link module / Graphic transmitter option
- Interfaces: 1 x DVI-D port / SDL interface
- B&R ID Code: 0xD853
- Power Consumption: 1 W
- Weight: Approx. 45 g
- Operating Temperature: 0 to +55 °C
- Storage Temperature: -20 to +60 °C
- Industrial Safety: CE, UKCA, cULus E115267 Industrial Control Equipment
- Marine Certifications: DNV GL, LR (ENV3), KR, ABS, BV (EC31B)
- Marine Environmental Ratings: Temperature Class B, Humidity Class B (up to 100%), Vibration Class A (0.7 g), EMC Class B (bridge and open deck)
Brand New B&R 5AC901.LSDL-00 Expansion Card. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
