- Manufacturer: BANNER
- Model / Part Number: OTBVP6QD
- Manufacturer: Banner Engineering
- Part Number: 28590
- Operating Voltage: 10–30 V DC (12–24 V DC Nominal)
- Output Type: Complementary PNP (1 Normally Open / 1 Normally Closed)
- Action Type: Momentary
- Connection Type: 4-pin 7/8"-16UN-2B MINI-style Quick Disconnect (Integral QD)
- Housing Materials: Polysulfone upper housing / Thermoplastic Polyester (Valox®) base
- Field Cover Color: Black
- Mounting Size: 30 mm threaded base (Flush mountable)
- Environmental Rating: IP66 / NEMA 1, 3, 4, 4X, 12, 13
- Certifications: CE, cULus Listed, CSA
- Operation Principle: The solid-state output activates as long as an object (such as a finger) is placed into the saddle/yoke area and interrupts the infrared sensing beam. No physical pressure is required.
- Required Cable: Quick disconnect models require a matching MBCC-412 cable (Part Number: 25226), which must be purchased separately.
- LED Diagnostics: Built-in LED lights indicate when power is on and when the output is actively triggered.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QDH
- Operation: Momentary action (activated only while the infrared beam in the yoke area is broken).
- Input Voltage: 10–30 V DC (12–24 V DC nominal).
- Connection Type: Integral 4-pin M12 Euro-style quick-disconnect (QD) connector.
- Housing Materials: Highly durable Polysulfone upper housing with a thermoplastic polyester base.
- Environmental Rating: NEMA 1, 3, 4, 4X, 12, 13, and IP66 moisture/dust protection.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Field Cover: Standard black field cover included to minimize accidental activations from ambient debris or dropped items.
-
- Manufacturer: Banner Engineering
- Model / Part Number: OTBVR81
- Series / function: OTB Series optical touch button, momentary action, single-point optical sensing
- Supply voltage: 20-30 V AC/DC
- Output: SPDT electromechanical relay; 5 conductors
- Connection: 2 m integral cable; base-mount saddle housing style
- Mounting: M30 x 1.5 mounting thread
- Response time: Max 100 ms input response; max 100 ms output response
-

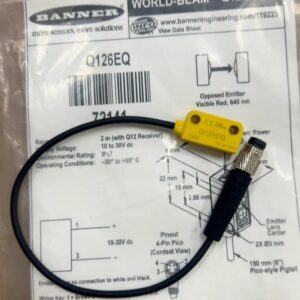

- Manufacturer: Banner
- Model / Part Number: Q126EQ
- Component Type: Emitter only (does not have a discrete electrical output).
- Sensing Mode: Opposed mode / Through-beam.
- Sensing Range: Up to 2 meters (approx. 6.5 feet).
- Sensing Beam: Visible red LED (640 nm wavelength).
- Input Voltage: 10–30 V DC (12V DC or 24V DC nominal).
- Connection Type: 150 mm (6 in) PUR Pigtail with a 4-pin M8 Pico-style quick disconnect connector.
-

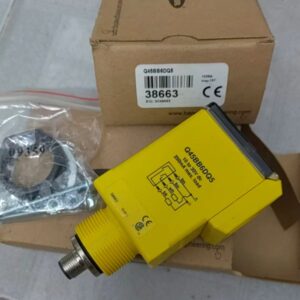

- Manufacturer: BANNER
- Model / Part Number: Q45BB6DQ5
- Sensing Range: Up to 450 mm (17.7 inches).
- Sensing Beam: Infrared LED (880 nm wavelength).
- Input Voltage: 10–30 V dc.
- Output Type: Bipolar discrete outputs (includes 1 NPN output and 1 PNP output).
- Connection Type: Integral M12 (Euro-style) 4-pin quick-disconnect connector.
- Environmental Protection: IP67 and NEMA 6P rated, making it highly resistant to dust and water submersion.
-

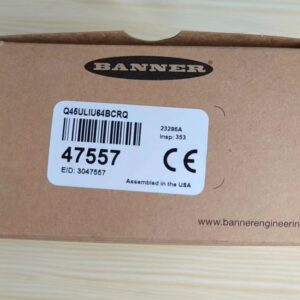

- Manufacturer: Banner
- Model / Part Number: Q45ULIU64BCRQ
- Sensing Range: It can detect objects from 250 mm to 3 meters (about 10 inches to 10 feet) away.
- Output Signal: Features a selectable analog output. You can set it to send either a 0–10 V DC voltage signal or a 4–20 mA current signal based on how far away an object is.
- Power Supply: It requires an input voltage of 15 to 24 V DC to run.
- Connection Type: Built with a 5-pin, 7/8-inch mini-style integral quick-disconnect connector rather than a hardwired cable.
- Durability Rating: It has an IP67 and NEMA 6P rugged design. This means it is highly protected against dust, heavy rain, and even brief underwater dipping.
- Liquid Level Tracking: Measuring how full a tank or container is from the top.
-

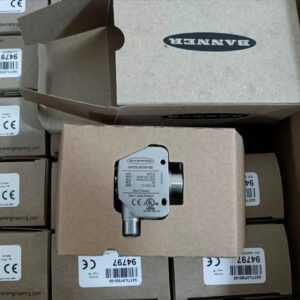

- Manufacturer: BANNER
- Model / Part Number: Q4XTILAF300-Q8
- Part Number: 94797
- Sensing Range: 25–300 mm
- Analog Output: 4–20 mA
- Emitter: Class 1 red laser, 655 nm
- Response Time: 500 µs
- Resolution: 1 mm; 0.5 mm repeatability
- Supply Voltage: 10–30 VDC
- Housing: 316L stainless steel
- Environmental Rating: IP67, IP68 and IP69K
- Operating Temperature: -10 to +50 °C
-
REQUEST A QUOTE
- Sensing Range: 25 mm to 300 mm (0.98" to 11.81")
- Light Source: Visible Red Class 1 Laser (655 nm)
- Sensing Mode: Proximity / Diffuse with Background & Foreground Suppression
- Input Voltage: 12 V DC to 30 V DC
- Output Type: Analog: 0 to 10 V
- Connection Type: 5-Pin Euro-style M12 Integral Quick Disconnect (QD)
- Housing Material: Heavy-duty Stainless Steel
- Ingress Protection: IP67, IP68, and IP69K (Washdown rated)
- Operating Temp: -10°C to +50°C (14°F to 122°F)
- Response Time: 0.5 ms minimum response time
BANNER Q4XTULAF300-Q8 Laser Distance Sensor (Q4X Series).
-

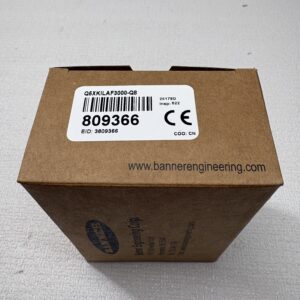

- Manufacturer: BANNER
- Model / Part Number: Q5XKILAF3000-Q8
- Sensing Range: 95 mm to 3,000 mm (0.31 ft to 9.84 ft)
- Sensing Beam: Visible red Class 2 laser (650 nm)
- Operating Voltage: 12–30 V DC
- Analog Output: 4–20 mA current output
- Discrete Output: Configurable PNP/NPN with IO-Link communication
- Connection Type: Integral 5-pin M12 quick-disconnect (QD) connector
- Housing Material & Rating: Rectangular ABS plastic housing with an IP67 environmental rating
-

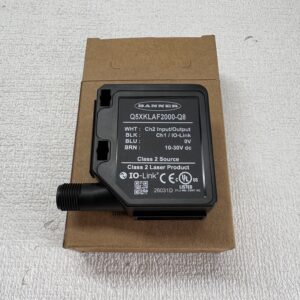

- Manufacturer: BANNER
- Model / Part Number: Q5XKLAF2000-Q8
- Sensing Range: 95 mm to 2000 mm (approximately 3.74 inches to 78.74 inches).
- Sensing Beam: Visible red laser (Class 2 classification).
- Input Voltage: 10 to 30 V DC.
- Outputs: 2 NPN/PNP configurable discrete (switched) outputs.
- Connection Type: Integral 4-pin M12 male quick-disconnect (QD) connector that can rotate 270°.
- Minimum Response Time: 3 milliseconds.
- Environmental Rating: IP67 rated housing.
- Housing Material: Rectangular shape made of ABS primary plastic.
- Special Features: Supports clear object detection, basic timing functions (hold/delay), and dual discrete operating modes.
-

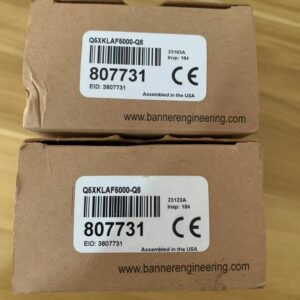

- Manufacturer: BANNER
- Model / Part Number: Q5XKLAF5000-Q8
- Sensing Range: 50 mm to 5,000 mm (0.05 to 5 meters).
- Sensing Light: Visible red laser (Class 2 laser).
- Sensing Mode: Proximity with background and foreground suppression.
- Input Voltage: 10 to 30 V DC.
- Connection Type: 4-pin M12 rotatable quick-disconnect (QD) connector.
- Environmental Protection: Rated IP67 for water and dust resistance.
- Background/Foreground Suppression: The sensor ignores background surfaces (like reflective walls or shiny metallic frames) or foreground obstructions, focusing strictly on the target object.
- Versatile Range: Capable of detecting objects from a few inches away up to 16.4 feet.
-
- Manufacturer: BANNER
- Model / Part Number: QCM50-K3D60-Q8-5
- Sensing Range: 20 mm to 150 mm (about 0.8 to 6 inches).
- Outputs: 3 discrete digital outputs that can be set as PNP or NPN.
- Communication: Built-in IO-Link technology, which lets the sensor send detailed data directly to a factory computer network.
- Connection: 5-pin M12 Euro-style quick-disconnect plug.
- Build Quality: Highly durable die-cast zinc housing with heavy-duty IP67 and IP69K waterproof ratings.
- Multi-Color Teaching: It features a special "TEACH" mode that can remember and differentiate up to 7 distinct colors.
- Dual Smart Modes: You can set it to Color Mode to look for a specific color within a custom tolerance range, or Best-Fit Mode to automatically sort items by deciding which taught color they match closest.
- Long Reach: Standard color sensors usually have to sit right next to an object, but this series can accurately read colors from several inches away.
-

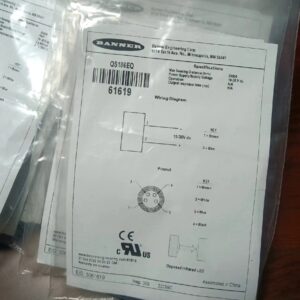

- Manufacturer: BANNER
- Model / Part Number: QS186EQ
- Sensing Range: Up to 20 meters (66 feet) in opposed mode.
- Power Input: Operates on 10 to 30 Volts DC.
- Connection Type: A 150 mm (6-inch) pigtail cable ending in a 4-pin M8 Quick Disconnect (QD) connector.
- Housing Design: Rectangular plastic shape with a standard 18 mm threaded barrel for universal mounting.
- Durability Rating: IP67 and NEMA 6 rated, meaning it is tightly sealed against dust and can handle getting wet in harsh industrial settings.
- Status Lights: Includes a bright green LED indicator to show when the power is safely turned on.
- Manufacturer Part Number: 61619.
-
REQUEST A QUOTE
- Sensing Mode: Opposed / Through-beam (Emitter Only)
- Sensing Beam: Visible Red Laser (650 nm)
- Laser Classification: Class 1
- Maximum Range: 30 meters (98.4 feet)
- Input Voltage: 10–30 V DC
- Output Type: Not Applicable
- Current Indicators: Green LED
- Housing Style: Rectangular with M18 Mount
- Materials: ABS Thermoplastic / PMMA Lens
- Connection Type: 2-meter (6.5 ft) Pre-wired Cable
BANNER QS186LE Laser Photoelectric Emitter (QS18 Series).
-

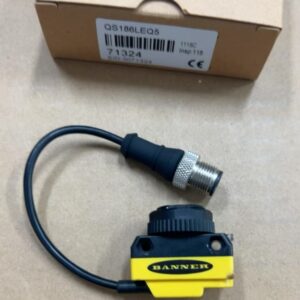

- Manufacturer: BANNER
- Model / Part Number: QS186LEQ5
- Function: Laser Emitter only (requires a matching receiver to complete the sensing system).
- Sensing Range: 30 meters (approx. 100 feet).
- Input Voltage: 10–30 V DC.
- Output: Not applicable (since it is an emitter, it does not send an output signal; the receiver handles the output).
- Connection Type: 150 mm (6 in) pigtail cable terminated with a 4-pin M12 Euro-style Quick Disconnect (QD) connector.
- Laser Class: Class 1 (safe under reasonably foreseeable conditions of operation).
- Housing Style: Rectangular shape with an M18 threaded barrel mount.
- Materials: Thermoplastic housing with a Polymethyl methacrylate (PMMA) lens.
- Environmental Rating: IP67 / NEMA 6 (highly dust and water-resistant).
- Operating Temperature: -10 °C to +50 °C.
- Indicator Lights: Green LED (Power ON), Yellow LED (Light sensed).
- Certifications: cURus, CE.
-

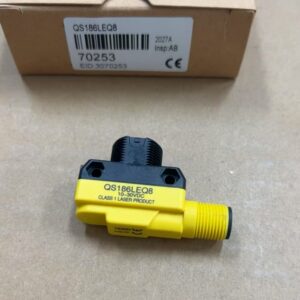

- Manufacturer: BANNER
- Model / Part Number: QS186LEQ8
- Sensing Mode: Opposed (Through-Beam) Emitter component only
- Sensing Range: Up to 30 meters (98.4 feet) High gain helps burn through dust and mist
- Operating Voltage: 10 to 30 V DC Compatible with standard 12V and 24V systems
- Current Rating: Up to 100 mA max Typical operating current draw
- Output Type: Not Applicable No output channels on the emitter block
- Connection Type: 4-Pin M12 Micro (Euro-Style) Integral Quick-Disconnect (QD)
- Housing Style: Rectangular body with a built-in M18 threaded barrel mount.
- Materials: Rugged ABS thermoplastic housing with a PMMA (acrylic) lens window.
- Environmental Rating: IP67 and NEMA 6 protection against dust and water submersion.
- Operating Temperature: -10°C to +50°C (14°F to 122°F).
- Indicators: Bright 360° visible status LEDs.
